Wired Networking

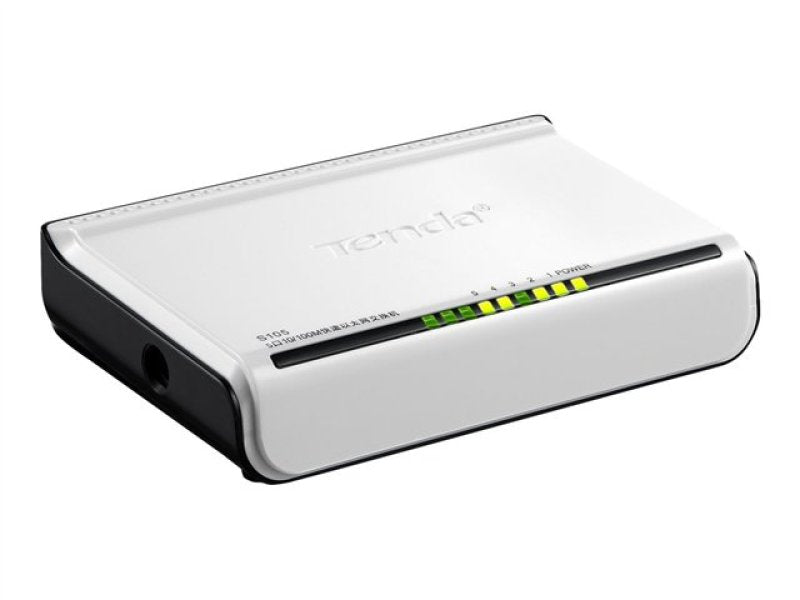

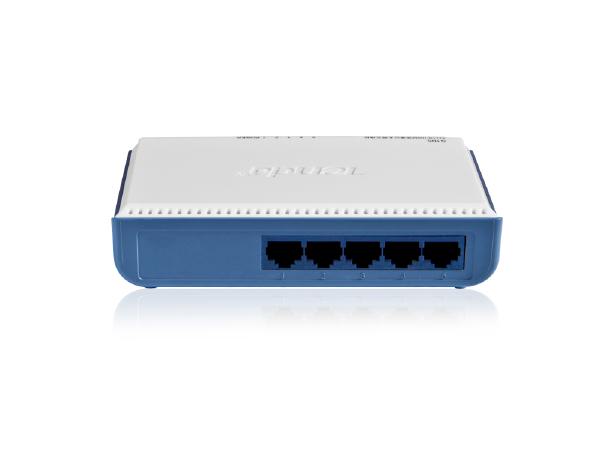

S105 Fast Ethernet Switch, MINI and exquisite, is specially designed for SOHO and small enterprise users. With easy installation, stable performance and high forwarding rate, it supports Auto MDI/MDIX and auto negotiates the port connection mode. In addition, studying/aging MAC address automatically and 2K MAC address table are also provided.

5-Port Fast Ethernet Switch

S105

1.Integrates 2K MAC address table
2.Supports MAC address studying/aging automatically
3.Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX Fast Ethernet standards

What It Does

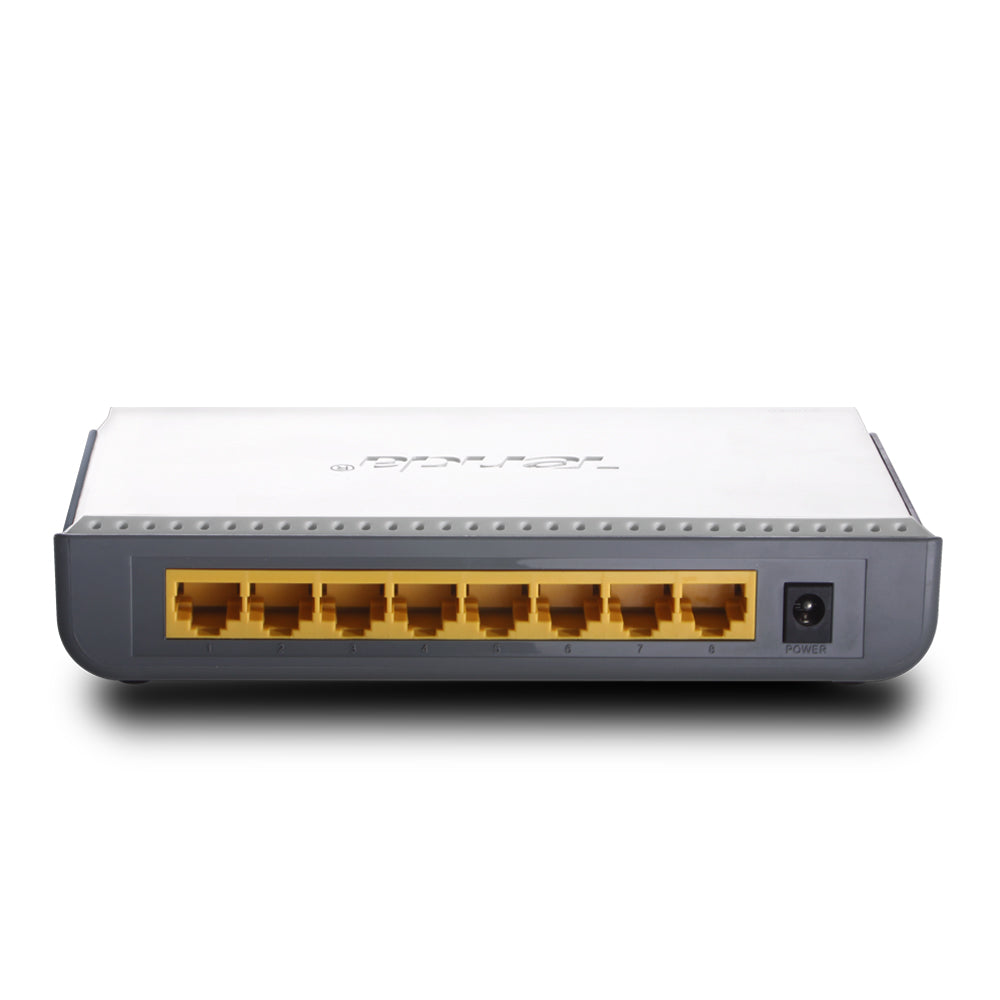

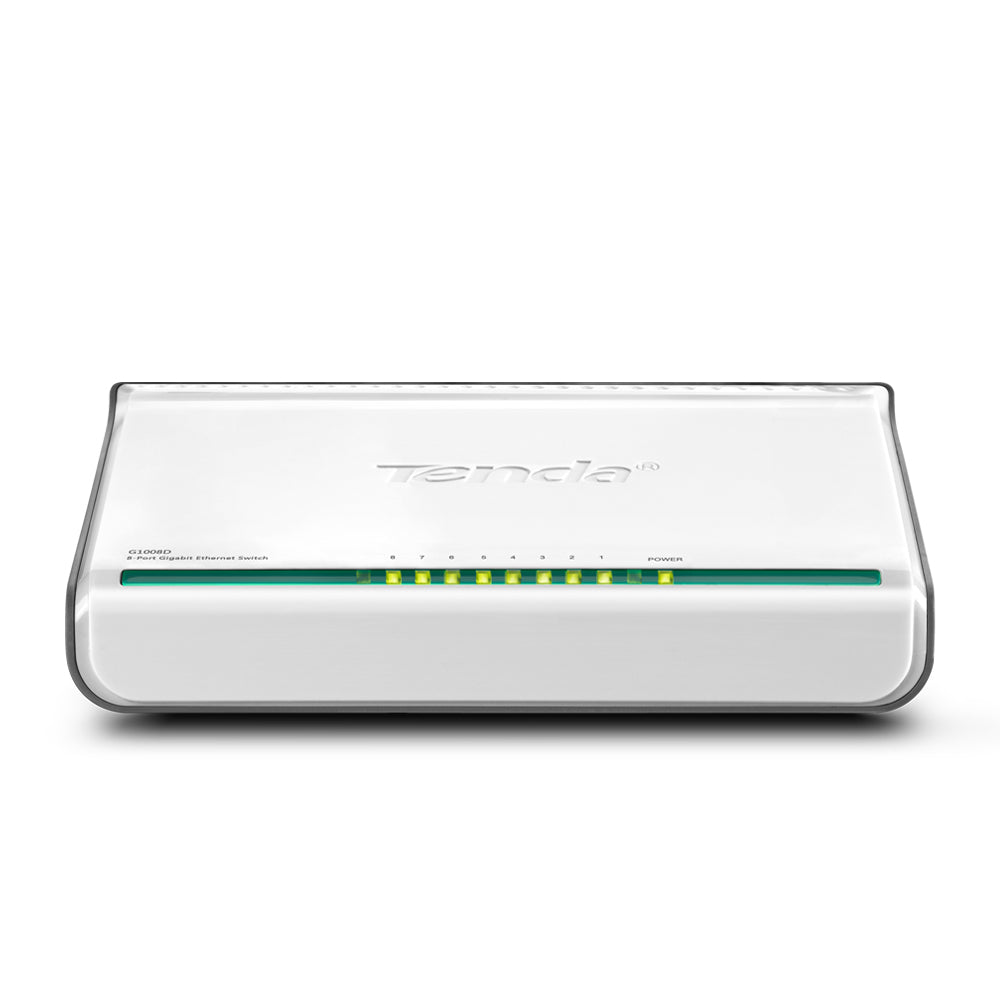

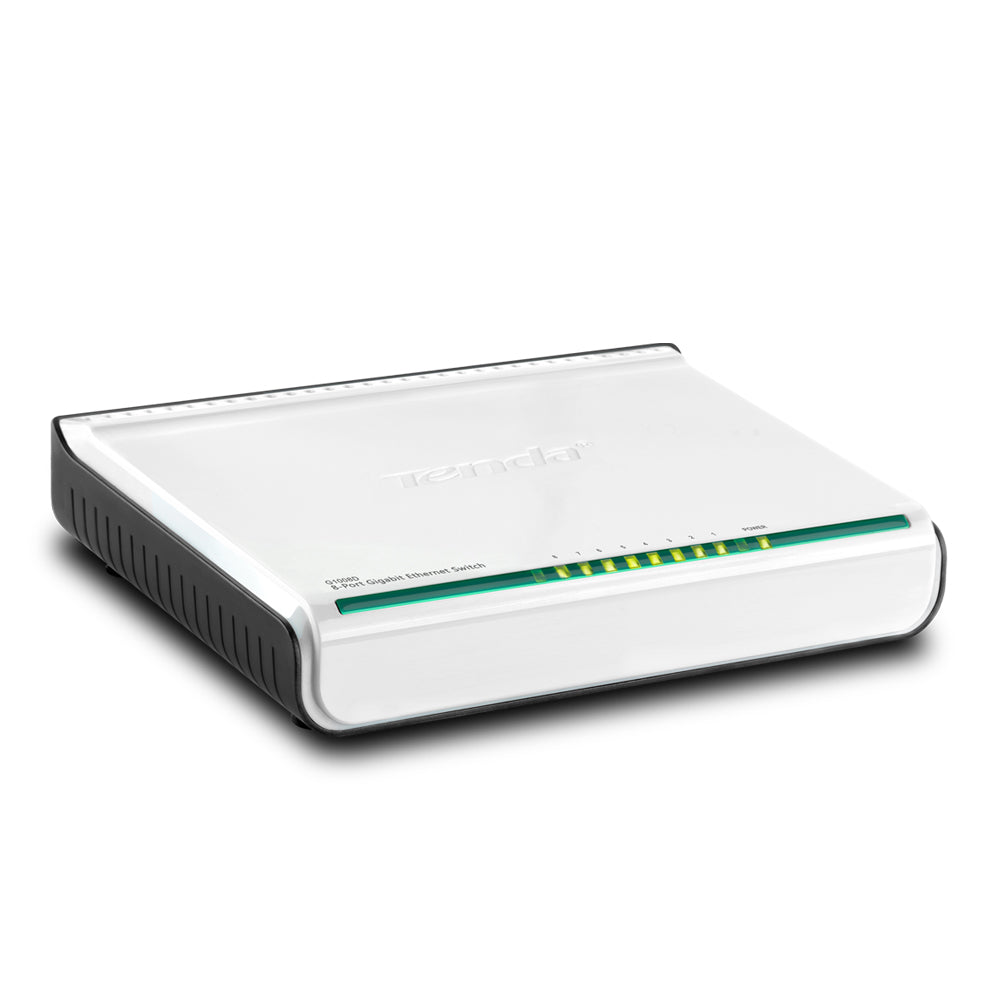

Expand your wired home network with the Tenda G1008D 8-Port 10/100/1000 Gigabit Switch. The G1008D is specially engineered to upgrade SOHO Ethernet network to Gigabit Ethernet connectivity at minimum cost and effort. By connecting the G1008D to your router, you can add up to seven more devices to your home network with Gigabit Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable. You can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

Gigabit Power, 10/100 Simplicity

8 Autosensing 10/100/1000Mbps switched ports support auto MDI/MDI-X crossover detection and wire speed forwarding and deliver up to 2000Mbps full duplex bandwidth on each port. Simple to combine Fast Ethernet and Gigabit devices in your network.

Combined Green & Fashion

Manufactured with natural and eco-friendly materials. Compact and sleek design fits well into any surroundings.

Standards & Protocols Compliance

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x.

Simple to Use

The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover. Plus, LEDs make it easy to monitor link, speed, and activity.

Keywords: networking, wired, gigabit

1.Integrates 1K MAC address table
2.Supports MAC address studying/aging automatically
3.Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX Fast Ethernet standards

HiLook TK-6285TC-MC 8-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 8-channel Analog DVR  with 8-ch IP Video Input (up to 16-ch if no Analog Channel used)
• DVR with Motion Detection 2.0: Human/Vehicle Analysis
• 2TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• 6 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
• High quality audio with audio over coaxial cable
• IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions

Cat 6 performance for a Gigabit Ethernet Network

Category 6, 4-Pair unshielded twisted pair

High quality 23AWG copper-Clad Aluminum
Length: 1000FT Per Colour Pull out Box
CMR RATED JACKET

Specification:
Enhanced 550MHz bandwidth |  PVC cable 23 AWG  | SOLID Copper-Clad Aluminum
Solid Tinned Copper Drain Wire
Conductor: Solid cable

Jackets Colours Available:  BLUE,GRAY,WHITE, BLACK

The Hikvision DS-2CD2085G1-I is a high-performance 4K Powered-by-DarkFighter Fixed Mini Bullet Network Camera designed for superior image quality and surveillance capabilities in various lighting conditions. Ideal for outdoor use, this camera leverages cutting-edge technology to provide clear and detailed video footage, ensuring reliable security monitoring day and night.

Quick Spec

Product Features

• ● 4K Ultra HD Resolution for enhanced image clarity
• ● Powered-by-DarkFighter technology for excellent low-light performance
• ● IP67 Rated Weatherproof Housing for outdoor use
• ● Up to 30m IR Range for night vision capabilities
• ● H.265+ Compression for efficient bandwidth and storage usage

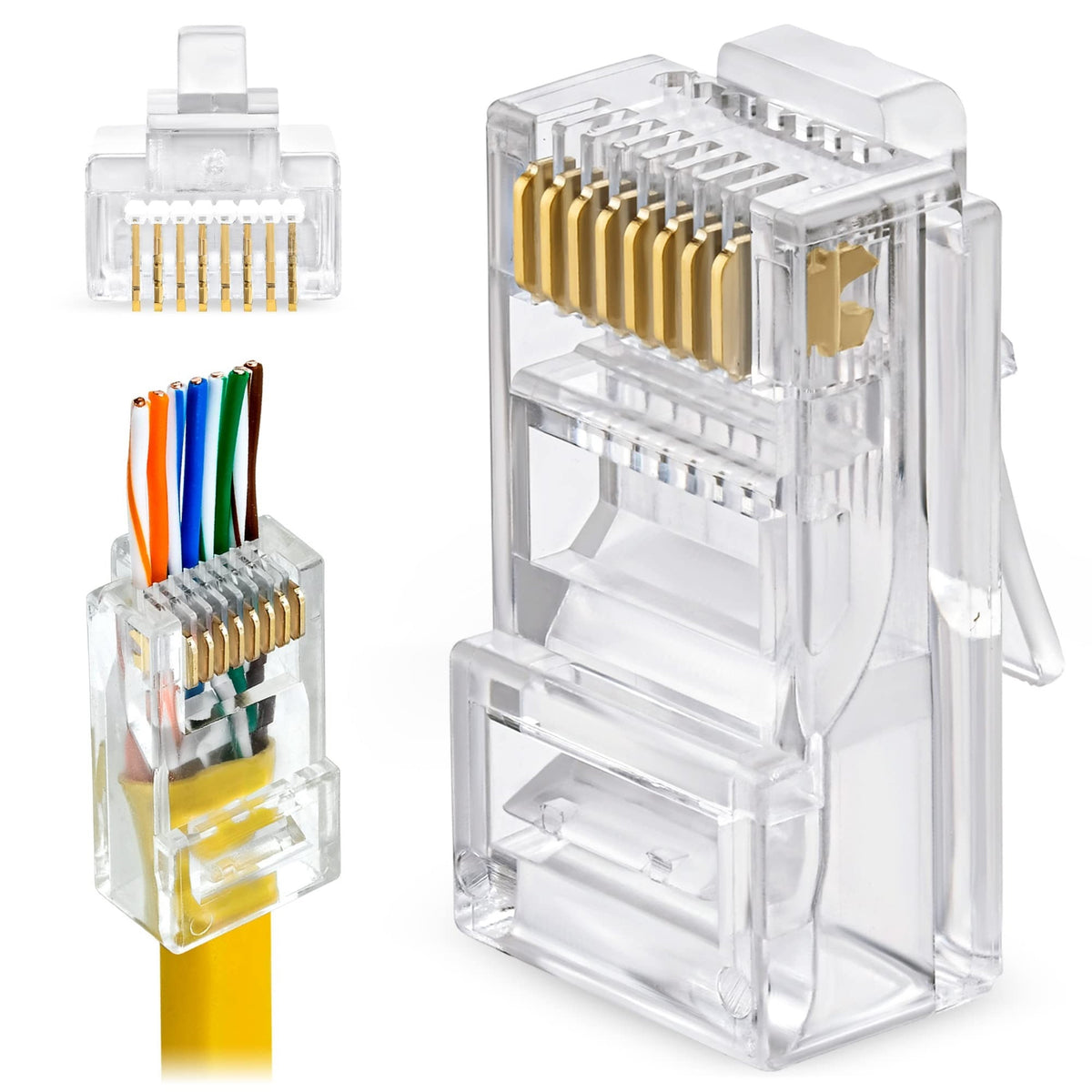

RJ45 8P8C CAT6 Plug Adapter Pass Through Type
Ideal for building custom Length that support speeds associated with Category 6 cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat6 or Cat6e Cable

Female to female Cat6 inline coupler can be used with Cat6, Cat5, Cat5e Ethernet cables

Features

• Fits all standard keystone wall plates and patch panels
• Unshielded for everyday use
• Extend your ethernet cables runs
• Snap in retaining clip for a secure fit

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• 8 analog channels and 1 HDD 1U DVR
• Efficient H.265 Pro+ compression technology
• Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 16 network cameras can be connected.

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input

4-ch (up to 12-ch)

Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch;

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS InputPAL/NTSC

HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous playback8-ch

Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 10 Mbps

Dual-streamSupport

Stream TypeVideo, Video & Audio

Audio CompressionG.711u

Audio Bitrate64 Kbps

Network

Total Bandwidth128 Mbps

Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection64

Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 10 TB capacity for each disk

USB InterfaceRear panel: 2 × USB 2.0

General

Power Supply12 VDC, 2 A

Consumption≤ 10 W (without HDD)

Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity10% to 90%

Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight≤ 1.6 kg (without HDD, 3.5 lb.)
