Antronix

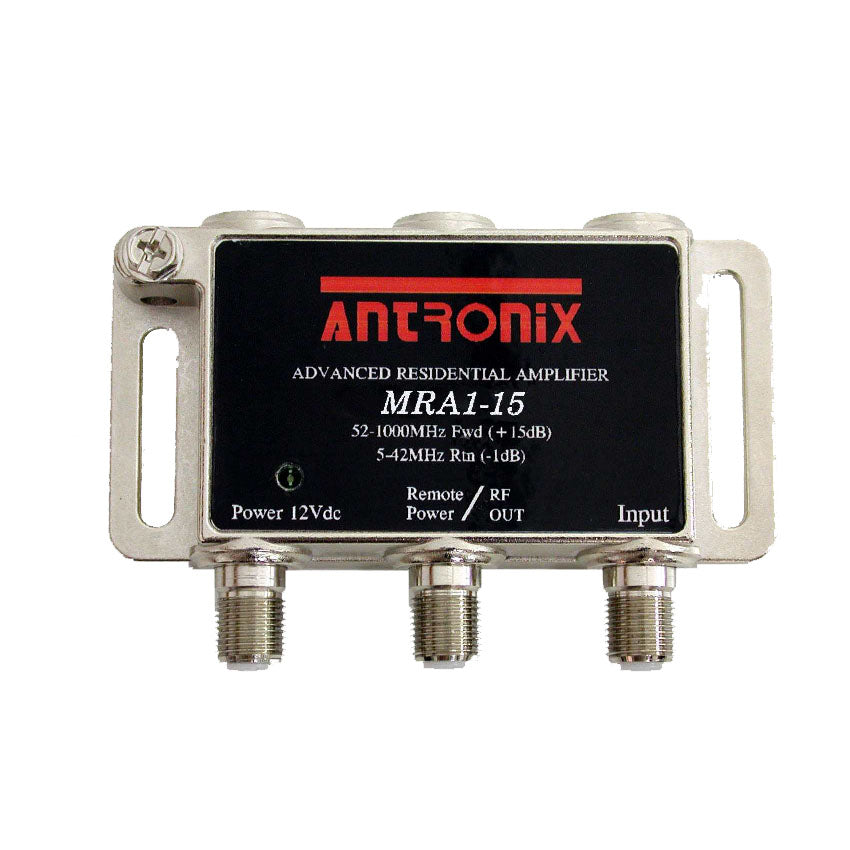

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

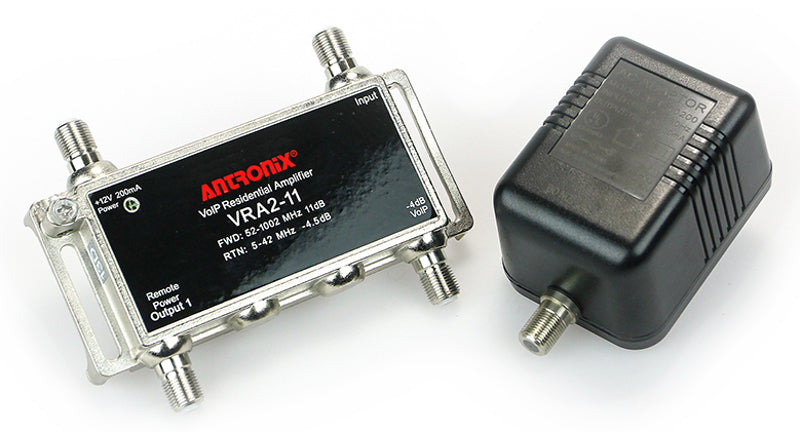

Antronix 2-Port Ultra Mini Residential Distribution Amplifier - microhousing, 2 port, +11dB , power adaptor included

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

Antronix 2-Port Ultra Mini Residential Distribution Amplifier - microhousing, 2 port, +11dB with Power Inserter

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

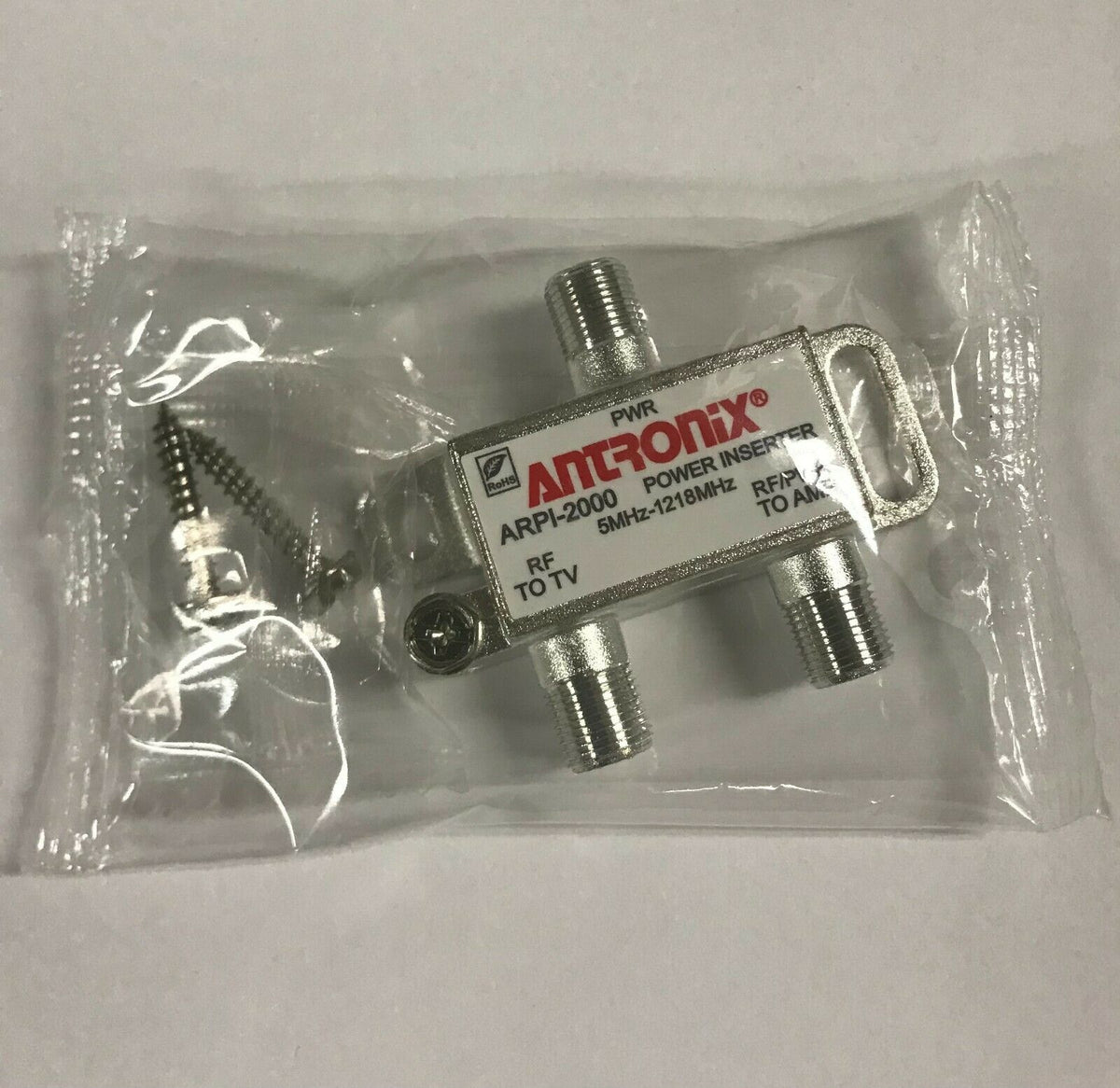

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

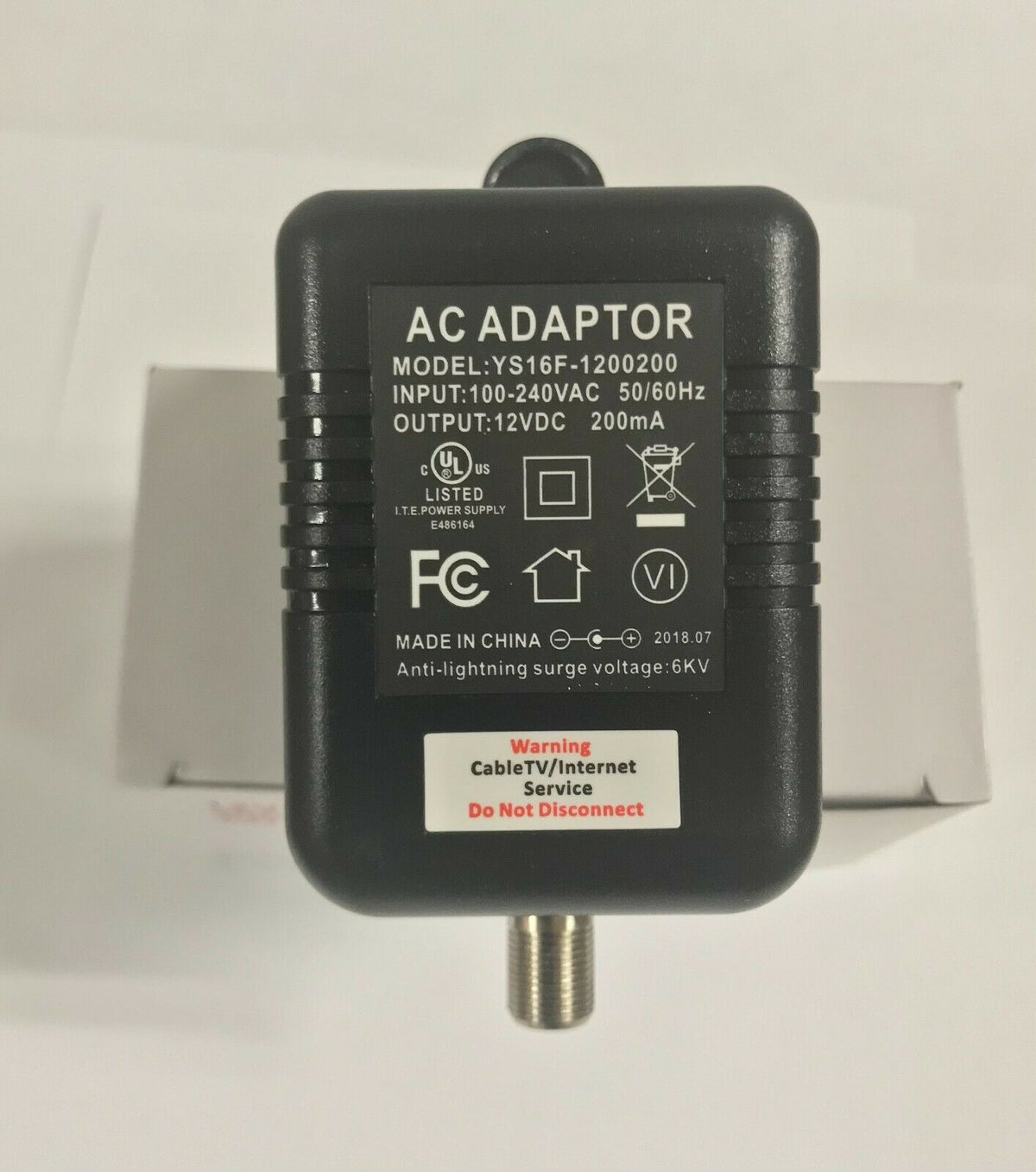

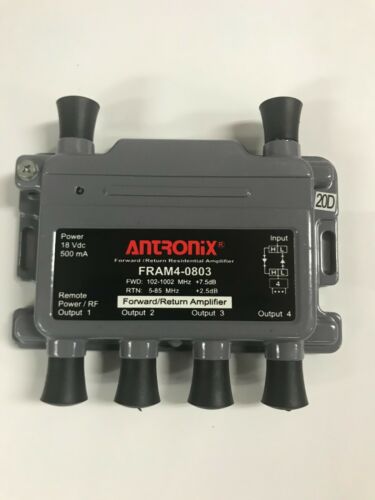

Antronix 4-Port Residential Amplifiers,+8dB forward gain, passive return, CamPort, power adaptor and power inserter included

Antronix’s FRA4-0803 provides both forward and return path amplification. The FRA was designed for applications such as cable modems and two-way set-top boxes. The FRA was the first forward and return amplifier to utilize the patented auto-seizing CamPort©. This SCTE compliant F-port provides maximum contact area and reliability for multimedia applications. With the capability to endure multiple high-power surges, the FRA4-0803 can operate in the harshest environments. The lightweight powder-coated AL 360 housing provides superior corrosion resistance for quality performance and long life.

Antronix 4-Port Residential Amplifiers,+8dB forward gain, passive return, CamPort, power adaptor and power inserter included

Antronix’s FRA4-0803 provides both forward and return path amplification. The FRA was designed for applications such as cable modems and two-way set-top boxes. The FRA was the first forward and return amplifier to utilize the patented auto-seizing CamPort©. This SCTE compliant F-port provides maximum contact area and reliability for multimedia applications. With the capability to endure multiple high-power surges, the FRA4-0803 can operate in the harshest environments. The lightweight powder-coated AL 360 housing provides superior corrosion resistance for quality performance and long life.

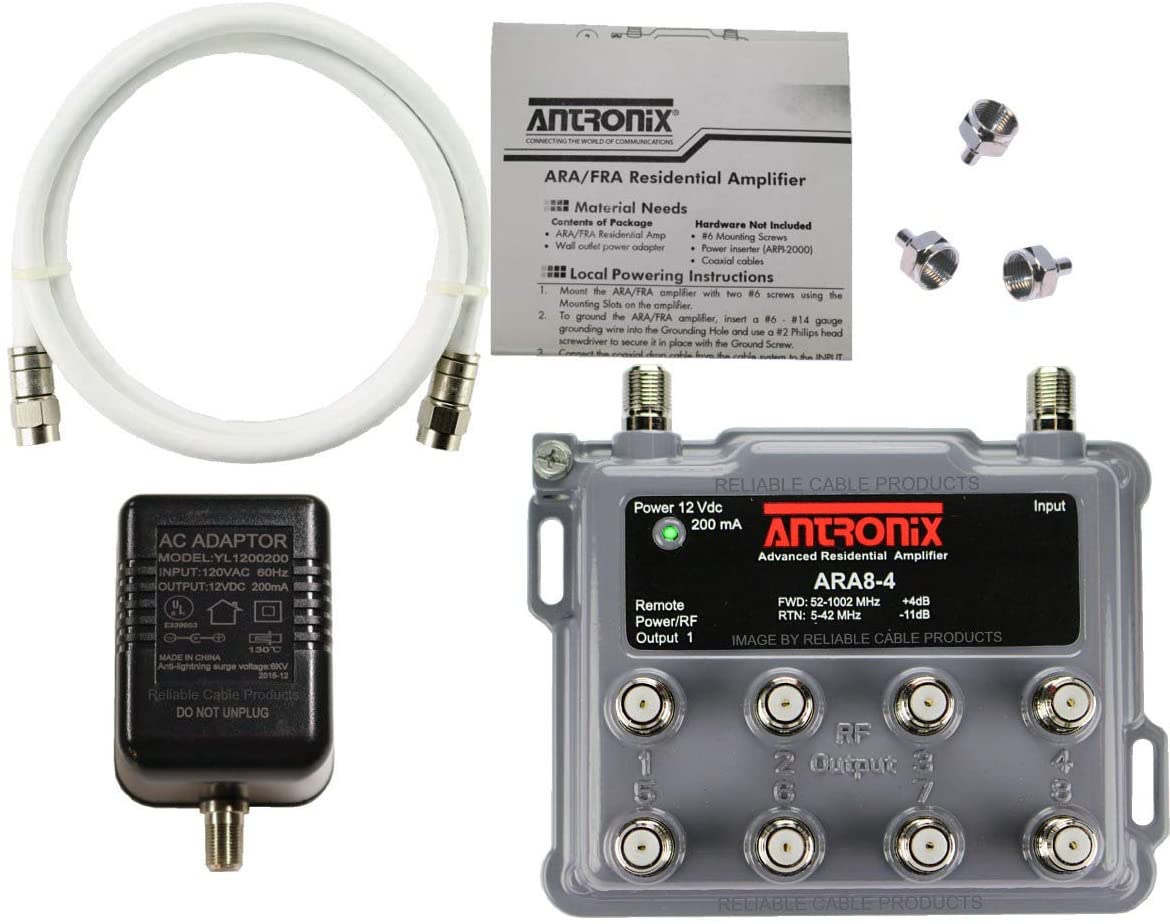

Antronix 8-Port Advanced Residential Amplifier,+3.8dB forward gain, passive return, CamPort, power adaptor included

The Antronix Advanced Residential Amplifier (ARA) was designed with the latest technology for reliable subscriber premise amplification. By using Gallium Arsenide technology, the ARA provides improved distortion and noise performance required for today’s bi-directional digital applications. This was the first residential amplifier to utilize the patented CamPort® to provide an auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the ARA was engineered to withstand the harshest environmental conditions with the capability of enduring repeated high power surges. The lightweight powder coated AL 360 housing provides superior corrosion resistance for years of quality performance

CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center connector for maximum reliability.

 • 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all RF ports without the use of arc gaps which may cause high impulse noise during discharge.

 • Gallium Arsenide Technology for Low Distortion Provides improved distortion and noise performance.

• Low Intermodulation Ferrites Proprietary ferrite blend inhibits re-magnetization of the core due to voltage spikes from impulse noise or lightning. This prevents high-level return carriers from affecting forward path video signals.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1000 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Weather Sealed Housing with RFI Gasket Guarantees repeatable 120 dB RFI shielding.

• Powder Paint Coated AL 360 Housing Provides the most corrosion resistant protection against salt fog and rust.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only
