PoE Networking

HiLook TK-6285TC-MC 8-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 8-channel Analog DVR  with 8-ch IP Video Input (up to 16-ch if no Analog Channel used)
• DVR with Motion Detection 2.0: Human/Vehicle Analysis
• 2TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• 6 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
• High quality audio with audio over coaxial cable
• IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions

HiLook IK-4248TH-MH/P 4-Channel 4K PoE NVR Kit - One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 4-channel PoE NVR with decoding up to 4-ch@1080p
• 4 4K fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• 5 network cables
• 2TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth
•  Professional and Reliability
• H.265+ compression effectively reduces the storage space by up to 75% HD Video Output  Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution Storage and Playback  2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
•  Smart search/smart playback to improve the playback efficiency Smart Function
• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) Network & Ethernet Access
•  8 independent PoE network interfaces  1 self-adaptive 10/100 Mbps Ethernet interface  HiLookVision for easy network management

HiLook IPC-T249HA 2.8mm 4MP ColorVu Lite Fixed Turret Network PoE Camera

Features:

• Motion 2.0 supports Human and Vehicle Detection
• High quality imaging with 4MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• 24/7 colorful imaging with 2.8 mm Lens, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°, and F1.0 super aperture
• Water and dust resistant (IP67)
• Easy installation with Power over Ethernet (PoE) technology
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions
• Must be used with a HiLook or Hikvision NVR

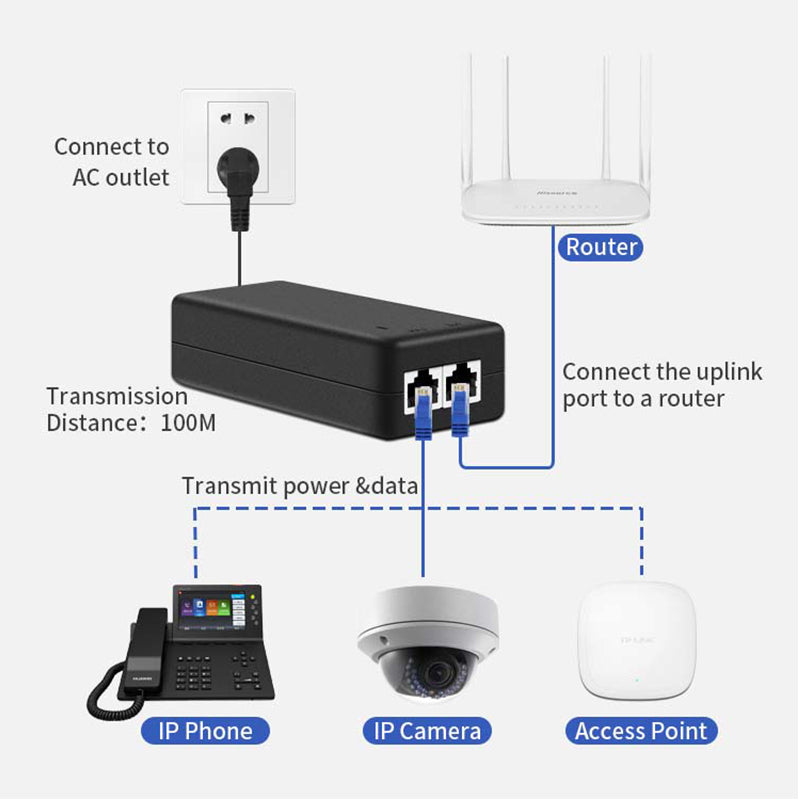

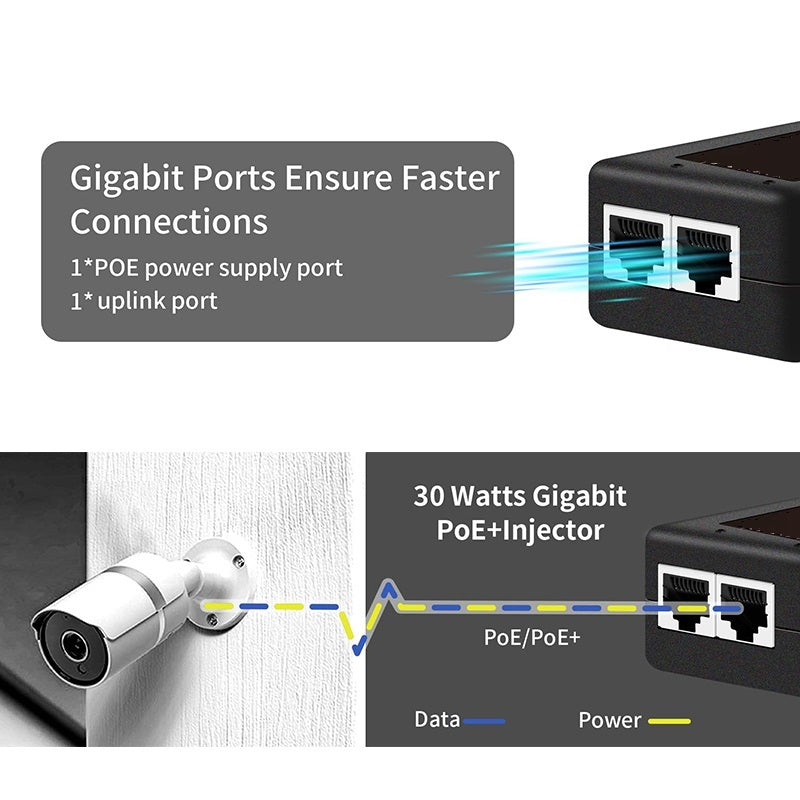

Input: AC110-240V~50/60hz 0.6A Max

PoE Output: DC52V----577MA

Standard: PoE+ IEEE802.3AF/AT

Max Transmission Distance: 100 meters

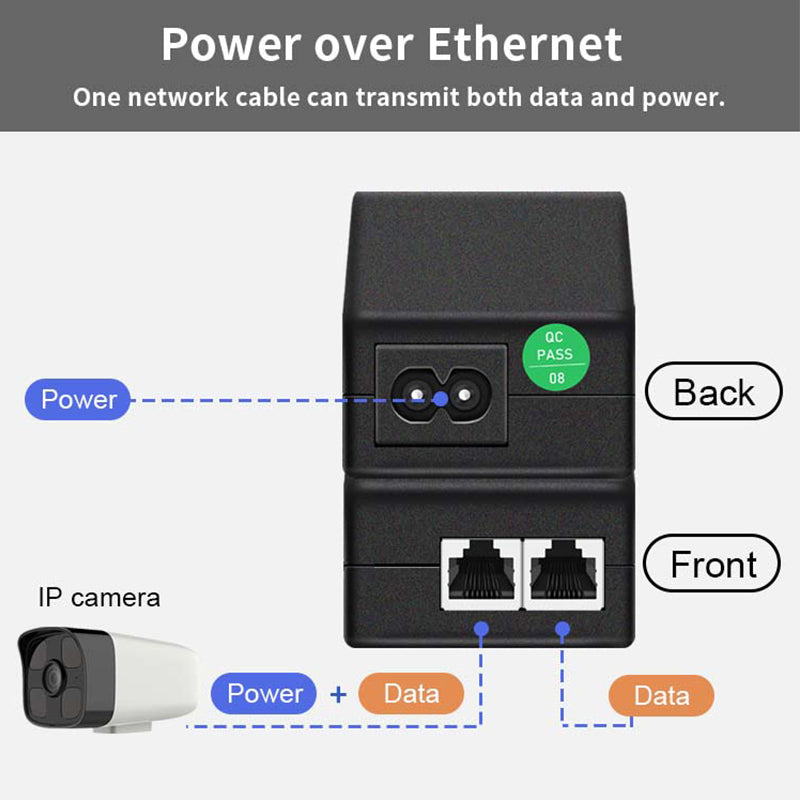

Ports:

• 1X2.5Gbps RJ45 data-in port
• 1X2.5Gbps RJ45 power+data-out port
• 1XAC socket

Package Contents:

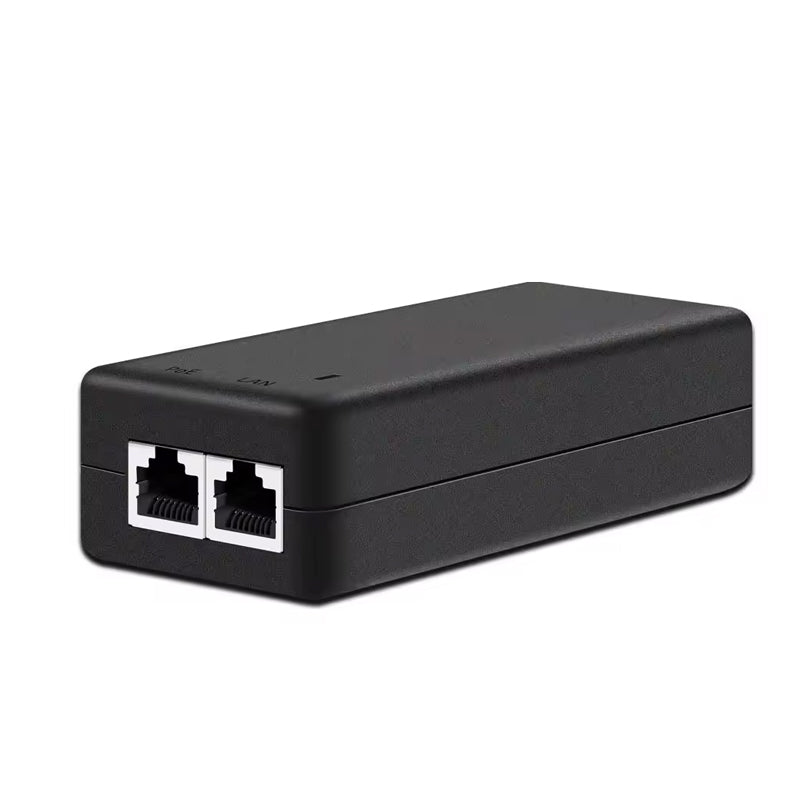

• 30W PoE+ Injector
• Installation Guide
• Power Cord

Environment:

• Operating Temperature: -10°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing

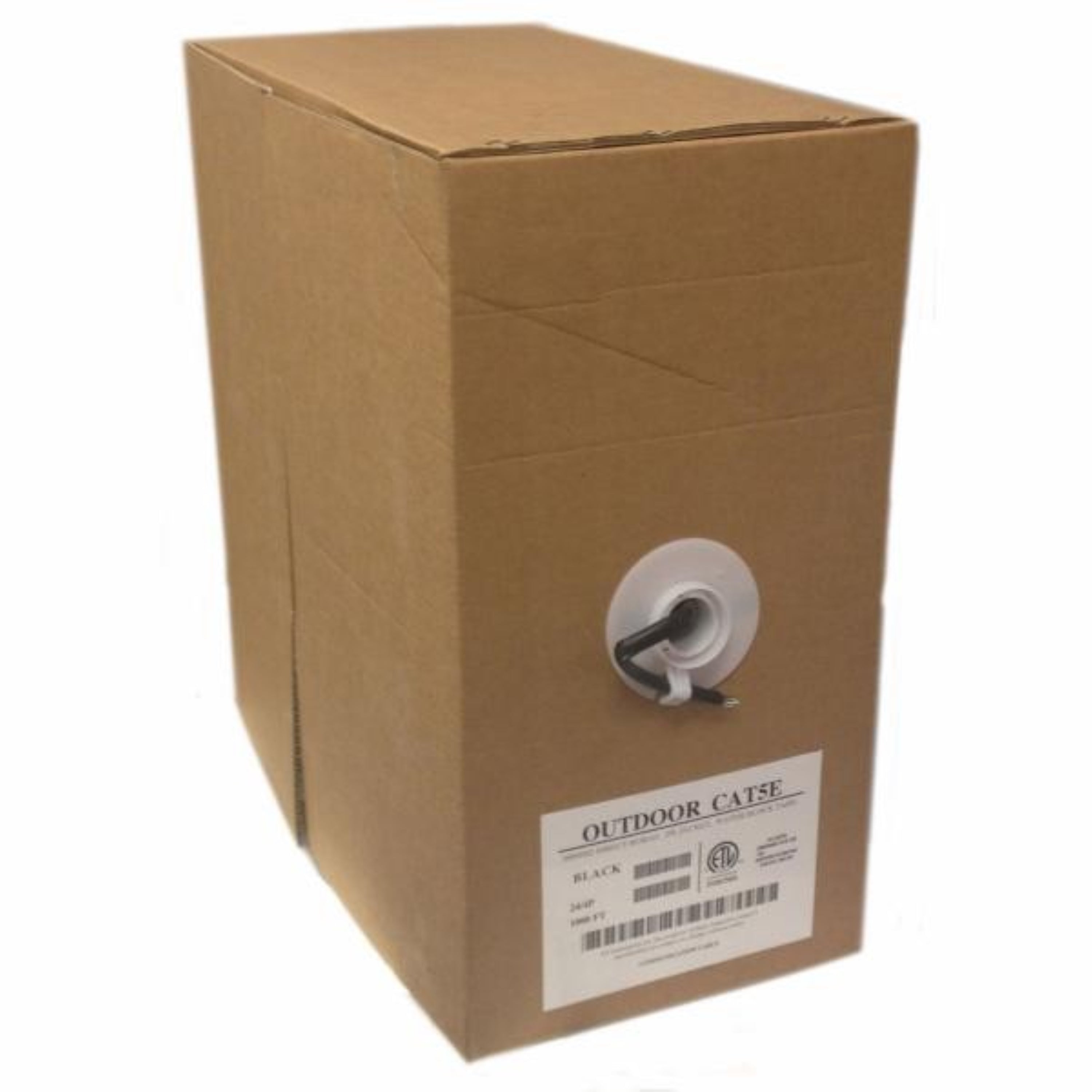

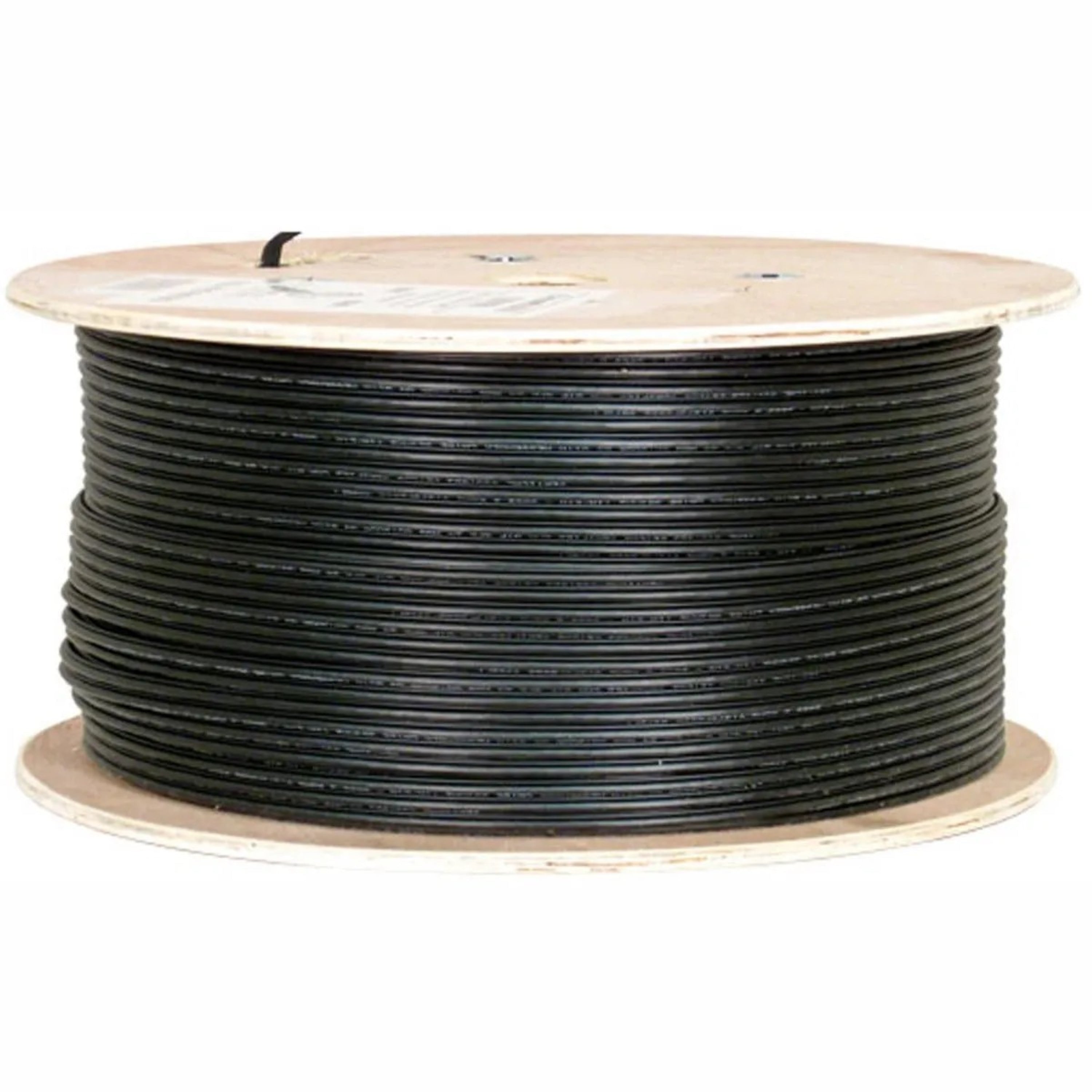

The 1000 ft. Solid UTP CAT5e Network Cable is perfect for outdoor direct burial with its durable PE jacket and water block tape. Offering high performance with 350MHz transmission speed, this cable can handle speeds of up to 1000 Mbps for reliable network connectivity. ETL listed and conforming to UL STD, this black cable is a dependable choice for outdoor networking needs.

350Mhz direct burial (PE jacket, water block tape)

CAT5e network cables transmit at up to 1000 Mbps

For outdoor direct burial

4 pair 24AWG UTP cable

Solid wire

ETL listed conforms to UL STD

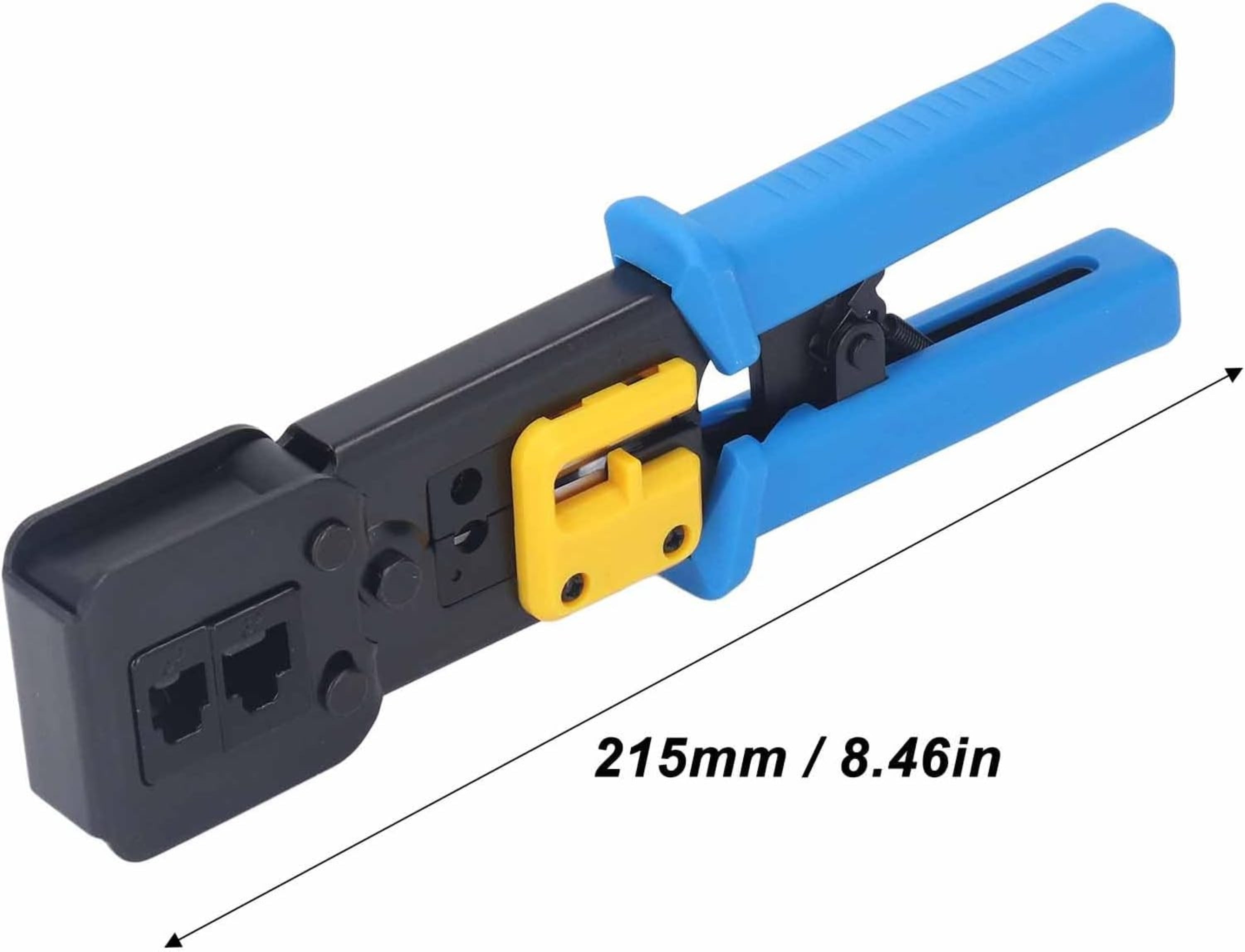

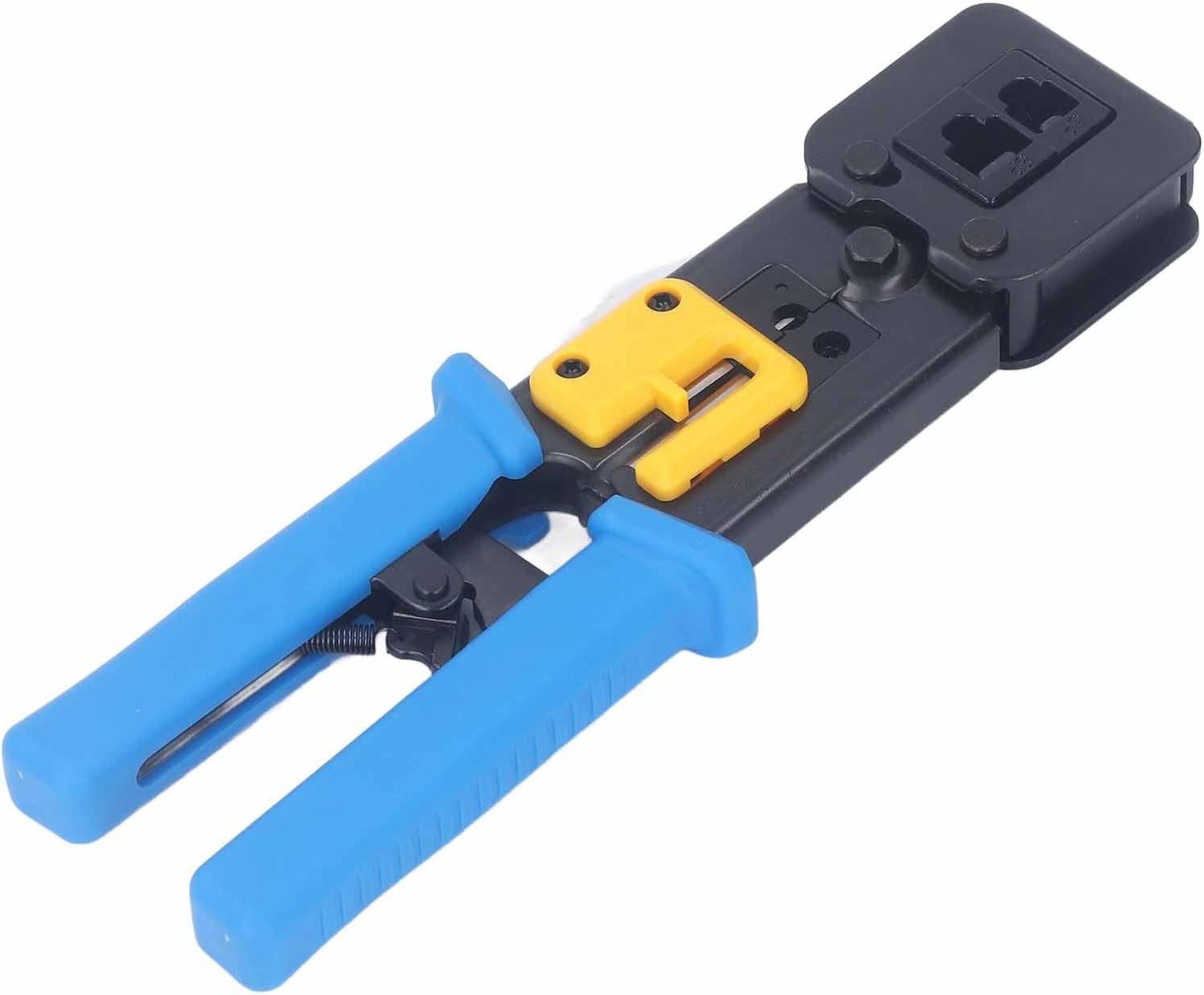

• High Compatibility: This Ethernet Crimper has been designed with high compatibility in mind. It is suitable for crimping 8P and 6P RJ connectors, making it perfect for a variety of tasks in the home or office. Whether you're setting up a new network or performing routine maintenance, this crimper will meet your needs efficiently.
• Versatile Functionality: This Crimper Tool is not limited to just crimping ethernet cables. It offers versatility for various tasks. Whether you need to cut, strip, or crimp cables, this tool can handle it all. Save time, effort, and money with this practical all-in-one solution for your cabling requirements.
• Easy to Use: Designed with user convenience in mind, this Ethernet Crimping Tool is extremely user-friendly. Its comfortable, easy-grip handles and straightforward operation make it suitable for users of all experience levels. Whether you're a novice or a professional, you can easily handle this tool for your network cabling needs.
• Durable Design: Crafted with high-quality materials, this RJ Connector Crimping Tool is built to last. Its hardened steel frame and rust-resistant finish ensure durability and longevity, making it a valuable addition to your toolkit. Rest assured that this tool will withstand the rigors of regular use for years to come.
• Reliable Performance: Our crimping tool provides optimal performance and ensures reliable connections. The built-in ratchet mechanism guarantees proper crimping force, reducing the risk of over-crimping or under-crimping that can to connectivity issues. You can trust this tool to deliver consistent and secure connections every time.

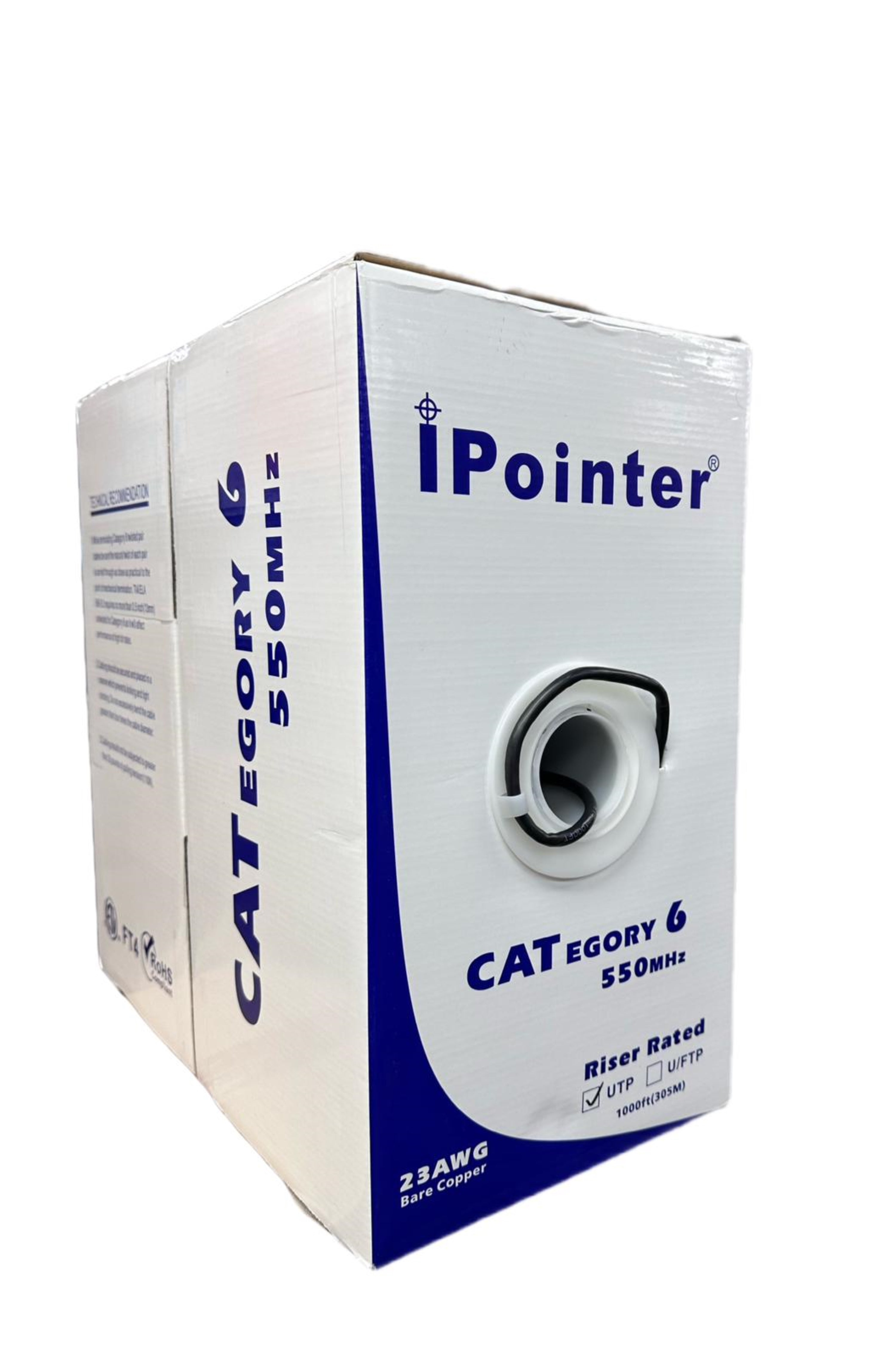

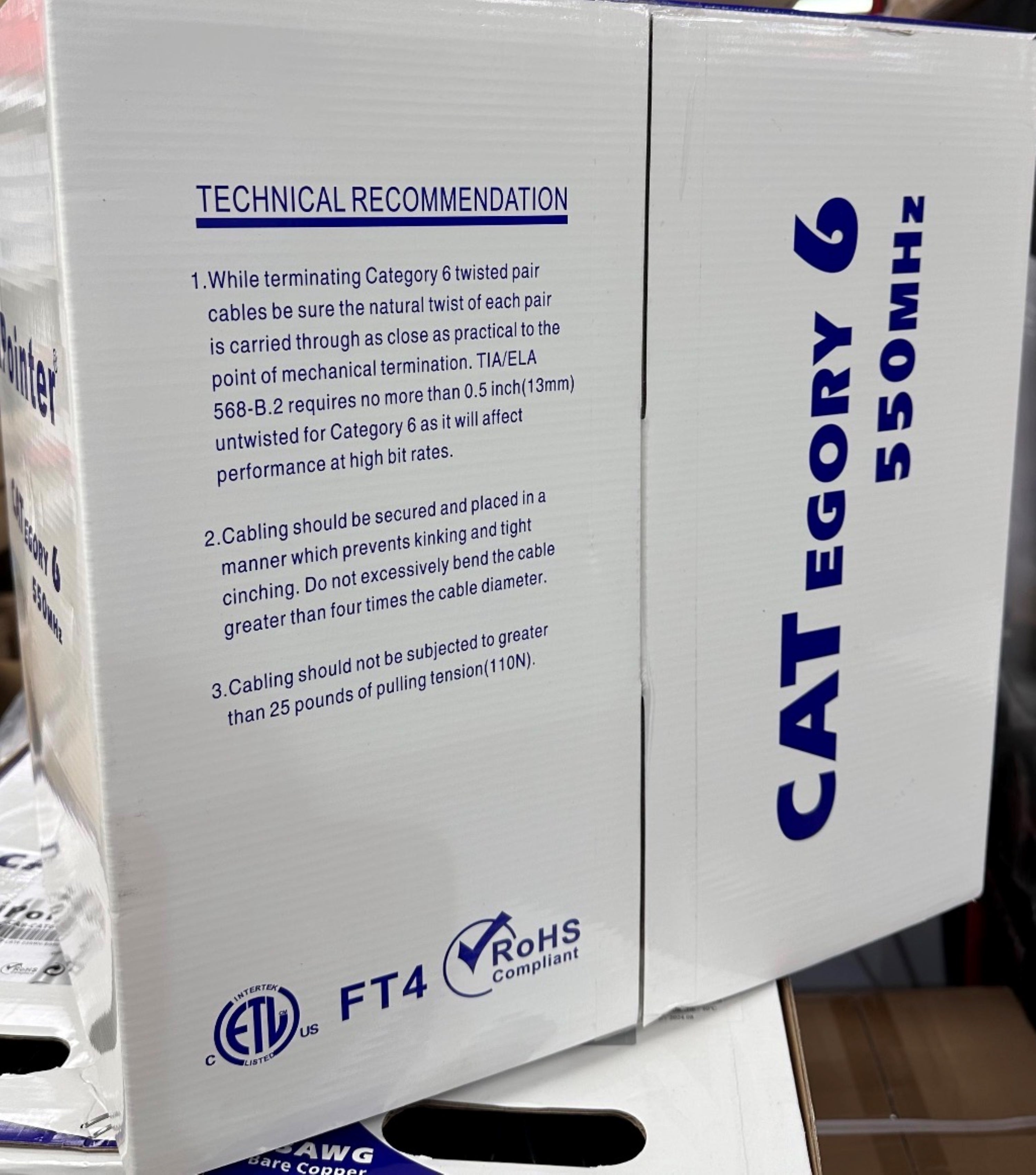

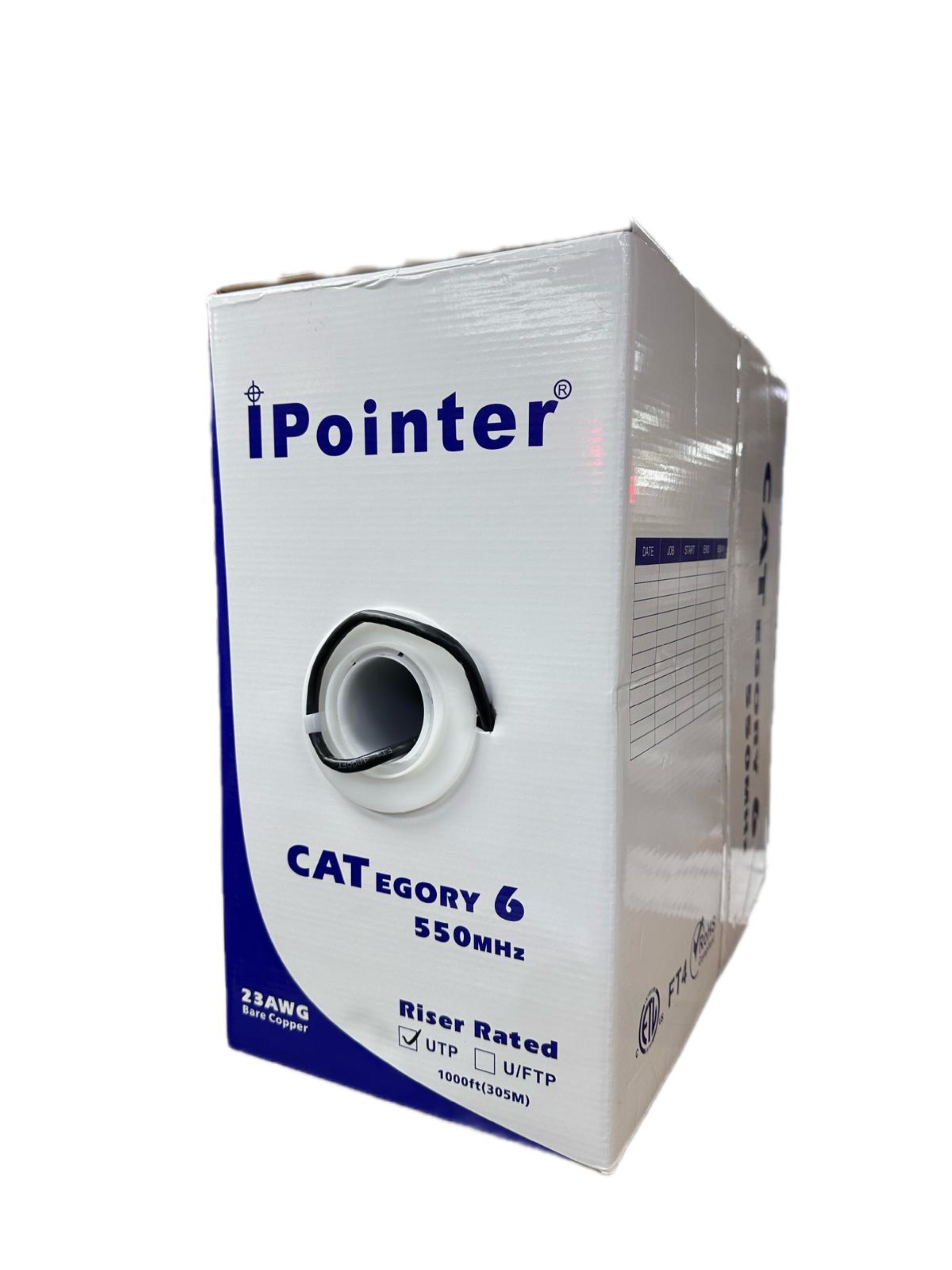

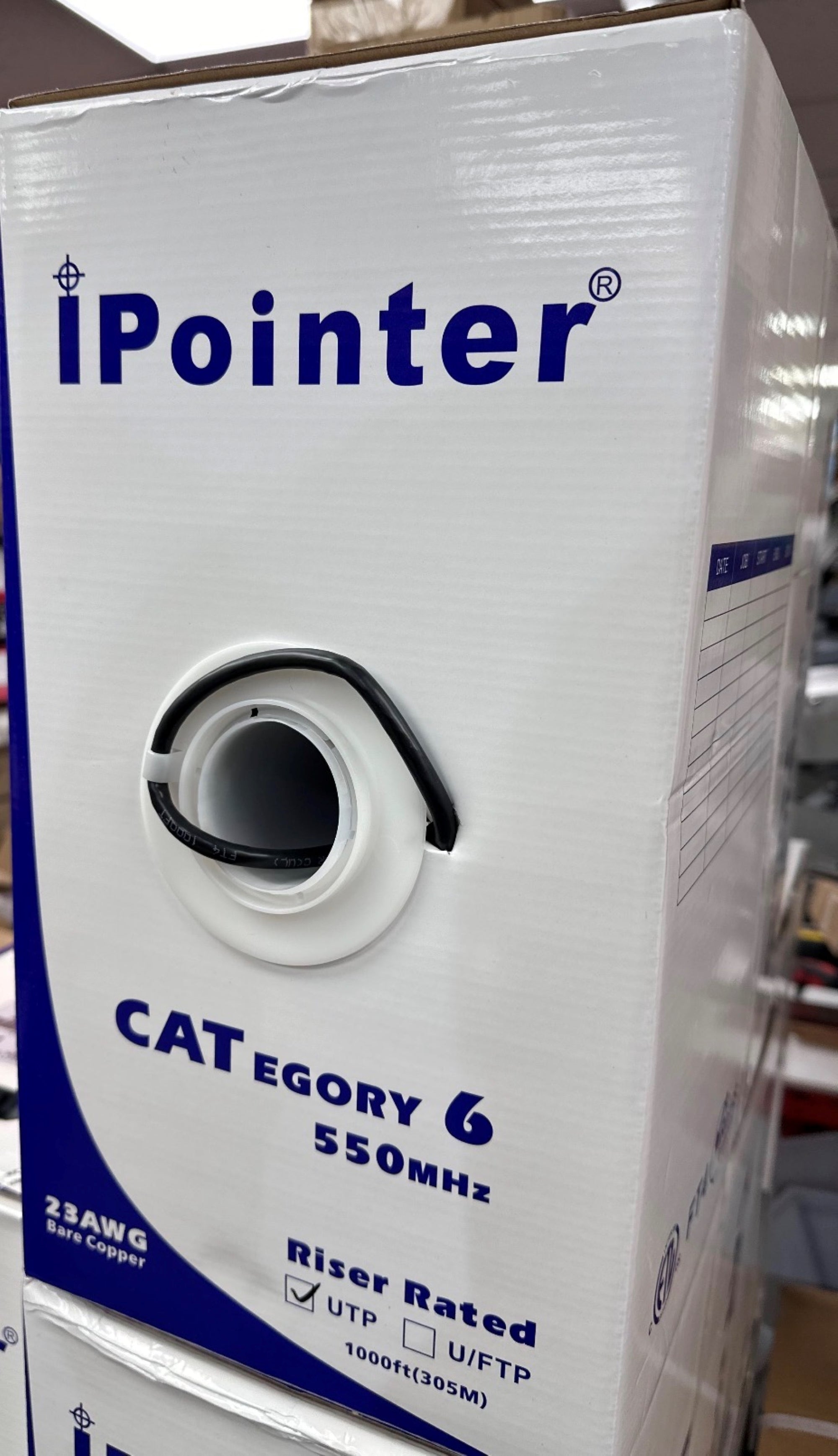

- 23AWG CAT6 Cable
- Solid Bare Copper, UL
- 550MHZ, CMR (FT4)
- 1000 Ft / Box, White / Black

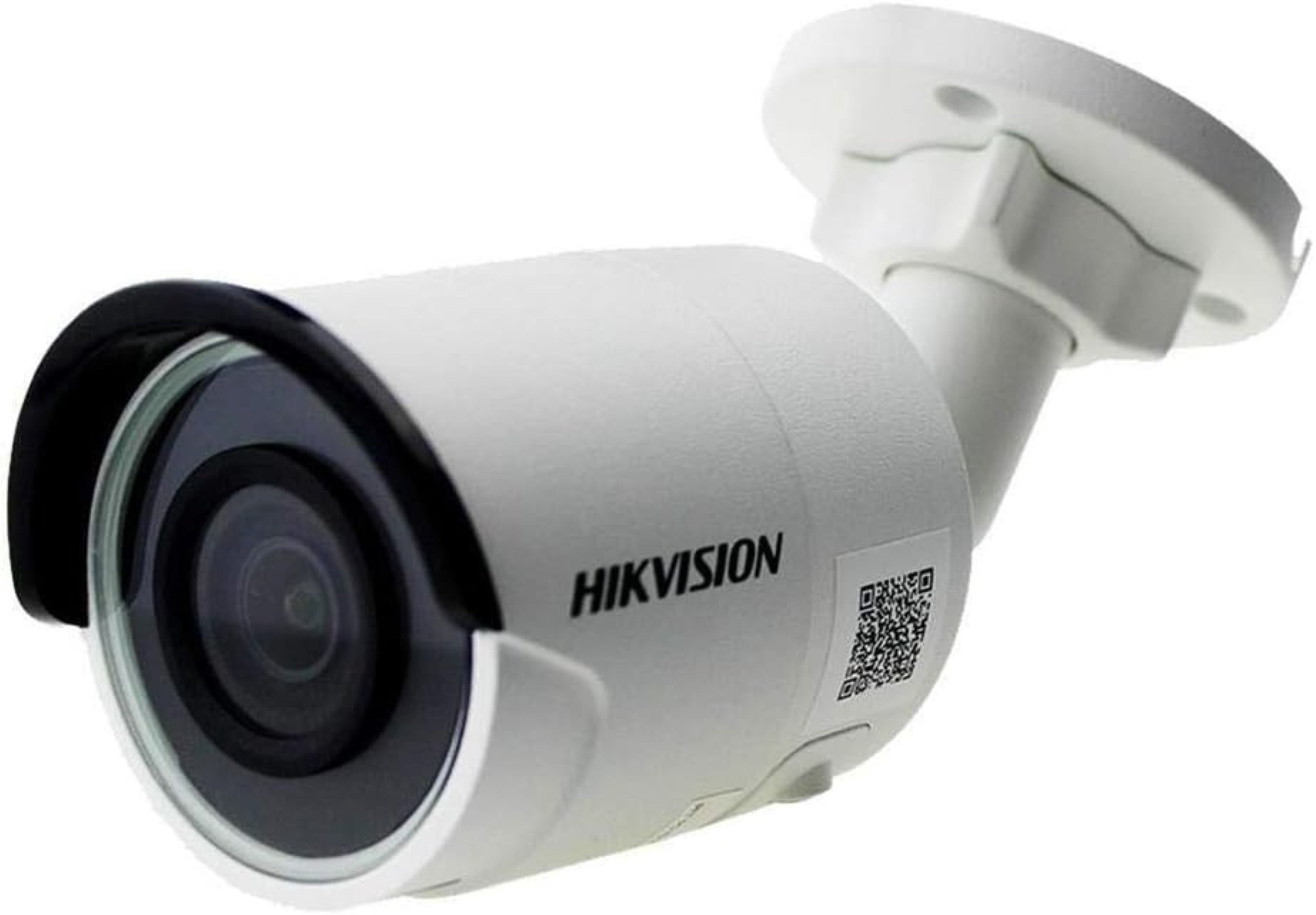

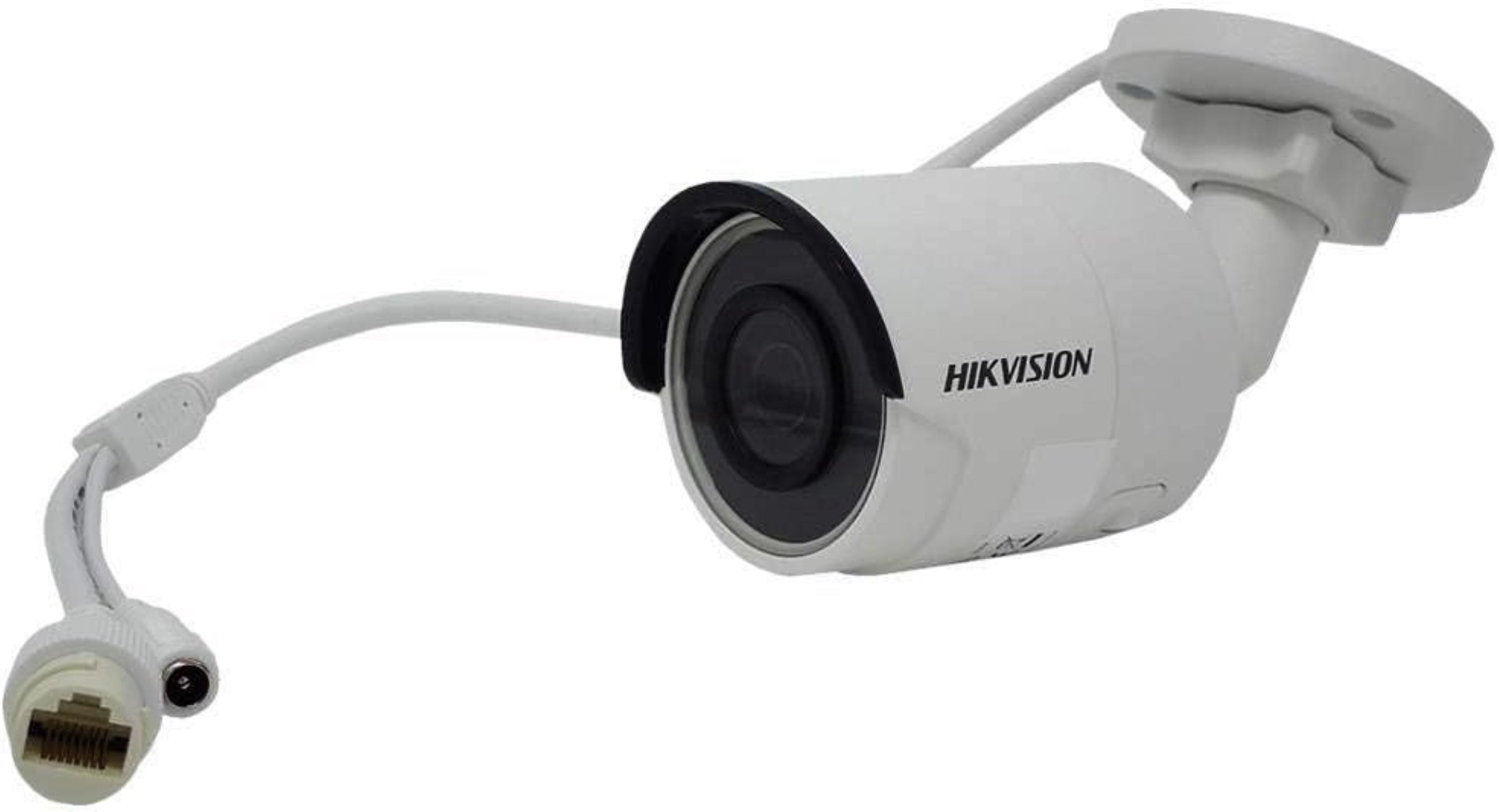

4 MP Outdoor WDR Fixed Bullet Network Camera

EKI-K41T44C
4 x 4 MP ColorVu Turret IPC + 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265+
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265+
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

 Specification - Camera
Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
