LNBs

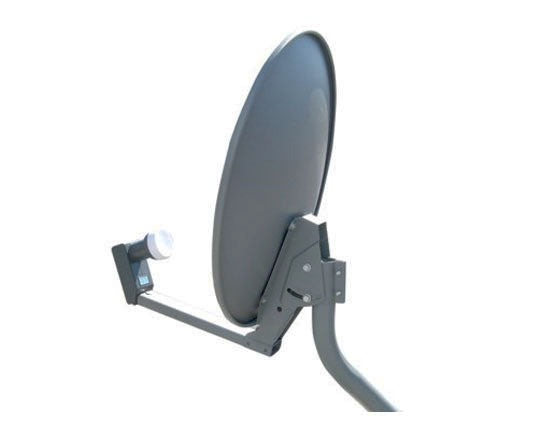

This connects to one North American satellite.  The price includes 1 Original RoyalPlus circular dual LNB

Features

• Receives the most popular North American satellites
• Optimized for Dish Network, DirecTV, ExpressVU
• Comes with dual LNB for two receiver hookup
• "rectangular" style Feed Tube

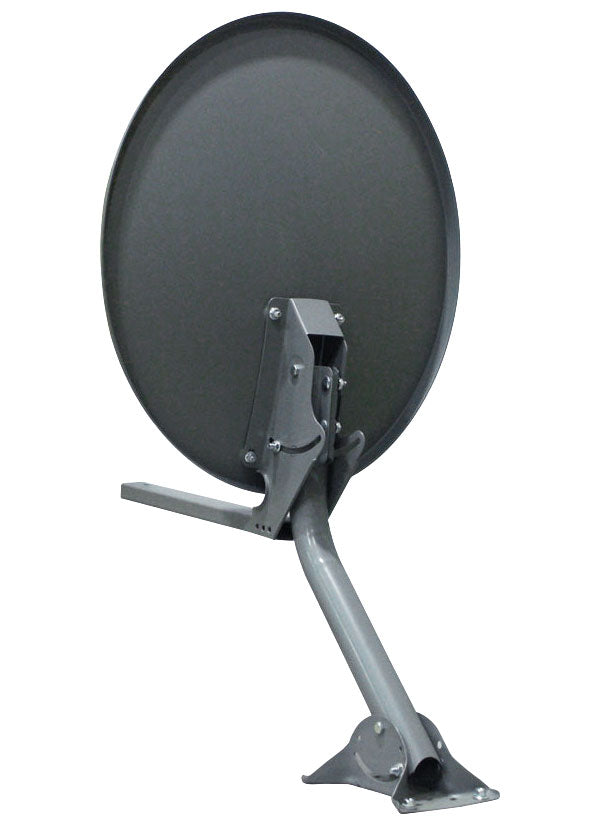

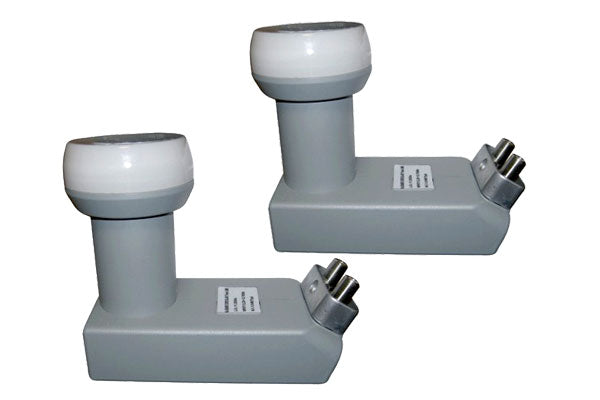

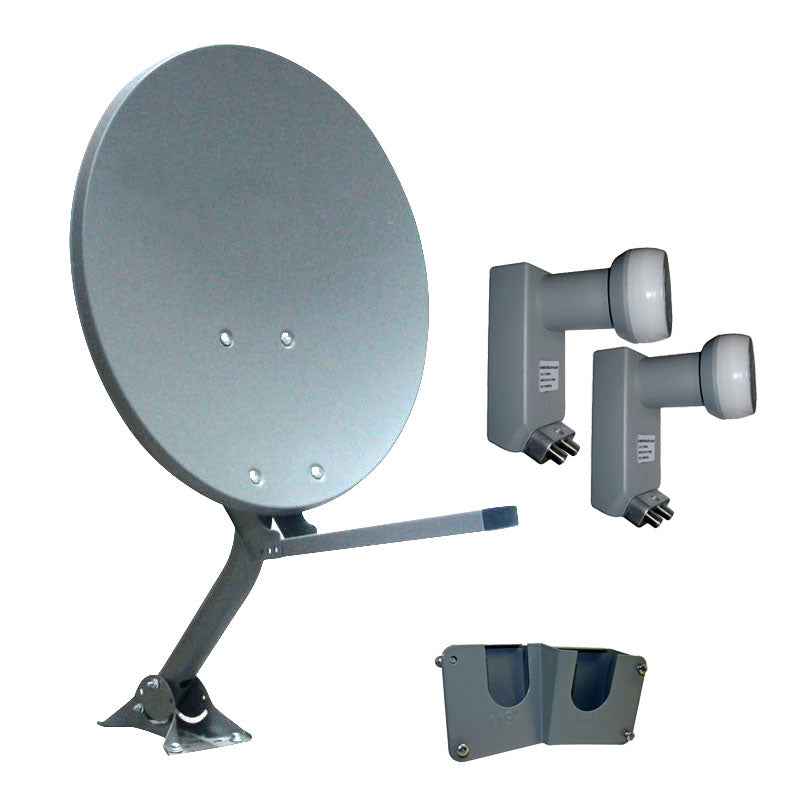

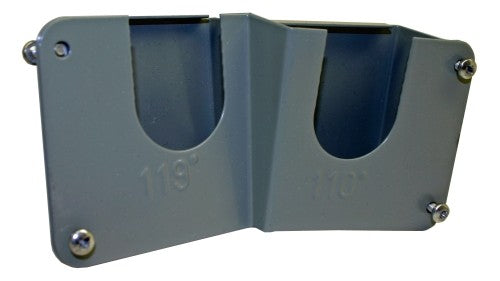

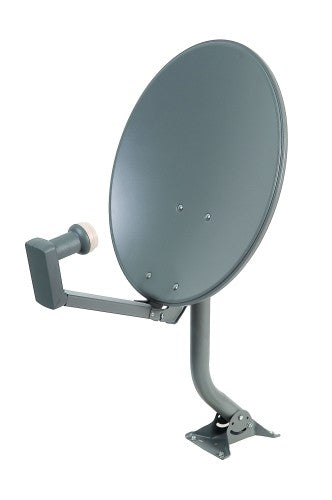

High quality 18" Round Satellite Dish Antenna, Made in Taiwan. Includes 2 LNB Holder.

Features

• Receives the most popular North American satellites
• Optimized for Dish Network, DirecTV, ExpressVU
• "rectangular" style Feed Tube

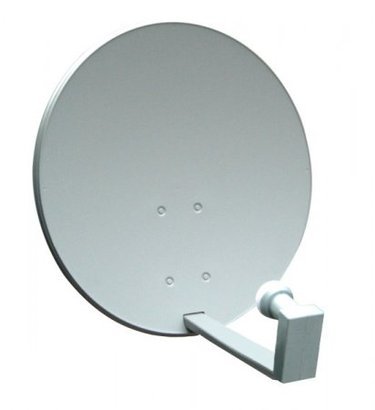

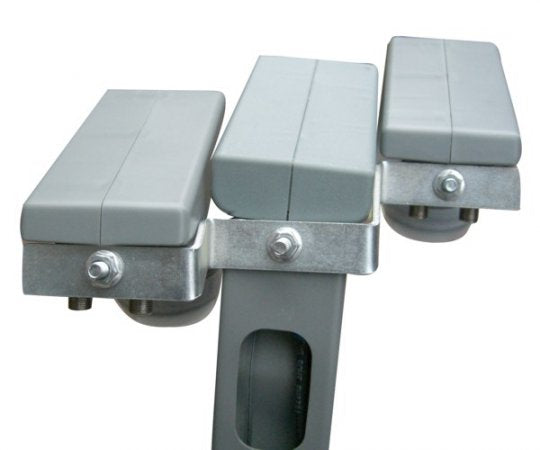

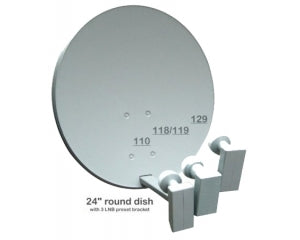

This mini 24" round dish is ideal for 4 satellites (110, 118/119, 129) by using only 3 LNBs - Signal strength varies from place to place.  LNB bracket and 3 FOCUS LNBs are included !!!

118/119 Satellite Specs:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB

Package Includes:

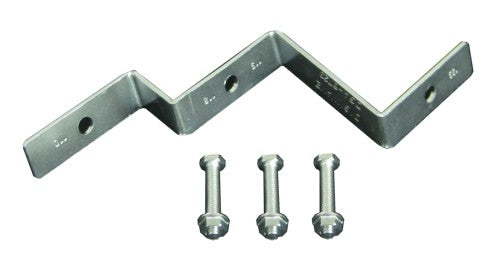

• Preset bracket for aligning 110, 118/119 and 129 is included
• 3 dual 118 output LNBs are included
• All mounting parts are also included

Keywords: dpp, dp44, dp-44, dpp44, dpp-44, dishnetwork

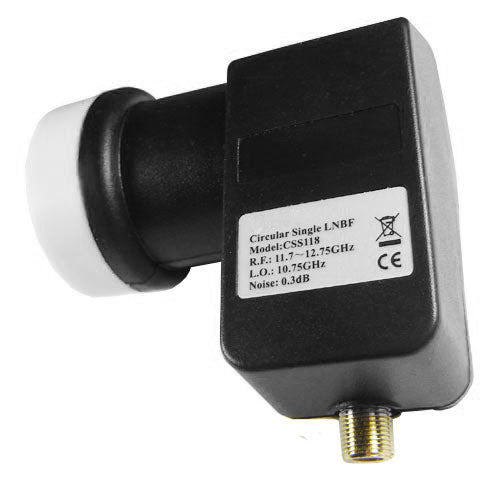

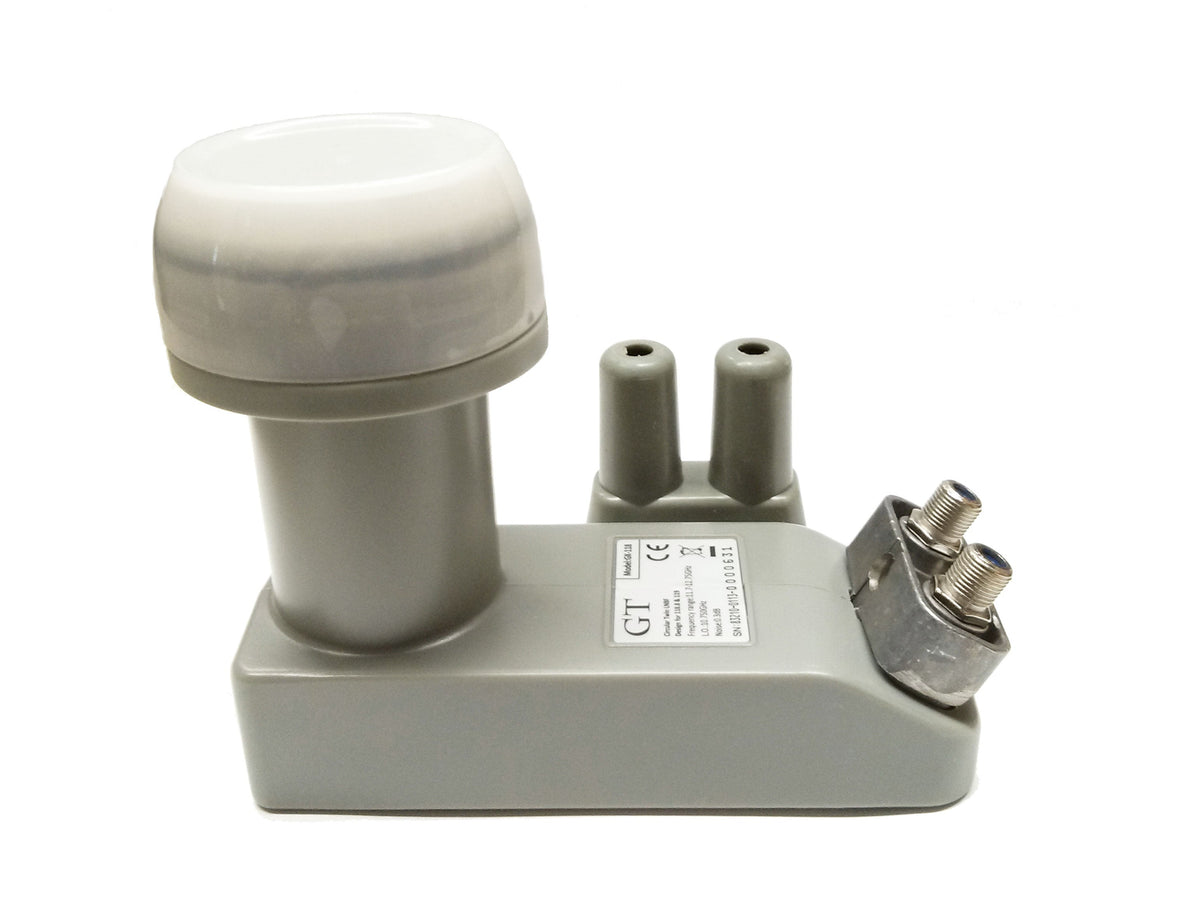

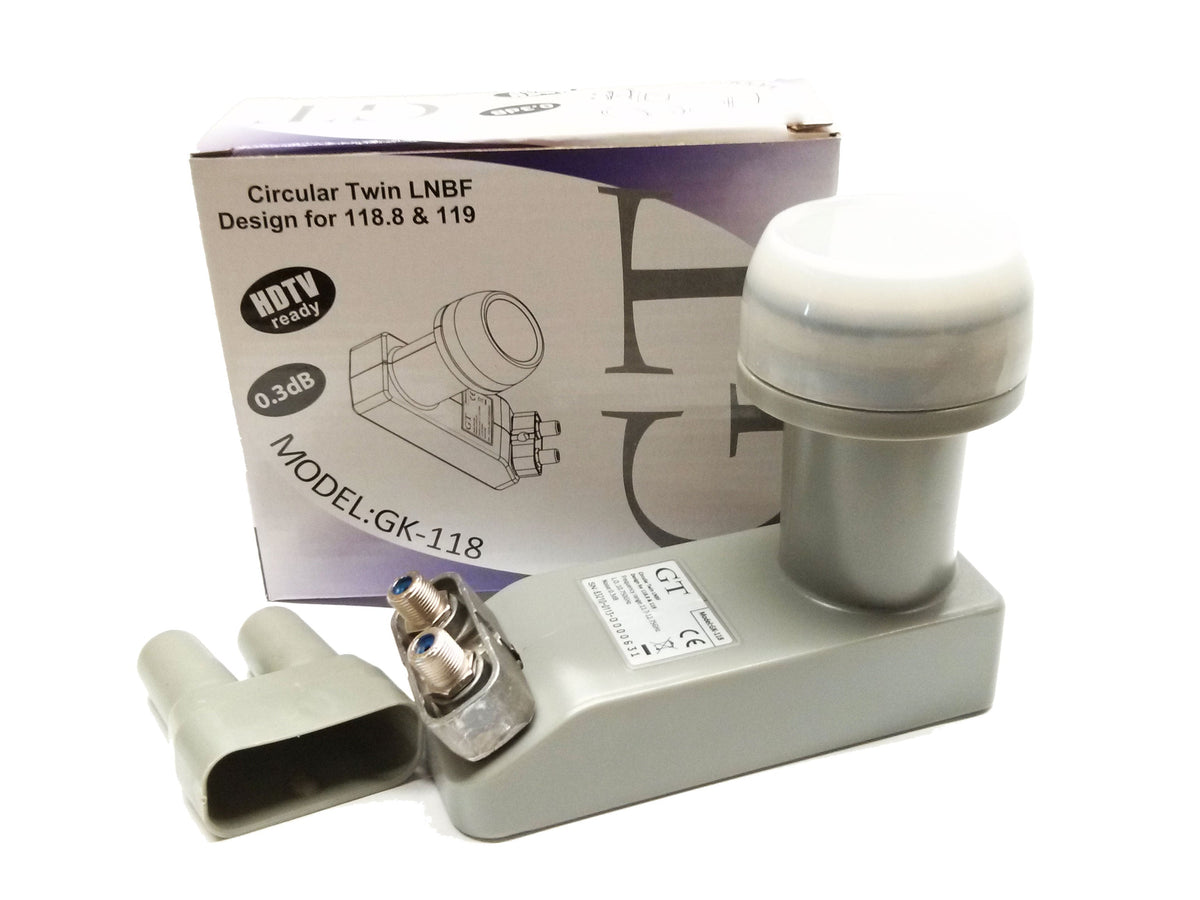

This is the LNB for the new 118 W (118.7/118.8) satellite.  With this special LNB, you can get BOTH 118 and 119 at the same time!!!


Specifications:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB
• Dual-output (ready for 1 or 2 receivers)
• Requires: 24" inch or larger dish
• Compatible with DirecTV, Free-to-Air (DiSEqC, 22KHz), and legacy switches (SW21, SW44, etc)
• Not compatible with DishPro switches and/or DishPro (stacked) LNBs

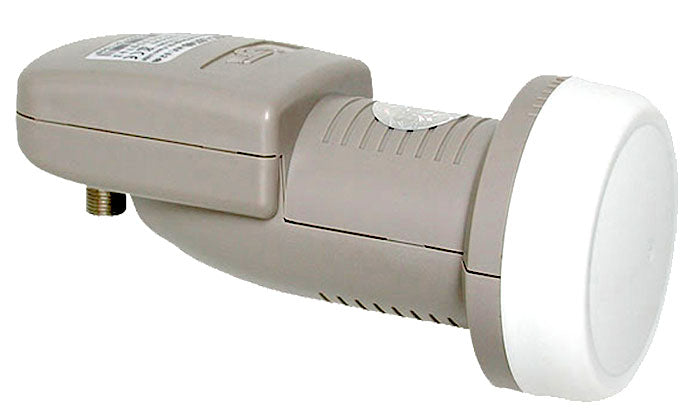

• Polarization: Linear Standard
• LO Frequency: 10750 MHz

• Polarization: Linear Standard
• LO Frequency: 10750 MHz

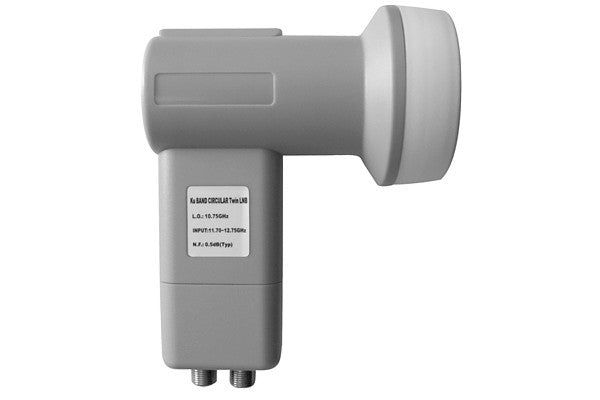

This is the LNB for the new 118 W (118.7/118.8) satellite.  With this special LNB, you can get BOTH 118 and 119 at the same time!!!


Specifications:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB
• Dual-output (ready for 1 or 2 receivers)
• Requires: 24" inch or larger dish
• Compatible with DirecTV, Free-to-Air (DiSEqC, 22KHz), and legacy switches (SW21, SW44, etc)
• Not compatible with DishPro switches and/or DishPro (stacked) LNBs

This LNB allows to receive the 118.7 and 119 signals at the same time. You can run two satellites from this LNB both having the 118.7 and 119 signals. It is a special circular LNB that has a low frequency of 10750. Use this with a 33 " dish to receive both signals. This LNB is designed to stand up to the harshest weather.


DESCRIPTION

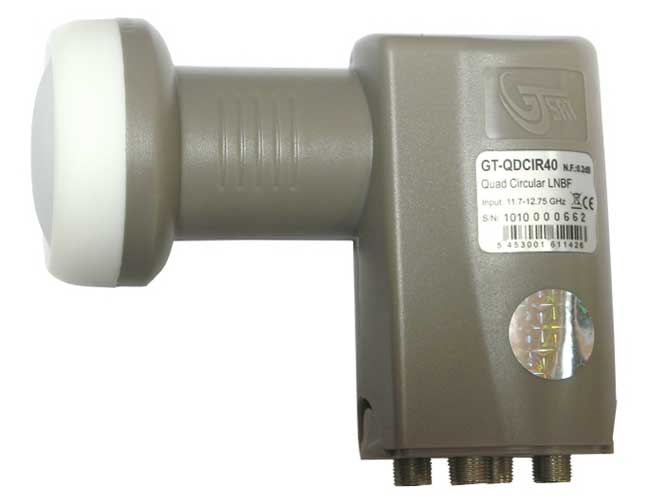

GT-QDCIR40 LNB allows to receive the 118.8 and 119 signals at the same time. You can run two satellites from this LNB both having the 118.8 and 119 signals to 4 different receivers. It is a special circular LNBF that has a low frequency of 10750.

Use the GT-QDCIR40 with a 33 or 39 " dish to receive both signals. This LNB is designed to stand up to the harshest weather. Strong Signal ONLY 0.2dB noise figure.

SPECIFICATIONS

• Input Frequency Range: High Band : 11.7 ~ 12.75 GHz
• Output Frequency Range: 750 ~ 2000 MHz
• L.O. Frequency: 10.75 GHz
• L.O. Frequency Stability: +/-1 MHz (Max)@ Room Temp.
• Local Oscillator Frequency Phase Noise:
  -60dBc/Hz @ 1KHz (Max.)
  -85dBc/Hz @ 10KHz (Max.)
  -105dBc/Hz @ 100KHz (Max.)
• Noise Figure: 0.2dB (Typ.)
• Conversion Gain: 56 ~ 60 dB
• Gain Flatness 26MHz Bandwidth: +/-0.3dB (Typ.)
• Operating Voltage:
  RHCP 11.0 ~ 14.0 Vdc
  LHCP 16.0 ~ 20.0 Vdc
• Cross-Pol. Isolation: 25 dB (Typ.)
• Image Rejection: 40 dB (Min.)
• Current Consumption: 220 mA (Typ.)
• Output Connector Type: 75 OHMS F-Female
• Output Spurious: <-60dBm
• Operating Temperature Range: -40°C ~ +65°C
• Storage Temperature Range: -45°C ~ +70°C

DESCRIPTION

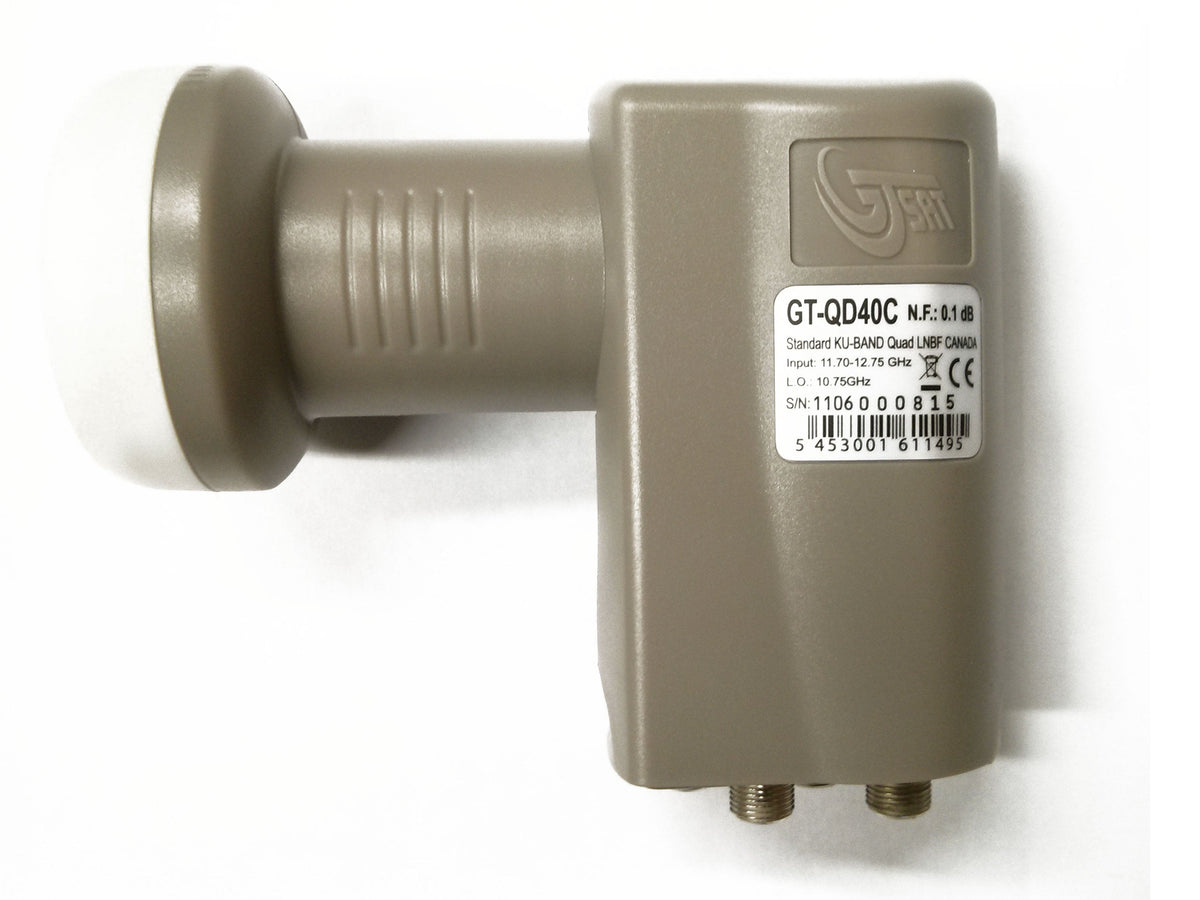

The standard Quad GT-Sat FTA LNBF model GT-QD40C is a high quality product with very low noise figure of 0.1dB, giving the best signal and picture quality.
1 satellite up to 4 receivers.

FEATURES

• Low noise temperature
• Economical
• Easy to install
• Lightweight
• Noise Figure 0.1dB
• GT-Sat Quad LNB for 4 receivers
• Standard Linear LNBF 10750

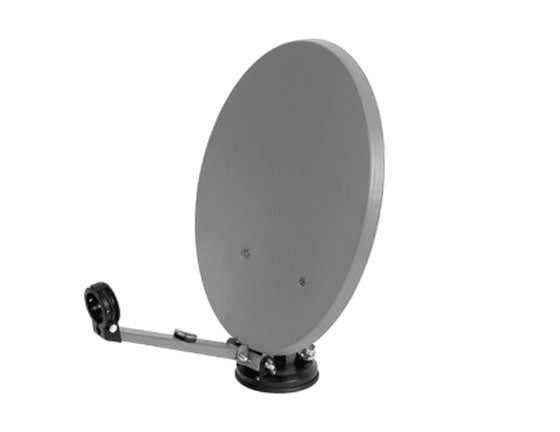

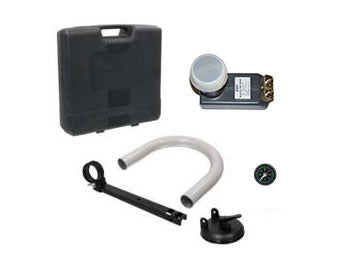

Ideal for Camping, Road Trips, or for Motorhomes

Includes

• 13 in (35 cm) dish
• Horseshoe stand
• Suction cup stand
• Dual-output DSS LNB
• Compass
• Protective carrying case

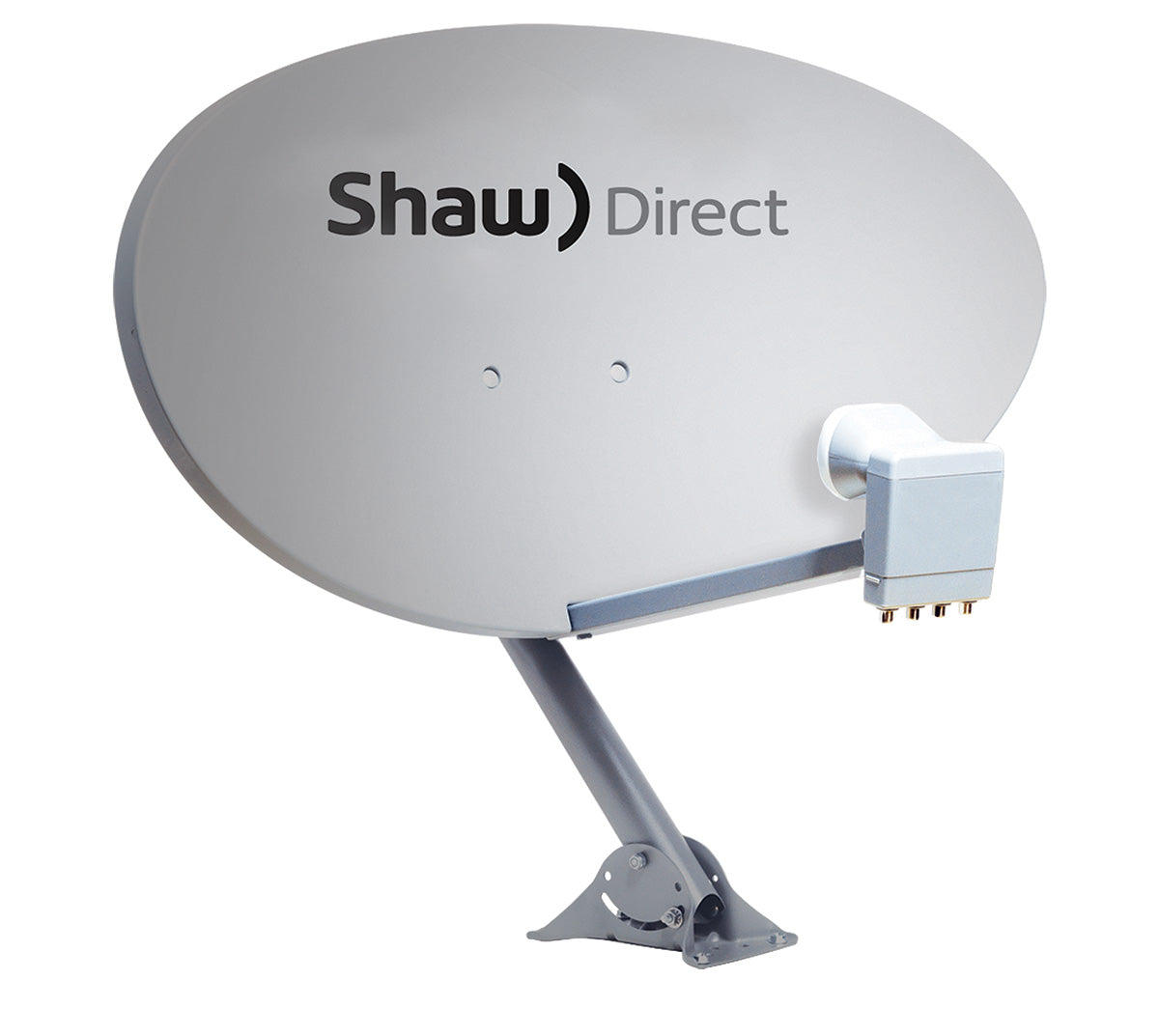

• For Shaw Direct DTV Satellite Service
• Includes Quad-output LNB and all assembly hardware
• Use in Canada and continental USA

Shaw Direct quad output xKu LNBF for 60e dish

Replacement Quad Output xKU LNBF for Shaw Direct 60cm Dish

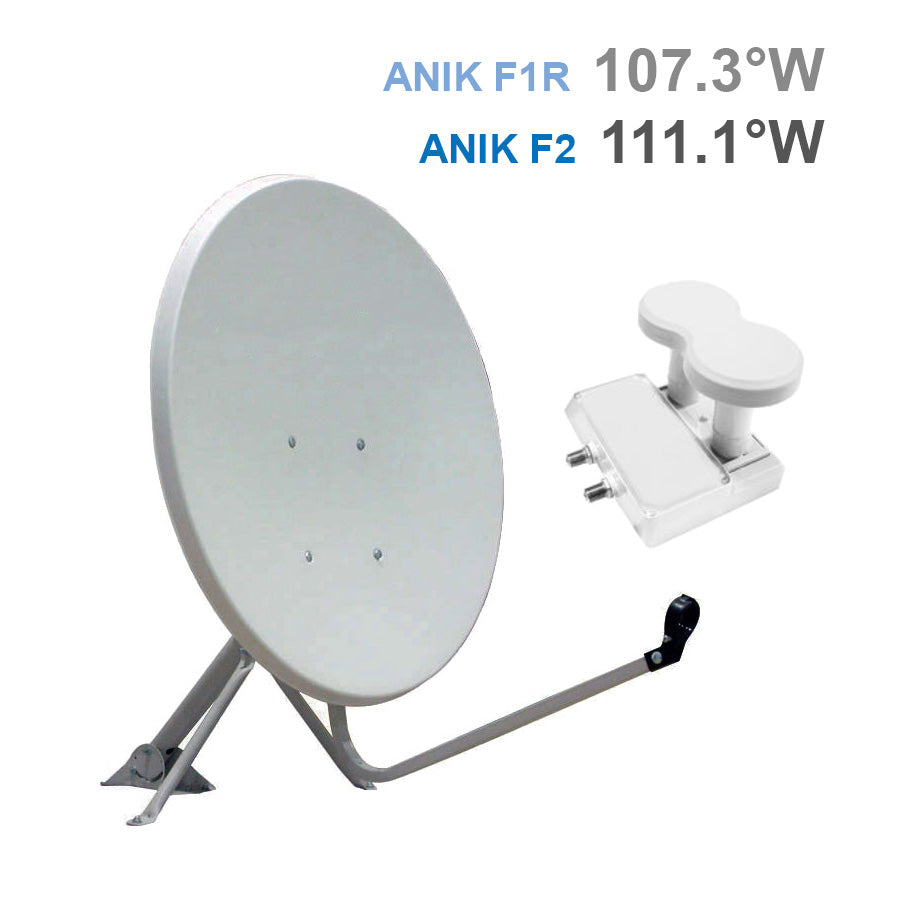

• For Star Choice satellites ANIK F1R at 107.3°W and ANIK F2 at 111.1°W
• Dual-Output gives 2 connections for 2 receivers
• Ideal for customers looking to receive Star Choice south of the border or in fringe areas where a standard 65cm dish cannot be used

NOTE: Not compatible with new ANIK G1 satellite.

Keywords: shaw, shaw direct, starchoice, starchoice dish, star choice dish, shaw dish, shaw satellite

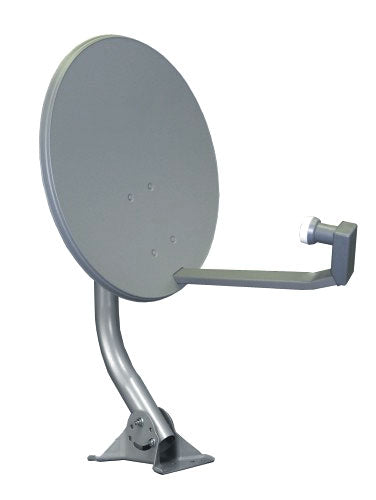

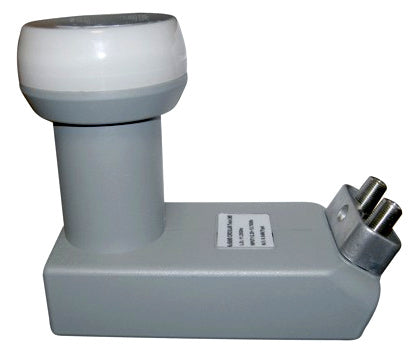

This 26" round dish is good for 118&119 satellite - One Dual LNB is included.

118/119 Satellite Specs:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB

Package Includes:

• 1 Dual 118/119 output LNB is  included.
• All mounting parts are included

Can be used for Dish Network (61.5, 110, 119, 148) and Bell ExpressVu (82W & 91W) receivers
- Excellent noise figure (1.1dB max.) and cross polarization (C.P. isolation 25dB Typ.)
- Outstanding stability
- Weatherproof protection cover mounted over LNB
- Qualified for harsh environment


This is the LNB for the new 118 W (118.7/118.8) satellite.  With this special LNB, you can get BOTH 118 and 119 at the same time!!!

Specifications:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB
• Dual-output (ready for 1 or 2 receivers)
• Requires: 24" inch or larger dish
• Compatible with DirecTV, Free-to-Air (DiSEqC, 22KHz), and legacy switches (SW21, SW44, etc)
• Not compatible with DishPro switches and/or DishPro (stacked) LNBs

Keywords: 118 lnb, 119 lnb, 118 119 lnb

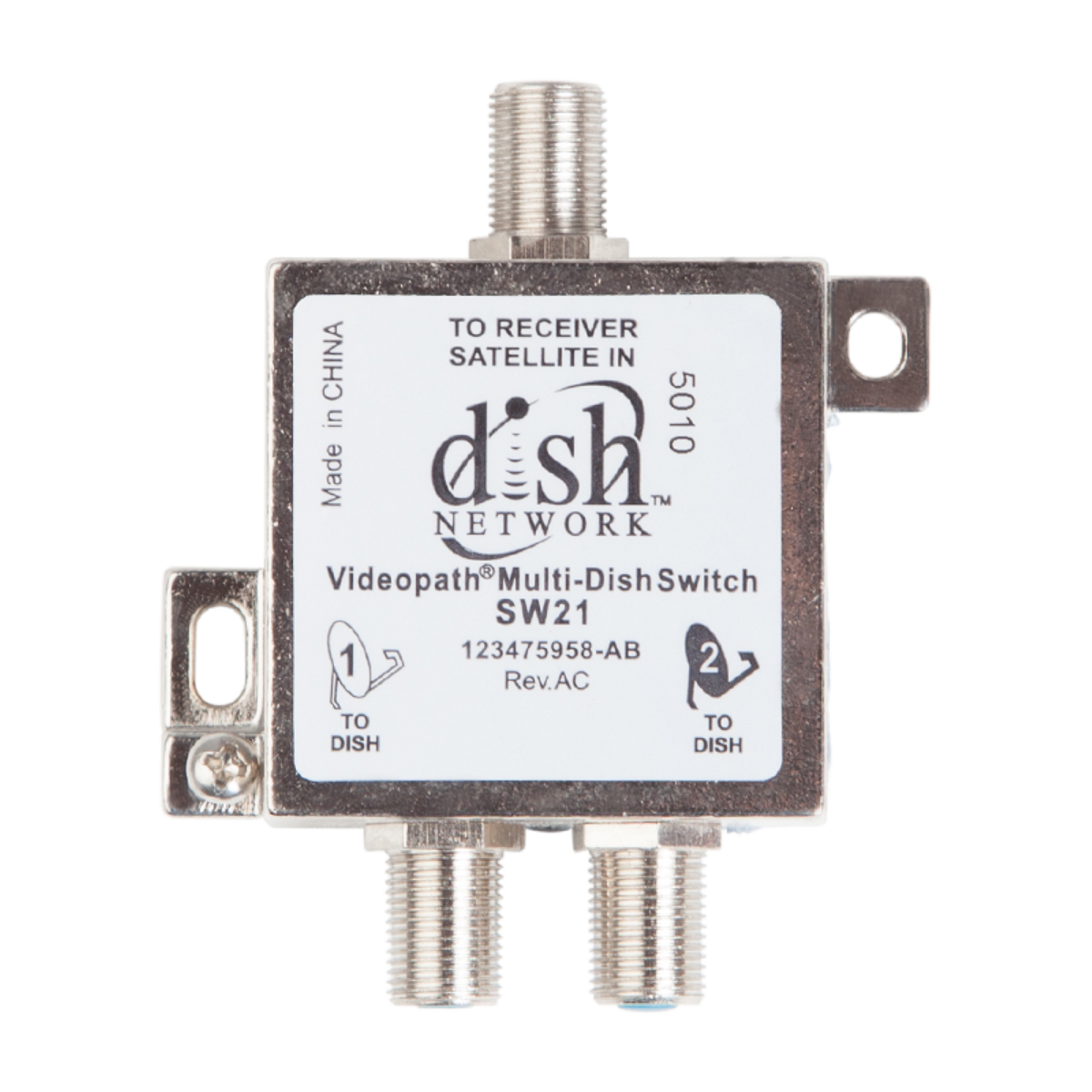

Bell / Dish Network Legacy SW21 Switch (SW 21) The SW21 multi switch enables you to receive satellite signals from 2 satellite locations to one Dish Network or Bell TV satellite receiver. The legacy SW21 switch combines two legacy dual LNBF's into one coax line. Permits voltage switching between 2 satellites. For a dual tuner receiver or 2 single tuner receivers, 2 of these are required.

Newest C & Ku Band On The Market For C Band & Ku Band Reception With Only 1 Wire!

(C/KU Universal) LNBF

FAQ for LNB / LNBF:

What does LNB and LNBF stand for?

LNB stands for Low Noise Block.  LNBF stands for Low Noise Block Feed.

What is the difference between LNB and LNBF?

LNB usually only receives signal from 1 polarity (Vertical or Horizontal for Linear FSS and Right or Left for Circular DSS)  A good example of of a LNB is our

What is the difference between a Standard Ku band LNBF, Normal Ku band LNBF, and Universal Ku band LNBF?

There are 3 main types of LNBF's.  The first is Standard.  Standard & Normal LNB and LNBF's are the same.  They are FSS linear and the frequency range is from 11.7GHz to 12.2GHz.  The second type of LNB/F is Universal.  The frequency range for a universal LNBF is 10.7GHz to 12.75GHz.  This is more popular in Europe and the Middle East because their satellite broadcast within the 10.70GHz to 12.75GHz.  The third and the most popular in the United States for DISH Network & DirecTV is DSS.  DSS LNBF's are always circular.  The frequency range is 12.2GHz to 12.7GHz. C-Band LNBF Single Output ,

What is the difference between linear and circular LNBF's?

Linear covers Horizontal and Vertical.  Circular covers Left and Right.  Circular hits your dish more like a screw that is turning as its coming down.

Is C band Linear or Circular?

C band, just like Ku band can be either linear or circular.  Most C band satellites are linear rather than circular.

Keywords: c-band, big dish lnb, 12ft dish, fortec, galaxy

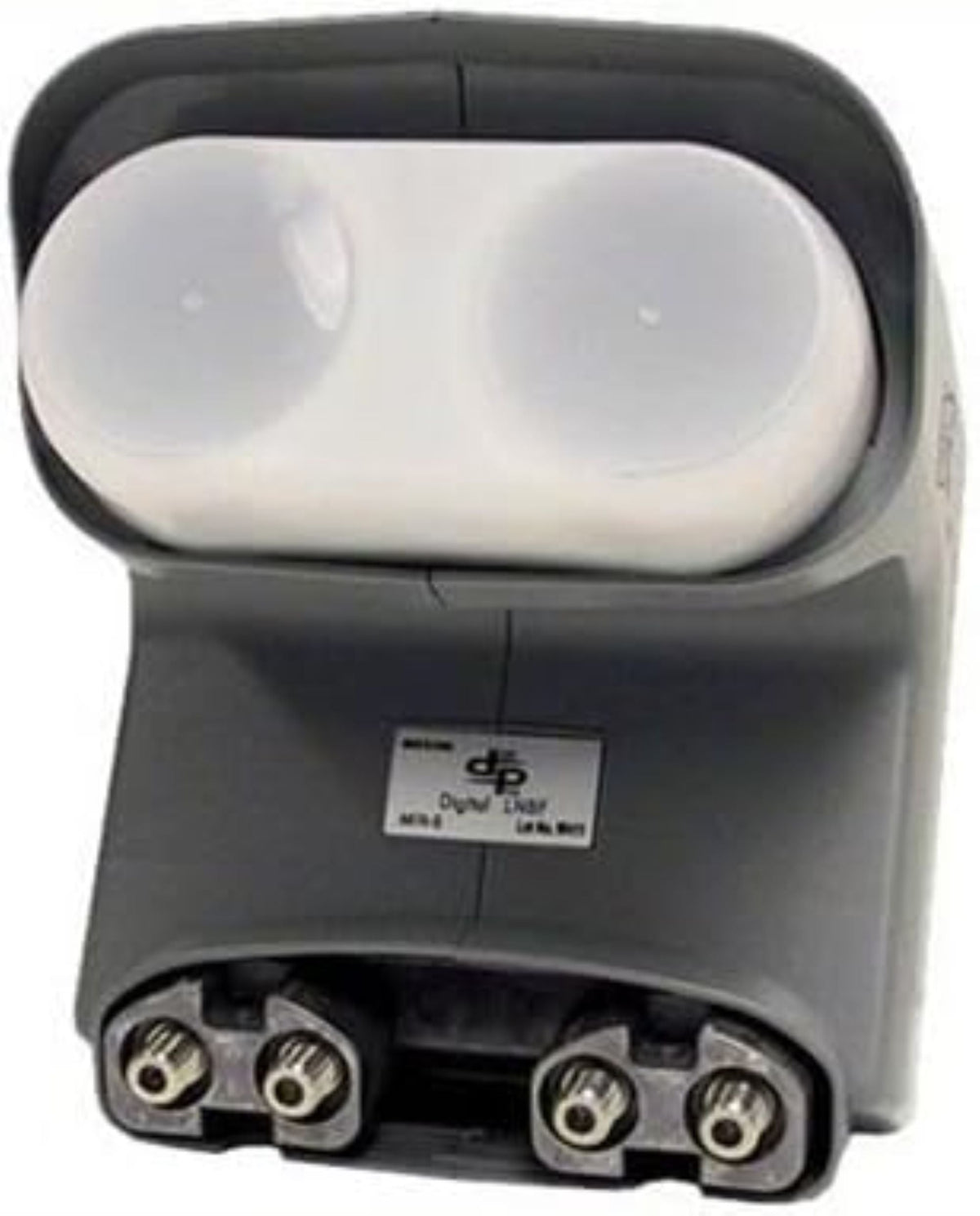

The DISH Pro Plus Quad allows you to pick up to 2 satellite locations and distribute them to up to 4 Bell or Dish Network Receivers

Benefits

• Connect up to 4 Bell TV or DISH Network single-tuner receivers
• Connect up to four Bell TV or DISH Network dual-tuner receivers

This LNB is used to feed multiple receivers. Its quad output will allow all the receivers to achieve a good signal quality at all times. it can be used in combination with DPP44 switch and feed many more receivers.

Tech specs

• Captures both Dish or Bell Satellites
• Weather Proof
• Connects up to 4 Tuners
• Can be connected to DPP44 for even more connections

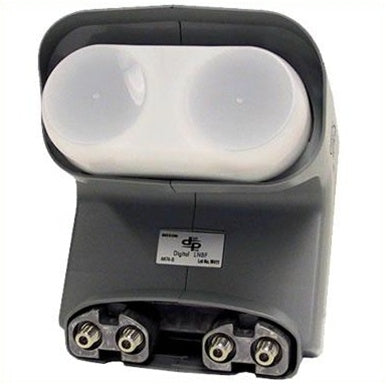

Dish Pro Plus DPP Quad LNBF

The Dish Pro Plus Quad LNBF allows you to receive both 82 and 91 degrees West satellites on a Bell TV system in a single integrated unit which has built in SW-21 switching on all four outputs. In addition, you may feed a dual tuner PVR receiver using only one coax by using the DPP separator (purchased separately) in order to make your installation easier. Up to 4 single or dual tuner receivers are supported with this LNBF.

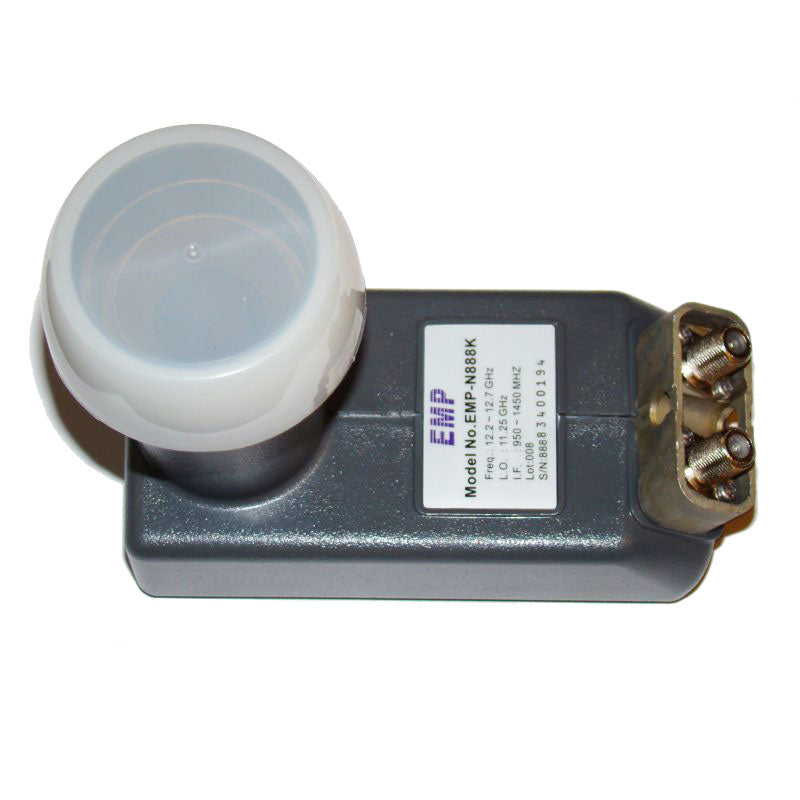

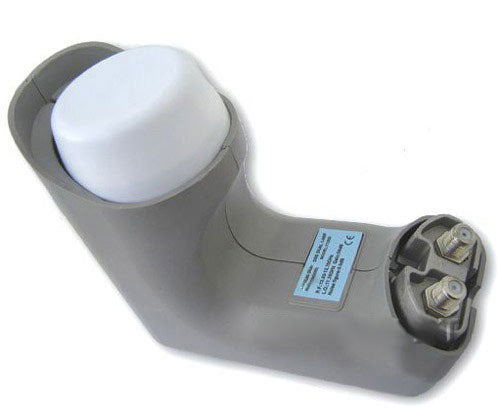

Note: The Royal Dual DSS LNB replaces the discontinued EMP Dual DSS LNB

It is the brand new Royal DSS Dual Output Circular LNBF, used for satellite reception in North America. It fit with 18" dish that has a rectangular shaped LNBF feed bracket (D shaped bracket doesn't fit). It has 0.3dB noise figure that is 8-10% better signal strength than 0.6dB LNBF

• Dual output LNBF
• From the makers of Zinwell LNBF
• Light weight and small size for easy installation
• Covers DSS Ku-band satellite frequencies (12.2-12.75 GHz)
• Low noise figure of 0.3 dB for improved signal reception (specially on weak signal) and low interference
• Voltage-controlled RH/LH switching (13/18 V)
• The feed diameter is a standard 40mm thus allowing this LNB to be mounted effortlessly on almost any offset dish, such as Fortec Star 80,90,100, and 120cm
• Circular type
• Excellent isolation
• Compatible with US direct TV system
• Various input frequency range and L.O. for world wide market
• Excellent D.R.O. stability
• Super compact tooling
• Optional for 23mm feed horn
• Waterproof guaranteed

Specification

• LO Frequency: 11.250 GHz
• Conversion Gain: 56 dB
• Cross Pol. Isolation: 18 dB
• Noise Figure: 0.3 dB
• Input Reflector Type: Offset
• Gain Flatness: +/- 4 dB V.Pol and +/- 3 dB H.Pol
• L.O. Frequency Stability: (+25°C) +/- 500 KHz / (-35°C ~ +60°C) +1.9MHz @-30°C, -1.7MHz @+60°C
• L.O. Phase Noise: (1 KHz Offset) -50 dBc/Hz / (10 KHz Offset) -75 dBc/Hz / (100 KHz Offset) -95 dBc/Hz
• Output Connector: 75Ohm F Type Female
• D.C. Power Supply: 10.5 – 21.5 V
• D.C. Power Consumption: 90 mA (Typ.)
• Polar Switching Voltage: Right-hand: 10.5 ~ 14 V / Left-hand: 15.5~ 20 V
• Operating Temperature: -35°C ~ +60°C

Keywords: emp dss, emp lnb

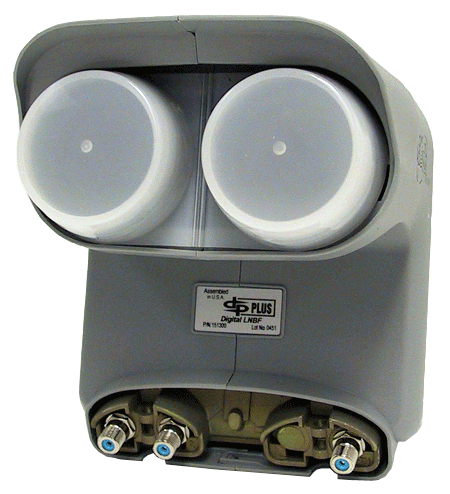

Dish Pro Plus Dual LNB

The DP Plus Twin LNBF allows you to receive both 82 and 91 degrees West satellites on a Bell TV system in a single integrated unit which has built in SW-21 switching on both outputs. In addition, you may feed a dual tuner PVR receiver using only one coax by using the DPP separator (purchased separately) in order to make your installation easier. Up to 2 single or dual tuner receivers are supported with this LNBF. For 3 or 4 receivers, the Dish Pro Plus DPP Quad LNBF is required.

Keywords: dpp, dishnetwork
