Winegard

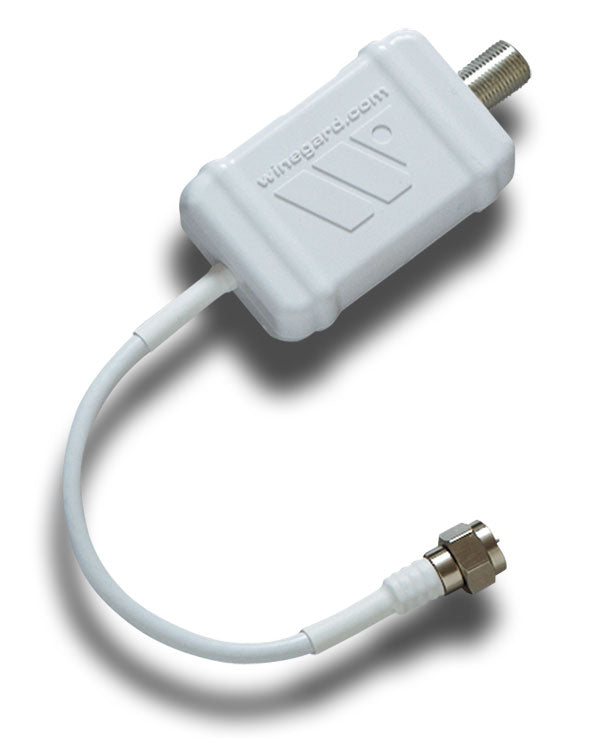

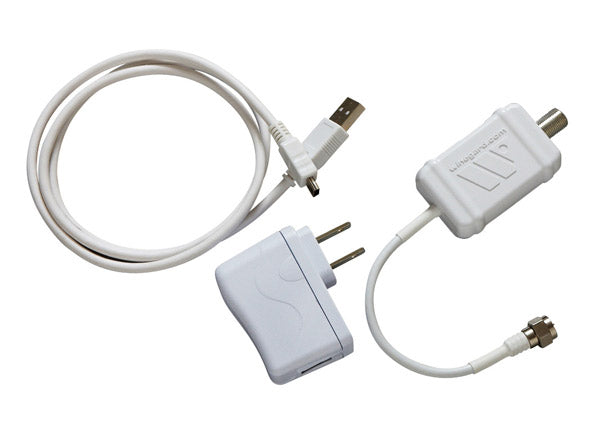

Boost™ is the most advanced digital TV antenna amplifier available featuring the lowest noise figure (1 dB typical).

Using the latest advances in amplifier technology, Boost, enhances any non-amplified antenna, delivering more range and available channels. Give your antenna a Boost today!

Amplifier with Clear Circuit Technology

• Works with any non-amplified/passive TV antenna
• Clear Circuit Technology™ increases range and channels while eliminating pixelation and dropouts

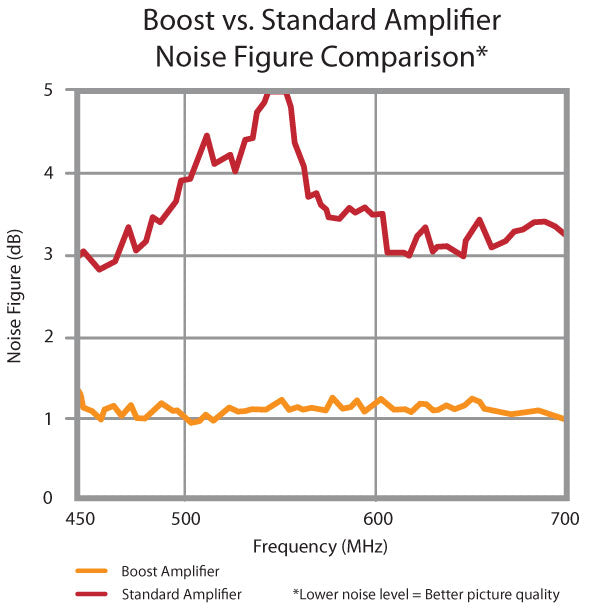

• Ultra low noise figure – 1.0 dB typical
• Energy saving USB power supply with LED power indicator
• Innovative engineering from Winegard, the antenna experts

Technical Specs:

• Gain*: 20 dB
• Noise Figure*: 1 dB
• Power: +5V
• Includes: USB power inserter
• 110V adapter
• 1 year limited warranty

*measured values in given frequency bands are typical

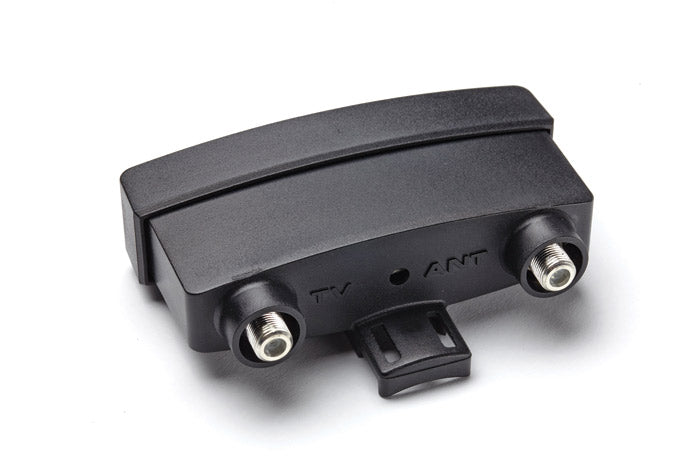

Boost™ is the most advanced digital TV antenna amplifier available featuring the lowest noise figure (1 dB typical).

Using the latest advances in amplifier technology, Boost, enhances any non-amplified antenna, delivering more range and available channels. Give your antenna a Boost today!

Amplifier with Clear Circuit Technology

• Works with any non-amplified/passive TV antenna
• Clear Circuit Technology™ increases range and channels while eliminating pixelation and dropouts
• Ultra low noise figure – 1.0 dB typical
• Energy saving USB power supply with LED power indicator
• Innovative engineering from Winegard, the antenna experts

Technical Specs:

• Gain*: 20 dB L-VHF, 15 dB H-VHF, 18 dB UHF
• Noise Figure*: 3 dB VHF, 1 dB UHF
• Power: +5V at 130mA

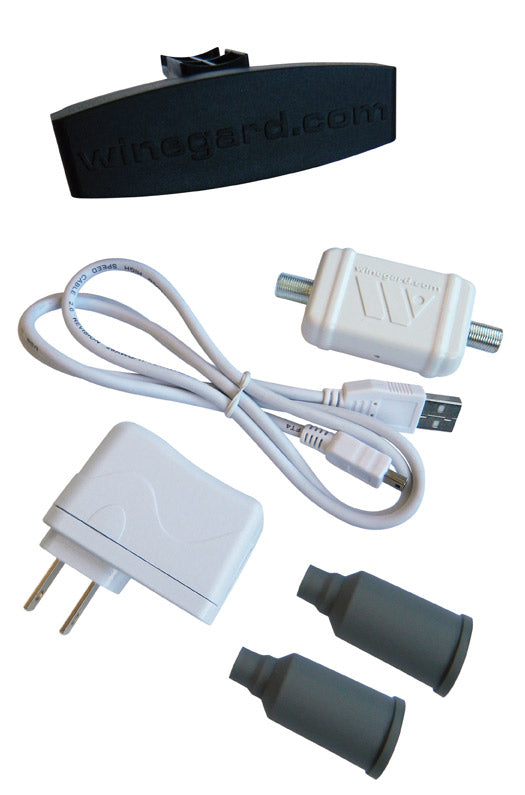

• Includes: Preamplifier
• USB power cable
• 110V adapter
• power inserter
• hose clamps
• weather boots
• 1 year limited warranty

*measured values in given frequency bands are typical

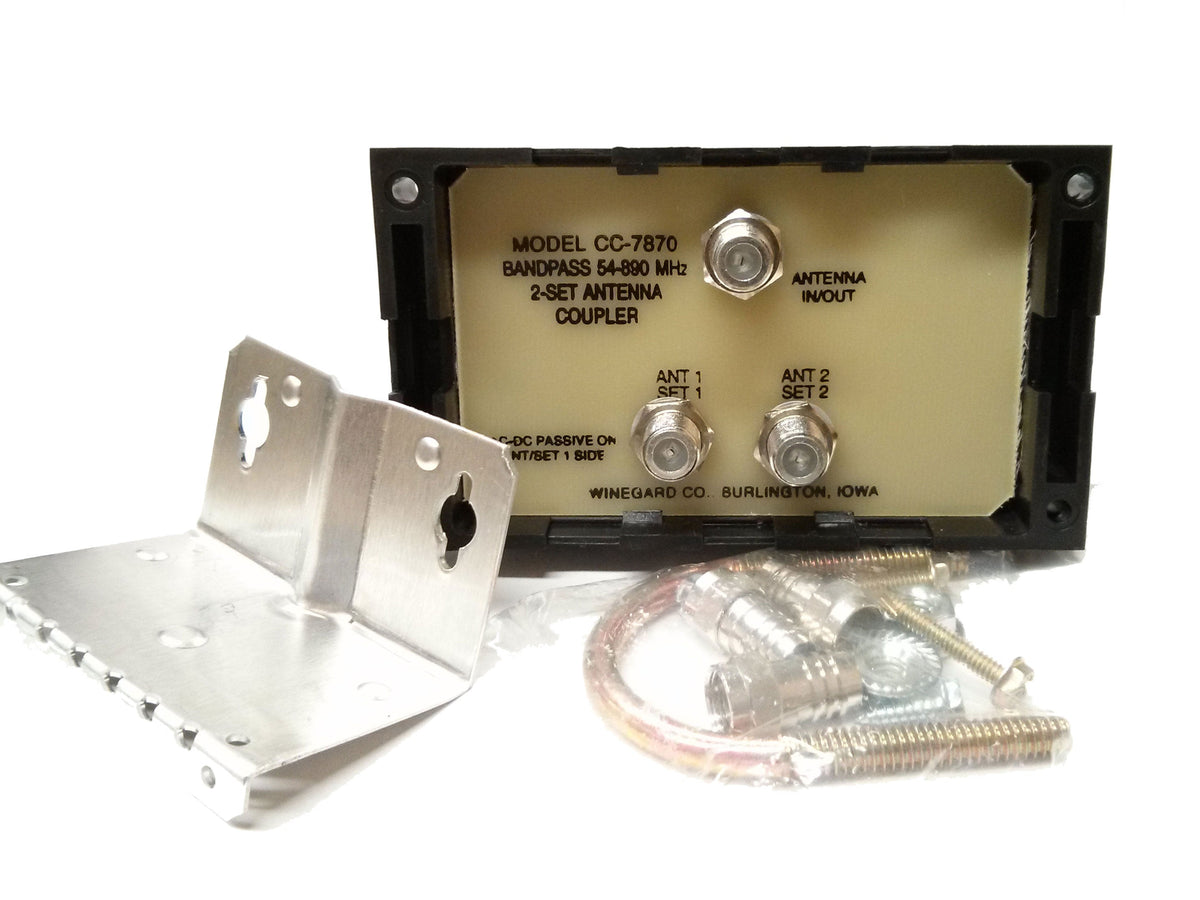

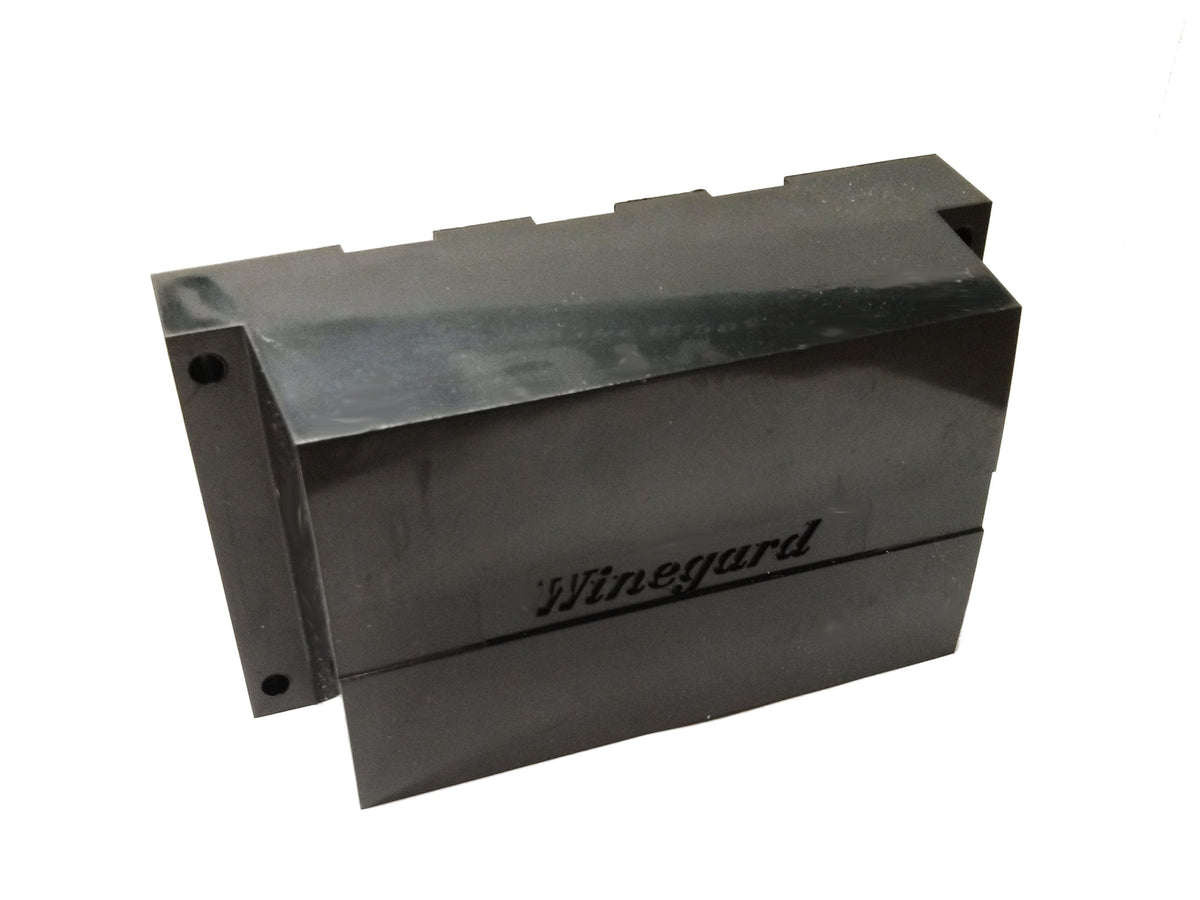

     Couples two 75 ohm leads from any two antennas to a 75 ohm coaxial downlead

• AC/DC passive to Set 1 side.
• Bandpass: 54 - 890 MHz
• 3.5 dB insertion loss.
• VHF/ UHF / FM

Keywords: coupler, antenna coupler

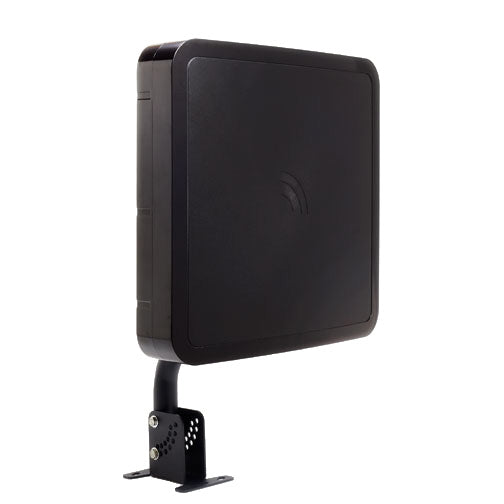

The Future of Free HDTV is Here!

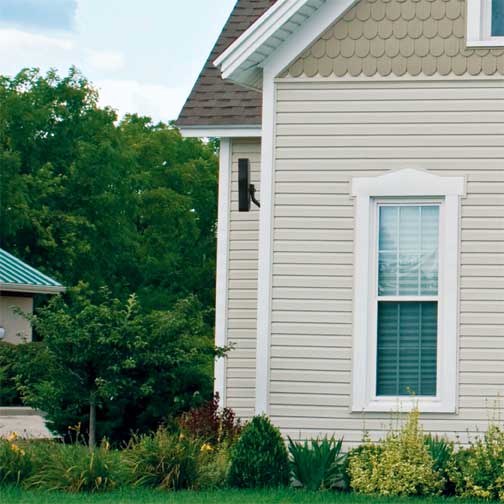

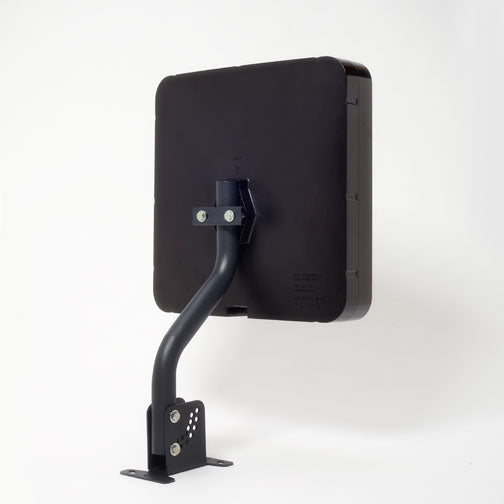

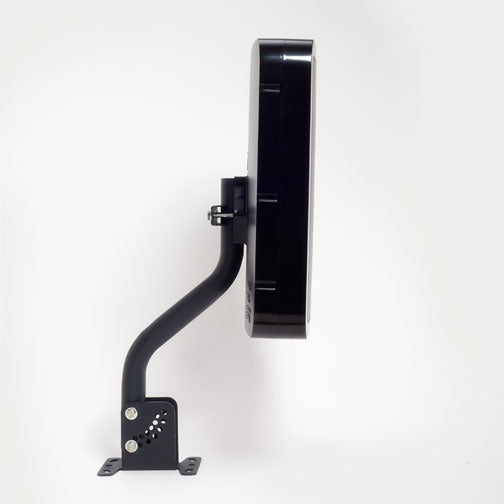

The FlatWave AIR is an antenna designed with ultra low noise split band amplifier that produces a higher quality TV image than most outdoor antennas. The sleek, compact antenna has an integrated amplifier for superior reception allowing little chance of dropouts or pixelation. It can be placed in an attic, a roof, a deck or the side of a home and is easy to install.

• HDTV reception up to 60 miles from a tower
• Revolutionary Clear Circuit Technology™ provides superior reception
• Ultra low noise split band amplifier (UHF/VHF)
• Easy to install
• Boasts a true dual-path design with separate amplification paths for VHF and UHF that increases signal handling capability and helps eliminate distortion.
• No adjustment needed once installed
• Meets most HOA antenna guidelines
• Powered by a USB connector attached directly to an HDTV
• Designed and assembled in the U.S.A.
• Connect up to 4 TVs (splitter sold separately)
• Integrated reflector for increased range
• Coax cables and splitter sold separately. Winegard recommends a RG6 coax cable for best performance.

Technical Specs:

• Dual band VHF/UHF
• +60 mile range
• Weight: 2.92 lbs
• Dimensions: 14” x 14” x 4”
• Adjustable 14 in. tall mount
• Made of aluminum covered with a black ABS case
• Meets Homeowners Association (HOA) Requirements for mounting outdoors (FCC Over-the-Air Reception Devices [“OTARD”] Rule of 1996)

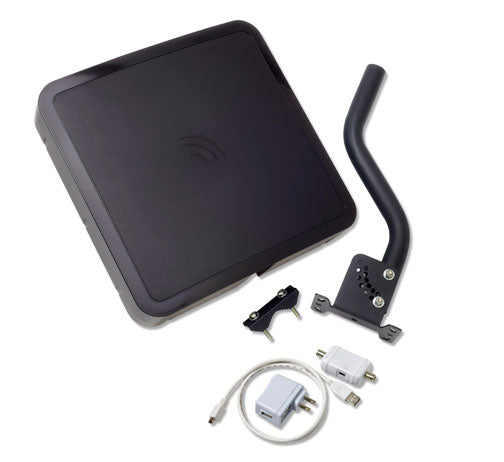

In the Box:

• AIR amplified VHF/UHF, multi-directional antenna
• Flex Mounting System: pipe, foot and hardware for connecting antenna
• USB power inserter
• 3' USB cable
• 110V wall adapter

ONE YEAR LIMITED WARRANTY

Keywords: hdtv, ota, condo, condominium, apartment

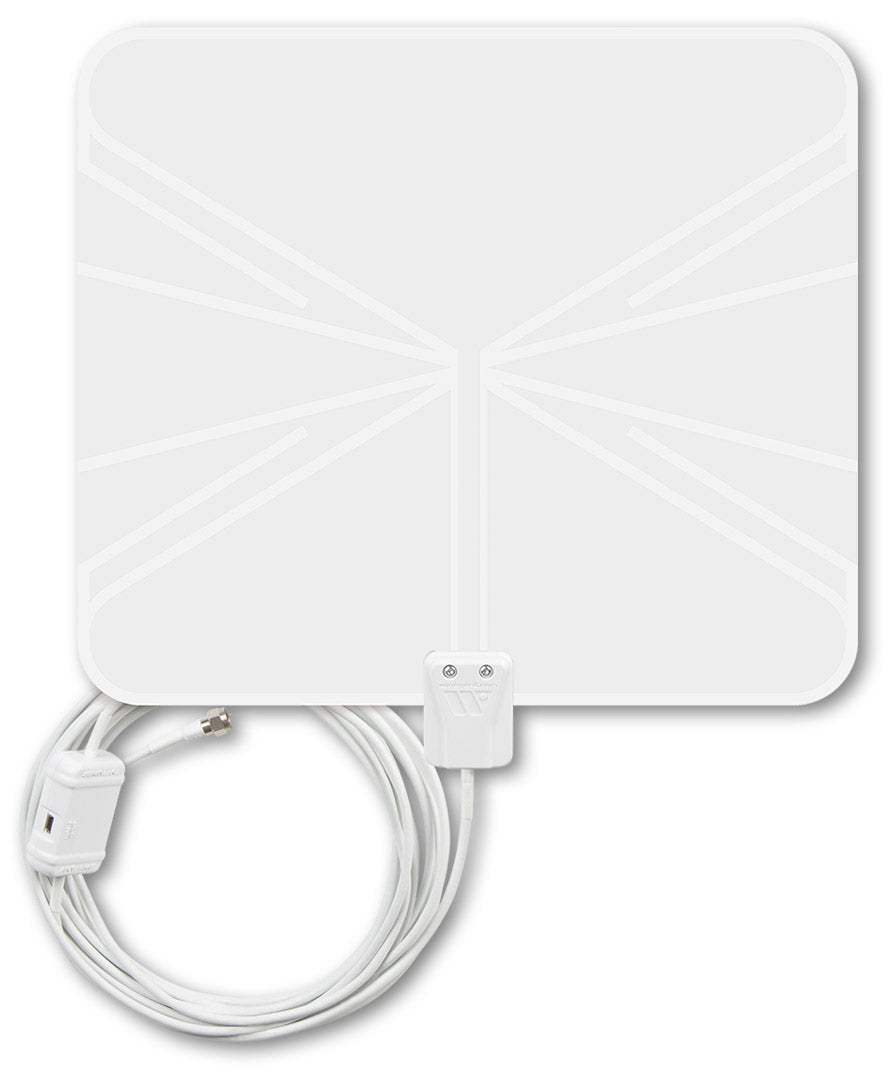

The Future of Free HDTV is Here!

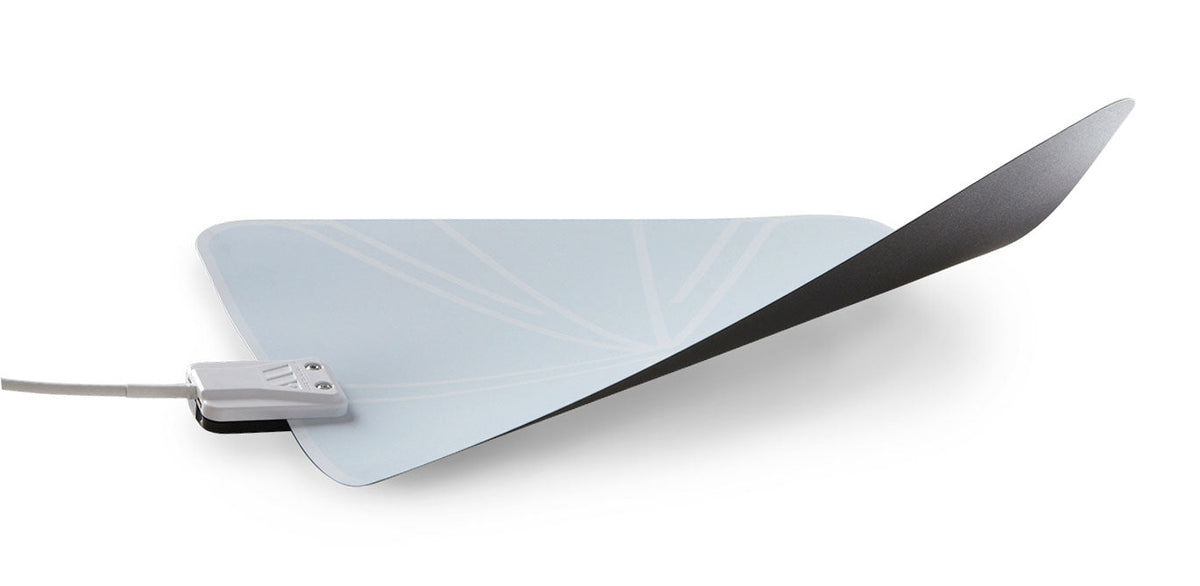

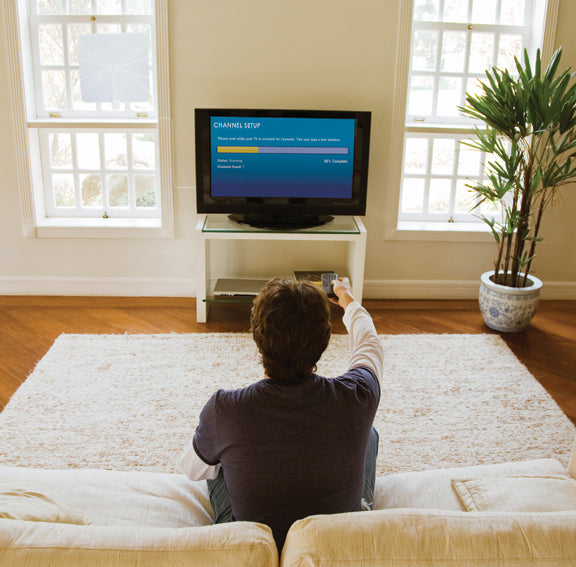

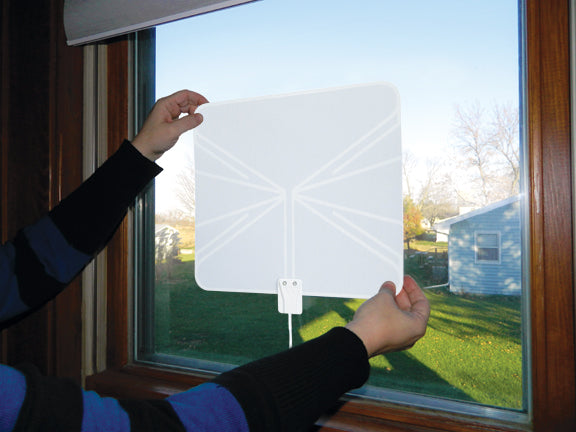

Enhanced dual band antenna features state of the art ultra low noise preamplifier embedded directly at the elements, where 100% of the signal is amplified. Innovative USB power supply provides energy savings by only consuming power while the TV is powered on.

• Amplified HDTV reception up to 50 miles
• Revolutionary Clear Circuit Technology™ provides ultra low noise figure – 1.0 dB
• Receives more channels
• Minimizes pixelation and dropouts
• Extra long mini coax makes finding the ideal location easy
• Dual band reception means you don’t miss out on channels that other compact UHF-only antennas do

Technical Specs:

• 50 mile range
• High definition dual band VHF / UHF
• Dimensions: 13" x 12"
• Weight: 0.60 lbs
• Multi-directional
• Embedded ultra low noise (1db) digital amplifier for the best antenna performance
• 18.5’ mini 59 coaxial cable (attached to antenna for better quality)
• 3’ USB power cable with 110V adapter

In the Box:

• Antenna with embedded low noise digital amplifier
• 18.5' mini 59 coaxial cable (attached to antenna)
• 3' USB power cable with 110V adapter
• Two 3M™ Command™ Brand Strips

ONE YEAR LIMITED WARRANTY

Keywords: hdtv, ota, condo, condominium, apartment

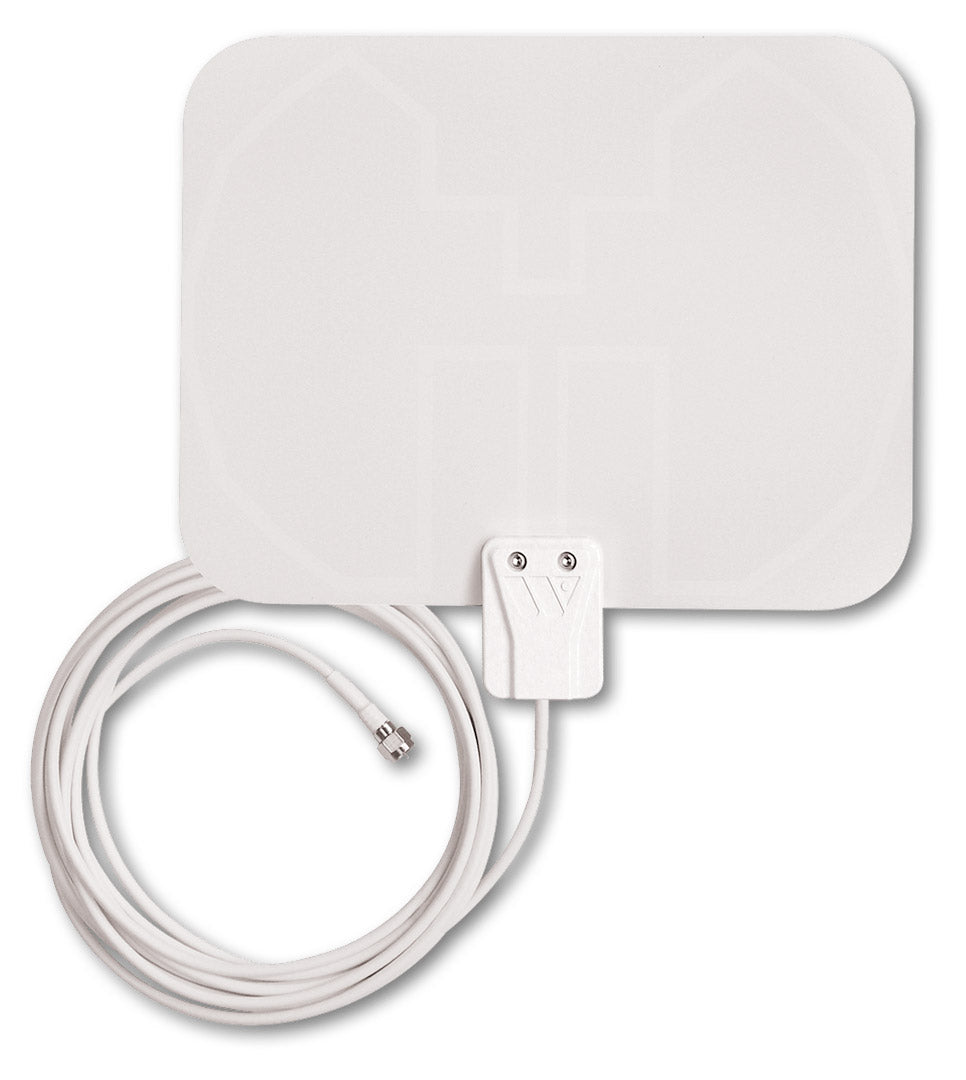

The Future of Free HDTV is Here!

A small indoor antenna with outstanding reception! When big city life means a compact living space, the FlatWave Mini is the perfect solution! The razor thin design of this ultra sleek antenna makes the Mini the best super compact HDTV indoor antenna for smaller locations. The only thing that will stand out is the picture quality!

• Major metropolitan areas or within 25 miles of broadcast tower
• Optimized for UHF reception (may receive VHF signals in strong signal areas)
• Ideal for small living spaces and/or businesses
• No big monthly cable bills!

Technical Specs:

• 7.25" x 9.25" flat, compact size
• 25 mile range
• High definition UHF
• Multi-directional
• 15’ Coax Cable
• 3M adhesive command strips for easy installation

In the Box:

• FlatWave antenna
• Attached 15’ coax cable
• Two 3M™ Command™ brand strips

ONE YEAR LIMITED WARRANTY

Keywords: hdtv, ota, condo, condominium, apartment

The Future of Free HDTV is Here!

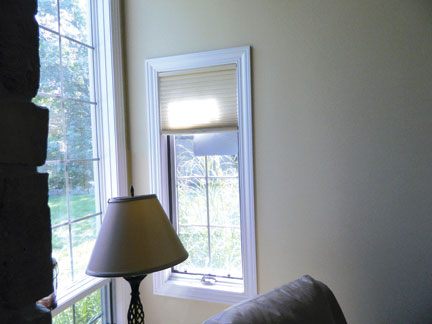

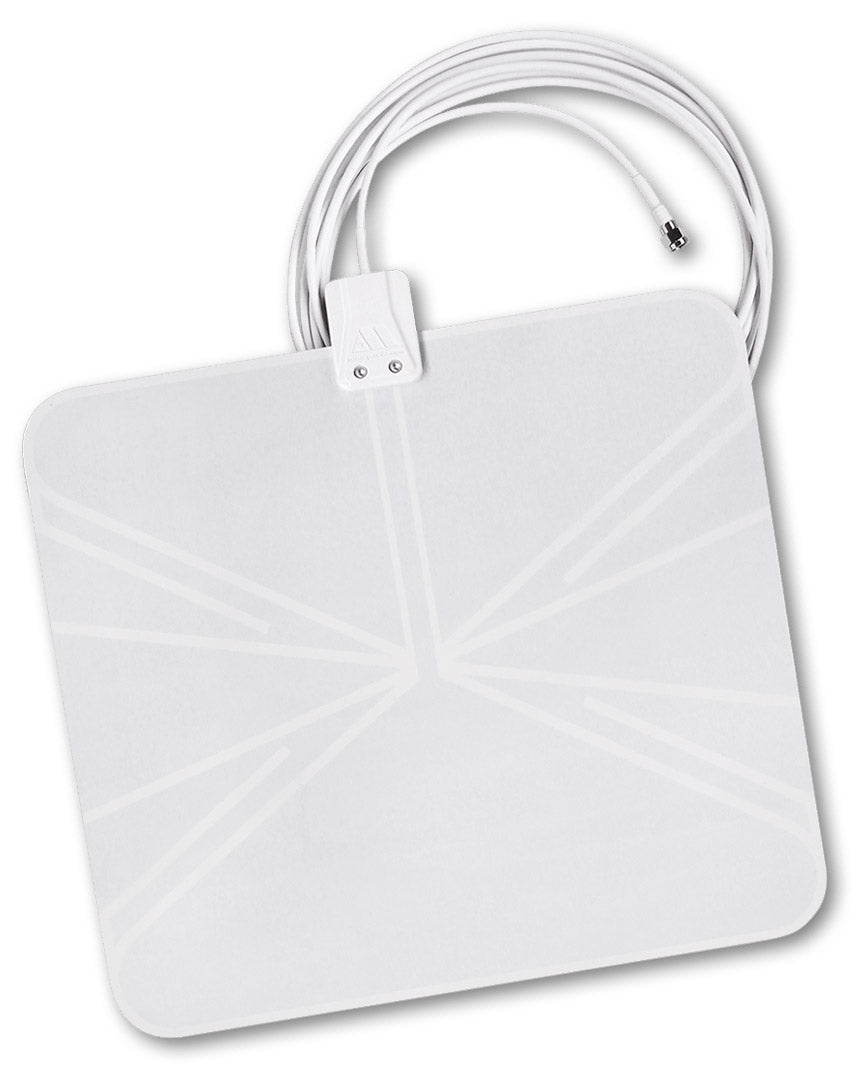

This FlatWave is the original razor thin dual band HDTV indoor antenna designed to pull in broadcast signals up to 35 miles. It’s extra long coax cable provides the flexibility to find the optimal signal.

The FlatWave® HDTV indoor antenna is a light weight antenna that you can install. Designed for use in small communities as well as large, the near Blu-Ray® quality picture allows you to view “true” HD picture on your TV. The black and white antenna works with any décor and has a 15’ cable for easy placement allowing you to enjoy the best quality reception.

Choose the FlatWave Amped HDTV Antenna if you need a 50-mile reach and a longer cord, or choose the FlatWave Mini HDTV Antenna if you want a smaller version of our original FlatWave.

Technical Specs:

• Dimensions: 13" x 12"
• High definition VHF / UHF
• Weight: 0.34 lbs
• Multi-directional
• Up to 35 miles
• Housing: 0.6" thick
• Antenna Element: 0.017" thick
• 15’ Coax Cable

In the Box:

• FlatWave antenna
• Attached 15’ coax cable
• Two 3M™ Command™ brand strips

ONE YEAR LIMITED WARRANTY

Keywords: hdtv, ota, condo, condominium, apartment

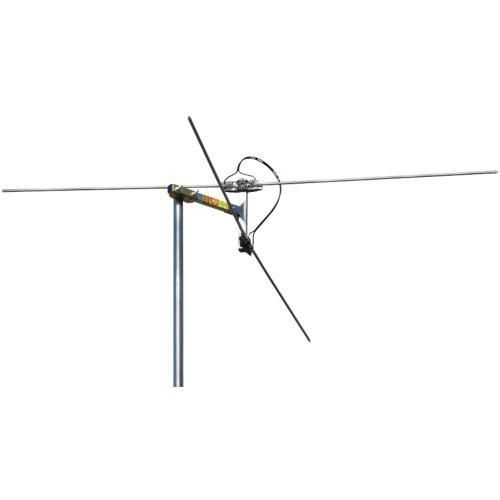

• 300 ohm output / 75 ohm transformer included

• Active Elements: 2

• Boom Length: 10"

• Turning Radius: 41

• Maximun Width: 67

• Height: 10.25

• Box size: 42 x 6½ x 6½

• (Formerly model PR-6010)

• Compatible with HD Radio

• This FM antenna is great for Short Range (up to 30miles) Omni-directional FM coverage

• Be sure the receiver you intend to use with this antenna is compatible with a 75ohm F-type coaxial connection or a 300ohm Twinlead type connection.
