Antenna Amps, Combiners & Splitters

WADE 16 GAUGE 3-METER (10-FT) MAST PIPE WITH 3.81-CM (1.5-IN) OUTSIDE DIAMETER

PCT's Genesys I drop passives offer exceptional performance and long-term reliability for drop installations, particularly in systems with cable modem applications.

Features and Benefits
• Superior intermodulation distortion and second
harmonic performance
• Excellent return loss and port-to-port isolation in the return band
• Patented DSM seizure technology provides increased spring retention for better surface contact
• Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion
• Weather-sealed F ports
• 6 kV surge withstand, guaranteed second order harmonics performance after 5 surges to each port of 1 kV

Splitting your signal to more than one receiver?  Minimize your insertion loss by using an Antennas Direct, Inc. digitally compliant splitter. These balanced low loss splitters feature tin-plated zinc weatherproof housings, a DC pass port, and glass PCB micro strip design

2 Way DC Pass Splitter

• Splits signal to 2 receivers
• Power pass on one port – max voltage +18vdc
• Max insertion loss 3.6

Antronix 2-Port Ultra Mini Residential Distribution Amplifier - microhousing, 2 port, +11dB , power adaptor included

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

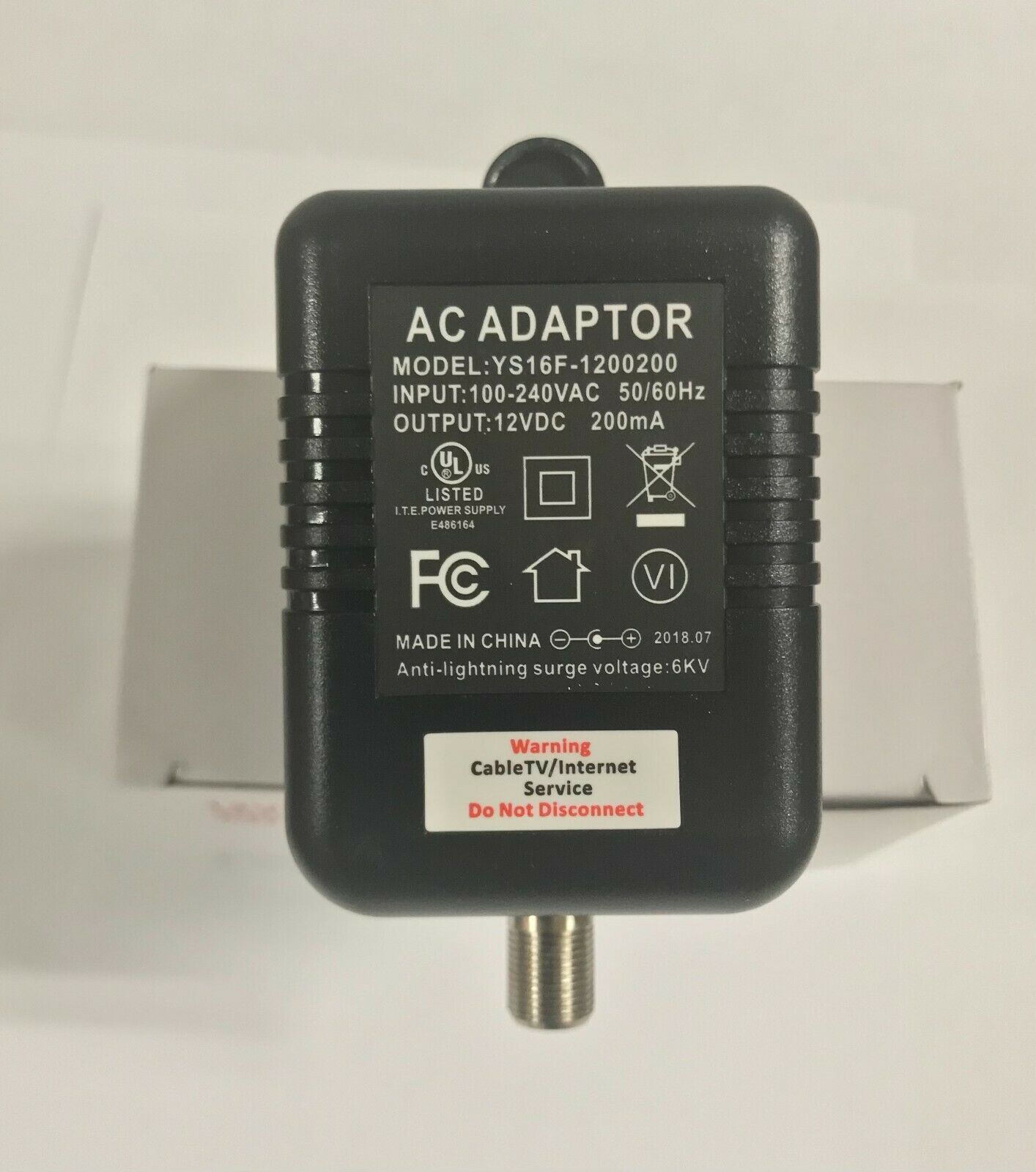

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

Antronix 2-Port Ultra Mini Residential Distribution Amplifier - microhousing, 2 port, +11dB with Power Inserter

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

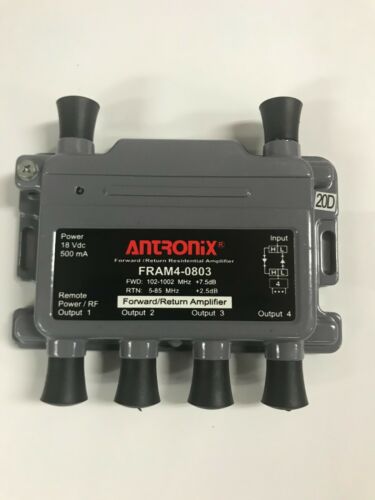

Antronix 4-Port Residential Amplifiers,+8dB forward gain, passive return, CamPort, power adaptor and power inserter included

Antronix’s FRA4-0803 provides both forward and return path amplification. The FRA was designed for applications such as cable modems and two-way set-top boxes. The FRA was the first forward and return amplifier to utilize the patented auto-seizing CamPort©. This SCTE compliant F-port provides maximum contact area and reliability for multimedia applications. With the capability to endure multiple high-power surges, the FRA4-0803 can operate in the harshest environments. The lightweight powder-coated AL 360 housing provides superior corrosion resistance for quality performance and long life.

Channel Master CM 3214 4-Way Digital Splitter (CM3214)

The Channel Master TV splitter will distribute and split your digital TV, HDTV, cable TV, satellite TV, off-air, analog and digital RF signals. All Channel Master signal splitters are commercial grade and offer the cleanest distribution of your signal when performance and reliability required. Our splitters meet stringent US and international standards, including SCTE. The CM 3214 is a high quality four port TV splitter.

4-way digital splitter

Keywords: cm3214, 3214

Number of Outputs: 2

The Channel Master TV splitter will distribute and split your digital TV, HDTV, cable TV, satellite TV, off-air, analog and digital RF signals. All Channel Master signal splitters are commercial grade and offer the cleanest distribution of your signal when performance and reliability required. Our splitters meet stringent US and international standards, including SCTE. The CM 3212 is a high quality mini two port TV splitter.

• Mini 2-way digital splitter

Keywords: cm3212, 3212

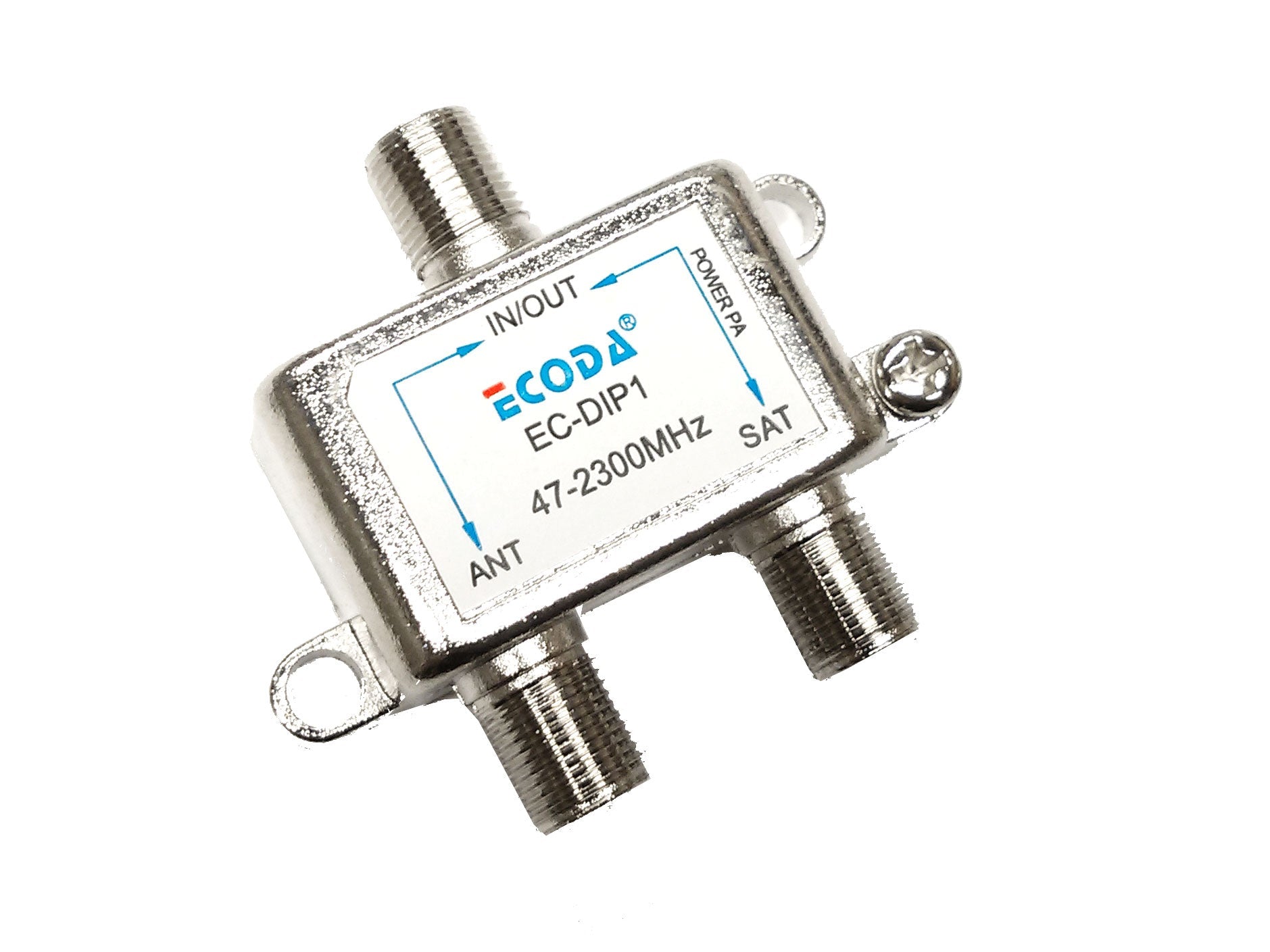

Because satellite and cable use 2 separate frequency bands, you can "piggy-back" one signal on top of the other. This lets you save time and cabling by running just 1 line into the house for both. You'll need a pair of these: 1 to combine and 1 to split back the signals. Combine Satellite and Cable TV Signals (Sat + Cable) Diplexer

Features

• Frequency range terrestrial - 47...862 MHz
• Frequency range SAT - 950...2400 MHz
• Through loss is less than 3 dB

Keywords: pvdp-2

When you have used all switches available, but still no success; This heavy duty manual switch will be your final choice. Manual switch will work with all system.

Keywords: ab switch

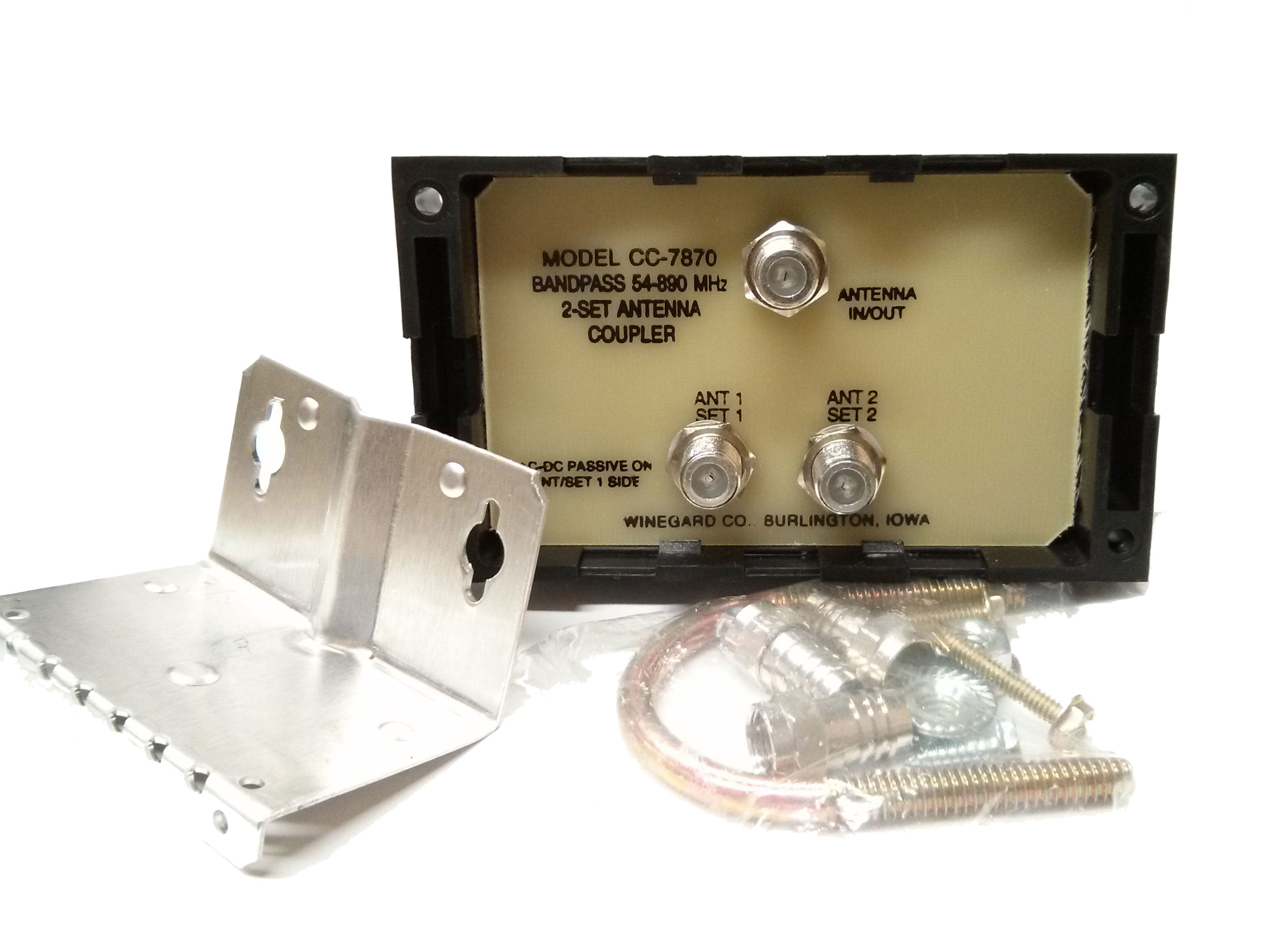

     Couples two 75 ohm leads from any two antennas to a 75 ohm coaxial downlead

• AC/DC passive to Set 1 side.
• Bandpass: 54 - 890 MHz
• 3.5 dB insertion loss.
• VHF/ UHF / FM

Keywords: coupler, antenna coupler

Pack of 10 pcs

• The EX connector is designed with a compliant co-polymer body to achieve a universality on 60% of braided cable to Quad cable. The EX connector was designed with the challenging requirements of IP Telephony and High-Speed Data.
• The unique patented design with a compliant co-polymer body achieves true universality across all cable braids. PPC RG6
•

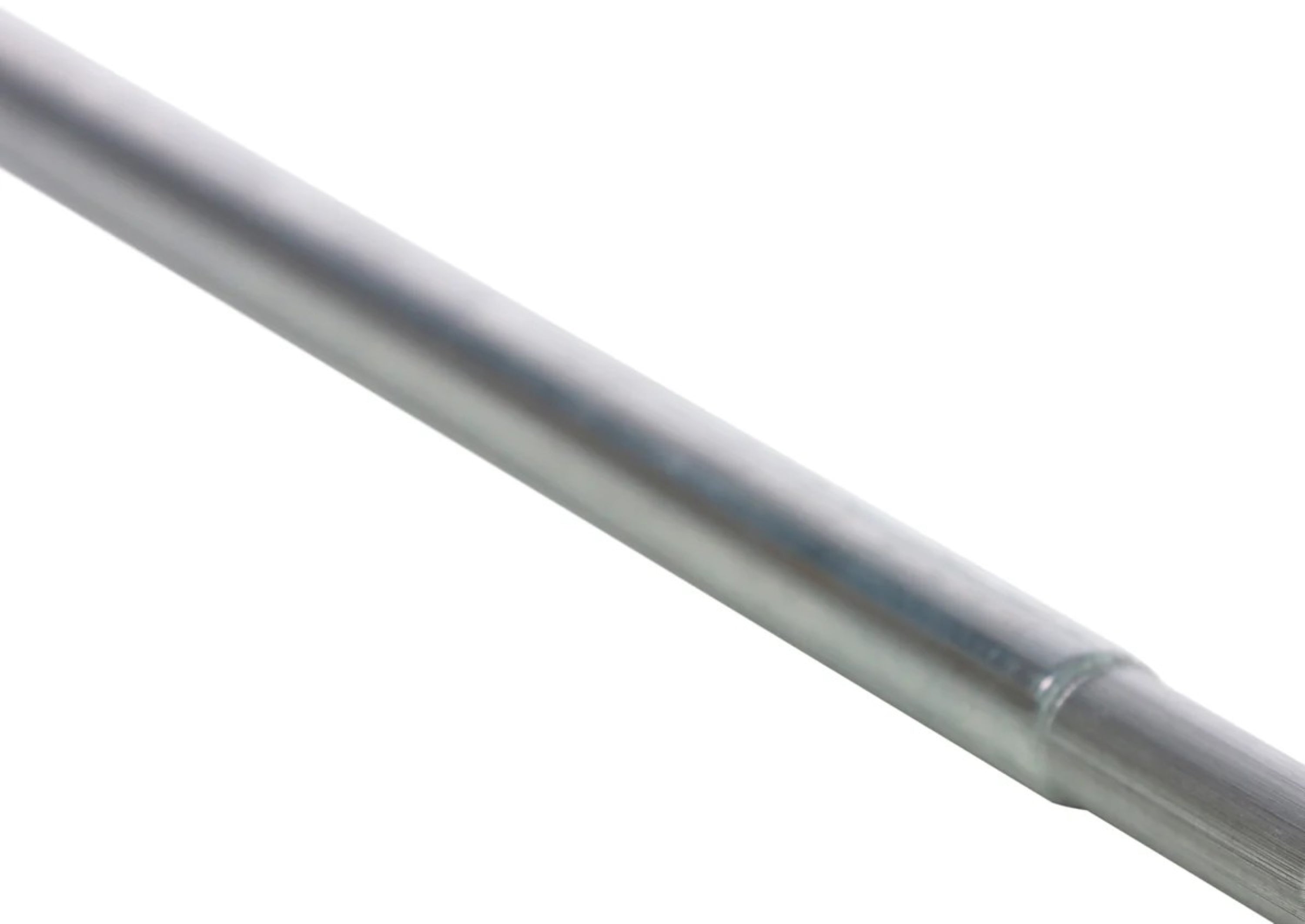

The Focus Antennas   Mast is 1x 5' 18 Gauge high quality galvanized steel mast that works with all Focus Antennas , Channel Master antennas and mast mounts. Great for attic, rooftop, chimney, and wall installations.

The 5’ Antenna Mast is a 5-foot long, 18-gauge, galvanized steel antenna mast with swedged end.

Swedged end for easy expansion

Outer diameter: 1.66"

Size (product)     60 x 1.25 x 1.25 in

Package size for Shipping          60 x 4 x 4 in

Weight (product)                       6 lb

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort® provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges.

Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance.

• Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

• CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

• 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1002 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only.

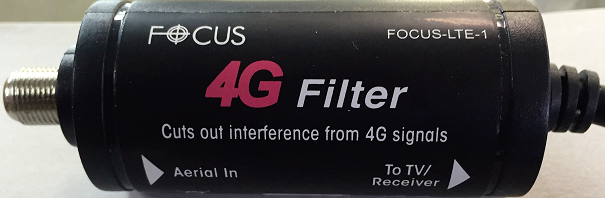

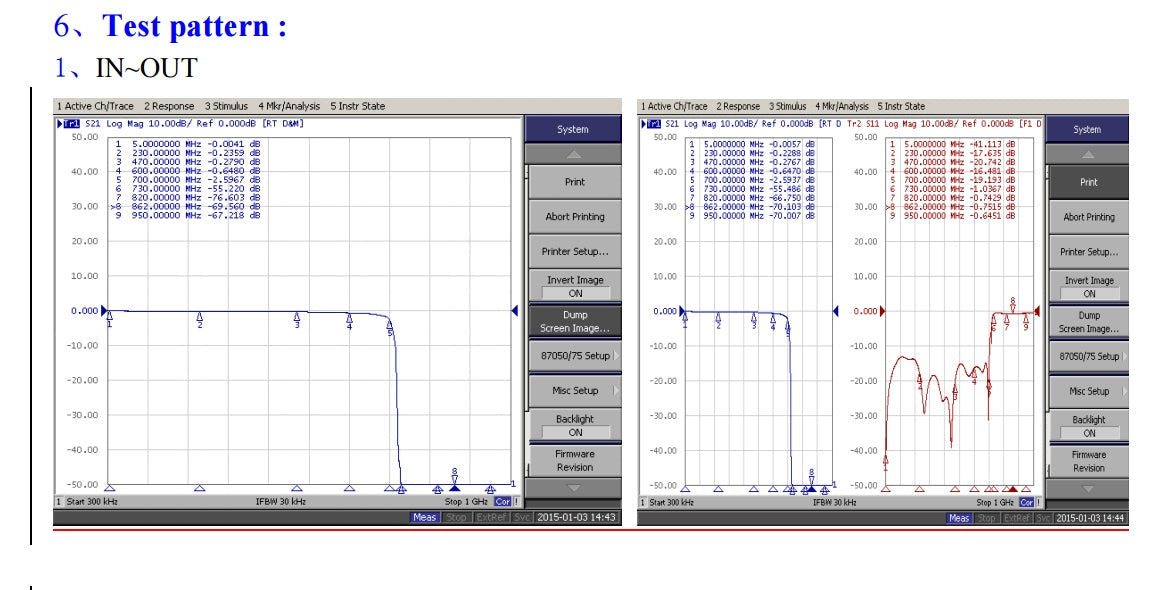

USES of LTE 4G Filter

• Used to filter out LTE signal used by 4G broadband broadcasts
• The product is fitted to the cable coming from a TV aerial to block out this interference
• In cases of very high levels of interference 2 filters be screwed together inline to roughly double the filter effect

ADVANTAGES of LTE 4G Filter

• It is highly effective, giving a filter effect of between 35 - 55dB and above
• It is far more effective than 'at 800' approved filters
• It can be used indoors or outdoors
• It comes with an F-type connector which gives a superior connection

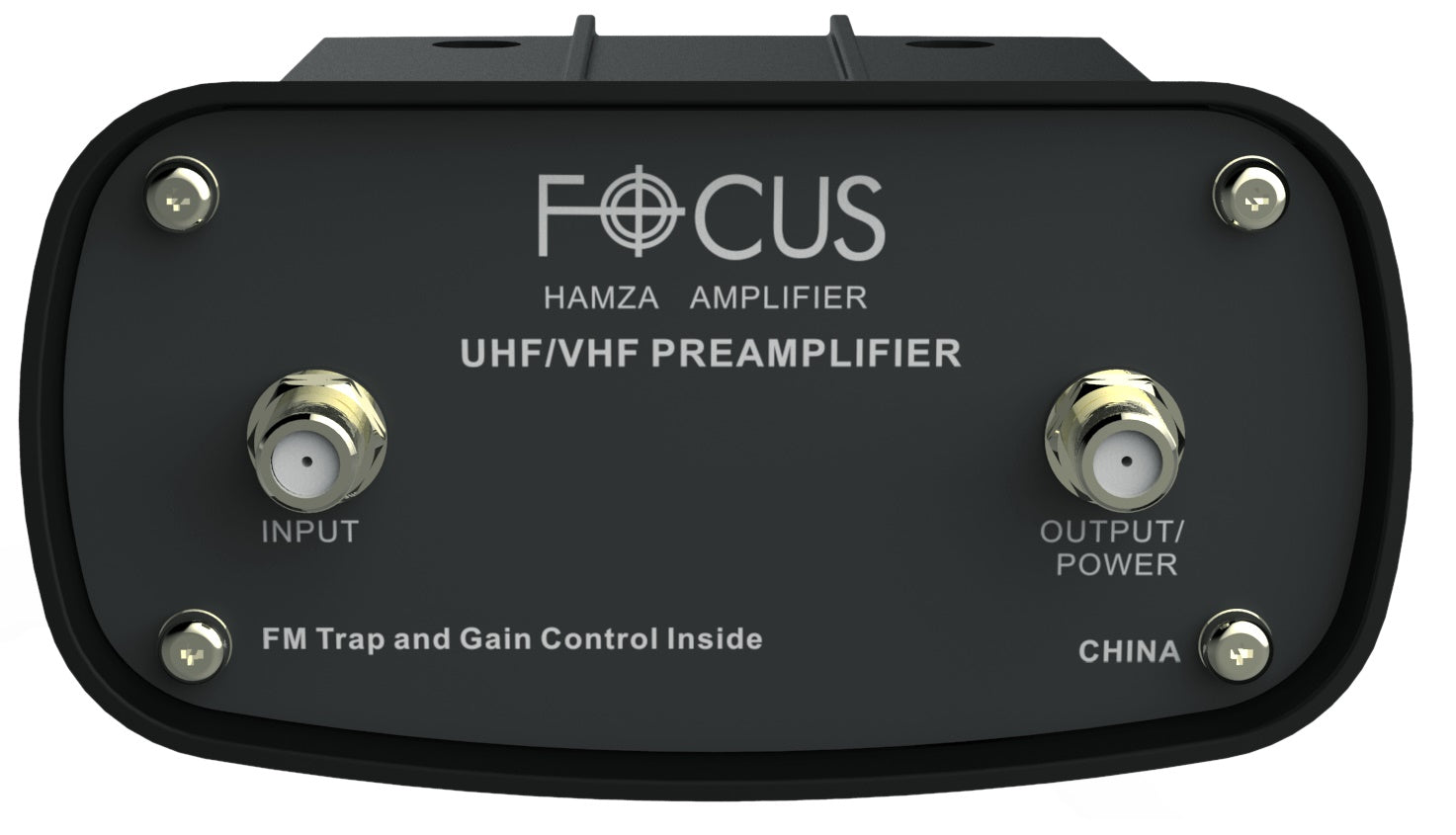

The HAMZA range of mast mounted amplifiers has been completely Brand New engineered and updated.These HAMZA amplifiers represent the ultimate in preamplifier performance.

Professional Outdoor TV Antenna Amplifier

• Makes up for signal loss from long cables and splitters
• Optimum filtering for rejection of out-of-band signals.
• Lock in those hard to get stations by placing this as close to the antenna as possible
• HAMZA AMPLIFIER has a Heavy Duty die-cast aluminum housing fully shielded, weather proof enclosure
• Surface-mounted components for automated production and consistent high performance.

• VHF and UHF bands combined amplification • Gain: VHF 30 dB - UHF 30 dB
• Includes a switchable FM trap
• Outdoor rated housing
• Mast mounted amplification unit with indoor power supply which connect via coaxial cable

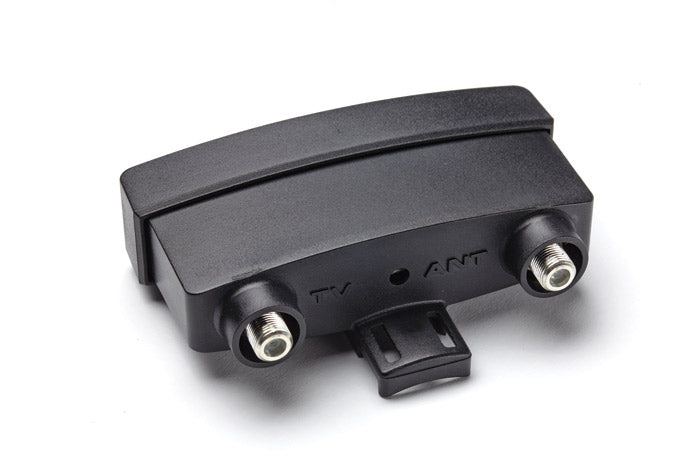

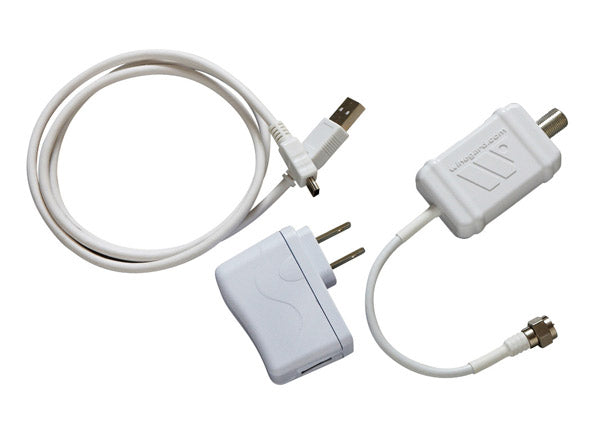

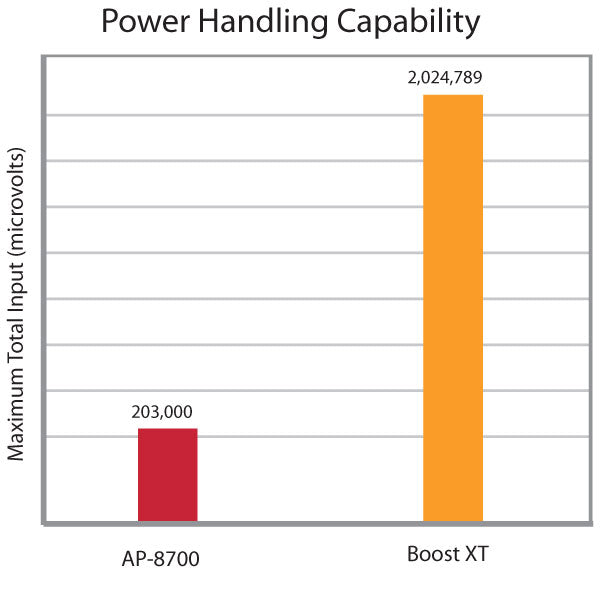

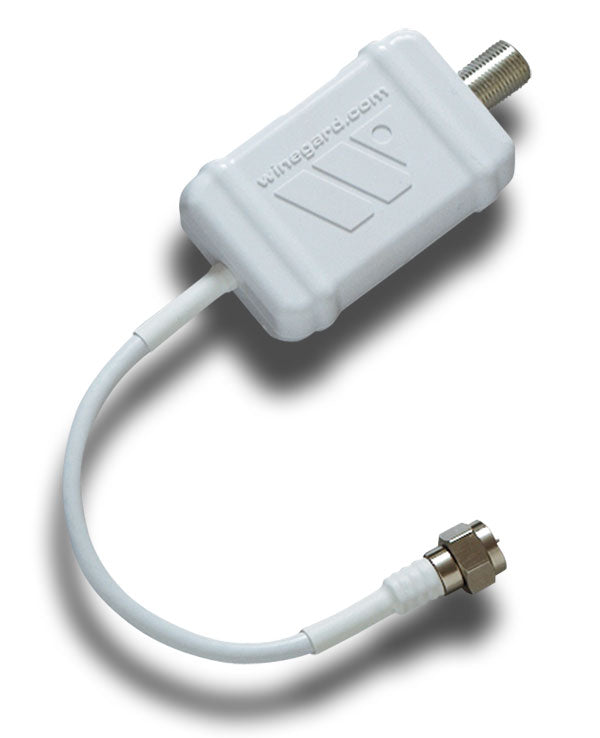

Boost™ is the most advanced digital TV antenna amplifier available featuring the lowest noise figure (1 dB typical).

Using the latest advances in amplifier technology, Boost, enhances any non-amplified antenna, delivering more range and available channels. Give your antenna a Boost today!

Amplifier with Clear Circuit Technology

• Works with any non-amplified/passive TV antenna
• Clear Circuit Technology™ increases range and channels while eliminating pixelation and dropouts

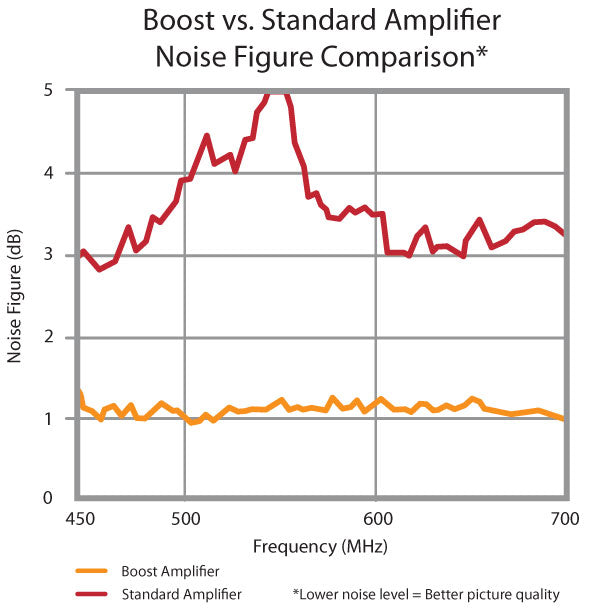

• Ultra low noise figure – 1.0 dB typical
• Energy saving USB power supply with LED power indicator
• Innovative engineering from Winegard, the antenna experts

Technical Specs:

• Gain*: 20 dB
• Noise Figure*: 1 dB
• Power: +5V
• Includes: USB power inserter
• 110V adapter
• 1 year limited warranty

*measured values in given frequency bands are typical

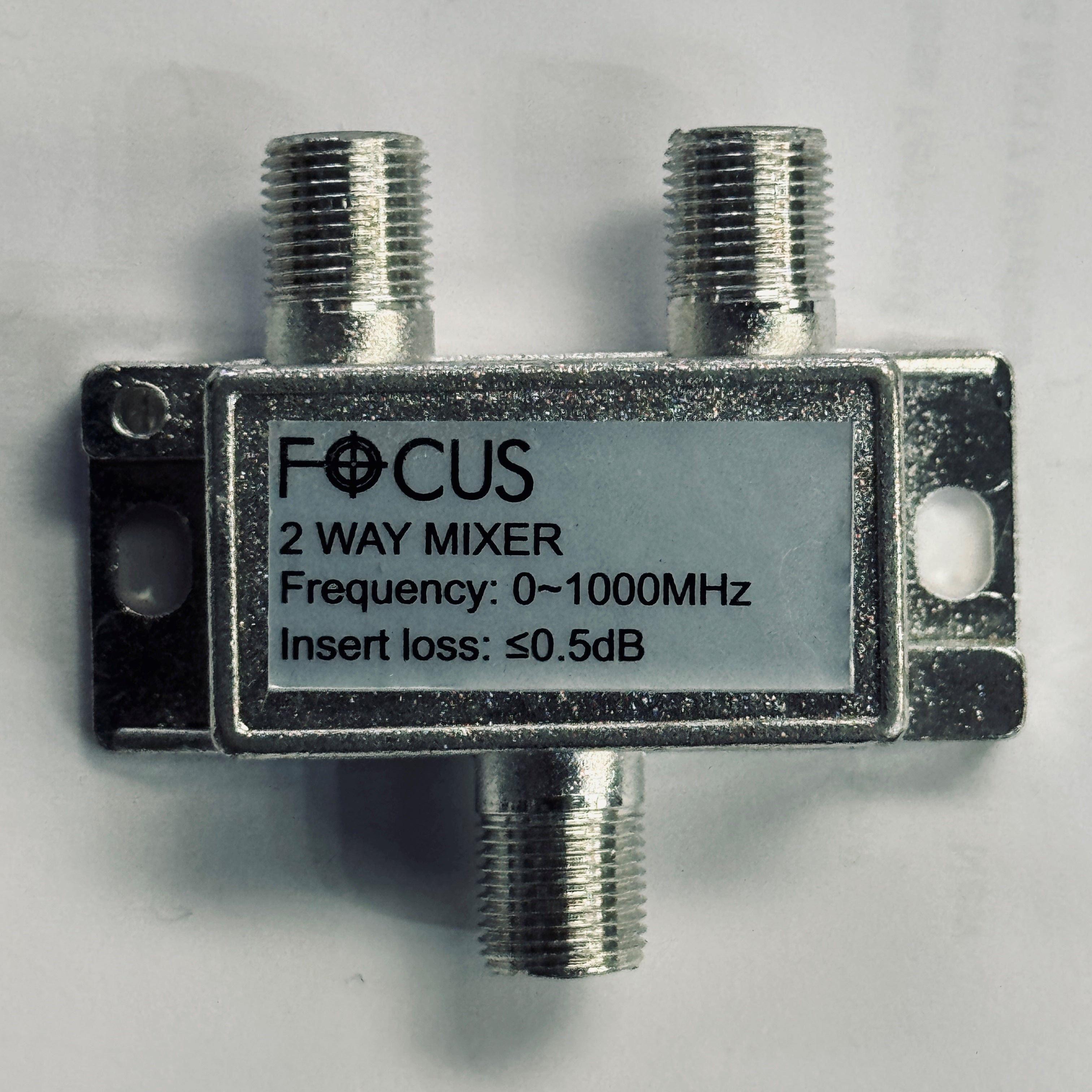

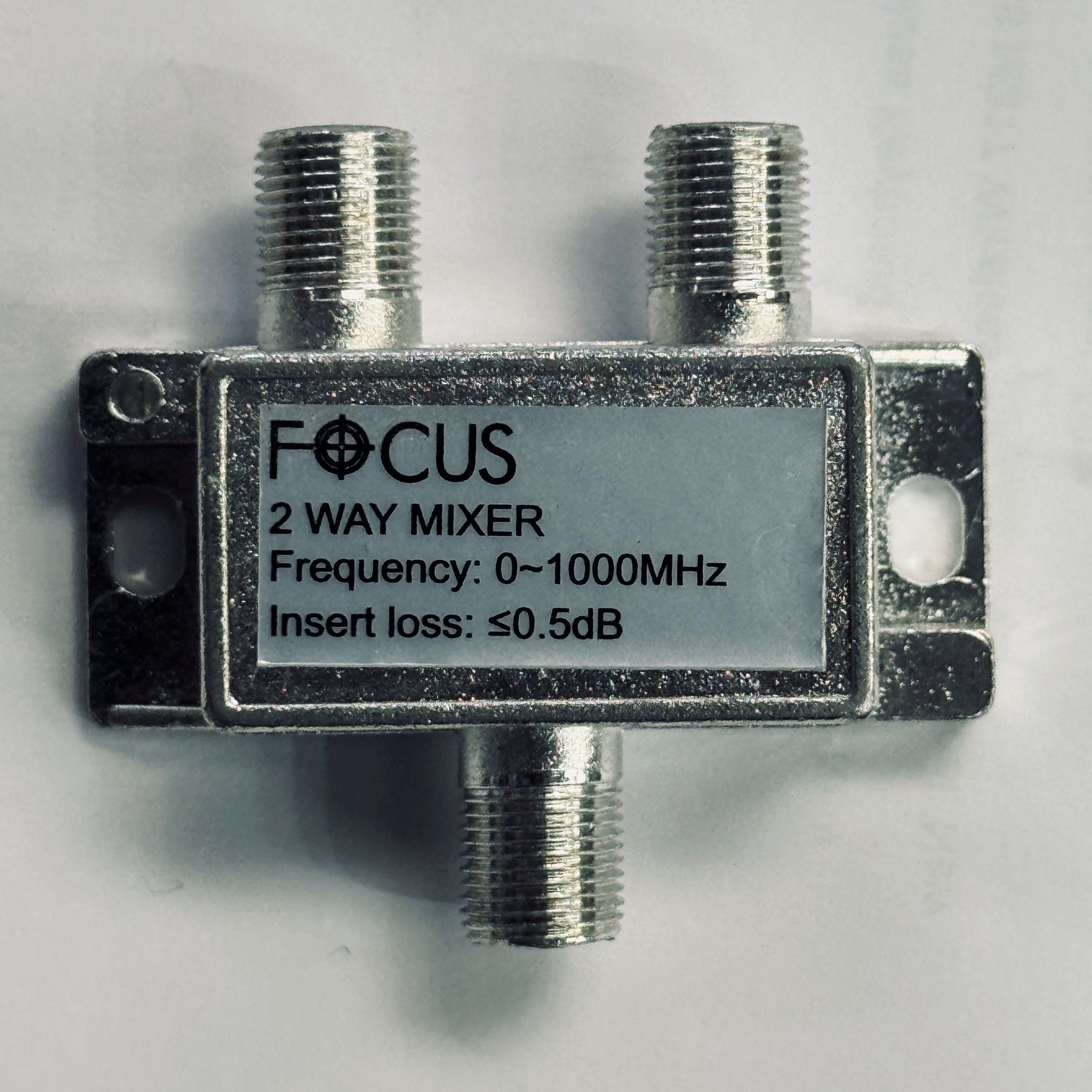

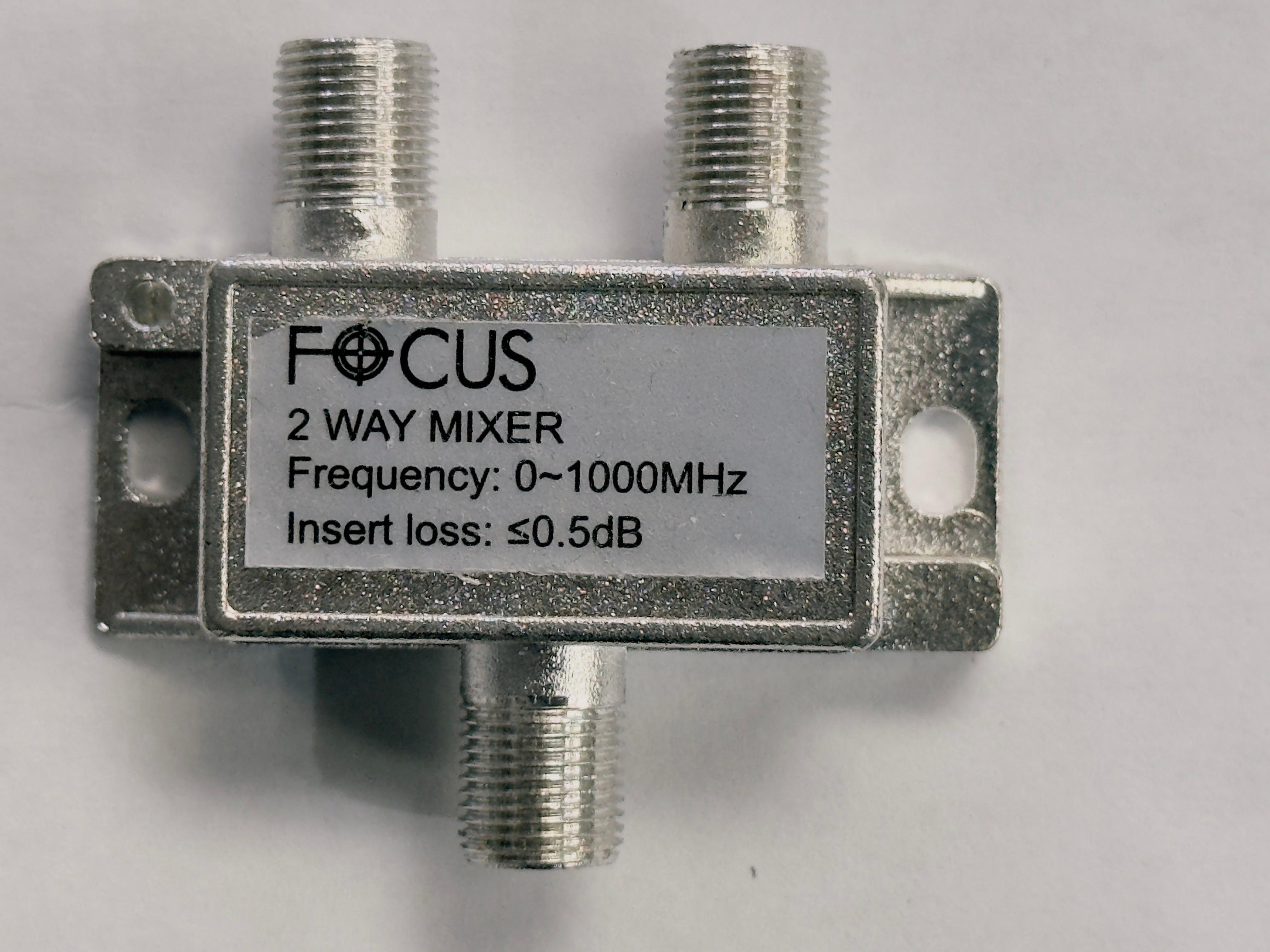

Can be used as a antenna combiner

• Bandwidth: 0 - 1000 MHz

• Combiner: 2-input and 1-output

The  Focus  antenna Combiner provides a 1GHz bandwidth and is ideal for antenna and coaxial cable operations. The combiner can be used to combine signals from two sources onto one coax run.

• Provides 1GHz bandwidth
• Ideal for antenna and coaxial operations

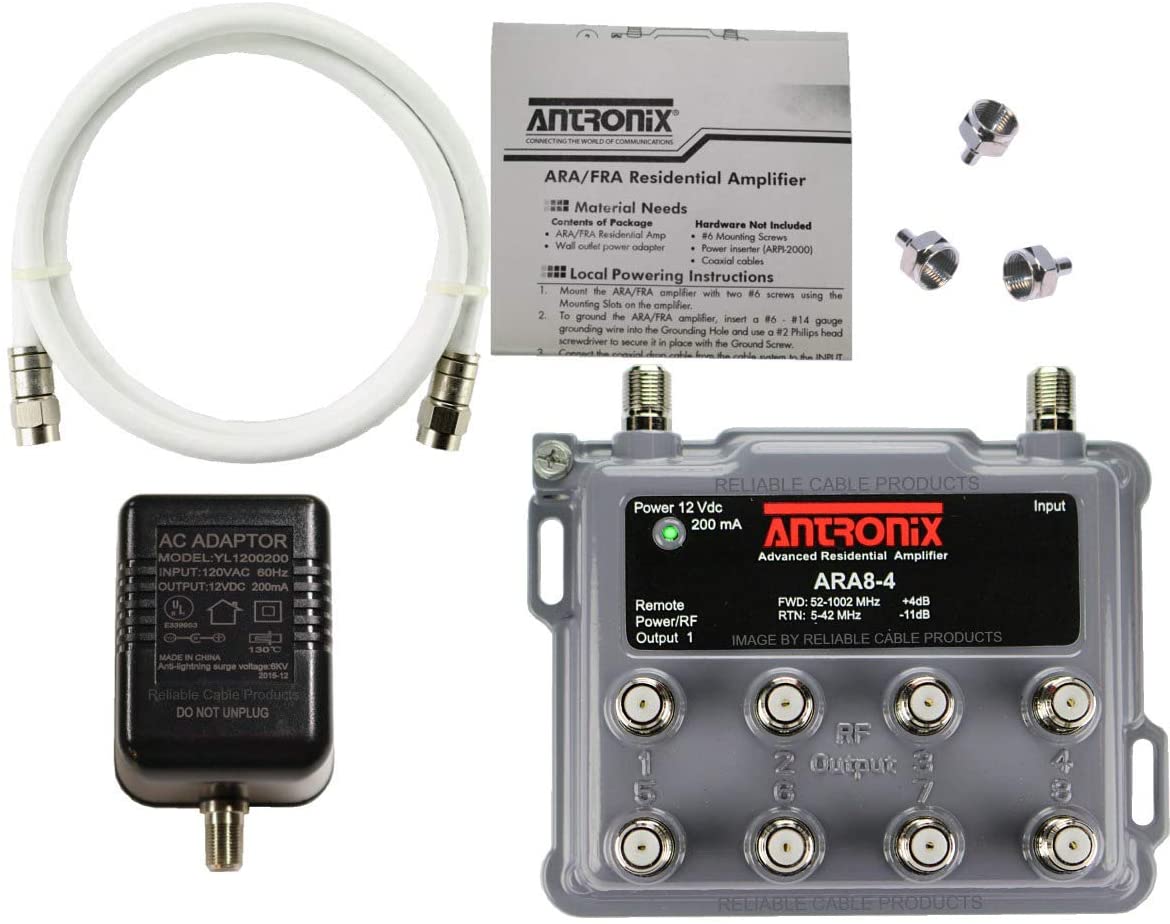

Antronix 8-Port Advanced Residential Amplifier,+3.8dB forward gain, passive return, CamPort, power adaptor included

The Antronix Advanced Residential Amplifier (ARA) was designed with the latest technology for reliable subscriber premise amplification. By using Gallium Arsenide technology, the ARA provides improved distortion and noise performance required for today’s bi-directional digital applications. This was the first residential amplifier to utilize the patented CamPort® to provide an auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the ARA was engineered to withstand the harshest environmental conditions with the capability of enduring repeated high power surges. The lightweight powder coated AL 360 housing provides superior corrosion resistance for years of quality performance

CamPort® Auto-Seizing F-port Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center connector for maximum reliability.

 • 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters.

• 6 kV Combination Wave Surge Protection Unique surge protection on all RF ports without the use of arc gaps which may cause high impulse noise during discharge.

 • Gallium Arsenide Technology for Low Distortion Provides improved distortion and noise performance.

• Low Intermodulation Ferrites Proprietary ferrite blend inhibits re-magnetization of the core due to voltage spikes from impulse noise or lightning. This prevents high-level return carriers from affecting forward path video signals.

• 15 psi Sealed SCTE Compliant CamPort® Sealed brass CamPort® prevents water migration.

• 5-42/52-1000 MHz Diplex Filter True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

• Weather Sealed Housing with RFI Gasket Guarantees repeatable 120 dB RFI shielding.

• Powder Paint Coated AL 360 Housing Provides the most corrosion resistant protection against salt fog and rust.

• Powered Locally or Remotely Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.

• PTC Short-Circuit Protected UL Listed Adaptor Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

• Dual Compartment Power Inserter Provides high AC to RF isolation to minimize ingress.

• Exceeds all SCTE Standards

• 5 Year Warranty Applies to amplifier only

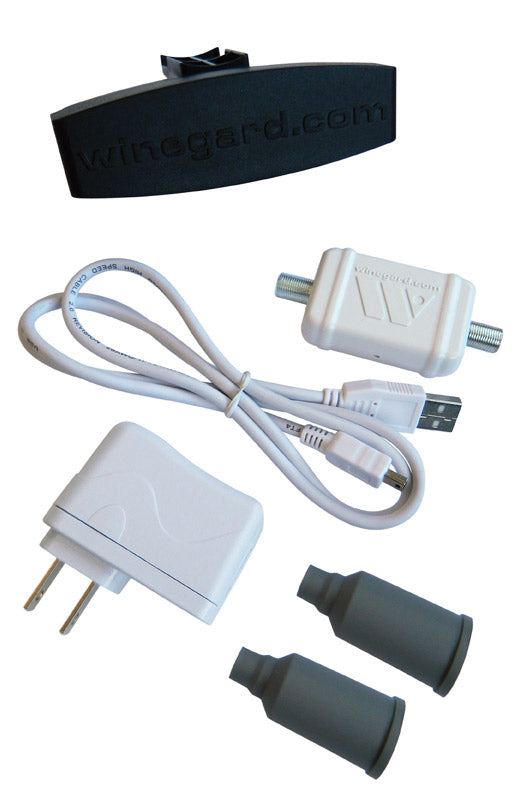

Boost™ is the most advanced digital TV antenna amplifier available featuring the lowest noise figure (1 dB typical).

Using the latest advances in amplifier technology, Boost, enhances any non-amplified antenna, delivering more range and available channels. Give your antenna a Boost today!

Amplifier with Clear Circuit Technology

• Works with any non-amplified/passive TV antenna
• Clear Circuit Technology™ increases range and channels while eliminating pixelation and dropouts
• Ultra low noise figure – 1.0 dB typical
• Energy saving USB power supply with LED power indicator
• Innovative engineering from Winegard, the antenna experts

Technical Specs:

• Gain*: 20 dB L-VHF, 15 dB H-VHF, 18 dB UHF
• Noise Figure*: 3 dB VHF, 1 dB UHF
• Power: +5V at 130mA
• Includes: Preamplifier
• USB power cable
• 110V adapter
• power inserter
• hose clamps
• weather boots
• 1 year limited warranty

*measured values in given frequency bands are typical

Antronix 4-Port Residential Amplifiers,+8dB forward gain, passive return, CamPort, power adaptor and power inserter included

Antronix’s FRA4-0803 provides both forward and return path amplification. The FRA was designed for applications such as cable modems and two-way set-top boxes. The FRA was the first forward and return amplifier to utilize the patented auto-seizing CamPort©. This SCTE compliant F-port provides maximum contact area and reliability for multimedia applications. With the capability to endure multiple high-power surges, the FRA4-0803 can operate in the harshest environments. The lightweight powder-coated AL 360 housing provides superior corrosion resistance for quality performance and long life.

Can be used as a splitter or a combiner

• Bandwidth: 5 - 1000 MHz
• Splitter: 1-input and 2-output
• Combiner: 2-input and 1-output

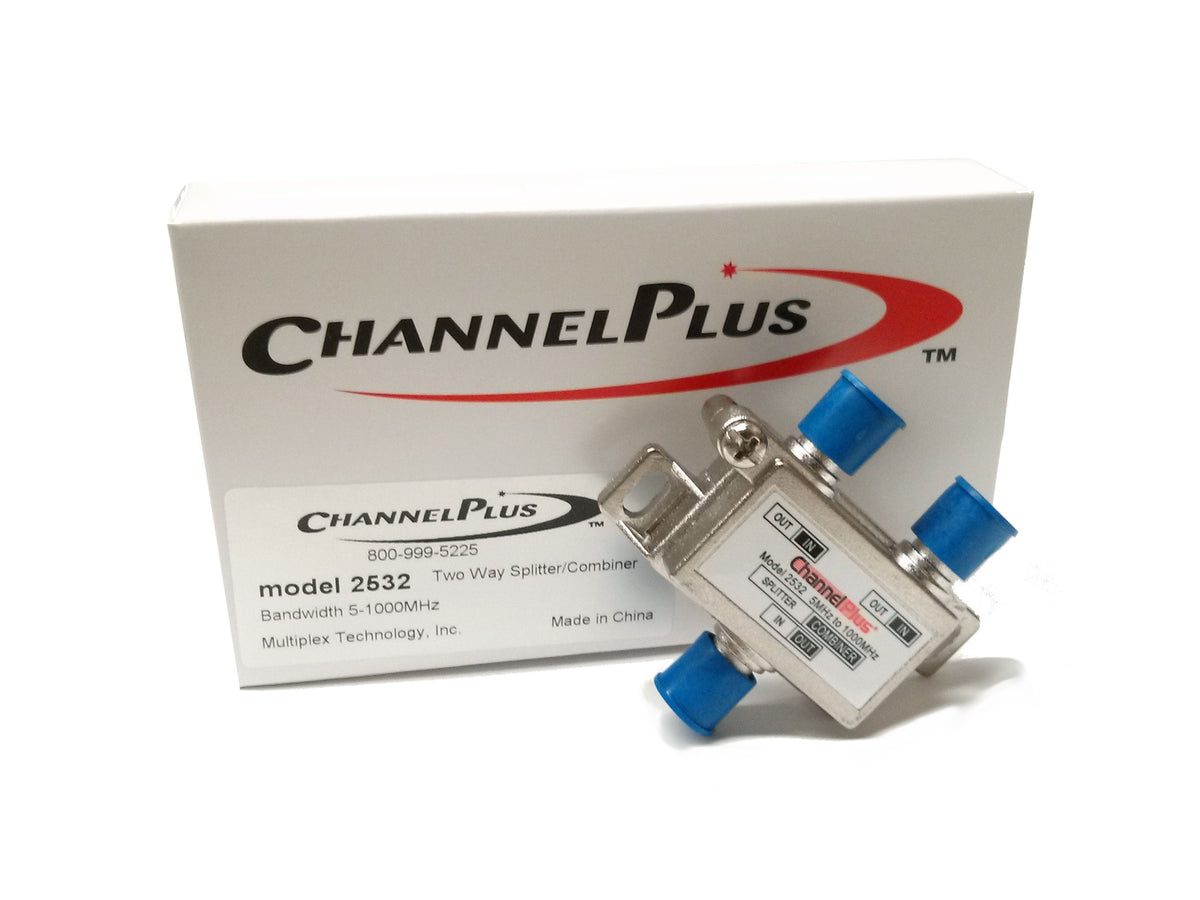

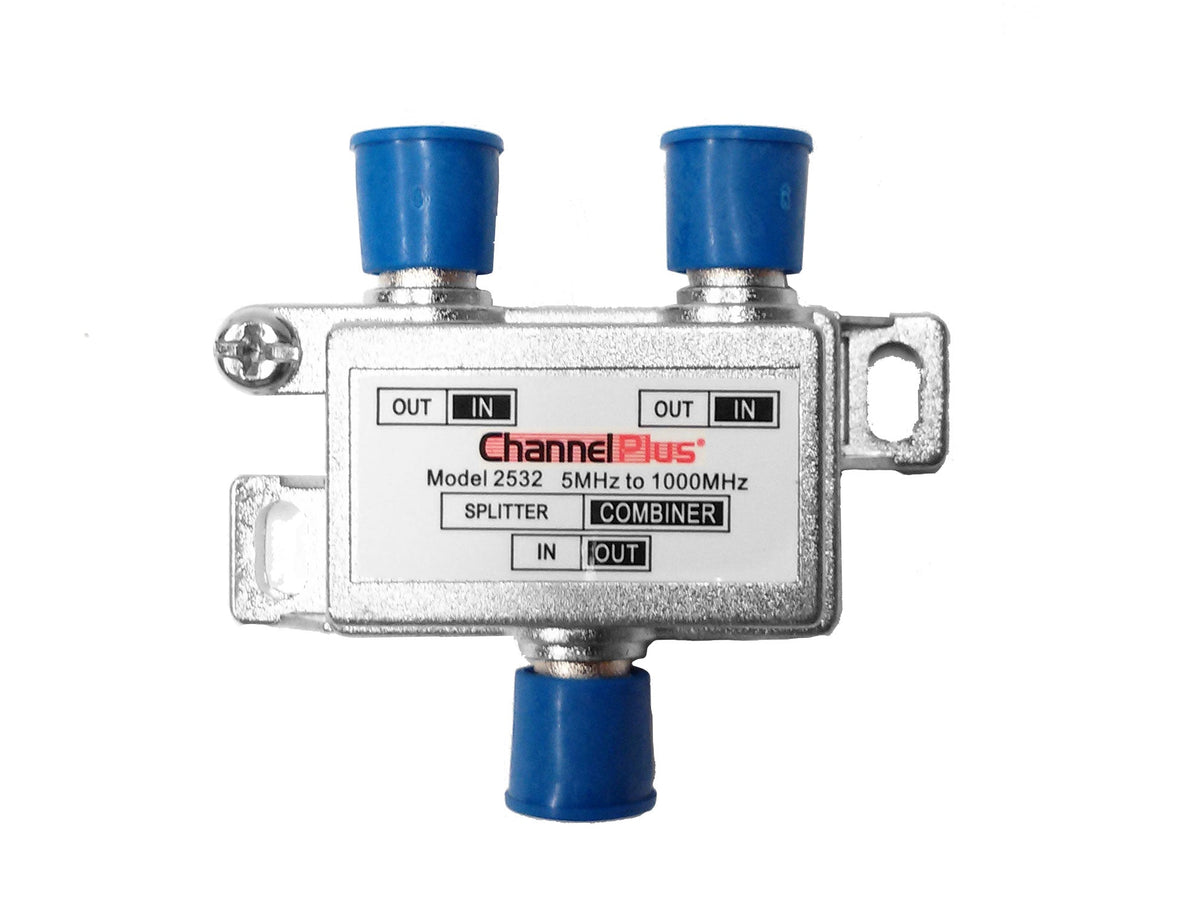

The bi-directional Channel Plus 2532 Splitter/Combiner, 2-Way provides a 1GHz bandwidth and is ideal for antenna and coaxial cable operations. The splitter/combiner can be used to split a signal from a source or to combine signals from multiple sources onto one coax run.

• Provides 1GHz bandwidth
• Ideal for antenna and coaxial operations
• 2-way

The HAMZA range of mast mounted amplifiers has been completely Brand New engineered and updated.These HAMZA amplifiers represent the ultimate in preamplifier performance.

• Makes up for signal loss from long cables and splitters
• Optimum filtering for rejection of out-of-band signals.
• Lock in those hard to get stations by placing this as close to the antenna as possible
• HAMZA AMPLIFIER has a Heavy Duty die-cast aluminum housing fully shielded, weather proof enclosure
• Surface-mounted components for automated production and consistent high performance.

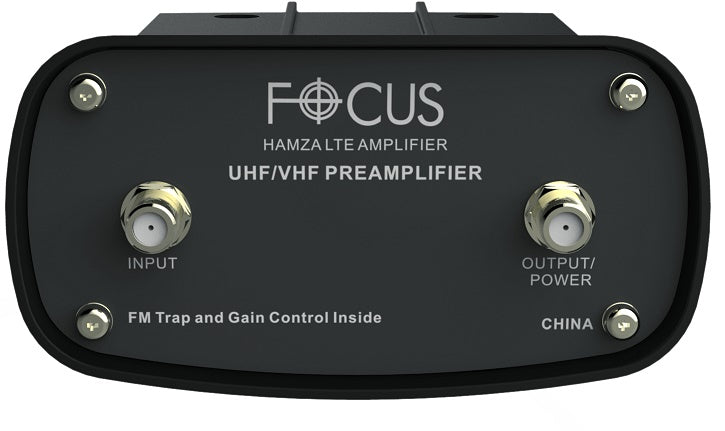

1. UHF/VHF/FM TV Antenna Amplifier with Integrated LTE Filter
2. • VHF and UHF bands combined amplification • Gain: VHF 30 dB - UHF 30 dB
3. Adjustable gain (18 dB/30 dB)
4. • Includes a switchable FM trap
5. • Outdoor rated housing
6. • Mast mounted amplification unit with indoor power supply which connect via coaxial cable

Channel Master CM 7778 Titan2 VHF/UHF Preamplifier with Power Supply (CM7778)

The Titan range of mast mounted amplifiers has been completely reengineered and updated.These amplifiers represent the ultimate in preamplifier performance.

• Full lightning and surge protection.
• Uninterrupted operation even under the harshest environmental conditions.
• Optimum filtering for rejection of out-of-band signals.

The Channel Master television antenna booster (preamplifier) will amplify digital and HD signals received by your antenna. This antenna amplifier is a high gain, low noise preamplifier used for weak signal areas to allow a weak signal that is present at the antenna to be amplified to a viewable strength.  The CM 7778 preamp offers less gain than the CM 7777 but still has enough gain to get the signal from the antenna to the TV set. This preamp is a perfect choice if you are in a strong to medium strength signal area but are still having troubles receive the strongest signals. Preamplifier are also used if you anticipate distributing your signal with a digital splitter to multiple locations throughout your location as splitters reduce the signal strength per output.

• VHF and UHF bands with separate amplification
• Gain: VHF 16 dB - UHF 23 dB
• Can be configured for separate or combined inputs
• Includes a switchable FM trap
• Outdoor rated housing
• Mast mounted amplification unit with indoor power supply which connect via coaxial cable

Keywords: cm7778, 7778, antennas direct juice clearstream, juice preamplifier
