Splitting your signal to more than one receiver?  Minimize your insertion loss by using an Antennas Direct, Inc. digitally compliant splitter. These balanced low loss splitters feature tin-plated zinc weatherproof housings, a DC pass port, and glass PCB micro strip design

2 Way DC Pass Splitter

• Splits signal to 2 receivers
• Power pass on one port – max voltage +18vdc
• Max insertion loss 3.6

This high performance UHF antenna has a higher gain and a smaller beam angle than conventional Yagi antennas. The reflector grids create an improved front to back ratio with shorter construction while the 91 elements truly make it one of the highest gain UHF antennas available. Although the 91XG is one of the highest gain UHF antennas made, it is also very directional. If you live more than 60 miles from the transmitters, you must get as much elevation on the antenna as possible. Even with its great gain, it cannot pick up signals blocked by the curvature of the earth.

91XG Uni-Directional Antenna

• Range: 50-70+ Miles
• Wide-band coverage of UHF channels 14-69
• High protection, anti-corrosion, anodized silver aluminum construction
• Reflector grids manufactured from welded, hot dipped, zinc-plated steel with plastic coating
• Low wind load
• Snap-lock quick assembly Inclinable mast clamp for horizontal or vertical installation
• High performance, integral PCB balun for true signal matching
• Front to back ratio: 28 dBi High gain across entire UHF band (UHF channels 14-69) Max Gain 16.7 dB
• Dimensions 22" H x 20" W x 93" Deep
• Product Weight: 6.5 lb.

IN STOCK ( Limited units)

Most engineers said it couldn’t or wouldn’t be done, but Antennas Direct® has proven them wrong with the reinvention of the company’s bow-tie antennas, the DBe line. Even though this type of antenna technology has not seen a significant advancement in 30 years, Antennas Direct® has once again taken a legacy antenna design and transformed it into a new, disruptive technology for today’s changing TV audience. The new DB2e antenna offer twice the power and half the size - making it ideal for indoor, outdoor or attic mounting.

The new DBe antennas feature unprecedented power no one thought could be achieved, making it not only relevant but further enabling the trend of over-the-air TV viewership which is continuing to grow at a rapid pace. Conventional wisdom said that no improvement could be made to bow-tie antenna design. We’ve ended those misconceptions, finding performance far exceeding even our expectations. We have created an antenna the size of our original DB2, with the performance of the DB4.  The DBe series of antennas is light years ahead of our competition, no other bow-tie antenna can match the DBe’s combination of power, gain and value!


Welcome the new DB4e. This all-new design antenna features improved performance and range capabilities. With its added gain of 14.5 dBi, the DB4e is the strongest multi-directional antenna in the world. The redesigned mesh reflectors now give a front to back ratio of greater than 18 dB. The unique bow-tie design that is exclusive to our DBe series of antennas provides solid UHF performance. By using triangular elements instead of rods, the DB4e has a massive increase in bandwidth allowing it to cover the entire UHF band. This antenna is above and beyond what other traditional multi-directional antennas can promise.

Antennas Direct® doubles the power of traditional bow tie designs. A breakthrough in performance and reliability. We have created an antenna the size of our traditional DB4, with the the performance of the DB8. The DB4e is light years ahead of our competition. No other bow tie antenna can match the DB4e's combination of power, gain and value. The new extreme range bow ties - only from Antennas Direct®. The most powerful compact antennas on the planet!


IN STOCK ( Limited units)  DB8 Multidirectional HDTV Antenna WATCH FREE HDTV WITH THIS OFF AIR OUTDOOR ANTENNA OVER 30 HD CHANNELS ARE FREE, ALL YOU NEED IS AN ANTENNA BRAND NEW IN BOX... 2011 MODEL RELEASED... Don't Pay Cable any more, Use this UHF Antenna to...

Intended for people at great distances from the transmitters, the Antenna Direct DB8 is our most powerful multi-directional HD antenna. In fact, its 15.8 dBi gain make it one of the most powerful multi-directional antennas available.

The bow tie design of the Antenna Direct  DB8 uses triangular elements instead of rods to greatly increase the bandwidth allowing it to cover the entire UHF band. Additionally, the mesh reflector of the bow-tie is more efficient than a rod reflector, is lower in weight, and provides less wind resistance for greater performance and durability.

This Antenna Direct  DB8 is the ideal antenna for use in locations that can pull long range signals from various directions and offers an attractive alternative to using a directional antenna mounted on a rotator
DB8 Multidirectional HDTV Antenna

Keywords: 8 bay, 8-bay, 8bay

FEATURES

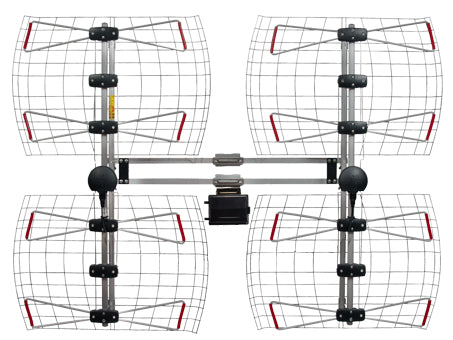

The most powerful HDTV antenna in the world-a star is born! With an extended long range of 70+ miles and unsurpassed gain of 17.4 dBi, this new multi-directional Bowtie antenna has another capability that blows the competition right out of the water...the specially designed brackets allow the antenna to turn in a 360 degree loop to target transmitting towers in any direction.

We’ve brought the tried and true Bowtie outdoor HDTV antenna into the 21st Century with this patented design, which enables the DB8e to target the specific core DTV channels of today.  The DB8e is the ideal antenna choice for rural and suburban installation challenges with pulling signals in through heavy foliage or roofing materials when installed in the attic.  The design of the DB8e allows for easy installation options that are off limits to much larger antennas.

The DB8e comes with the Antennas Direct®, Inc. Lifetime Warranty, which assures you of its superior build quality and durability.

SPECIFICATIONS

• Works 70+ miles from broadcast towers
• Very flexible aiming characteristics
• Designed brackets allow elements to turn 360º
• Weatherproof construction
• High gain across entire UHF band (UHF channels 14-51)
• Impedance 75 ohm
• Max Gain 17.4 dBi
• Dimensions 48"L x 36"W x 6"D
• Product Weight: 10 pounds

This medium gain VHF style antenna is ideal for locations within 25 miles of the transmitters. It features 10 elements and a 7.8 dBi gain for receiving higher band VHF signals (channels 7-13) as well as all of the major UHF signals (channel 14-69). It is a uni-directional antenna so it must be pointed towards the transmitters to achieve optimum performance

V10 Medium Gain UHF / VHF Antenna

• Range: Up to 25 miles
• Includes all weather transformer
• 7.8 dBi gain
• Element width: 69"
• Boom length: 32"
• Product Weight: 4.5 lb.

This high gain VHF style antenna is ideal for locations within 45 miles of the transmitters. It features 15 elements and a powerful 8.3 dBi gain for receiving low band VHF signals (channels 2-6), high band VHF signals (channels 7-13), as well as all of the major UHF signals (channel 14-69). It is a uni-directional antenna so it must be pointed towards the transmitters to achieve optimum performance

V15 High Gain UHF / VHF Antenna

• Includes all weather transformer 8.3 dBi gain
• Element width: 95"
• Boom length: 43"
• Product Weight: 6.5 lb.

This ultra high gain VHF style antenna is ideal for locations within 15-65 miles of the transmitters. It features 21 elements and a powerful 8.0 dBi gain for receiving all of the major VHF (channels 2-13) and UHF signals (channel 14-69). It is a uni-directional antenna so it must be pointed towards the transmitters to achieve optimum performance.

V21 High Gain UHF / VHF Antenna

• Range: Up to 65 miles
• Includes all weather transformer
• 8.0 dBi gain
• Element width: 110"
• Boom length: 59"
• Product Weight: 8.5 lbs.

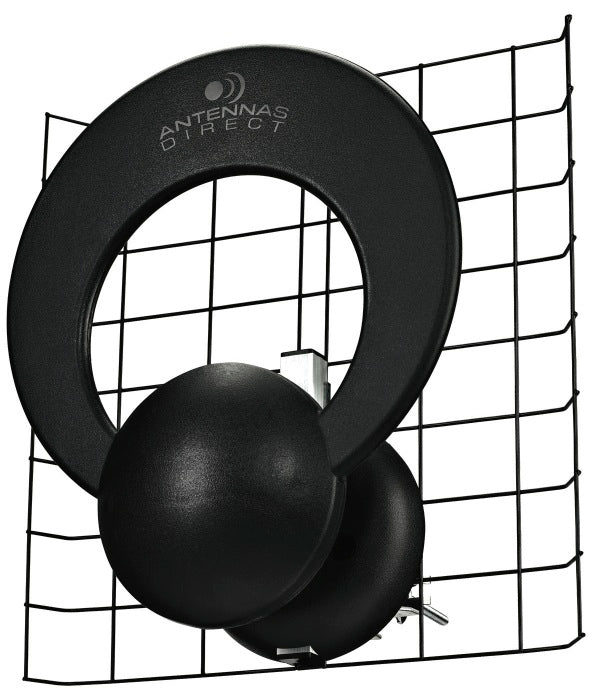

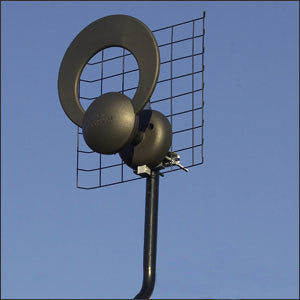

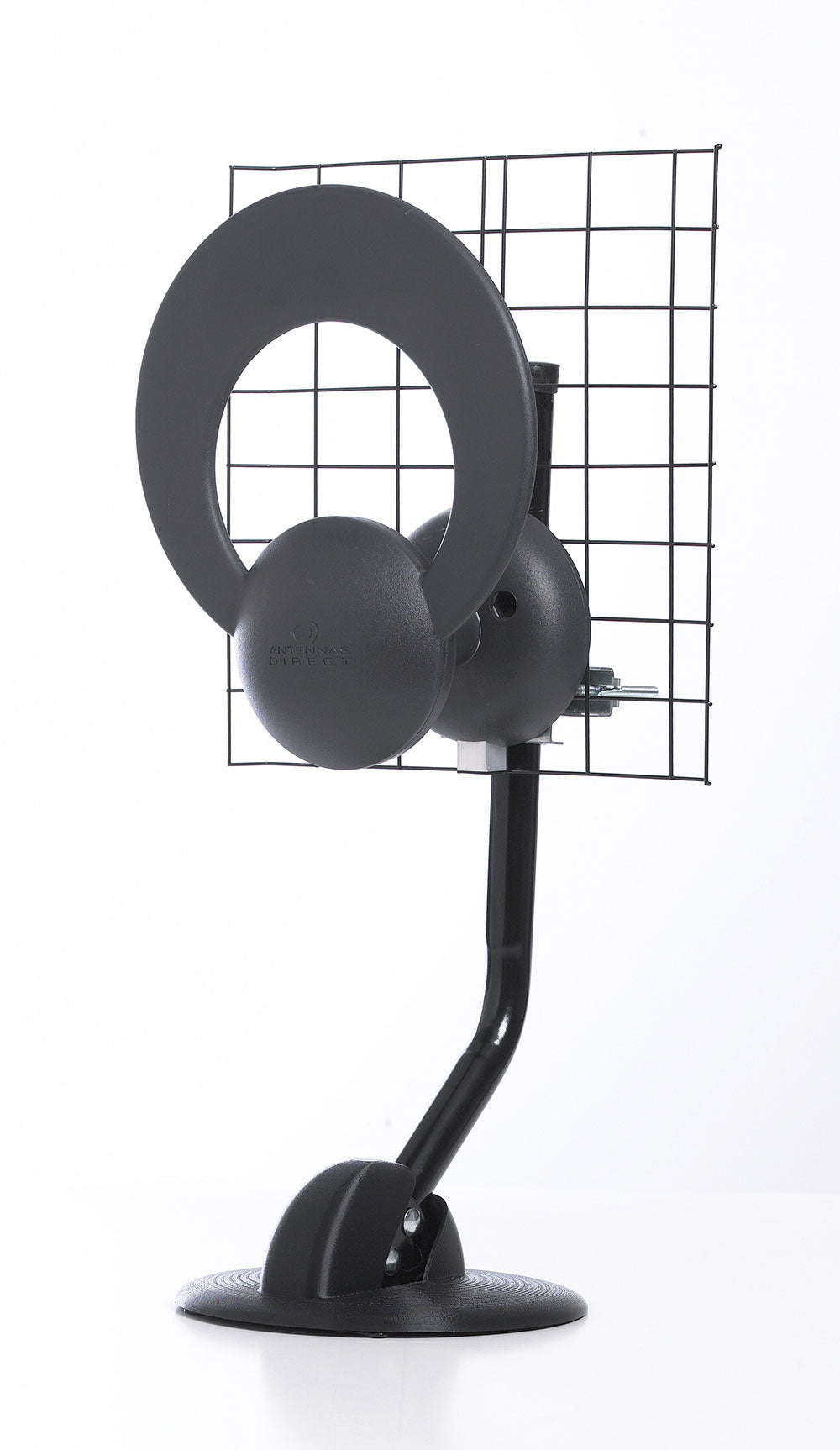

ClearStream1™ Indoor Long-Range Digital TV (DTV) Antenna BundleIndividual Items In bundle are not returnable

Keywords: c1

ClearStream’s efficient, compact design offer excellent gain and impedance matching across the whole post 2009 UHF DTV spectrum. The ClearStream1™ HDTV antenna is superior to existing compact antennas for receiving UHF DTV signals. Good directivity at all UHF DTV frequencies with a peak gain of 8.25 dBi. The C1 is optimized for the UHF DTV band signals.

The first in a series of compact, highly efficient antennas designed and optimized for 2009 frequencies associated with the DTV transition.

ClearStream’s efficient, compact design offer excellent gain and impedance matching across the whole post 2009 UHF DTV spectrum. The ClearStream1™ HDTV antenna is superior to existing compact antennas for receiving UHF DTV signals. Good directivity at all UHF DTV frequencies with a peak gain of 8.25 dBi. The C1 is optimized for the UHF DTV band signals.

Keywords: c1

Introducing the C2V! Now with improved performance for weak VHF stations.  The first broadband antenna without performance compromises, the C2V’s unique integrated diplexer allows specially tuned HDTV elements to be combined without performance degradation.

Keywords: c2cjm, c2-cjm

2010 MODEL RELEASED... Don't Pay Cable any more, Use this UHF Antenna to receive FREE TV Programs!Tired of paying monthly fees for Cable or Satellite TV?Use this HDTV Antenna to get FREE Over the Air HDTV Signals!... ClearStream4™...

The first in a series of compact, highly efficient antennas designed and optimized for 2009 UHF frequencies associated with the DTV transition.

ClearStream antennas represent a new breakthrough in size and unmatched ultra efficient design and directionality. Advanced design software allows these 20” x 28” antennas to be smaller and powerful across the core UHF DTV spectrum offering consistent high gain. This advancement in antenna efficiency allows up to 98% of the available broadcast signal to actually reach the incoming antenna cable rather than being lost to impedance mismatches. The ClearStream4 Quad-Loop design receives all core UHF DTV channels available with a range up to 65 +miles. They are engineered for extra strength and durability, using anodized aluminum for corrosion resistance and are easy to assemble.

ClearStream4™ Outdoor Ultra Long-Range Digital TV (DTV) Antenna

• Range: up to 65 miles
• Gain of 12.2 dBi
• Consistent gain through the entire UHF DTV channel spectrum
• Totally new engineering for post-2009 UHF DTV frequencies
• Great for indoor, outdoor and attic use
• Dimensions 20”h x 28”w x 5” deep

Keywords: c4

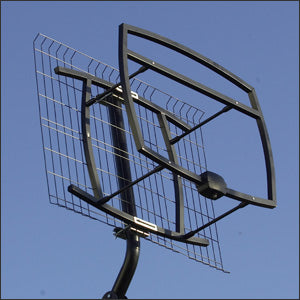

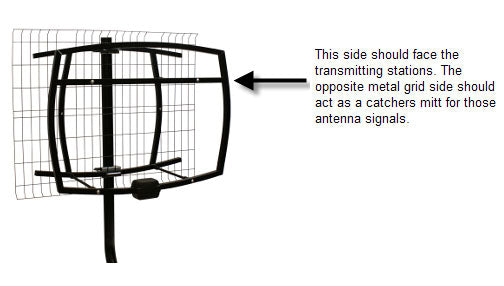

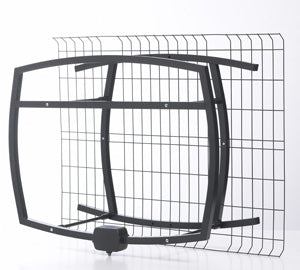

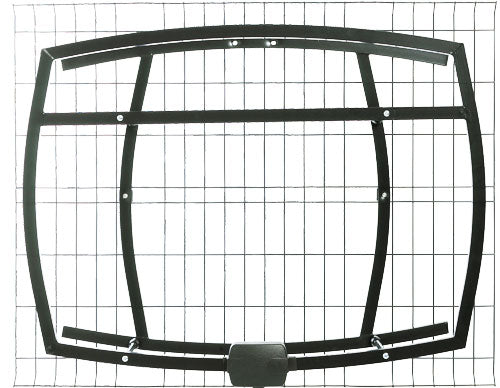

ClearStream5™ High Gain Digital VHF Antenna

• 470 - 698MHz (Channels 14 - 51)
• 174 - 216MHz (Channels 7- 13)
• Max gain: 7.6 dBi VHF; 4.9 dBi UHF
• VHF Range: 65 Miles+
• Impedance: 75 Ohm output F connection
• Includes UHF/VHF Antenna Combiner
• Size: 29" L x 23" W x 11.5" D
• 90% efficient at 200 MHz 100% compatible with all ATSC tuners
• Smallest high gain VHF/UHF antenna on the market
• New Engineering for core VHF DTV frequencies (Ch 7 - 13)
• Single point of impingement resulting in unmatched pulse fidelity and lower waveform distortion
• Easy to assemble
• No extra transformers needed

        * Antenna shown with optional mast *

Keywords: c5

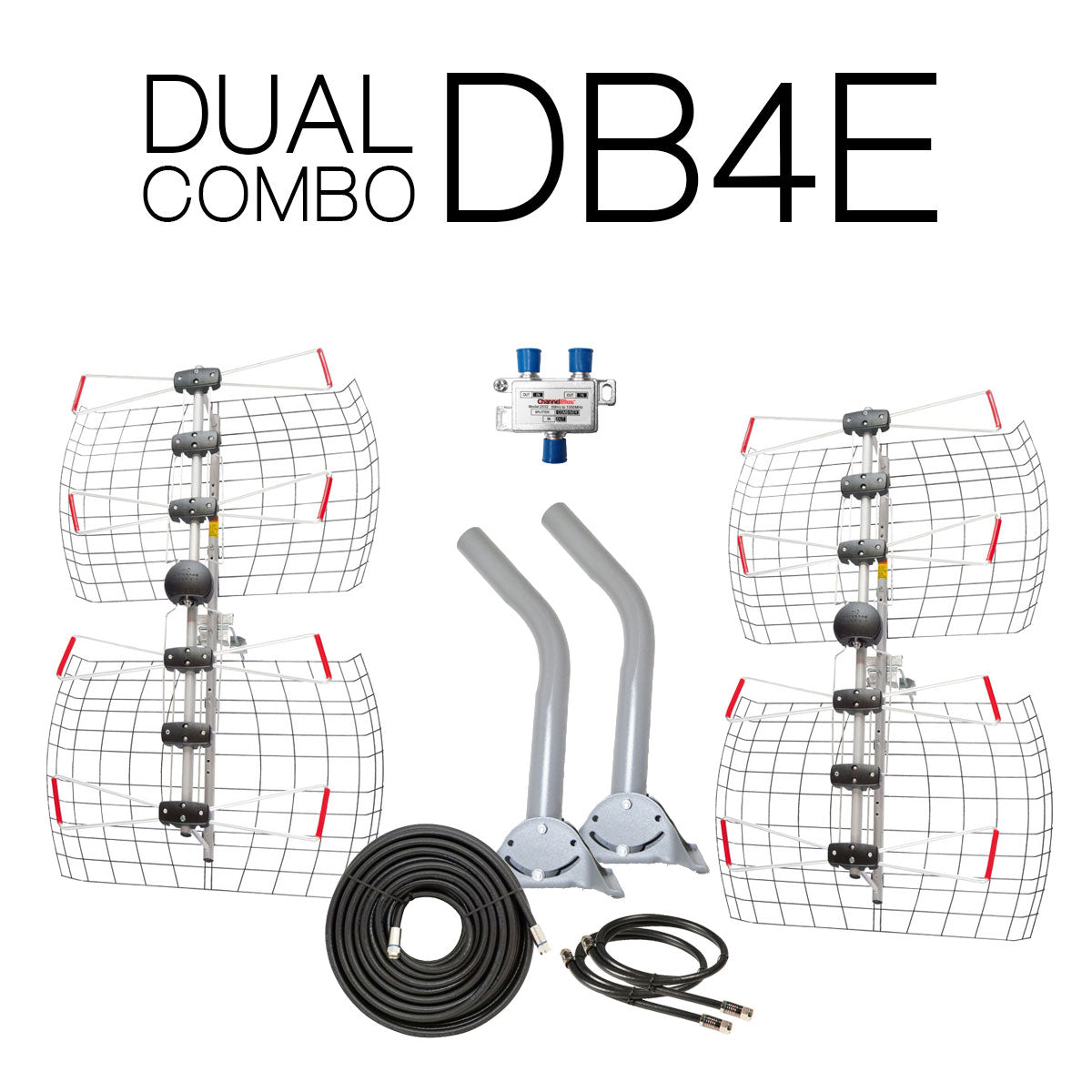

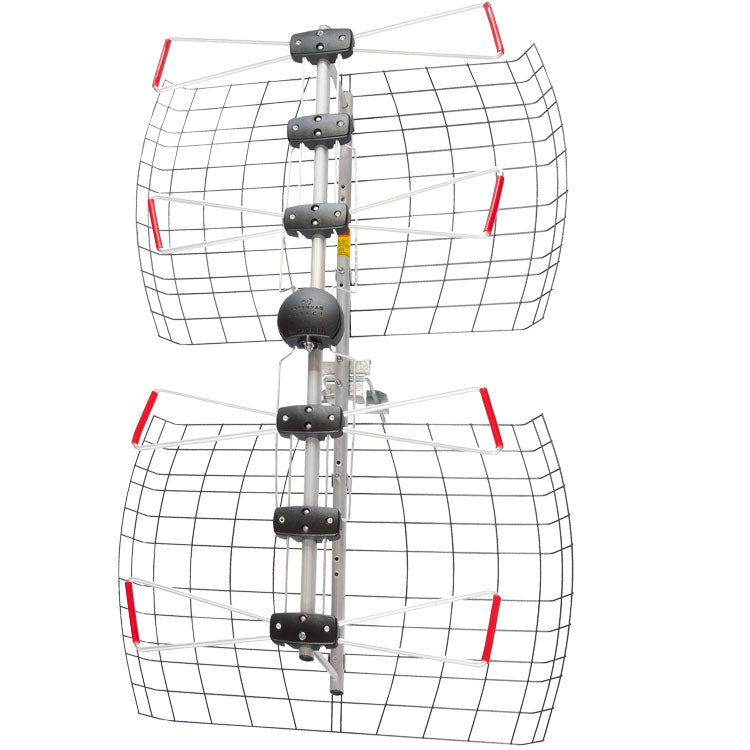

Two Antennas Are Better Than One!

This combo is a $240 - $300 value, but you can purchase it for only $199.99.

Combo Includes:

• 2 x Antennas Direct DB4e Antennas

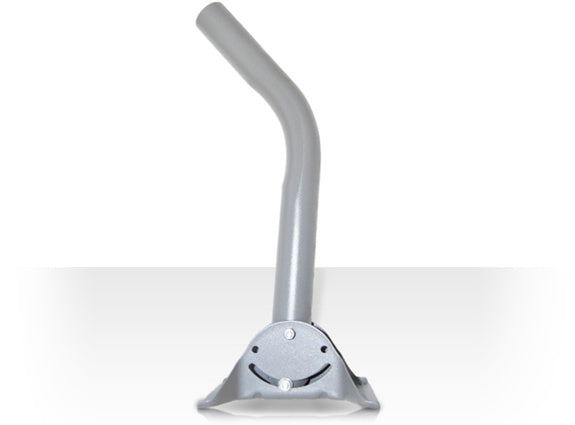

• 2 x J-Pipe Mounting Poles
• 1 x ChannelPlus 2532 Antenna Combiner

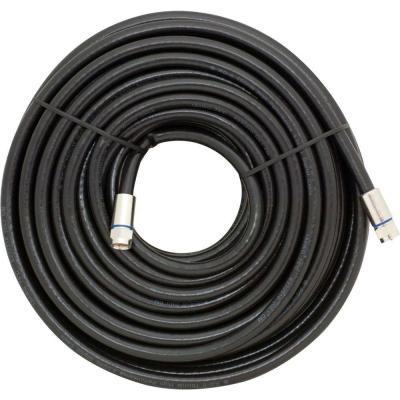

• 1 x 50 ft (15 m) RG6 Coaxial Cable
• 2 x RG6 Coaxial Patch Cables

DB4e Specifications

Antennas Direct® doubles the power of traditional bow tie designs. A breakthrough in performance and reliability. We have created an antenna the size of our traditional DB4, with the the performance of the DB8. The DB4e is light years ahead of our competition. No other bow tie antenna can match the DB4e's combination of power, gain and value. The new extreme range bow ties - only from Antennas Direct®. The most powerful compact antennas on the planet!

• Range: Up to 65+ miles
• Peak gain: 14.5 dBi
• Front to back ratio greater than 18 dBi
• Strong performance across DTV spectrum
• Succeeds in difficult areas
• All weather Balun included
• Flexible aiming characteristics, 60-degree beam-width
• Works great in attics

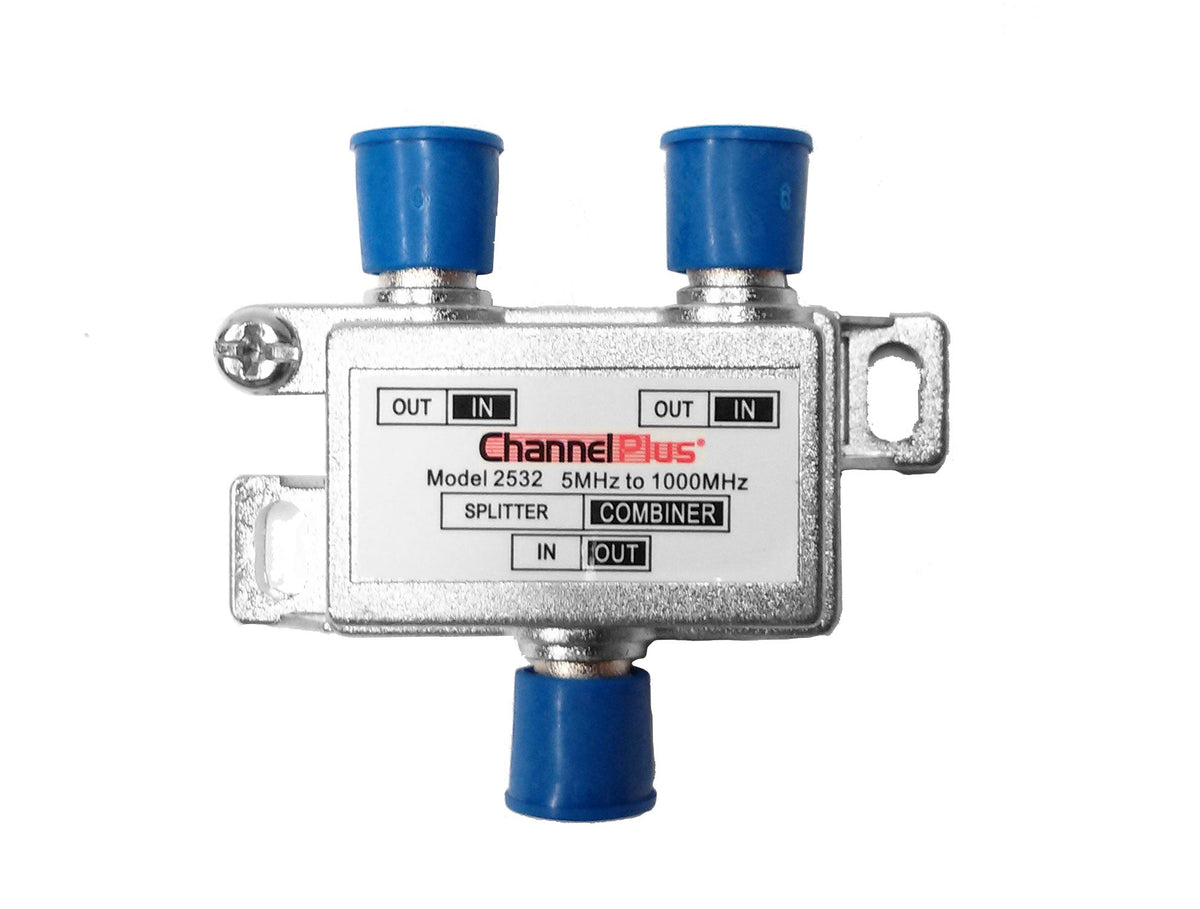

ChannelPlus 2532 Specifications:

• Can be used as a splitter or a combiner
• Bandwidth: 5 - 1000 MHz
• Splitter: 1-input and 2-output
• Combiner: 2-input and 1-output

The bi-directional Channel Plus 2532 Splitter/Combiner, 2-Way provides a 1GHz bandwidth and is ideal for antenna and coaxial cable operations. The splitter/combiner can be used to split a signal from a source or to combine signals from multiple sources onto one coax run.

• Provides 1GHz bandwidth
• Ideal for antenna and coaxial operations
• 2-way

Keywords: cm4228hd, cm-4228hd, cm-4228-hd, cm4228-hd, db8, db-8, db8e, db-8e
