Satellite TV

Low Loss Coaxial Cable - 3'

• Features a larger, high-capacity center conductor
• Larger insulating dielectric

Newest C & Ku Band On The Market For C Band & Ku Band Reception With Only 1 Wire!

(C/KU Universal) LNBF

FAQ for LNB / LNBF:

What does LNB and LNBF stand for?

LNB stands for Low Noise Block.  LNBF stands for Low Noise Block Feed.

What is the difference between LNB and LNBF?

LNB usually only receives signal from 1 polarity (Vertical or Horizontal for Linear FSS and Right or Left for Circular DSS)  A good example of of a LNB is our

What is the difference between a Standard Ku band LNBF, Normal Ku band LNBF, and Universal Ku band LNBF?

There are 3 main types of LNBF's.  The first is Standard.  Standard & Normal LNB and LNBF's are the same.  They are FSS linear and the frequency range is from 11.7GHz to 12.2GHz.  The second type of LNB/F is Universal.  The frequency range for a universal LNBF is 10.7GHz to 12.75GHz.  This is more popular in Europe and the Middle East because their satellite broadcast within the 10.70GHz to 12.75GHz.  The third and the most popular in the United States for DISH Network & DirecTV is DSS.  DSS LNBF's are always circular.  The frequency range is 12.2GHz to 12.7GHz. C-Band LNBF Single Output ,

What is the difference between linear and circular LNBF's?

Linear covers Horizontal and Vertical.  Circular covers Left and Right.  Circular hits your dish more like a screw that is turning as its coming down.

Is C band Linear or Circular?

C band, just like Ku band can be either linear or circular.  Most C band satellites are linear rather than circular.

Keywords: c-band, big dish lnb, 12ft dish, fortec, galaxy

Joins two coaxial cables together to increase cable length

F-Type connectors


Keywords: dpp, dp44, dp-44, dpp44, dpp-44, dishnetwork

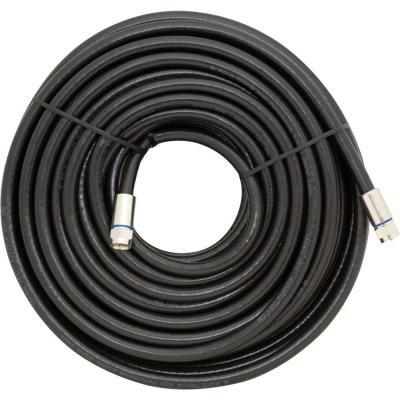

RG6 Coaxial Cable - 25'

• Features a larger, high-capacity center conductor
• Larger insulating dielectric

The digital sat receiver SkyStar S2 PCI offers superior performance for Internet via satellite services (DVB-S/DVB-S2).

System requirements

• Processor: Intel P4
• Processor cycle time: 1.8 GHz
• Working memory: 512 MB
• Hard disc memory (programme): 64 MB
• Hard disc memory (DVR): 10
• Graphics card: 3D Graphics Card Recommended
• : 1x PCI
• DirectX: 9 (or higher)




System requirements (HDTV)

• Processor: Intel Pentium 4 oder AMD Athlon x2
• Processor cycle time: 3 GHz
• Working memory: 1024 MB
• Graphics card: PCI-Express Graphics Card with min. 256 MB RAM




Dimensions (W x H x D)

• device: 120,0mm x 19,0mm x 160,0mm
• packaging: 165,0mm x 135,0mm x 105,0mm

weights

• device: 0,1kg
• device with packaging: 0,5kg




Keywords: fta, free to air, satellite receiver, receiver

HH100 Rotor SAT HH is a motor that allows to point any satellite dish towards all visible satellites in the polar orbit. The characteristics that make Rotor SAT HH particularly valid are as follows:

• Maximum precision
• Mechanical robustness
• Connection without external feeding, only by coaxial cable
• Reduced dimensions
• Maximum easiness of installation

Rotor SAT HH is directly controlled by DiSEqC1.2 or USALS compatible
receivers , where the rotation of the motor automatically begin when selecting
the required channel. For all those receiver not providet with DiSEqC, STAB has
developed the interfaces MS 220, MP 01, MP 02 (page.5) to drive the motors by
the Tv cable.

High quality 18" Round Satellite Dish Antenna, Made in Taiwan. Includes 2 LNB Holder.

Features

• Receives the most popular North American satellites
• Optimized for Dish Network, DirecTV, ExpressVU
• "rectangular" style Feed Tube

Technical Details

Best Mounts BEST-18 J Pipe TV Antenna Mount
The Best Mounts BEST-18 J Pipe TV Antenna Mount is designed for outdoor antennas. Use the Best Mounts  BEST-18 J Pipe TV Antenna Mount on side of house or roof; mount foot can be used on either end of pipe for best mounting.The Universal Antenna Mount is a one of a kind mounting solution enabling consumers and professionals to easily install many different types of outdoor antennas in a variety of different mounting applications. The Universal Antenna Mount will accommodate most brand and styles of outdoor TV antennas.

What It Is and Why You Need It:

• Best Mounts BEST-18   J Pipe TV Antenna Mount for DBS Satellite Dish
• Galvanized Steel Pipe
• 39" long in length, top of mount stands 39" above mounted location
• Steel wall thickness is .060"
• Pipe outer diameter is 1.66"
• Electro-applied grey coating for maximum protection against the elements
• Not recommended for antennas with a boom length longer than 40".
• Does not come with a hardware bag - hardware for mounting to this mount should come with the antenna or dish

Keywords: jpipe, jpole, j-pole, universal antenna mount

Diameter/Thickness: 1/4" (64 mm)

Keywords: ground rod, ground stake, stake, grounding stake

Low Loss Coaxial Cable - 50'

• Features a larger, high-capacity center conductor
• Larger insulating dielectric

Keywords: best1018

33 Inch Universal Satellite Dish for MPEG-2 Analog and Digital Satellite TV Systems. Galvanized Steel Reflector plus a wall/terrace mounting pipe and all hardware that adapts to almost any kind of installation.

Features:

• Universal mount for roof or exterior wall
• High quality galvanized steel
• Can receive many FTA and foreign language satellites

REFLECTOR

• Type: Offset
• Offset Angle: 24.62 0
• Diameter Short Axis: 85 cm
• Diameter Long Axis: 94 cm
• Aperture Efficiency: 75% min.
• KU – Band Gain @12.5 GHz: 39.34 dB
• F/D Ratio: 0.6
• Focus Length: 510 mm
• Material: Galvanized Steel
• Finish: Polyester Powder Coating
• Color: Cool Grey

MOUNTING

• Mounting Type: Ground, Pole & Wall Mount
• Adjustment Type: AZ / EL
• Elevation Angle Range: 20° - 75°
• Azimuth: 0° - 360°
• Material: Steel / Galvanized Steel
• Finish: Polyester Powder Coating
• Color: Cool Grey
• Pole Diameter Acceptable: 38 – 65 mm
• Net Weight: 9.3 kg

ENVIRONMENT

• Operational Winds: 25 m / sec
• Survival Winds: 50 m / sec
• Ambient Temperature: -40°C ~ +60°C
• Relative Humidity: 0 ~ 100 %

Keywords: dish, satellite dish, satellite antenna

The mini-Positioner "MINI-POS MP02" is used by installers to perform a perfect and reliable DiSEqC 1.2 motorized system installation.

• Easy to use, it allows you to quickly aim a dish with the help of a field signal strength meter.

• The MP02 generate the following commands: GO EAST, GO WEST, GO TO "0" (South), and limit set. Allows you to store and recall up to 4 satellite positions directly from a PCI card, or DiSEqC 1.0 receiver.

• It is connected between the motor and the receiver.

• "MINI-POS" enables you to peak the signal before storing first sat position in the receiver.  Once the signal is peaked, the rest of the satellites can be located using the USALS or DiSEqC 1.2 feature in the receiver.

• The MP02 is a perfect tool for receivers that don't have DiSEqC 1.2 or USALS capabilities.  It allows the receiver owner to add a DiSEqC 1.2 motor to move the satellite dish to up to 4 different satellites.

The cable stripper that can be used for RG-6 (Satellite Cable) and RG-59 (TV Cable).

This coax stripper features a rotary stripping action with adjustable blades, to make stripping and preparing cable ends fast and clean. This tool strips the cable jacket, shield and insulation at the same time.

The DISH Pro Plus Quad allows you to pick up to 2 satellite locations and distribute them to up to 4 Bell or Dish Network Receivers

Benefits

• Connect up to 4 Bell TV or DISH Network single-tuner receivers
• Connect up to four Bell TV or DISH Network dual-tuner receivers

This LNB is used to feed multiple receivers. Its quad output will allow all the receivers to achieve a good signal quality at all times. it can be used in combination with DPP44 switch and feed many more receivers.

Tech specs

• Captures both Dish or Bell Satellites
• Weather Proof
• Connects up to 4 Tuners
• Can be connected to DPP44 for even more connections

The Channel Master CM 1805 Super Mast is a 5' 18 Gauge high quality galvanized steel mast that works with all Channel Master antennas and mast mounts. Great for attic, rooftop, chimney, and wall installations.

Dish Pro Plus DPP Quad LNBF

The Dish Pro Plus Quad LNBF allows you to receive both 82 and 91 degrees West satellites on a Bell TV system in a single integrated unit which has built in SW-21 switching on all four outputs. In addition, you may feed a dual tuner PVR receiver using only one coax by using the DPP separator (purchased separately) in order to make your installation easier. Up to 4 single or dual tuner receivers are supported with this LNBF.

The EX connector is designed with a compliant co-polymer body to achieve a universality on 60% of braided cable to Quad cable.Pack of 50.

• Moisture-tight patented design
• Universal on 60% to Quad cable

• The EX connector is designed to meet the challenging requirements of IP telephony and High Speed data
• The unique patented design with compliant co-polymer body achieves true universality across all cable braids
• Moisture-tight patented design
• Universal on 60% to Quad cable
• 1 Piece Construction
• Physically contoured parts for easy size identification
• Contains 50 pieces

The EX connector is designed with a compliant co-polymer body to achieve a universality on 60% of braided cable to Quad cable.Pack of 50.

• Moisture-tight patented design
• Universal on 60% to Quad cable

• The EX connector is designed to meet the challenging requirements of IP telephony and High Speed data
• The unique patented design with compliant co-polymer body achieves true universality across all cable braids
• Moisture-tight patented design
• Universal on 60% to Quad cable
• 1 Piece Construction
• Physically contoured parts for easy size identification
• Contains 50 pieces

Note: The Royal Dual DSS LNB replaces the discontinued EMP Dual DSS LNB

It is the brand new Royal DSS Dual Output Circular LNBF, used for satellite reception in North America. It fit with 18" dish that has a rectangular shaped LNBF feed bracket (D shaped bracket doesn't fit). It has 0.3dB noise figure that is 8-10% better signal strength than 0.6dB LNBF

• Dual output LNBF
• From the makers of Zinwell LNBF
• Light weight and small size for easy installation
• Covers DSS Ku-band satellite frequencies (12.2-12.75 GHz)
• Low noise figure of 0.3 dB for improved signal reception (specially on weak signal) and low interference
• Voltage-controlled RH/LH switching (13/18 V)
• The feed diameter is a standard 40mm thus allowing this LNB to be mounted effortlessly on almost any offset dish, such as Fortec Star 80,90,100, and 120cm
• Circular type
• Excellent isolation
• Compatible with US direct TV system
• Various input frequency range and L.O. for world wide market
• Excellent D.R.O. stability
• Super compact tooling
• Optional for 23mm feed horn
• Waterproof guaranteed

Specification

• LO Frequency: 11.250 GHz
• Conversion Gain: 56 dB
• Cross Pol. Isolation: 18 dB
• Noise Figure: 0.3 dB
• Input Reflector Type: Offset
• Gain Flatness: +/- 4 dB V.Pol and +/- 3 dB H.Pol
• L.O. Frequency Stability: (+25°C) +/- 500 KHz / (-35°C ~ +60°C) +1.9MHz @-30°C, -1.7MHz @+60°C
• L.O. Phase Noise: (1 KHz Offset) -50 dBc/Hz / (10 KHz Offset) -75 dBc/Hz / (100 KHz Offset) -95 dBc/Hz
• Output Connector: 75Ohm F Type Female
• D.C. Power Supply: 10.5 – 21.5 V
• D.C. Power Consumption: 90 mA (Typ.)
• Polar Switching Voltage: Right-hand: 10.5 ~ 14 V / Left-hand: 15.5~ 20 V
• Operating Temperature: -35°C ~ +60°C

Keywords: emp dss, emp lnb

• Accepts Mast up to 2.5-Inch in Diameter
• Lag bolts are included
• U-Bolt with V-Block
• Standoff from wall: 3-Inch
• Install any masted antenna to any wall.

Brief Description

FEATURES:

SPECIFICATIONS:

Technical Details

• Self-Supporting Tower

• Heavy duty five-foot-tall tower supports masts up to 1 3/4" OD

• You can use it on your balcony, porch, roof, backyard, or anywhere around the house.

• Use for satellite dishes up to 80cm (32 inches).

This 5 ft. satellite dish tripod is nice and compact for travel. Tripods are excellent for clearing railings, fences, trees and other obstacles. RV'ers love them, and apartment dwellers keep their landlords happy with them. These tripods are heavy duty and high quality.

Take your Satellite system on the road with you. This tripod is perfect for Outdoor events !! It has 3 holes in each foot for secure mounting. It is lightweight and easy to transport.

• Good for satellite dishes up to 36" in diameter.
• Uses 1 5/8" diameter mast (not included)
