Satellite TV

The professional Linear Compression tool is for RG-6 Digital Video Signal F Type Coaxial Cable Plug Connectors, Heavy Duty Steel. - - Provides a clear view of connector as it's compressed and locked into place.

The professional Linear Compression tool is for RG-6 Digital Video Signal F Type Coaxial Cable Plug Connectors, Heavy Duty Steel. - - Provides a clear view of connector as it's compressed and locked into place.

• Easy to use.
• Professional Watertight Connections.
• Smooth One-Cycle Full Ratchet Mechanism.
• Rugged Carbon Hardened Steel Construction.
• Blue Rubberized Grip Handles..
• Ratcheting Action.
• Ergonomic Design.
• Pre-calibrated.
• Strong, lightweight construction

Connector with Silicone Sealant & Internal O-Ring Seals for RG-6 Coax

Digiwave E-85 **30 x 36 Eliptical Dish Package**

 Holds up to 5 LNB's.


THE DIGIWAVE E-85 **30 x 36 Eliptical Dish ALLOWS YOU TO GET UP TO 7 SATELLITES WITH MAXIMAL QUALITY SIGNAL IN ONE DISH.

Rail mount and LNB holders allow to install 6 different LNBs either circular polarity (for 82, 91, 97, 110, 119,118, and 129, satellites) or linear polarity (for Galaxy 19, Galaxy 18, Satmex 6, etc) Excellent, cheap alternative to the T90. Features

• Galvanized Steel construction
• Elliptical 30" x 36" size
• Can receive multiple satellites
• Comes with an easy-to-use pre-marked rail

• YOU WILL CATCH 82, 91, 110, 118.8 ANIK F3, 119 ,and 129W available with the new desing only ALL WITH ONE DISH, SIMPLE AND COMPACT, with maximal signal quality simultaneously.


• Easy installation
• Premium Quality - Made in Taiwan

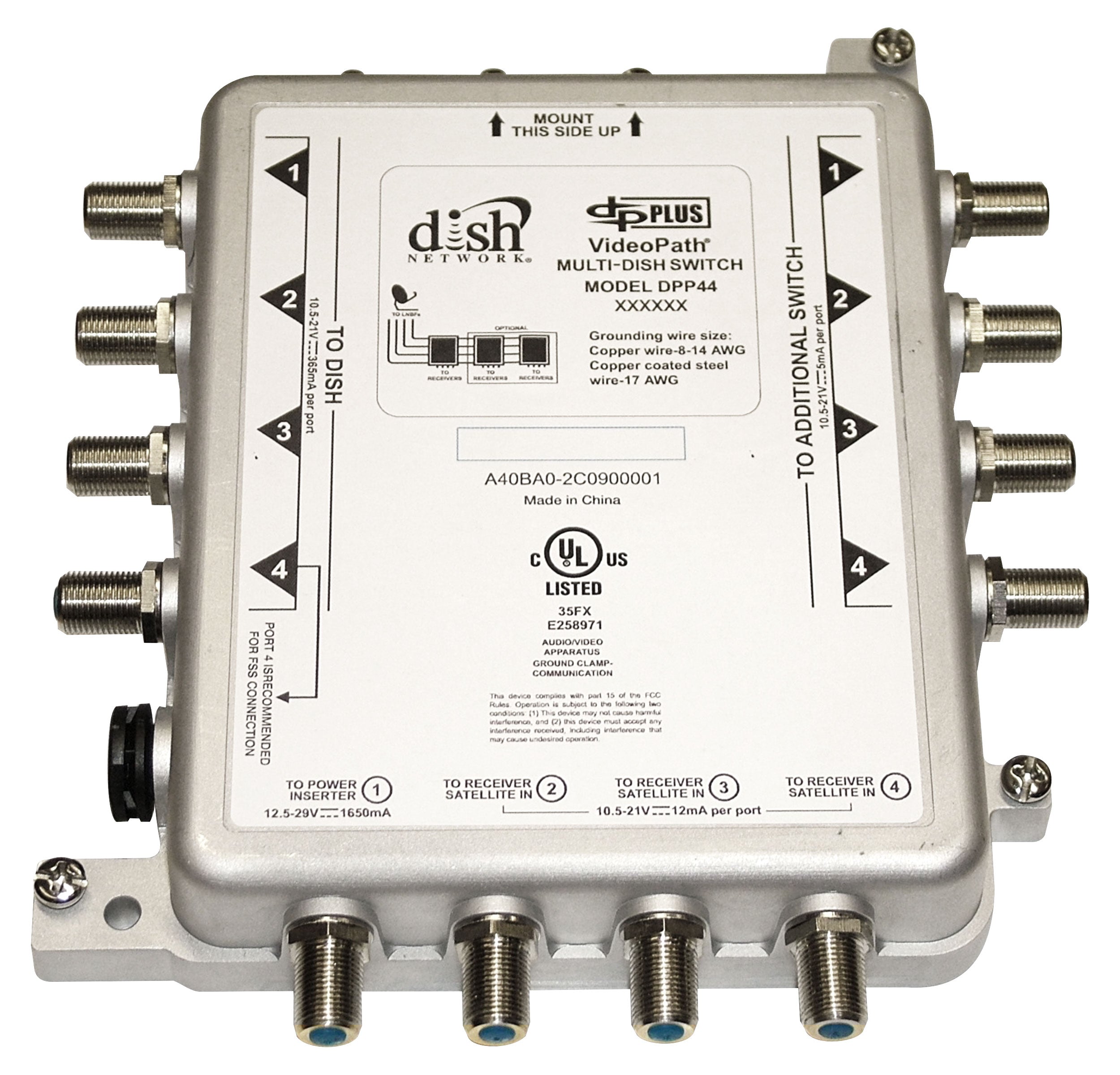

Keywords: dpp, dp44, dp-44, dpp44, dpp-44, dishnetwork

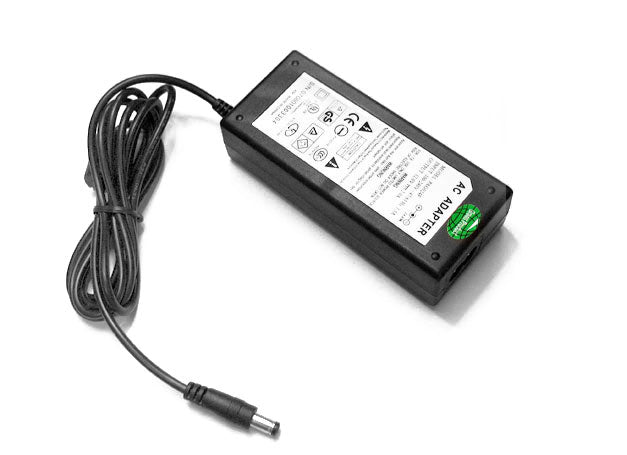

• For Dreambox DM500-S
• Input: 100 to 240V
• Output: 12V - 5.0 A
• Includes North American (US/Canada) wall plug cable

Keywords: dreambox power supply, dm500, dm500 adapter, dm500 power supply

DREAMLINK W2 600MBPS HIGH SPEED

DESCRIPTION:

High Quality SW22 22Khz Tone switch from ECODA with over 10 yrs manufacturing history and wide popularity among the North American & European FTA community. Works with DirecTV, Dish Network, Bell Express vu and all Free-To-Air satellites. Allows you to combine the signals from 2 different satellites into 1 receiver.

ECODA 2x1 22KHz tone switches automatically switch between two LNBs allowing reception from multiple satellites with any 22KHz compatible receiver.

Ecoda 22KHz tone switches are the most reliable switches on the market. We have load tested this switch with over 3 times the current draw rating and hot patched over 1000 cycles, which blew every other of the competition's switches leaving them dead ...... The Ecoda 22KHz switches kept reliably switching for thousands of cycles under this tremendous load!

1. Free-To-Air
* If you have only 2 LNBFs to switch between then this switch is a better option than DiSEqC 2x1 switch, since it switches far more reliably.
* Allow you to combine the signals from 2 different satellites into one FTA satellite receiver. Compatible to all receivers with 22khz Tone, ToneBurst (Mini DiSEqC) and DiSEqC switching methods.

2. DirecTV
* Allow you to combine signal from DTV 101 and 119 satellites
* Used to connect 2 LNBFs from 2 regular DirectTV 18" dishes or the DirecTV Plus Oval Dish pointing at 101 and 119 degree to one DirecTV receiver.
* The DTV receiver sends out a 22khz tone to this switch to select between LNBF inputs.

3. StarChoice
* Allow you to combine signal from StarChoice 107 & 111 satellites.
* Used to connect 2 LNBFs from 2 regular dishes or the Oval dish pointing at 107 and 111 degree to one receiver.

4.  Combining ONE such switches with TWO 4x1 DiSEqC switch, you can connect up to 8 satellite legacy lnbs to your receiver!

Keywords: 22k, 22khz

• Frequency Range: 950 - 2300 MHz
• Insertion Loss: 5 dB Typ (950-2300 MHz)
• Isolation Between Inputs: 25 dB min.
• Inputs from LNB: 4
• Outputs to Receiver: 1

5in/1out DiSEqC 2.0 switch for up to 4 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 3 or 4 LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.
The product allows joining terrestrial band to common downlead.

Specifications

• Frequency range:
  - LNB inputs: 950-2300 MHz
  - Terrestrial input: 5-862 MHz
  - Output: 5-2300 MHz
• Control: DiSEqC 1.0 (2.0) commands
• Insertion loss:
  - Satellite: 6 dB avg
  - Terrestrial: 2 dB avg
• Sat. inputs isolation: 25 dB min
• Power consumption:
  - From receiver: 35 mA (18 V) + LNB
  - LNB current: 400 mA max
• Dimensions (w,d,h): 11.2 x 11.2 x 4.8 cm
• Temperature range: -30 ~ +70 °C

F Double Male

F TYPE COUPLER MALE TO MALE

Keywords: cable, cat 6 cable, cat 5 e cable, bulk cable, rg 6 cable, rg 59 cable, coxial cable, data cable, ethernet cable, network cable

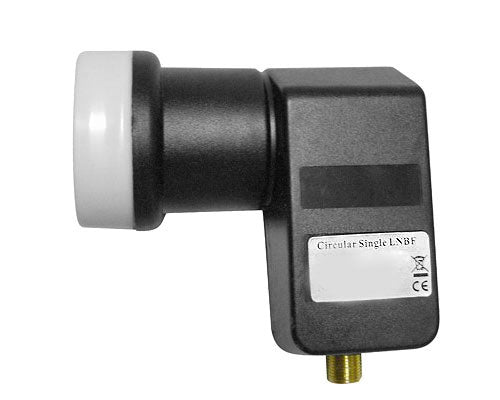

This is the LNB for the new 118 W (118.7/118.8) satellite.  With this special LNB, you can get BOTH 118 and 119 at the same time!!!


Specifications:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB
• Dual-output (ready for 1 or 2 receivers)
• Requires: 24" inch or larger dish
• Compatible with DirecTV, Free-to-Air (DiSEqC, 22KHz), and legacy switches (SW21, SW44, etc)
• Not compatible with DishPro switches and/or DishPro (stacked) LNBs

• Polarization: Linear Standard
• LO Frequency: 10750 MHz

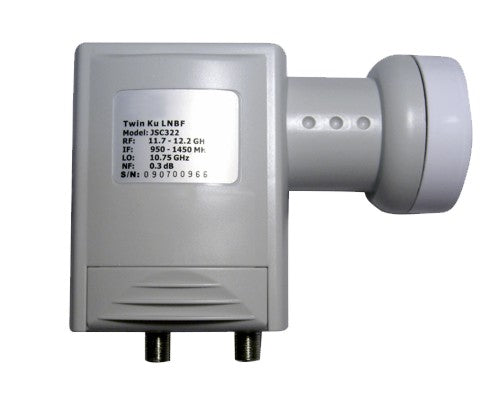

• Polarization: Linear Standard
• LO Frequency: 10750 MHz

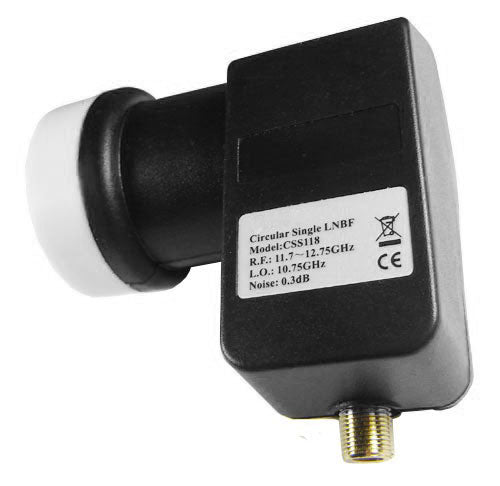

This is the LNB for the new 118 W (118.7/118.8) satellite.  With this special LNB, you can get BOTH 118 and 119 at the same time!!!


Specifications:

• Polarization: Circular
• Input Frequency: 11.70 - 12.75 GHz
• LO Frequency: 10.750 GHz
• Noise: 0.3 dB
• Dual-output (ready for 1 or 2 receivers)
• Requires: 24" inch or larger dish
• Compatible with DirecTV, Free-to-Air (DiSEqC, 22KHz), and legacy switches (SW21, SW44, etc)
• Not compatible with DishPro switches and/or DishPro (stacked) LNBs

36 Inch Universal Satellite Dish for MPEG-2 Analog and Digital Satellite TV Systems. Galvanized Steel Reflector plus a wall/terrace mounting pipe and all hardware that adapts to almost any kind of installation.
Features:


• Universal mount for roof or exterior wall
• High quality galvanized steel
• Can receive many FTA and foreign language satellites

REFLECTOR

• Type: Offset
• Offset Angle: 24.62 0
• Diameter Short Axis: 85 cm
• Diameter Long Axis: 94 cm
• Aperture Efficiency: 75% min.
• KU-Band Gain @12.5 GHz: 39.34 dB
• F/D Ratio: 0.6
• Focus Length: 510 mm
• Material: Galvanized Steel
• Finish: Polyester Powder Coating
• Color: Cool Grey

MOUNTING

• Mounting Type: Ground, Pole & Wall Mount
• Adjustment Type: AZ / EL
• Elevation Angle Range: 20° - 75°
• Azimuth: 0° - 360°
• Material: Steel / Galvanized Steel
• Finish: Polyester Powder Coating
• Color: Cool Grey
• Pole Diameter Acceptable: 38-65 mm
• Net Weight: 9.3 kg

ENVIRONMENT

• Operational Winds: 25 m / sec
• Survival Winds: 50 m / sec
• Ambient Temperature: -40°C ~ +60°C
• Relative Humidity: 0 ~ 100 %

This LNB allows to receive the 118.7 and 119 signals at the same time. You can run two satellites from this LNB both having the 118.7 and 119 signals. It is a special circular LNB that has a low frequency of 10750. Use this with a 33 " dish to receive both signals. This LNB is designed to stand up to the harshest weather.


DESCRIPTION

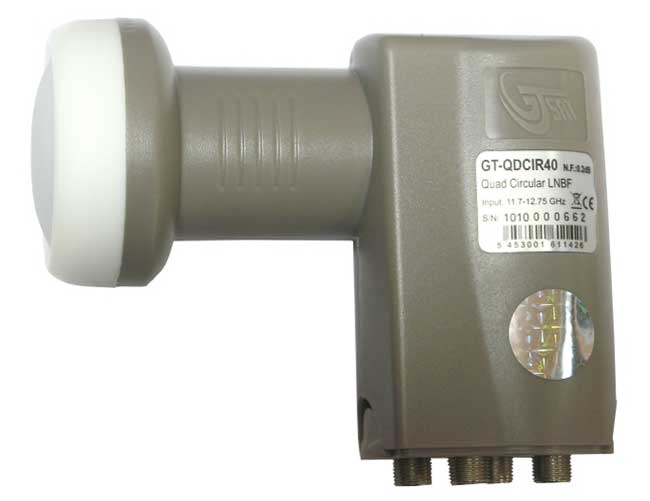

GT-QDCIR40 LNB allows to receive the 118.8 and 119 signals at the same time. You can run two satellites from this LNB both having the 118.8 and 119 signals to 4 different receivers. It is a special circular LNBF that has a low frequency of 10750.

Use the GT-QDCIR40 with a 33 or 39 " dish to receive both signals. This LNB is designed to stand up to the harshest weather. Strong Signal ONLY 0.2dB noise figure.

SPECIFICATIONS

• Input Frequency Range: High Band : 11.7 ~ 12.75 GHz
• Output Frequency Range: 750 ~ 2000 MHz
• L.O. Frequency: 10.75 GHz
• L.O. Frequency Stability: +/-1 MHz (Max)@ Room Temp.
• Local Oscillator Frequency Phase Noise:
  -60dBc/Hz @ 1KHz (Max.)
  -85dBc/Hz @ 10KHz (Max.)
  -105dBc/Hz @ 100KHz (Max.)
• Noise Figure: 0.2dB (Typ.)
• Conversion Gain: 56 ~ 60 dB
• Gain Flatness 26MHz Bandwidth: +/-0.3dB (Typ.)
• Operating Voltage:
  RHCP 11.0 ~ 14.0 Vdc
  LHCP 16.0 ~ 20.0 Vdc
• Cross-Pol. Isolation: 25 dB (Typ.)
• Image Rejection: 40 dB (Min.)
• Current Consumption: 220 mA (Typ.)
• Output Connector Type: 75 OHMS F-Female
• Output Spurious: <-60dBm
• Operating Temperature Range: -40°C ~ +65°C
• Storage Temperature Range: -45°C ~ +70°C

DESCRIPTION

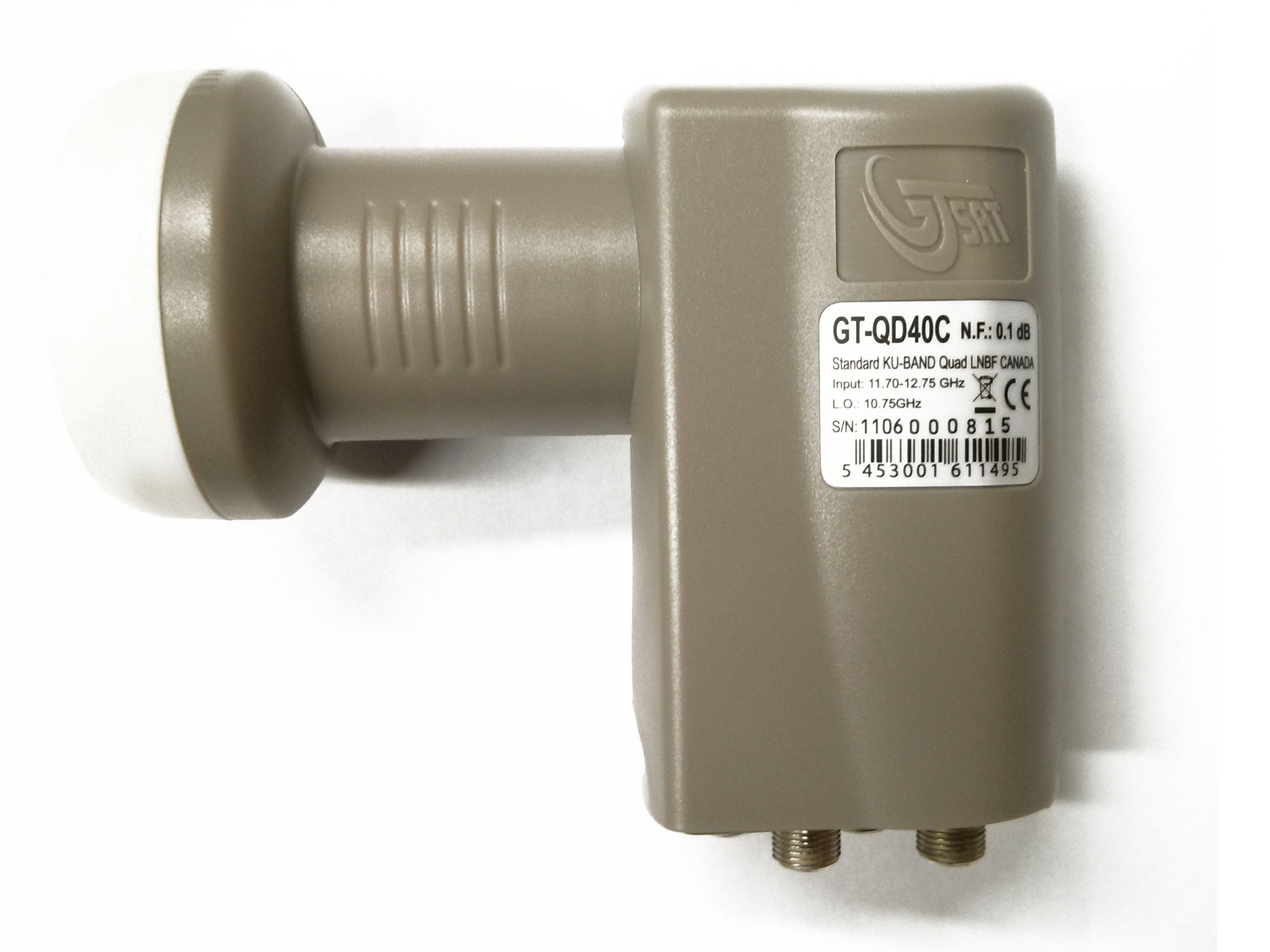

The standard Quad GT-Sat FTA LNBF model GT-QD40C is a high quality product with very low noise figure of 0.1dB, giving the best signal and picture quality.
1 satellite up to 4 receivers.

FEATURES

• Low noise temperature
• Economical
• Easy to install
• Lightweight
• Noise Figure 0.1dB
• GT-Sat Quad LNB for 4 receivers
• Standard Linear LNBF 10750

The Hex type Connector Crimping Tools for RG-59, RG6.

Super Powerjack

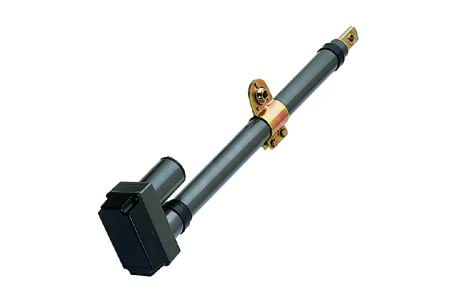

Heavy Duty LINEAR ACTUATOR Arm Dish Mover (HD)

24" stroke length 36v Heavy Duty Actuator for use with C Band or KU Band (Prime Focus) Dishes up to 12'

FEATURE:
Adjustable Limit Switches
Up to 4500N Static Load
Reed Switch Sensor

Pulses per inch = 48
Corrosion Resistant

Can be used on solar panels as a solar panel motor for automatic sun tracking


Keywords: qarl3624, hv24

Copper Clad steel conductor, swept tested to 3 GHz, 60% Aluminum Braiding, 100% Shielded.

• UL Approved RG-6 coax cable
• PVC Jacket and foamed polyethylene
• Copper clad steel conductor

A step above the standard RG-59 cable used in typical installations, RG-6 cables are a high quality, 75 ohm coaxial cable featuring a larger, high-capacity center conductor and a larger insulating dielectric. This makes these cables perfect for higher-grade antenna and CATV wiring installations where performance is important.

• UL Approved RG-6 coax cable
• PVC Jacket and foamed polyethylene
• Copper clad steel conductor
• Foot markings on cable for easy length cuts
• White in color
• 1,000 total feet in length, easy to use pull box with internal rolling reel

Copper Clad steel conductor, swept tested to 3 GHz, 60% Aluminum Braiding, 100% Shielded.

• UL Approved RG-6 coax cable
• PVC Jacket and foamed polyethylene
• Copper clad steel conductor

A step above the standard RG-59 cable used in typical installations, RG-6 cables are a high quality, 75 ohm coaxial cable featuring a larger, high-capacity center conductor and a larger insulating dielectric. This makes these cables perfect for higher-grade antenna and CATV wiring installations where performance is important.

• UL Approved RG-6 coax cable
• PVC Jacket and foamed polyethylene
• Copper clad steel conductor
• Foot markings on cable for easy length cuts
• Grey in color
• 1,000 total feet in length, easy to use pull box with internal rolling reel

When you have used all switches available, but still no success; This heavy duty manual switch will be your final choice. Manual switch will work with all system.

Keywords: ab switch

The PT1-AAA cable tester detects DC continuity or shorts using a loud audible tone and an easy to read LED.
It can be used to identify and trace individual cables when multiple cables are present. The cable installer
uses the PT1-AAA to place a DC current through one end of the desired cable and identifies the cable at the
other end with the removable tone device.


The PT1-AAA uses one AAA battery to install or replace battery, unscrew the bottom of the main section to access the battery chamber.

Operation:
1. Unscrew the “tone” detector, which is conveniently stored in the base section.
2. The main section of the PT1-AAA houses the DC transmitter and has a male F push-on fitting. Attach
push-on fitting to the end of a coaxial cable.
3. Touch the “tone” detector to each on of the cables at the remote location. When the correct cable from
the transmitter location is found, the tone will sound.

The PT1-AAA is equipped with a short circuit detector LED located on the head of the transmitter section.
If a DC short circuit exists the LED will light up. Maximum cable length for testing: 4000 Ft.

*Many high quality splitters are short circuits to DC.
