Chieta Heavy Duty 4x1 DiSEqC Switch model WSD-2041 is light, small and easy to install. It is made with nickel metal cast plated and designed for indoor or outdoor installation. In enables to combine 4 satellites to 1 digital receiver.
Features
- Reasonable design and good performance- Eliminate the interference of strong return signal
Specifications:
- Frequency range: 900 to 2,400 MHz
- Insertion loss: 1.5dB
- Isolation: >25dB
- Power supply: 12-20V DC/30mA
- Passing current: 450mA max.
- Control signal: position + option
- Dimension: 95 x 65 x 25 mm
- Insertion loss: 1.5dB
- Isolation: >25dB
- Power supply: 12-20V DC/30mA
- Passing current: 450mA max.
- Control signal: position + option
- Dimension: 95 x 65 x 25 mm

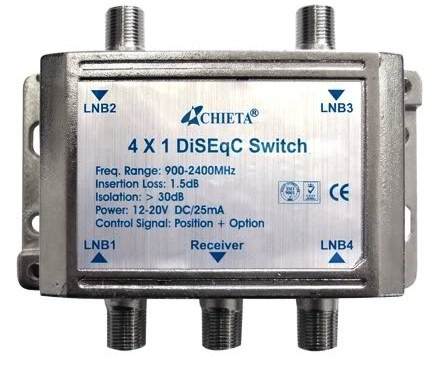

Chieta 4x1 Heavy-Duty DiSEqC Switch
Vendor: Chieta
SKU: WSD-2041
Sale price
$19.95
Regular price
$29.99
Chieta Heavy Duty 4x1 DiSEqC Switch model WSD-2041 is light, small and easy to install. It is made with nickel metal cast plated and designed for indoor or outdoor installation. In enables to combine 4 satellites to 1 digital receiver.
Features
- Reasonable design and good performance- Eliminate the interference of strong return signal
Specifications:
- Frequency range: 900 to 2,400 MHz
- Insertion loss: 1.5dB
- Isolation: >25dB
- Power supply: 12-20V DC/30mA
- Passing current: 450mA max.
- Control signal: position + option
- Dimension: 95 x 65 x 25 mm
- Insertion loss: 1.5dB
- Isolation: >25dB
- Power supply: 12-20V DC/30mA
- Passing current: 450mA max.
- Control signal: position + option
- Dimension: 95 x 65 x 25 mm
