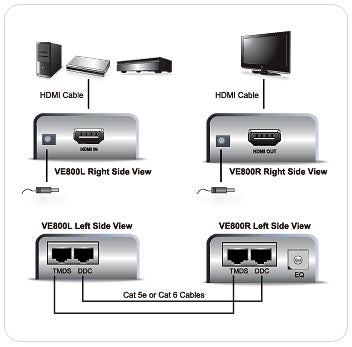

This HDMI Extender allows for the extension of an HDMI video signal up to 60 meters away by using the extender units and two Cat5e or Cat6 ethernet cables.
We suggest using CAT6a Shielded Twisted Pair Ethernet (STP) cable for best results.
HDMI extender is ideal for:
- Test bench facilities
- Data Center
- Help desks
Features:
- Extends the distance between HDMI source and HDMI display
- Uses Cat 5e cable in place of HDMI cable to achieve long distance transmission 40 m for 1080p; 60 m for 1080i (HDTV)
- Fully compliant with HDMI 1.3b specification
- HDCP compliant
- Supports 12-bit Deep Color for HDMI formats
- High quality video - 1920 x 1200, up to 1080p
- DDC compatible
- 8 segment equalization adjustment switch
- Signaling rates up to 2.25 Gbps in support of 1080p display data rate is 250 Mbps - 2.25Gbps
- HDMI 1.3b compatible
- HDCP 1.1 compatible
- Compatible with ATEN HDMI switches and HDMI splitters
Package Contents:
- 1x VE800L (Local Unit)
- 1x VE800R (Remote Unit)
- 2x Power Adapters
- 1x Wall Mount Kit
- 1x User Guide
Specifications:
| Function | VE800L | VE800R |
| Device Connections | 1 | N/A |
| Connectors | ||
| Display | N/A | 1 x HDMI Type A Female (Black) |
| Device | 1 x HDMI Type A Female (Black) | N/A |
| Unit To Unit | 2 x RJ-45 Female | 2 x RJ-45 Female |
| Power Jack | 1 x DC Jack | 1 x DC Jack |
| LEDs | ||
| Power | 1 (Orange) | 1 (Orange) |
| Online | N/A | 1 (Green) |
| Video Resolution | HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200) |
HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200) |
| Power Consumption | DC5V:1.22WBTU | DC5V:0.95WBTU |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0-80% RH, Non-condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.16 kg ( 0.35 lb ) | 0.16 kg ( 0.35 lb ) |
| Dimensions (L x W x H) | 9.00 x 5.50 x 2.40 cm (3.54 x 2.17 x 0.94 in.) |
9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

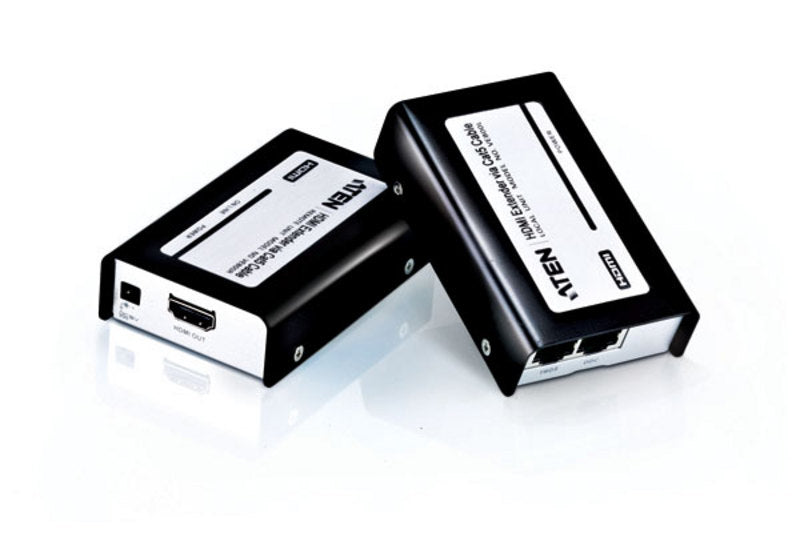

CAT5e/CAT6 HDMI Extender (Up to 200 ft/60 m)
Vendor: Cell Tech Solutions Canada
SKU: VE800
Sale price
$99.99
Regular price
$129.99
