CCTV Cables

- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- S2U: Built-in arrayed dual-microphone for real-time high quality audio security
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67) and vandal-resistant (IK10)

Input: AC110-240V~50/60hz 0.6A Max

PoE Output: DC52V----577MA

Standard: PoE+ IEEE802.3AF/AT

Max Transmission Distance: 100 meters

Ports:

• 1X2.5Gbps RJ45 data-in port
• 1X2.5Gbps RJ45 power+data-out port
• 1XAC socket

Package Contents:

• 30W PoE+ Injector
• Installation Guide
• Power Cord

Environment:

• Operating Temperature: -10°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing

The 1000 ft. Solid UTP CAT5e Network Cable is perfect for outdoor direct burial with its durable PE jacket and water block tape. Offering high performance with 350MHz transmission speed, this cable can handle speeds of up to 1000 Mbps for reliable network connectivity. ETL listed and conforming to UL STD, this black cable is a dependable choice for outdoor networking needs.

350Mhz direct burial (PE jacket, water block tape)

CAT5e network cables transmit at up to 1000 Mbps

For outdoor direct burial

4 pair 24AWG UTP cable

Solid wire

ETL listed conforms to UL STD

Transform your outdoor networking capabilities with our 1000 ft. Solid UTP CAT6 Network Cable in sleek black. Transmit data at speeds up to 1000 Mbps with solid wire construction and high density polyethylene shielding for exceptional performance and durability. Safely bury this cable directly outdoors with its low density polyethylene UV resistant sheath, rated to 550 MHz for reliable connectivity in any environment.

Black

CAT6 network cables transmit at up to 1000 Mbps

For outdoor direct burial

4 pair 23AWG (75 degree) UTP cable

Solid high density polyethylene shielding

Low density polyethylene UV resistant sheath

Rated to 550 MHz

Solid wire

CAT5E, FT4, CMR
1000Ft /Box, 24AWG
4 pairs solid pure copper
UL

WHITE , BLUE, BLACK, GREY

Material 22 AWG X4 Solid Pure Copper Cable
Detail FT-4 CMR, 1000ft
PVC Insulation Feature 300V MAX
Special 1000ft Marked in Every 2 feet

AVAILABLE IN WHITE, BLUE, BROWN,  GREY

• High quality imaging with 3K, 2960 × 1665 resolution
• 24/7 color imaging with F1.0 aperture
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP66)

• Camera
• Image Sensor3K CMOS
• Signal SystemPAL/NTSC
• Resolution2960 (H) × 1665 (V)
• Frame Rate

  TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps

  AHD: 4 MP @ 25 fps/30 fps

  CVI: 4 MP @ 25 fps/30 fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm/3.6 mm fixed focal lens
• Field of View

  2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°

  3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionBrightness;Sharpness;Anti-Banding
• Lighting ModeWhite Light

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC±25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 4.2 W
• Protection LevelIP66
• MaterialMetal
• White Light RangeUp to 40 m
• DimensionΦ 127.92 mm × 97.8 mm (Φ 5.04″ × 3.86″)
• WeightApprox. 480 g (1.06 lb.)

RJ45 8P8C CAT6 Plug Adapter Pass Through Type
Ideal for building custom Length that support speeds associated with Category 6 cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat6 or Cat6e Cable

RJ45 8P8C CAT6 Plug Adapter Pass Through Type
Ideal for building custom Length that support speeds associated with Category 6 cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat6 or Cat6e Cable

RJ45 8P8C CAT6 Plug Adapter Pass Through Type
Ideal for building custom Length that support speeds associated with Category 6 cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat6 or Cat6e Cable

RJ45 8P8C CAT5E Plug Adapter Pass Through Type
Ideal for building custom Length that support speeds associated with Category 5E cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat5 or Cat5e Cable

This DC 5.5*2.1mm power split cable can be used for 4 CCTV cameras easy power supply, with one power adapter only, which is very convenient for more devices power supply at the same time, like CCTV cameras, security DVR and other power needed products.

Features:

*1 to 4 DC power split cable.

*5.5*2.1mm DC plug, 40cm cable length.

*Can be used for CCTV cameras and security DVR power supply.

*High quality and 100% brand new.

*Durable and stable in performance.

 CCTV Security Camera Cable - Siamese Power and Video 10ft Kit

This pre-made CCTV Siamese cable makes CCTV security camera installations quick and easy. The cable comes with both the BNC connector and the DC power adapter pre-installed. Pre-cut CCTV cable is recommended for smaller installs. The cable is for use indoors only.
This PNP cable made your CCTV installation as easy as possible. Unlike those cheap all in one cables made with telephone wires, we design these BNC Plug and Play Siamese cables to work as good as the professional RG59 Siamese cable in picture quality. We manufacture these cables in ISO Certified facility to ensure highest quality and standard. Both BNC and power connectors are moulded on, all you do it PLUG and PLAY. Note: The color of this cable is subject to change to white without notice.

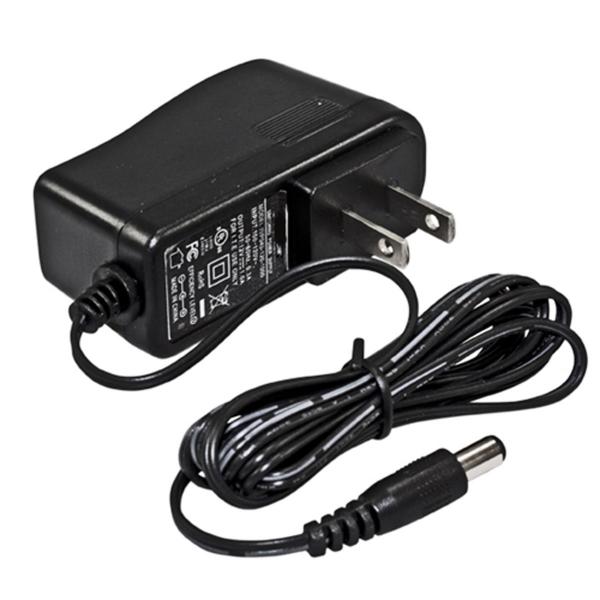

These high-performance switching power adapters are an ideal replacement for set-top boxes, modems, routers, printers, switches, hubs and more

They provide 12 VDC and 1.0 AMP

22 AWG

UL Listed

RoHS Compliant

- 23AWG CAT6 Cable
- Solid Bare Copper, UL
- 550MHZ, CMR (FT4)
- 1000 Ft / Box, White / Black

High Quality 24 AWG X4 Solid Pure Copper Cable
-. PVC Insulation: 300V MAX
-. Red, Yellow, Green, Black Color Coded
-. 1000ft per box Marked in every 2 feet
-. Beige Color
-. CUL listed

• Includes: (4) 5MP TurboHD Cameras, 1) 4-Channel DVR w/1 TB HDD
• Cameras: 5MP High Performance CMOS
• Up to 2560 x 1944 Resolution

• Includes: (6) 5 MP TurboHD Cameras, (1) 8-Channel DVR w/2 TB HDD
• Cameras: 5 MP High Performance CMOS
• Up to 2560 x 1944 Resolution

4MP H.265 One bullet + One turret WiFi NVS Kit

HiLook 4K PoE Turret Kit

Protect your home or business with this Hikvision Value Express IP camera surveillance kit.  The starter kit includes a 4K 4 camera NVR (Recorder) and 4 x high definition 4 megapixel cameras with infrared night vision built in.

HIGH DEFINITION 4MP VIDEO WITH NIGHT VISION

The cameras in this kit are compact turret style cameras for flexible position and aiming.  During the day (or inside in normal light) they capture full colour images.  When it gets dark, they automatically switch to night vision mode.  The built in night vision LEDs provide viewing in pitch black up to 30m / 100 feet.

LOCAL RECORDING WITH REMOTE ACCESS

Video will be saved to the included NVR (recorder) to be retrieved as needed.  You'll be able to remotely access live and recorded video using the free Hikvision iOS and Android apps.  Plus you can have motion alerts when movement is detected.  (You'll need high speed always on Internet at the installation for remote access.)

EASY SET UP AND FREE SMART PHONE APPS

Set up is quick and easy - the cameras use CAT5E or CAT6 cable (not included) for both power and video and they automatically configure themselves when plugged in.  Remote access is achieved without any complicated network set up by simply setting up a Hikvision cloud account and scanning a barcode.  No network engineering degree required.

BUY WITH CONFIDENCE

The product you purchase is original branded Hikvision with full Hikvision Canada warranty and support.

Hikvision EKI-K82T46 IP Camera Kit Features:

• Easy plug & play installation
• Easy remote access without port forwarding
• Free iOS and Android apps
• NVR capable of recording up to 8MP 4K cameras
• 6 x High definition 4MP colour cameras included
• Built in night vision up to 30m / 100 feet in pitch black
• Cameras connect using CAT5e/CAT6 cable (not included)
• Cameras are PoE powered by the NVR, over the same Ethernet cable
• IP67 outdoor rated cameras
• 2TB HDD pre-installed for recording
• HDMI & VGA video output
• Value Express Systems come with a Hikvision 2 year warranty.

What's Included:

6 x ECI-T24F2 cameras
1 x ERI-K108-P8  NVR

EKI-K41T44C
4 x 4 MP ColorVu Turret IPC + 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265+
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265+
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

 Specification - Camera
Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

4 MP Outdoor WDR Fixed Turret Network Camera Kit

• 1/3" (4 MP) Progressive Scan CMOS
• 2560 x 1440 (4 MP) Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with 100 ft (30 m) IR Range
• H.265+/H.265/H.264+/H.264/MJPEG
• IP67 Protection • Durable Metal Housing
• 120 dB WDR for Clear Images
• Up to 8 MP Resolution Recording
• H.265+/H.265/H.264+/H.264/MPEG
• Plug-and-Play with 4, 8, or 16 PoE Cameras
• Up to 2 SATA Interfaces

4 MP Outdoor WDR Fixed Turret Network Camera Kit

• 1/3" (4 MP) Progressive Scan CMOS
• 2560 x 1440 (4 MP) Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with 100 ft (30 m) IR Range
• H.265+/H.265/H.264+/H.264/MJPEG
• IP67 Protection • Durable Metal Housing
• 120 dB WDR for Clear Images
• Up to 8 MP Resolution Recording
• H.265+/H.265/H.264+/H.264/MPEG
• Plug-and-Play with 4, 8, or 16 PoE Cameras
• Up to 2 SATA Interfaces
