Satellite Switches

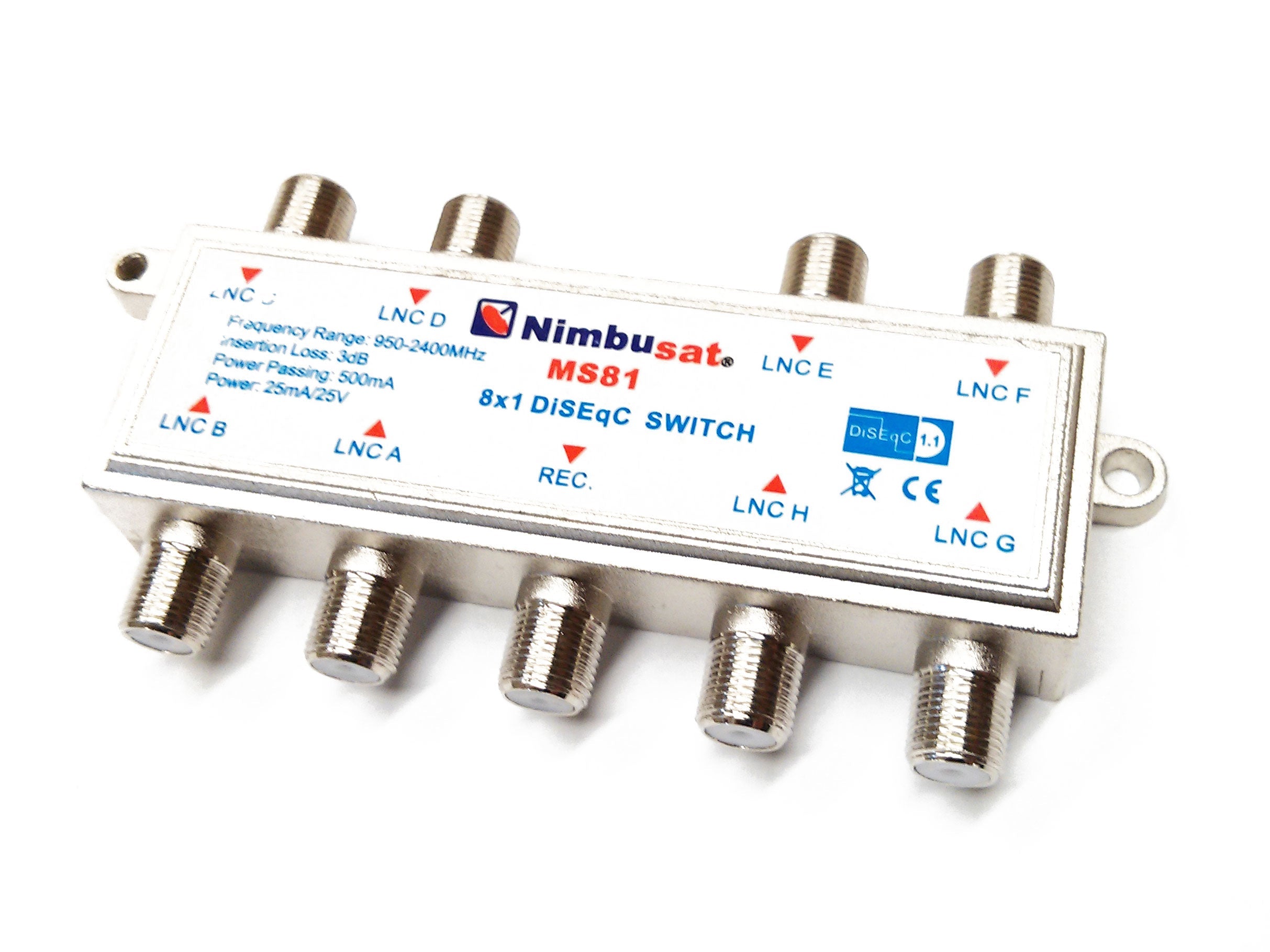

• Connect up to 8 LNBF's to one receiver
• Works with any receiver that supports DiSEqC 1.1
• Check your receiver for compatibility
• 950 to 2400 MHz frequency range

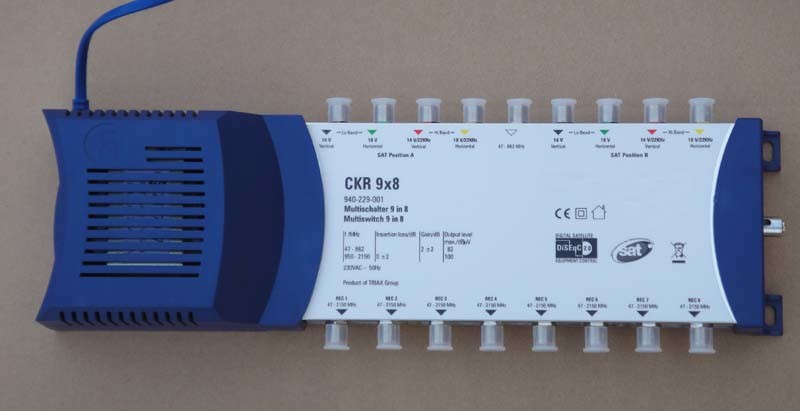

9-in 8-out Powered Multi-switch (4 Sat -- 8 Rec)

Specifications:

DESCRIPTION:

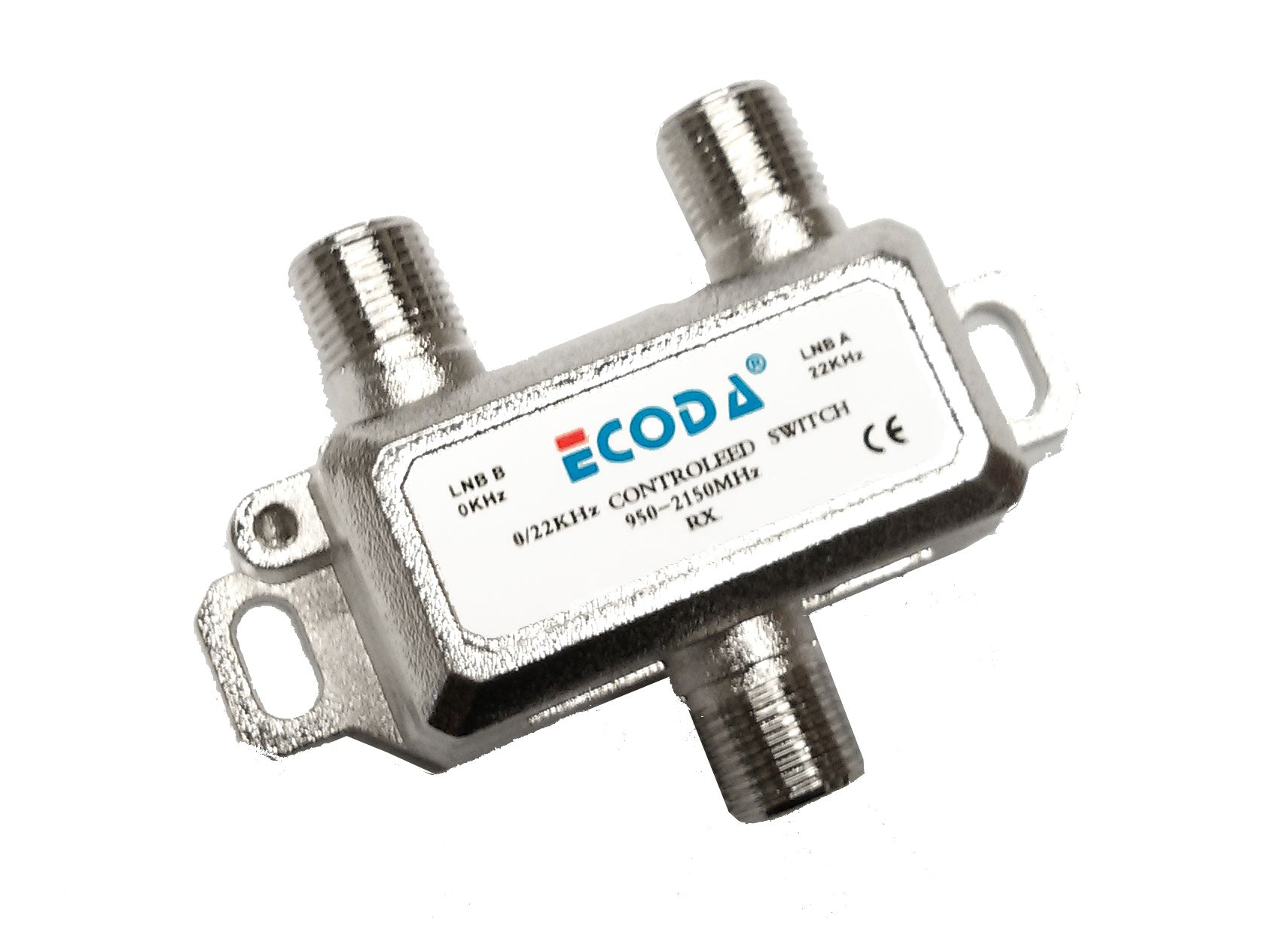

High Quality SW22 22Khz Tone switch from ECODA with over 10 yrs manufacturing history and wide popularity among the North American & European FTA community. Works with DirecTV, Dish Network, Bell Express vu and all Free-To-Air satellites. Allows you to combine the signals from 2 different satellites into 1 receiver.

ECODA 2x1 22KHz tone switches automatically switch between two LNBs allowing reception from multiple satellites with any 22KHz compatible receiver.

Ecoda 22KHz tone switches are the most reliable switches on the market. We have load tested this switch with over 3 times the current draw rating and hot patched over 1000 cycles, which blew every other of the competition's switches leaving them dead ...... The Ecoda 22KHz switches kept reliably switching for thousands of cycles under this tremendous load!

1. Free-To-Air
* If you have only 2 LNBFs to switch between then this switch is a better option than DiSEqC 2x1 switch, since it switches far more reliably.
* Allow you to combine the signals from 2 different satellites into one FTA satellite receiver. Compatible to all receivers with 22khz Tone, ToneBurst (Mini DiSEqC) and DiSEqC switching methods.

2. DirecTV
* Allow you to combine signal from DTV 101 and 119 satellites
* Used to connect 2 LNBFs from 2 regular DirectTV 18" dishes or the DirecTV Plus Oval Dish pointing at 101 and 119 degree to one DirecTV receiver.
* The DTV receiver sends out a 22khz tone to this switch to select between LNBF inputs.

3. StarChoice
* Allow you to combine signal from StarChoice 107 & 111 satellites.
* Used to connect 2 LNBFs from 2 regular dishes or the Oval dish pointing at 107 and 111 degree to one receiver.

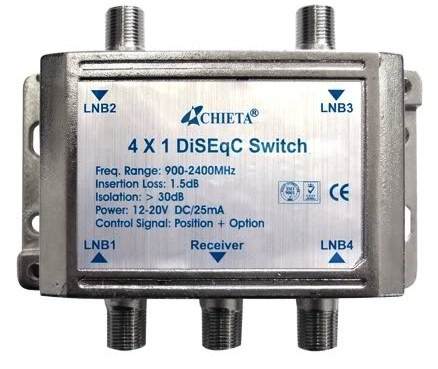

4.  Combining ONE such switches with TWO 4x1 DiSEqC switch, you can connect up to 8 satellite legacy lnbs to your receiver!

Keywords: 22k, 22khz

• Frequency Range: 950 - 2300 MHz
• Insertion Loss: 5 dB Typ (950-2300 MHz)
• Isolation Between Inputs: 25 dB min.
• Inputs from LNB: 4
• Outputs to Receiver: 1

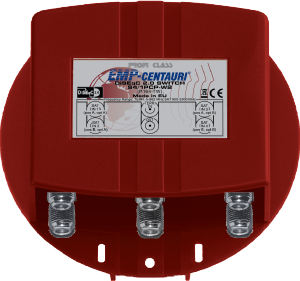

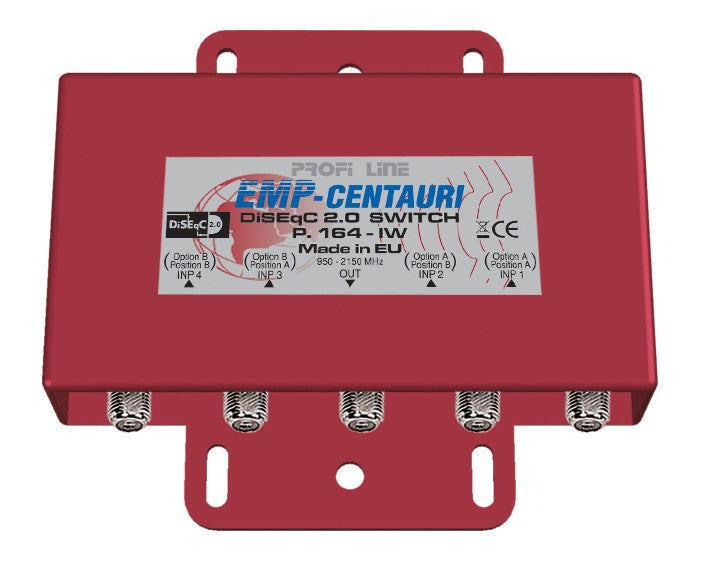

5in/1out DiSEqC 2.0 switch for up to 4 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 3 or 4 LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.
The product allows joining terrestrial band to common downlead.

Specifications

• Frequency range:
  - LNB inputs: 950-2300 MHz
  - Terrestrial input: 5-862 MHz
  - Output: 5-2300 MHz
• Control: DiSEqC 1.0 (2.0) commands
• Insertion loss:
  - Satellite: 6 dB avg
  - Terrestrial: 2 dB avg
• Sat. inputs isolation: 25 dB min
• Power consumption:
  - From receiver: 35 mA (18 V) + LNB
  - LNB current: 400 mA max
• Dimensions (w,d,h): 11.2 x 11.2 x 4.8 cm
• Temperature range: -30 ~ +70 °C

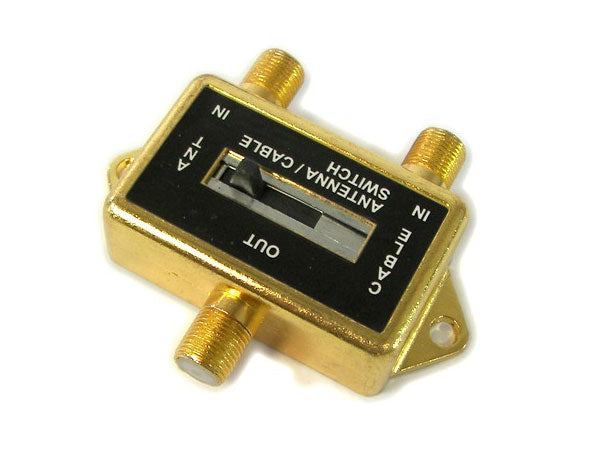

When you have used all switches available, but still no success; This heavy duty manual switch will be your final choice. Manual switch will work with all system.

Keywords: ab switch

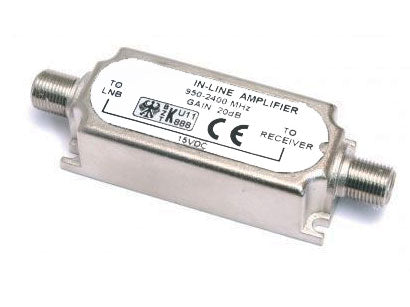

Great for boosting satellite signal and improve switch functionality, if your system setup is suffering from long run cabling, e.g. 100 ft plus.

• Powered by your satellite receiver or LNB power injector.
• Compatible with all Satellite systems.
• For better results, please place them as close to the LNB as possible.
• Gain: 20dB

Keywords: amplifier

Keywords: sw31

Specifications:

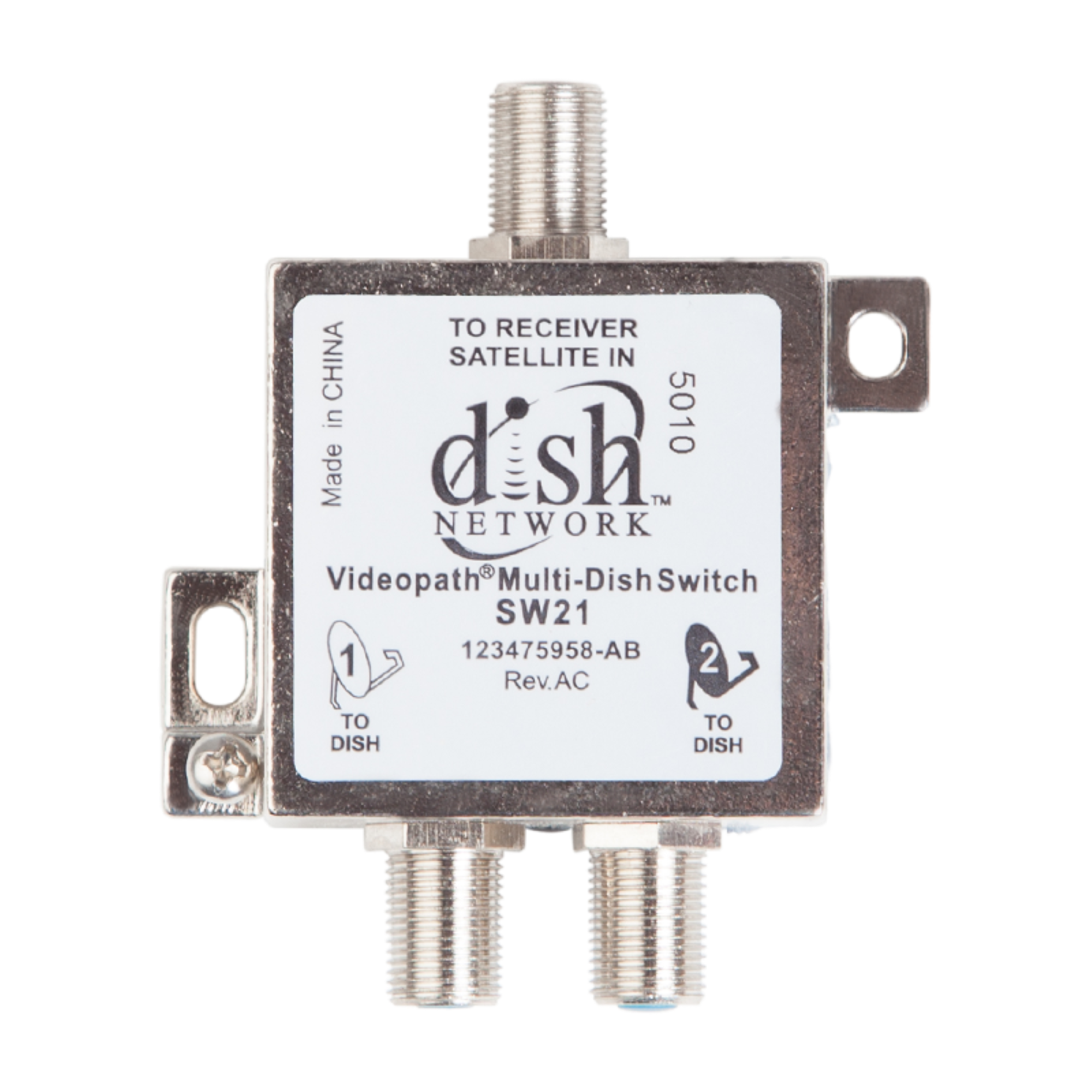

Bell / Dish Network Legacy SW21 Switch (SW 21) The SW21 multi switch enables you to receive satellite signals from 2 satellite locations to one Dish Network or Bell TV satellite receiver. The legacy SW21 switch combines two legacy dual LNBF's into one coax line. Permits voltage switching between 2 satellites. For a dual tuner receiver or 2 single tuner receivers, 2 of these are required.

Keywords: dpp, dp44, dp-44, dpp44, dpp-44, dishnetwork
