CCTV Power Supplies

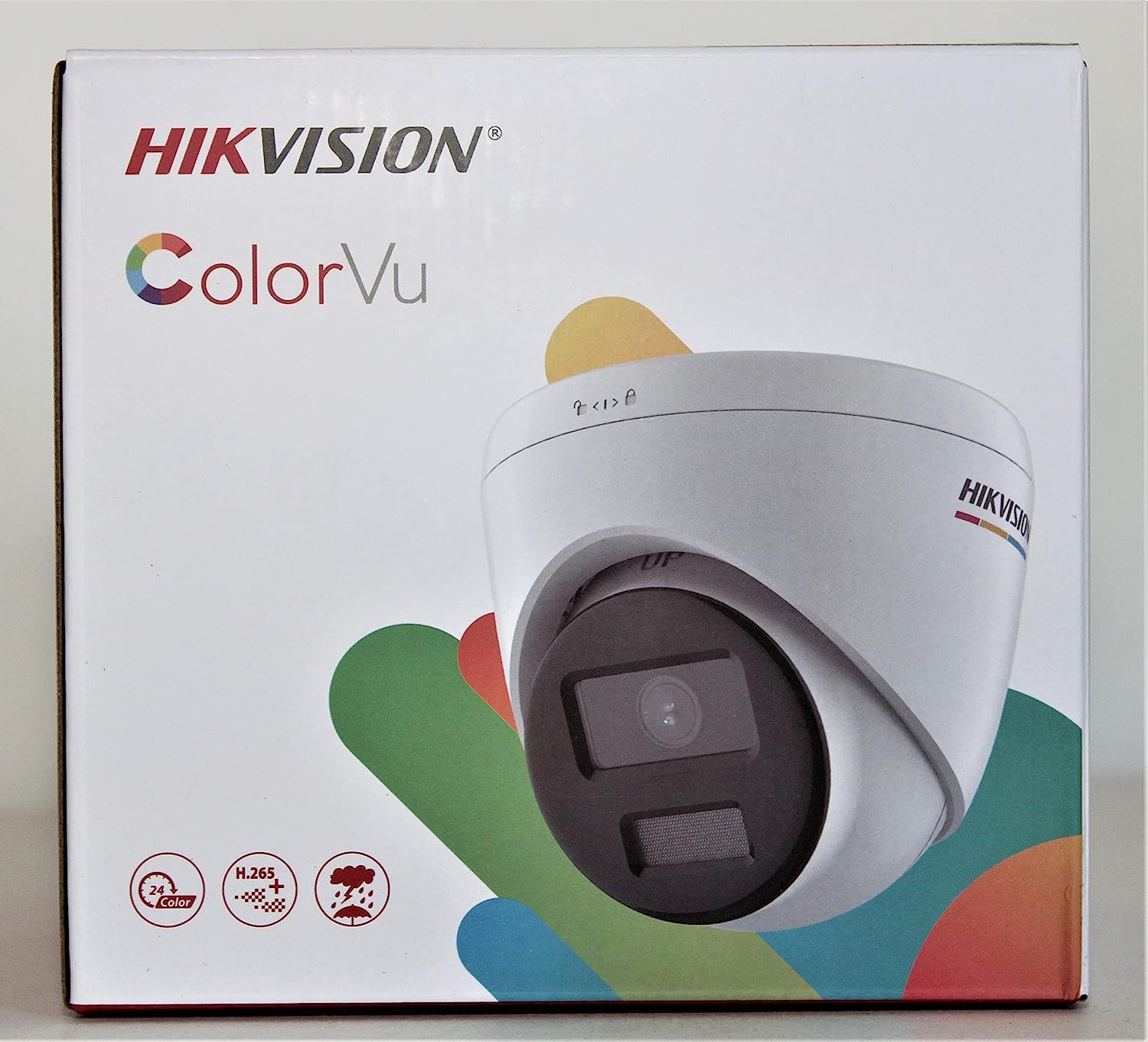

Hikvision IK-4284TH-MH/PH/P ColorVu KIT provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Features:

• One 8-channel PoE NVR with decoding up to 6-ch@1080p
• Four 4MP fixed turret ColorVu cameras with 2.8 mm fixed focal lens - horizontal FOV: 113° vertical FOV: 62° diagonal FOV: 137°
• 24/7 colorful imaging with F1.0 aperture and 0.001 Lux illumination
• 2 TB pre-installed HDD
• Water and dust resistant (IP67)
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions

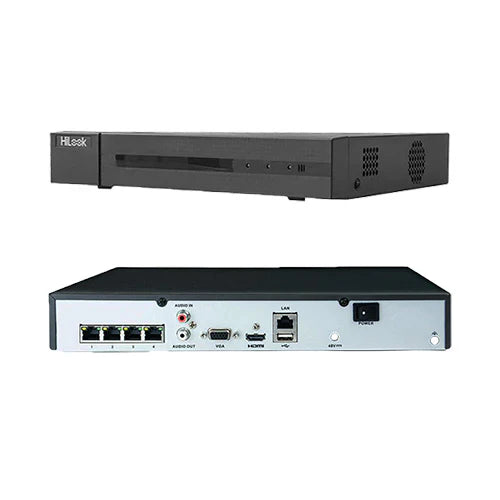

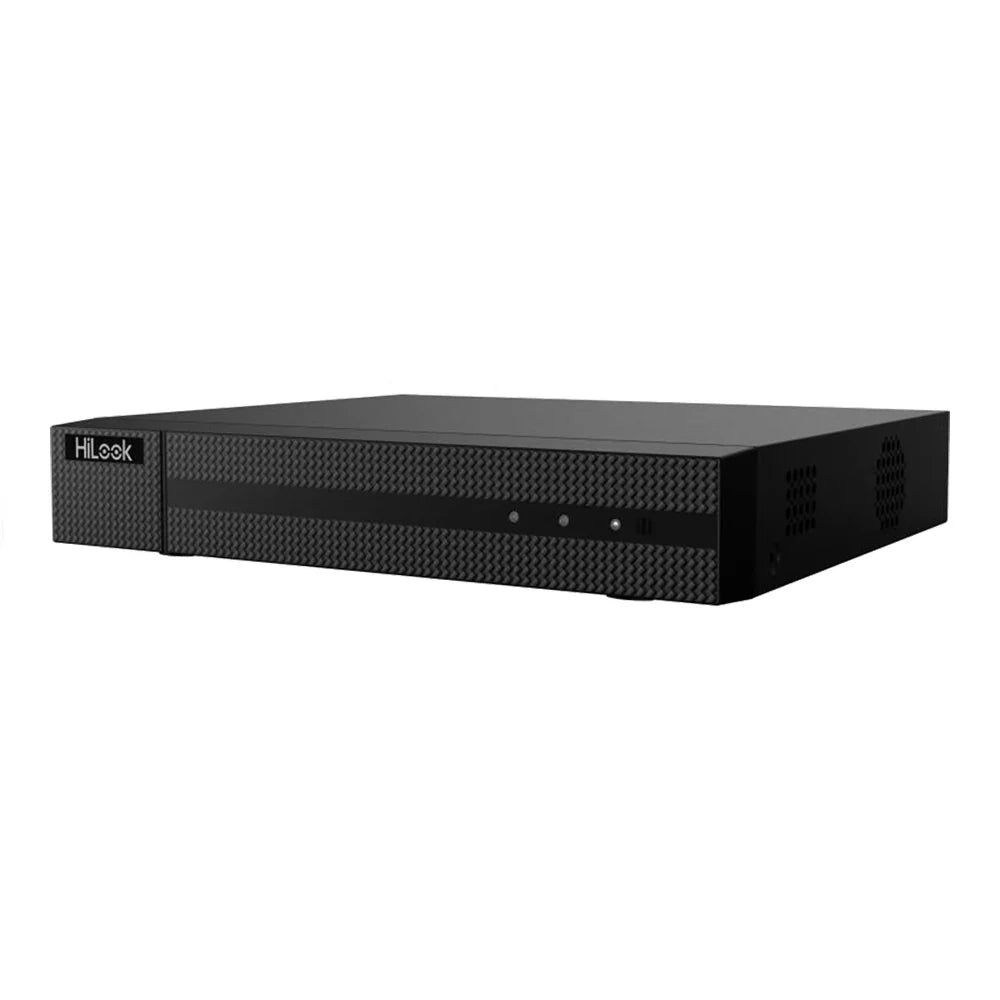

HiLook NVR-104MH-C/4P 4-Channel 4K NVR, HDD not included

Features:

• Up to 4-ch IP camera inputs
• Up to 1-ch@8 MP/5-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth
• Professional and Reliability - H.265+ compression effectively reduces the storage space by up to 75% (H.265+/H.265/H.264+/H.264 video formats)
• HD Video Output - Provide simultaneous HDMI and VGA outputs. HDMI video output at up to 4K resolution
• Storage and Playback - 1 SATA interfaces for HDD connection (up to 8 TB capacity per HDD). Smart search/smart playback to improve the playback efficiency
• Smart Function - Support multiple VCA (Video Content Analytics) events. Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• Network & Ethernet Access - 16 independent PoE network interfaces. 1 self-adaptive 10/100/1000 Mbps Ethernet interface. HiLookVision for easy network management

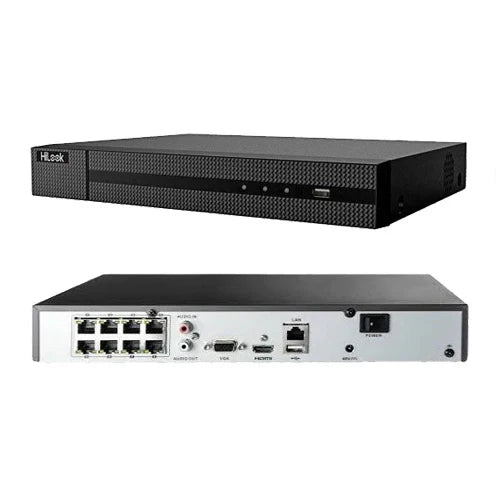

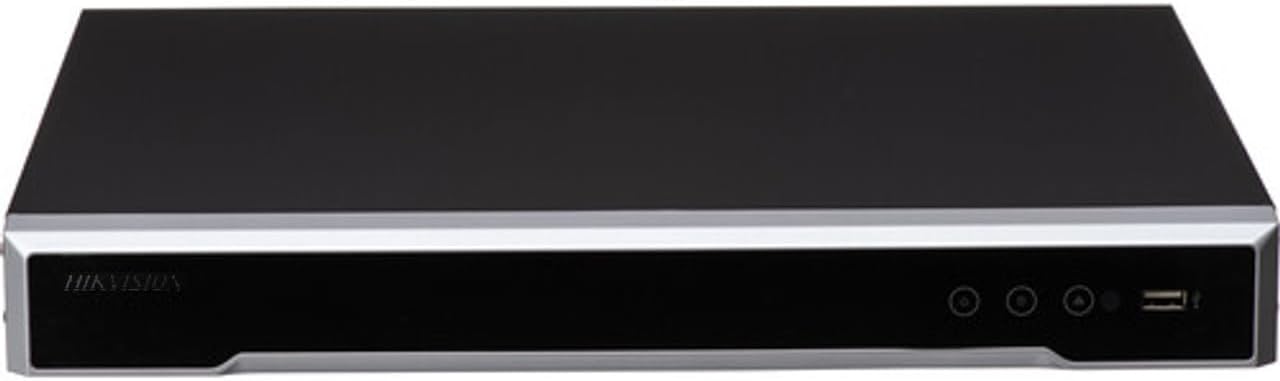

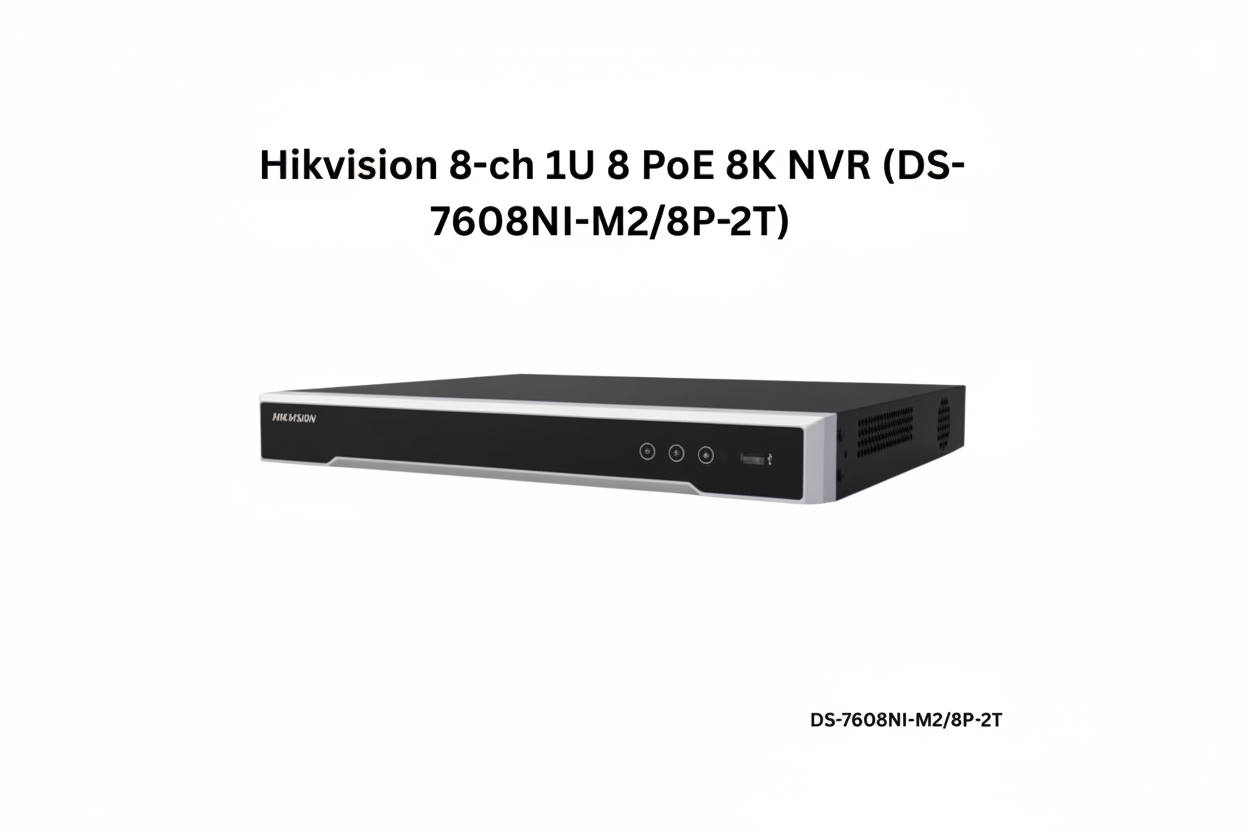

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth
•  Professional and Reliability
• H.265+ compression effectively reduces the storage space by up to 75% HD Video Output  Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution Storage and Playback  2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
•  Smart search/smart playback to improve the playback efficiency Smart Function
• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) Network & Ethernet Access
•  8 independent PoE network interfaces  1 self-adaptive 10/100 Mbps Ethernet interface  HiLookVision for easy network management

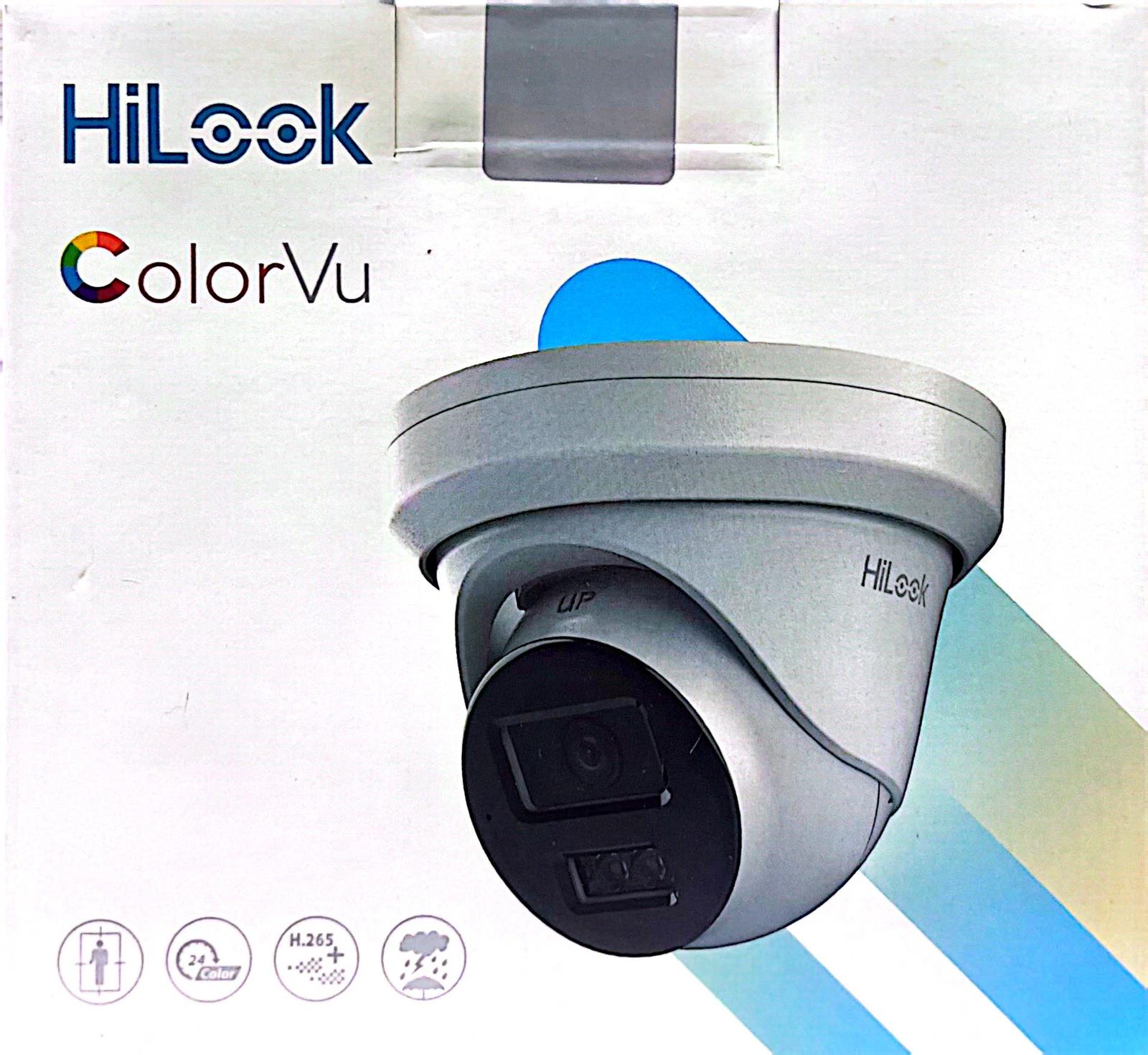

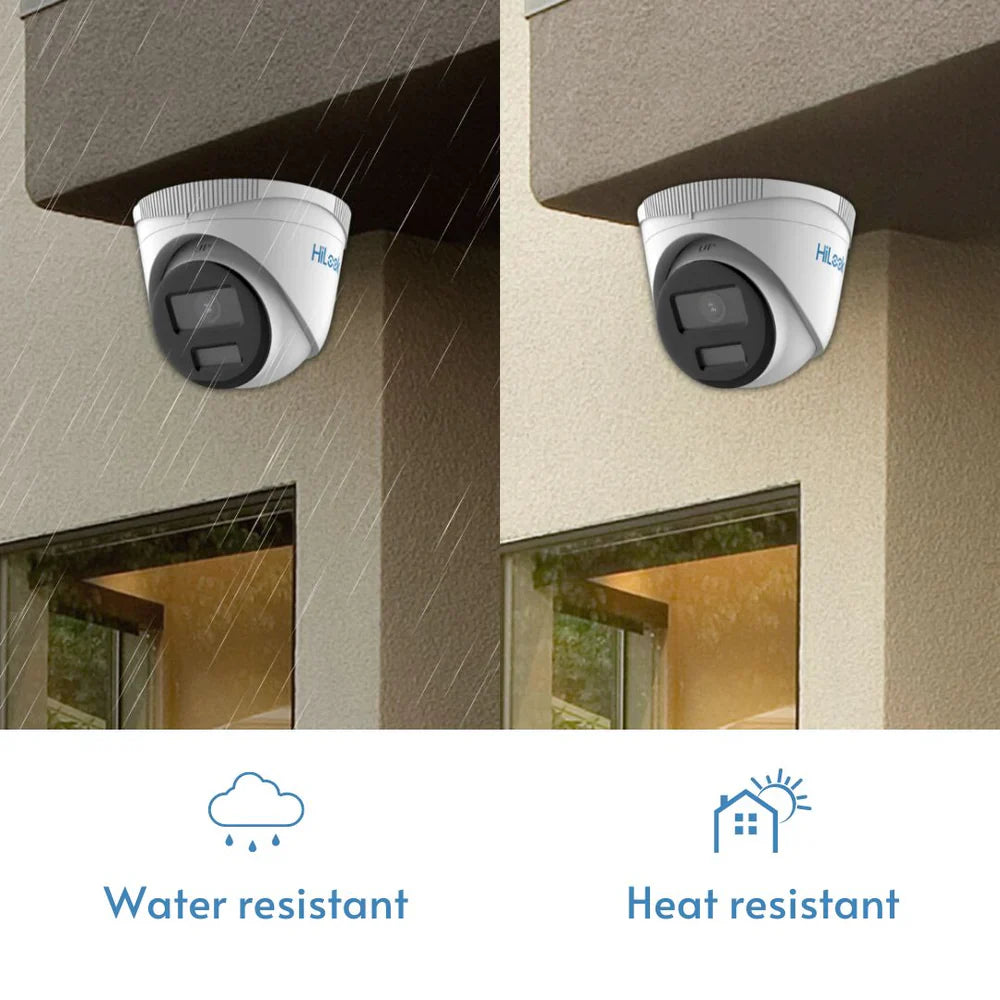

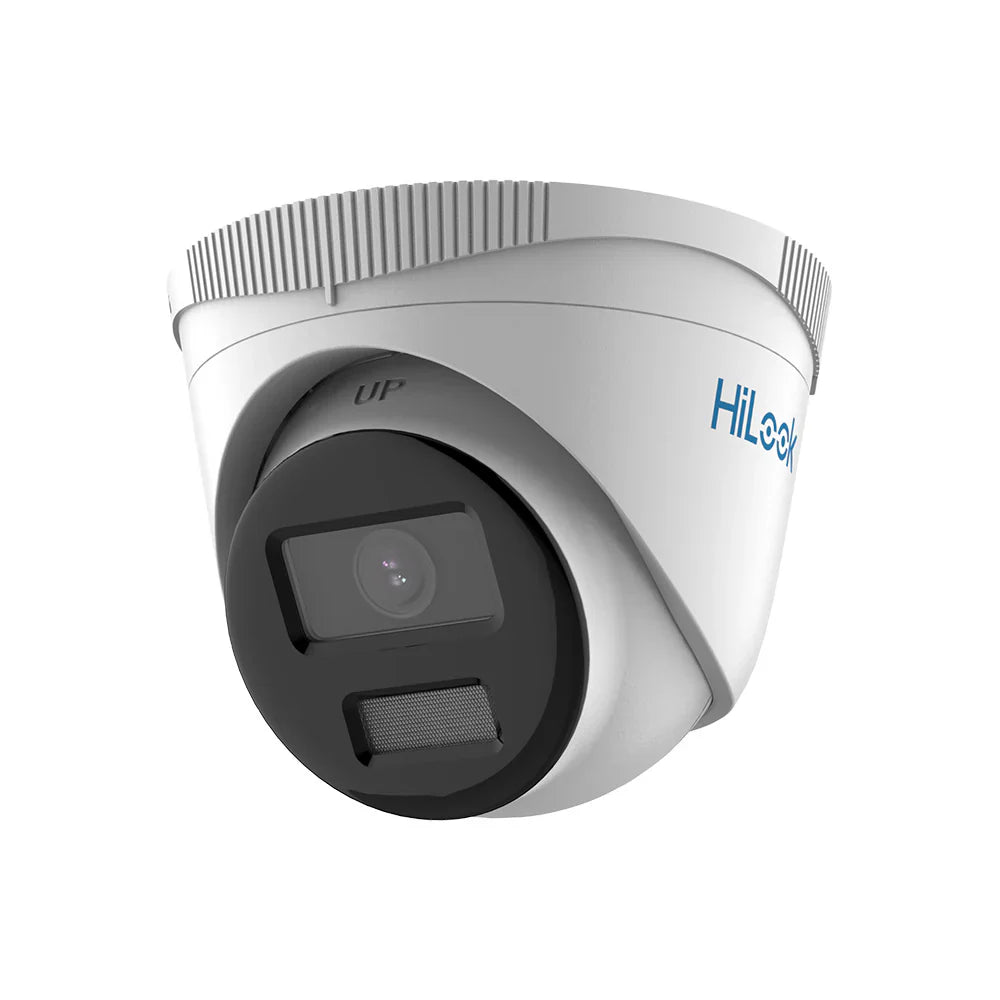

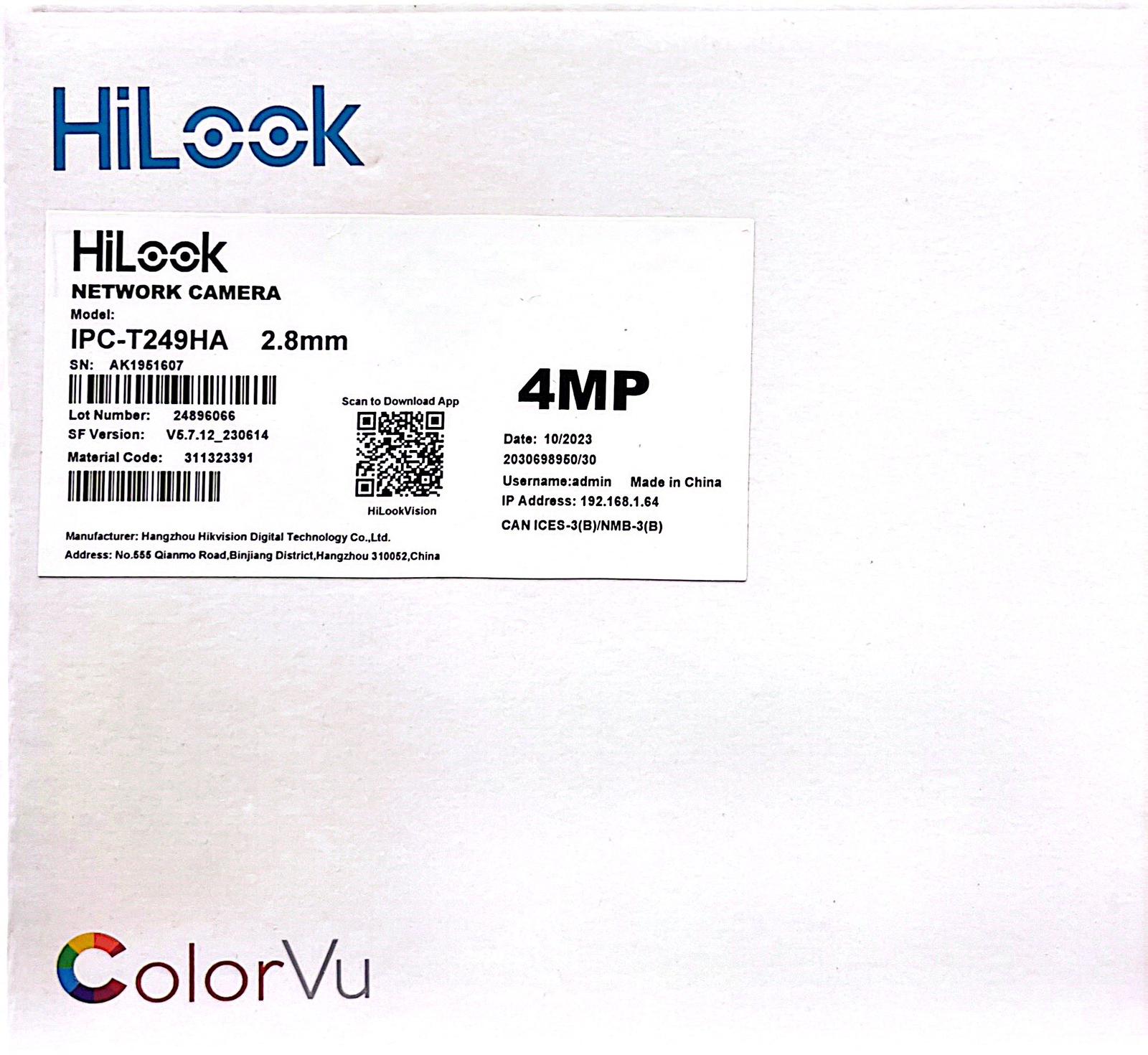

HiLook IPC-T249HA 2.8mm 4MP ColorVu Lite Fixed Turret Network PoE Camera

Features:

• Motion 2.0 supports Human and Vehicle Detection
• High quality imaging with 4MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• 24/7 colorful imaging with 2.8 mm Lens, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°, and F1.0 super aperture
• Water and dust resistant (IP67)
• Easy installation with Power over Ethernet (PoE) technology
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions
• Must be used with a HiLook or Hikvision NVR

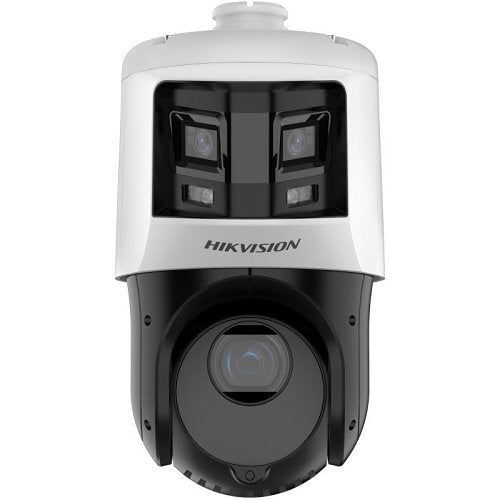

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

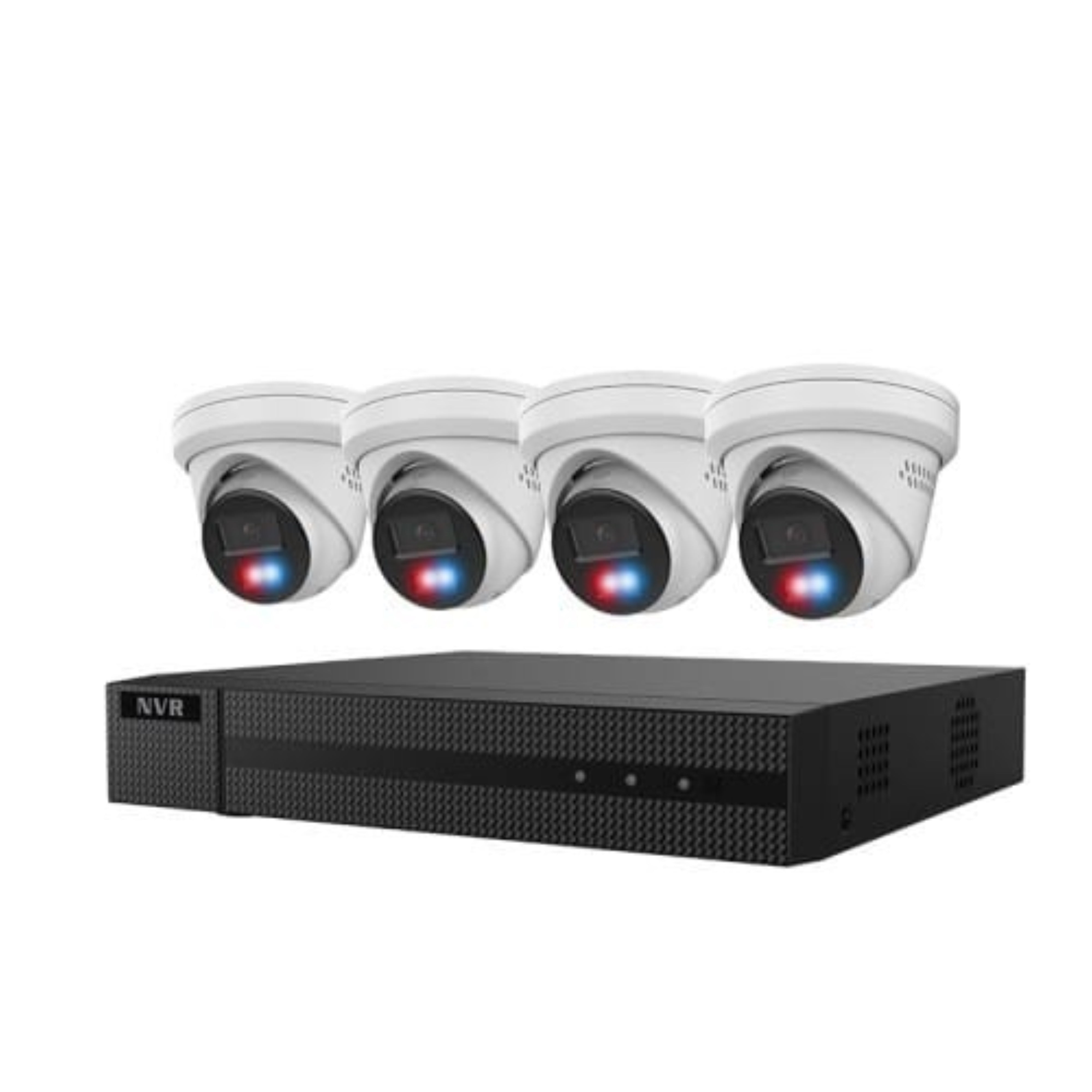

HiLook 4K PoE Turret Kit

· H.265+/H.265/H.264+/H.264 video formats
· Up to 8-ch IP camera inputs
· Up to 8-ch@8 MP decoding capacity
· Up to 128 Mbps incoming bandwidth
· Up to 8-ch IP speakers can be connected

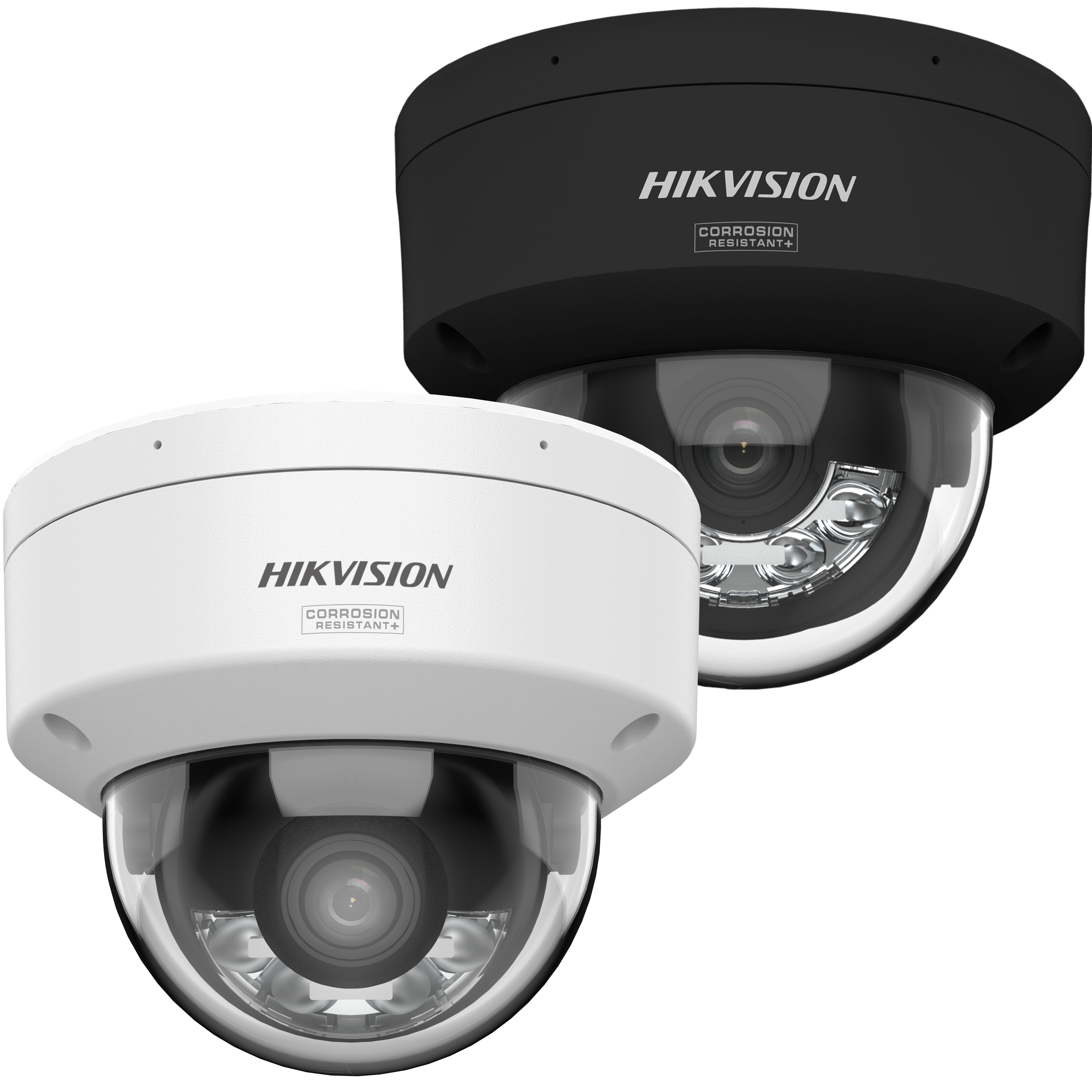

- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- S2U: Built-in arrayed dual-microphone for real-time high quality audio security
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67) and vandal-resistant (IK10)

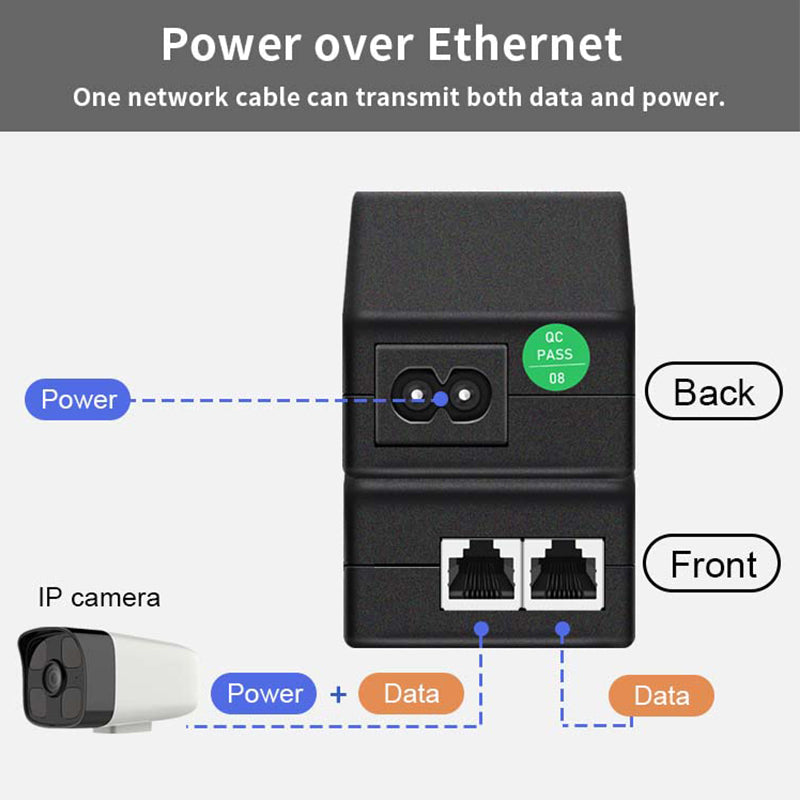

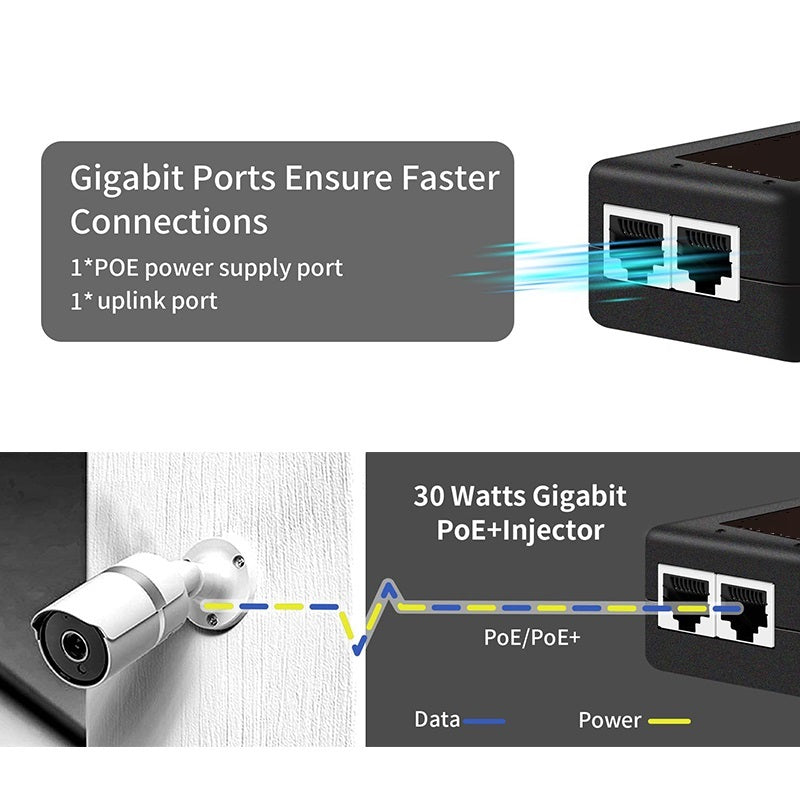

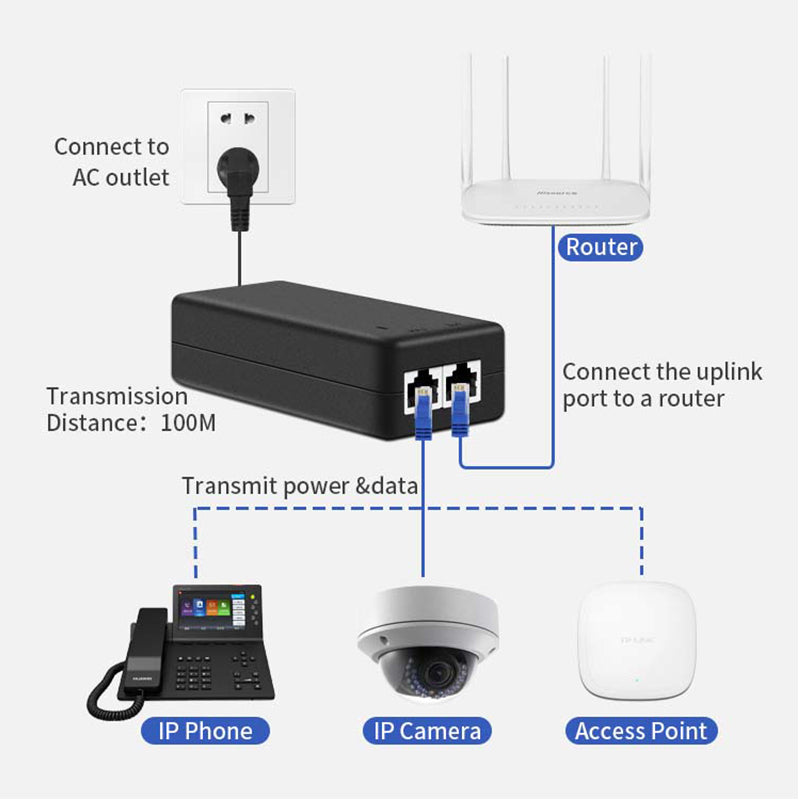

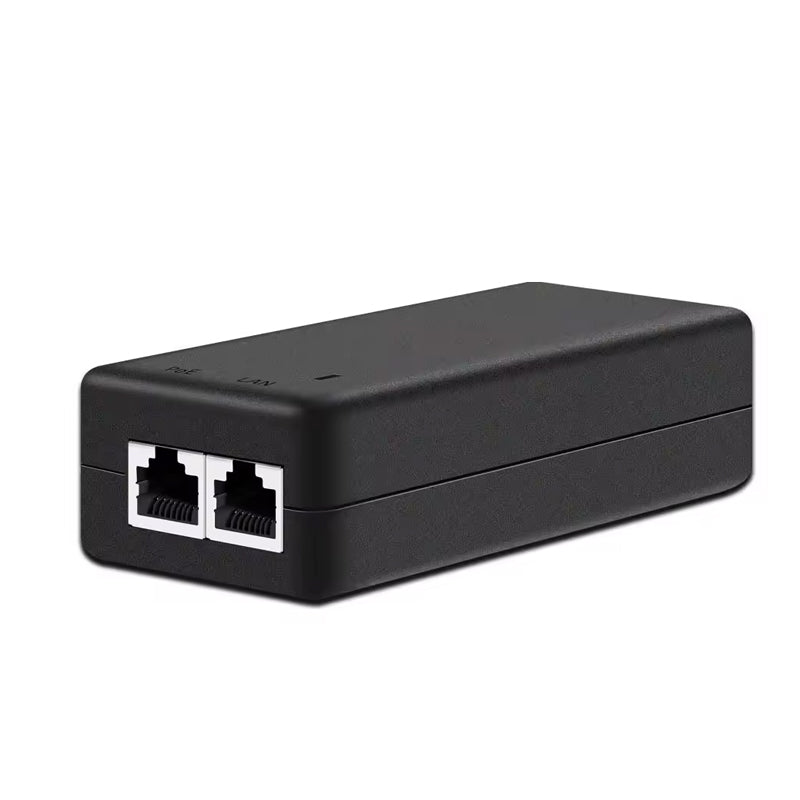

Input: AC110-240V~50/60hz 0.6A Max

PoE Output: DC52V----577MA

Standard: PoE+ IEEE802.3AF/AT

Max Transmission Distance: 100 meters

Ports:

• 1X2.5Gbps RJ45 data-in port
• 1X2.5Gbps RJ45 power+data-out port
• 1XAC socket

Package Contents:

• 30W PoE+ Injector
• Installation Guide

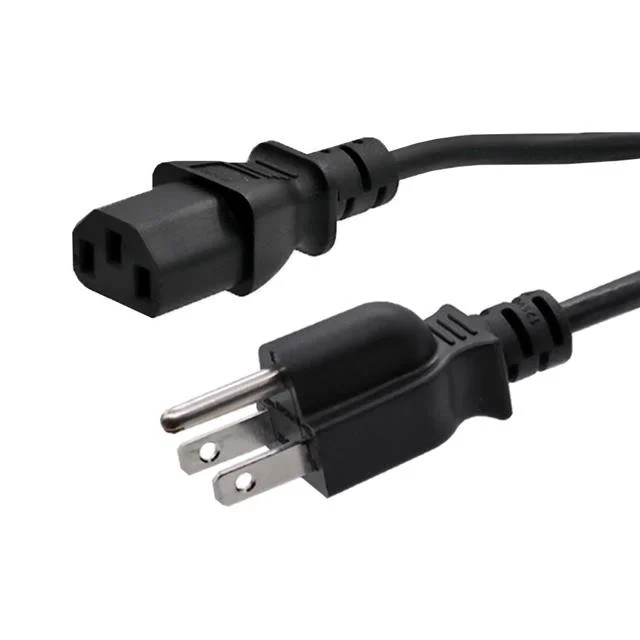

• Power Cord

Environment:

• Operating Temperature: -10°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

The Hikvision DS-2CD2085G1-I is a high-performance 4K Powered-by-DarkFighter Fixed Mini Bullet Network Camera designed for superior image quality and surveillance capabilities in various lighting conditions. Ideal for outdoor use, this camera leverages cutting-edge technology to provide clear and detailed video footage, ensuring reliable security monitoring day and night.

Quick Spec

Product Features

• ● 4K Ultra HD Resolution for enhanced image clarity
• ● Powered-by-DarkFighter technology for excellent low-light performance
• ● IP67 Rated Weatherproof Housing for outdoor use
• ● Up to 30m IR Range for night vision capabilities
• ● H.265+ Compression for efficient bandwidth and storage usage

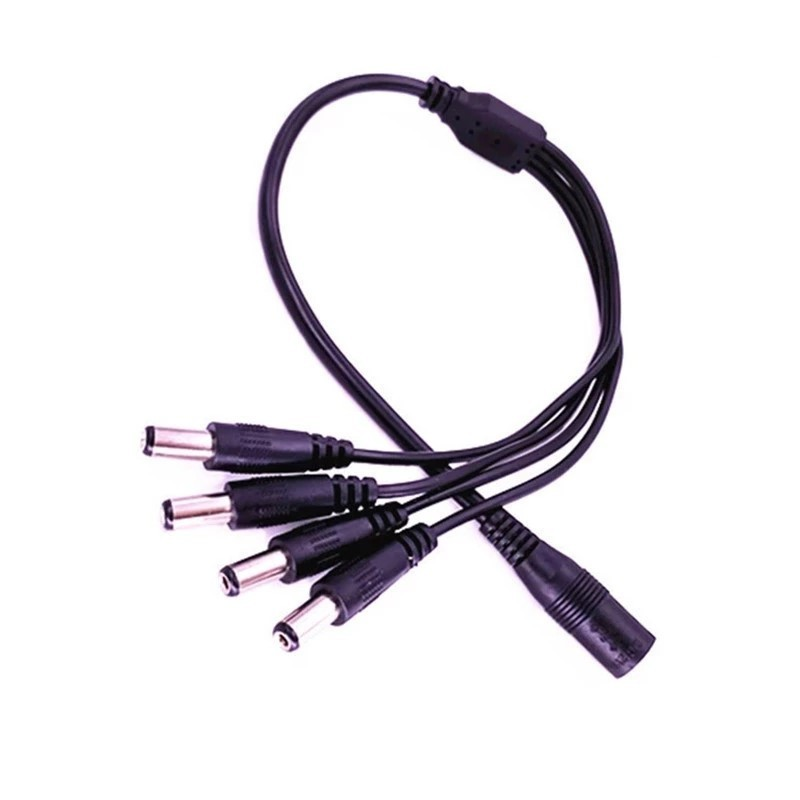

This DC 5.5*2.1mm power split cable can be used for 4 CCTV cameras easy power supply, with one power adapter only, which is very convenient for more devices power supply at the same time, like CCTV cameras, security DVR and other power needed products.

Features:

*1 to 4 DC power split cable.

*5.5*2.1mm DC plug, 40cm cable length.

*Can be used for CCTV cameras and security DVR power supply.

*High quality and 100% brand new.

*Durable and stable in performance.

• Includes: (4) 5MP TurboHD Cameras, 1) 4-Channel DVR w/1 TB HDD
• Cameras: 5MP High Performance CMOS
• Up to 2560 x 1944 Resolution

• Includes: (6) 5 MP TurboHD Cameras, (1) 8-Channel DVR w/2 TB HDD
• Cameras: 5 MP High Performance CMOS
• Up to 2560 x 1944 Resolution

8 MP HiLook 4 x 4K Cameras Combo Kit

EKI-K41T44C

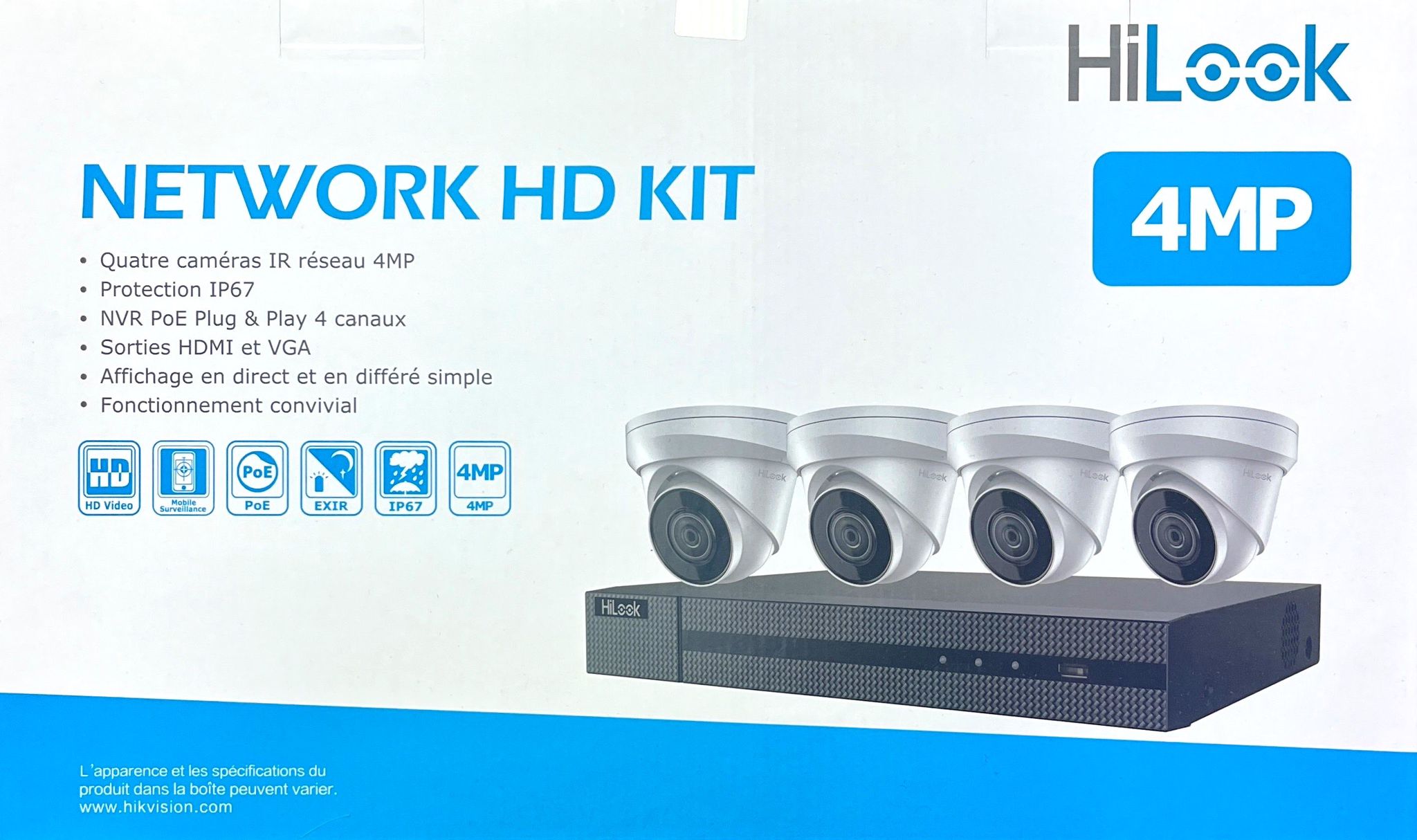

4 x 4 MP ColorVu Turret IPC + 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265+
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265+
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

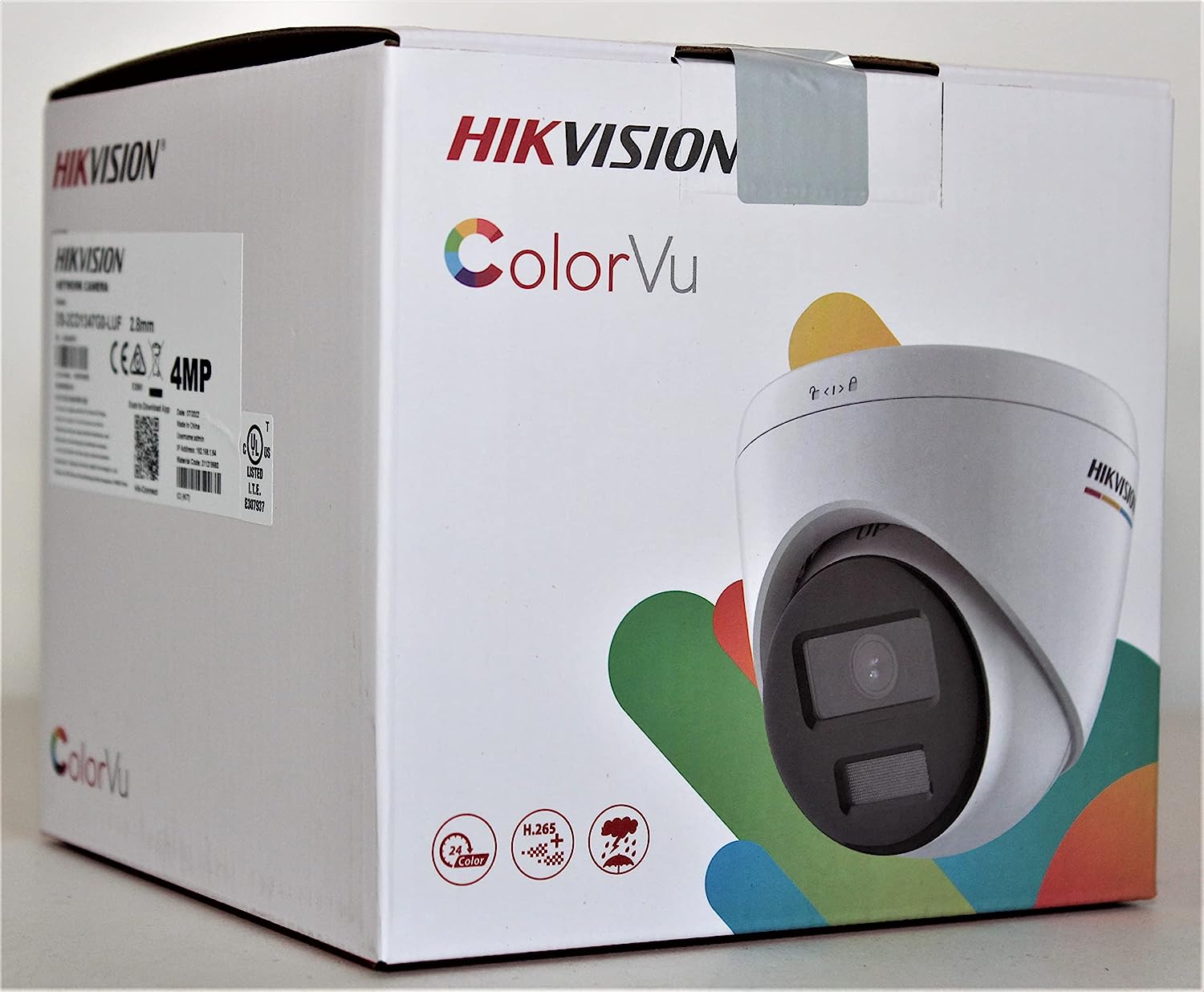

 Specification - Camera

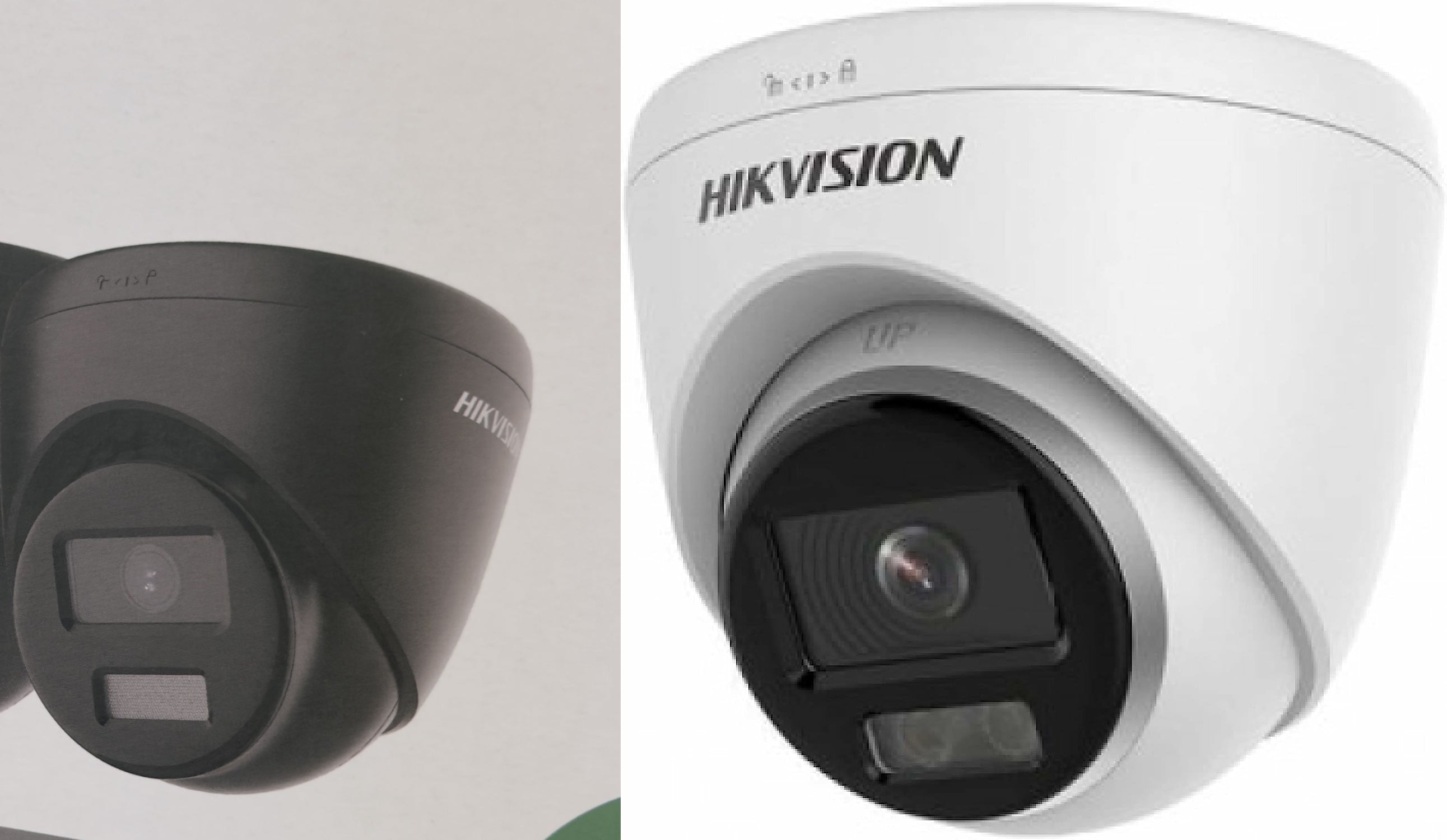

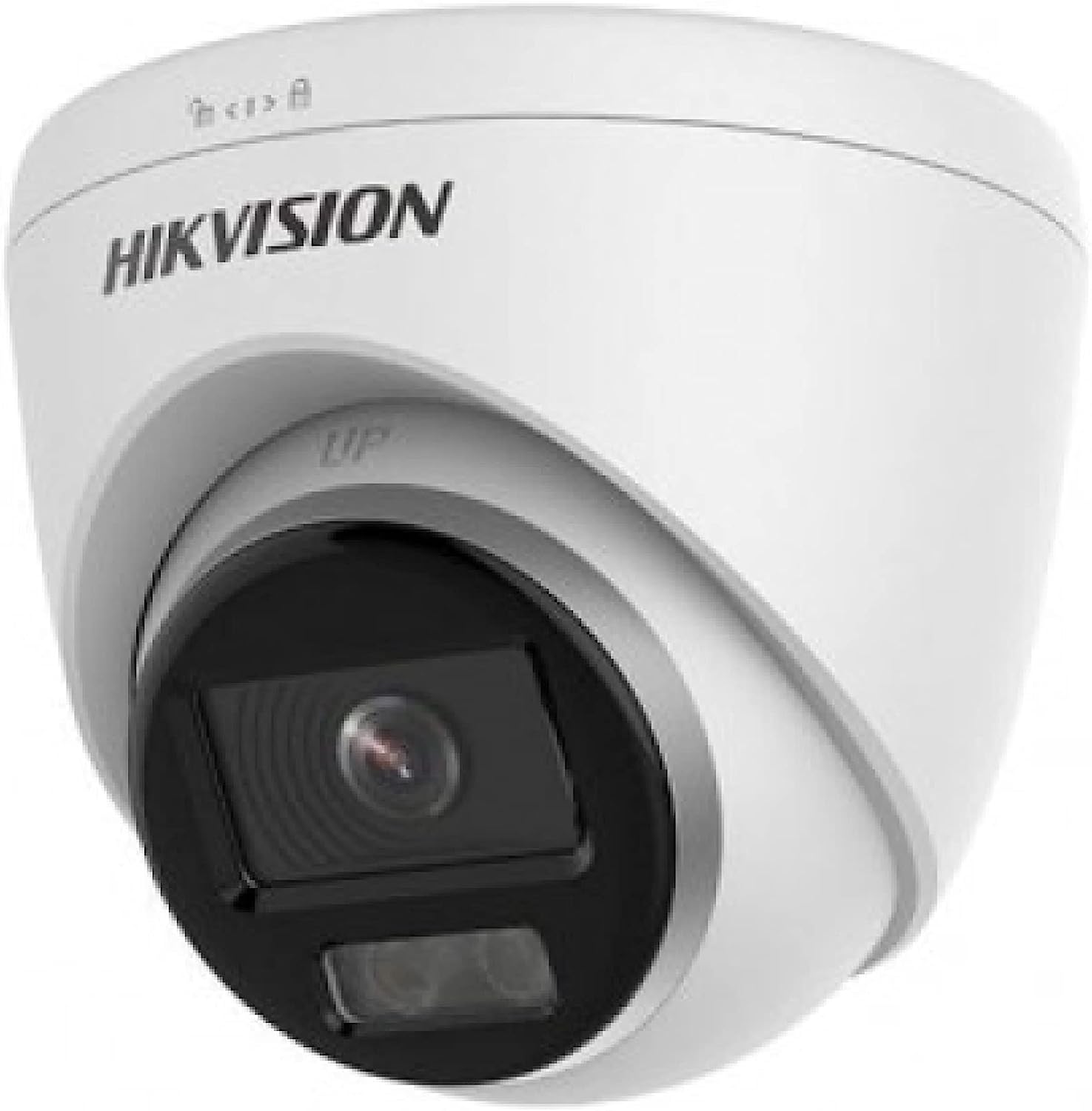

Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

4 MP Outdoor WDR Fixed Turret Network Camera Kit

• 1/3" (4 MP) Progressive Scan CMOS
• 2560 x 1440 (4 MP) Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with 100 ft (30 m) IR Range
• H.265+/H.265/H.264+/H.264/MJPEG
• IP67 Protection • Durable Metal Housing
• 120 dB WDR for Clear Images
• Up to 8 MP Resolution Recording
• H.265+/H.265/H.264+/H.264/MPEG
• Plug-and-Play with 4, 8, or 16 PoE Cameras
• Up to 2 SATA Interfaces
