Moteck SG2100 DiSEqC Satellite Dish Motor

SKU: SG2100
$199.00 CAD $249.00 CAD

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Brief Description

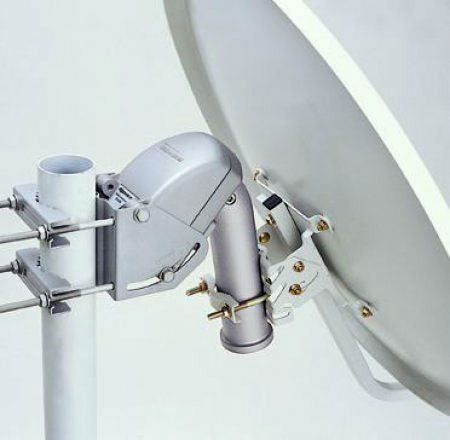

With the SG2100 motorized system the dish moves from east to west to track the satellites positioned along the Clarke belt.  Good for any offset dish with a U-bolt or Pole mounting up to 120 cm satellite dish.

Works with all DiSEqC 1.2, 1.3,  Goto X compliant receivers. It utilizes a data stream passed up the LNB coaxial lead to the mount. Only one coaxial cable is needed for installation.



FEATURES:

  • Fits all popular dish with 42mm tube
  • Special Design for any Receiver with DiSEqC 1.2
  • Only One Coaxial Cable Control
  • Go To X Function
  • High Efficiency
  • Compact Structure
  • Ultra Low Noise
  • Adjustable Hardware Limits
  • Easy Installation with LED Indicator
  • Manual EAST / WEST button
  • For Dish up to 1.2M






SPECIFICATIONS:

Model SG2100
Antenna Diameter 1.2M Max.
Azimuth Angle 70 ° EAST ~ 70° WEST (140 °) Adjustable
Elevation Angle 25 ° ~ 75 °
Input / Output Voltage 13 / 18 VDC
Power Consumption
  • 50 mA ( Standby mode )
  • 200 mA ( Normal)
  • 350 mA ( Max.)
Rotation Speed 1.9 ° / sec ( at 13V) ; 2.5 ° / sec ( at 18V)
Satellite Positions 60
Connector F Type
Command Protocol DiSEqC 1.2
Resynchronize Function YES
Goto Position 0 Function YES
Goto X Function YES
Positioning Sensor High Resolution Hall Effect Sensor
EAST / WEST Limit Adjustable Hardware and Programmable Software
Manual Button EAST / WEST
Indicating LED YES
color status indication
Green On Power On; Standby Mode
Orange Blink Receiving DiSEqC 1.2 Commands/ Reset Mode
Orange On Error Message: Over Current / Hardware Limit
Tube size for antenna 55x160mm
Stand size 35 ~ 65mm
