NVR Systems

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

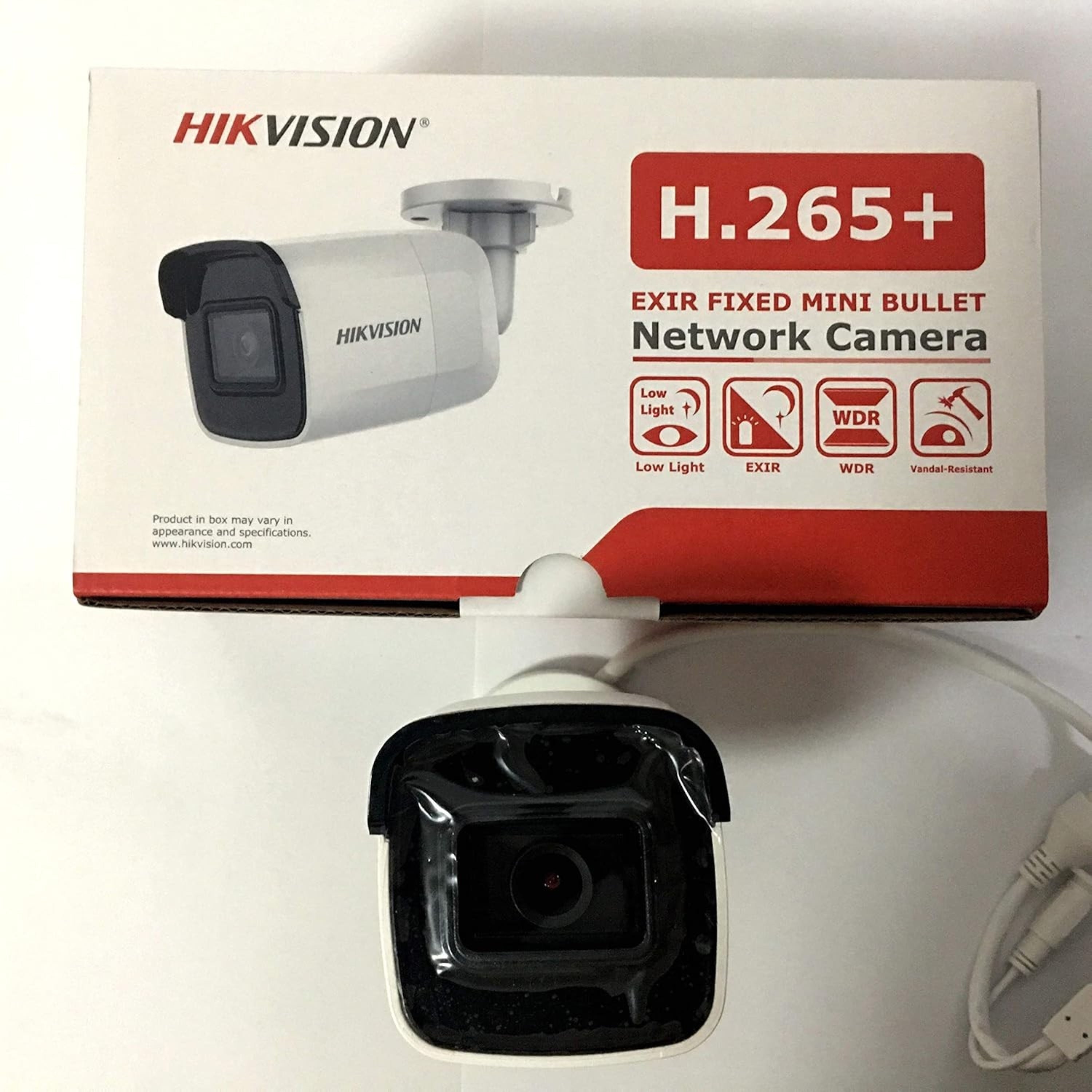

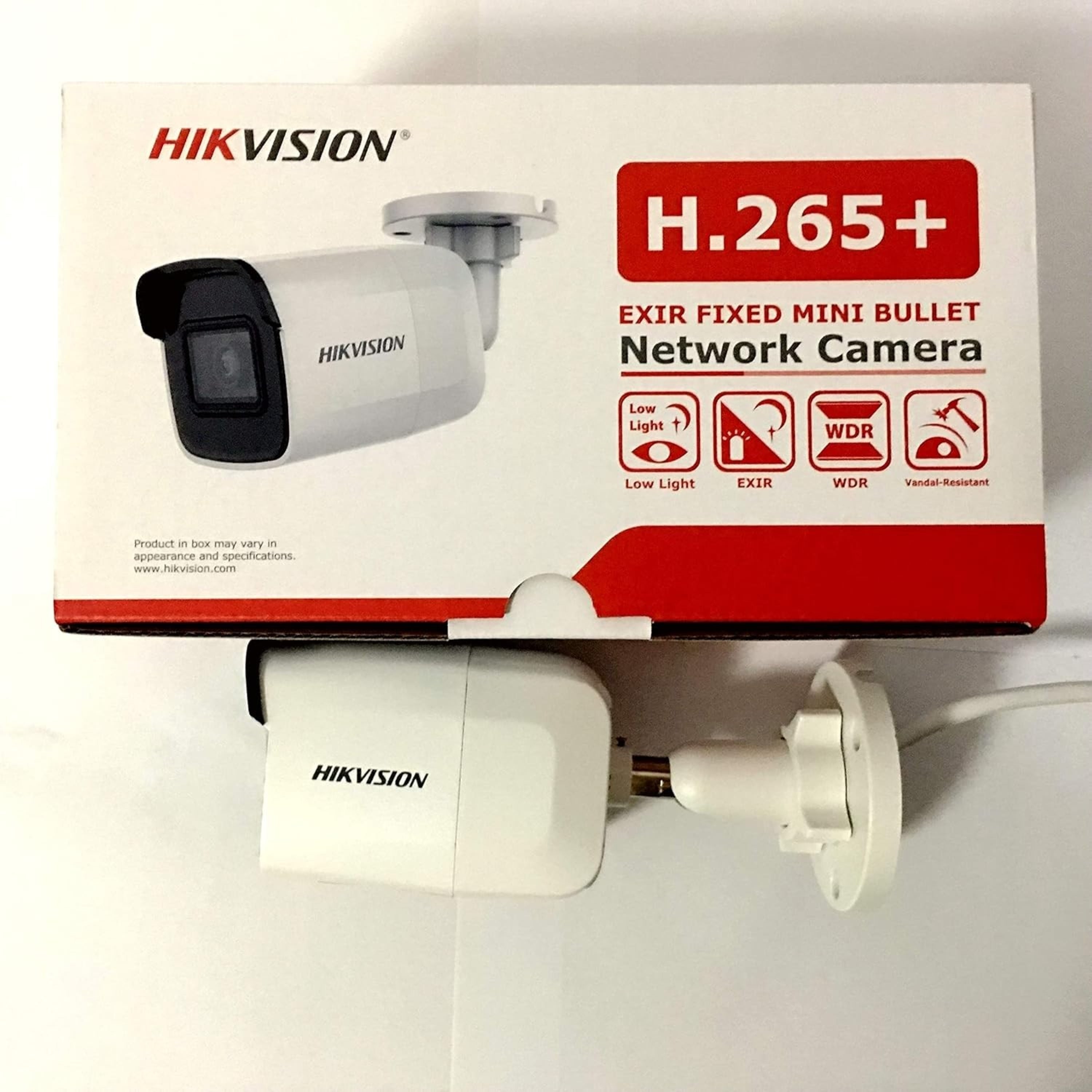

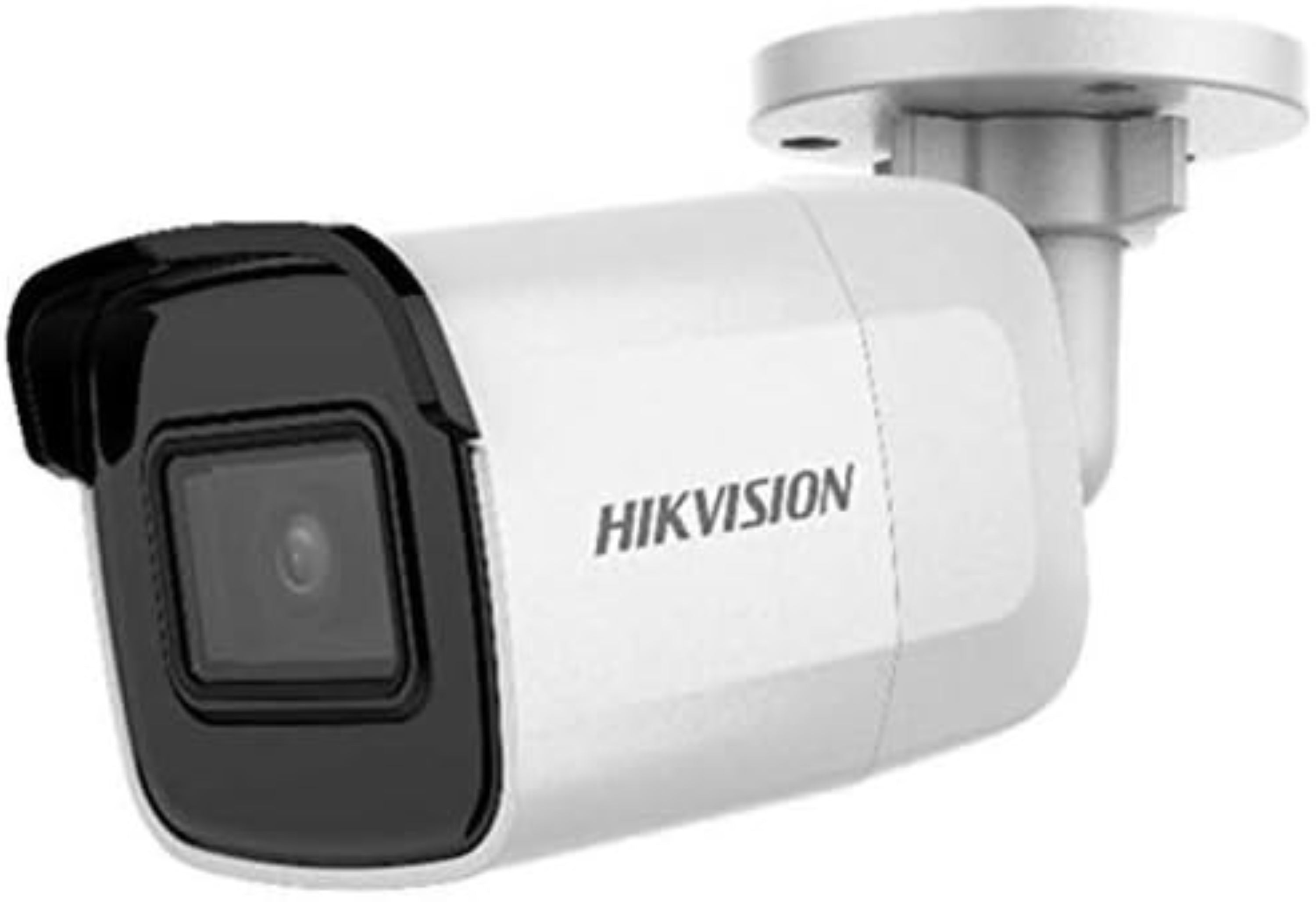

The Hikvision DS-2CD2085G1-I is a high-performance 4K Powered-by-DarkFighter Fixed Mini Bullet Network Camera designed for superior image quality and surveillance capabilities in various lighting conditions. Ideal for outdoor use, this camera leverages cutting-edge technology to provide clear and detailed video footage, ensuring reliable security monitoring day and night.

Quick Spec

Product Features

• ● 4K Ultra HD Resolution for enhanced image clarity
• ● Powered-by-DarkFighter technology for excellent low-light performance
• ● IP67 Rated Weatherproof Housing for outdoor use
• ● Up to 30m IR Range for night vision capabilities
• ● H.265+ Compression for efficient bandwidth and storage usage

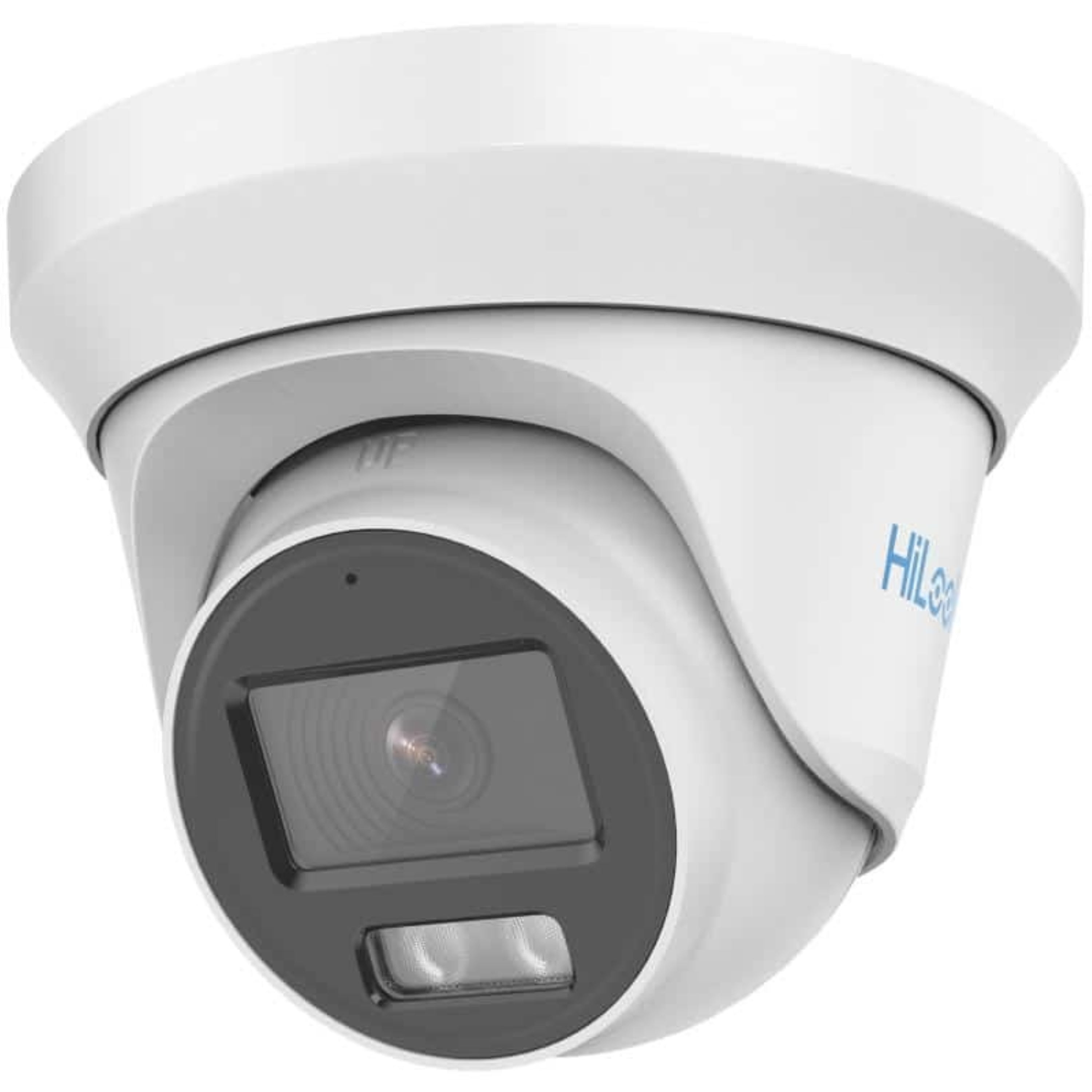

• High quality imaging with 3K, 2960 × 1665 resolution
• 24/7 color imaging with F1.0 aperture
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP66)

• Camera
• Image Sensor3K CMOS
• Signal SystemPAL/NTSC
• Resolution2960 (H) × 1665 (V)
• Frame Rate

  TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps

  AHD: 4 MP @ 25 fps/30 fps

  CVI: 4 MP @ 25 fps/30 fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm/3.6 mm fixed focal lens
• Field of View

  2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°

  3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionBrightness;Sharpness;Anti-Banding
• Lighting ModeWhite Light

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC±25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 4.2 W
• Protection LevelIP66
• MaterialMetal
• White Light RangeUp to 40 m
• DimensionΦ 127.92 mm × 97.8 mm (Φ 5.04″ × 3.86″)
• WeightApprox. 480 g (1.06 lb.)

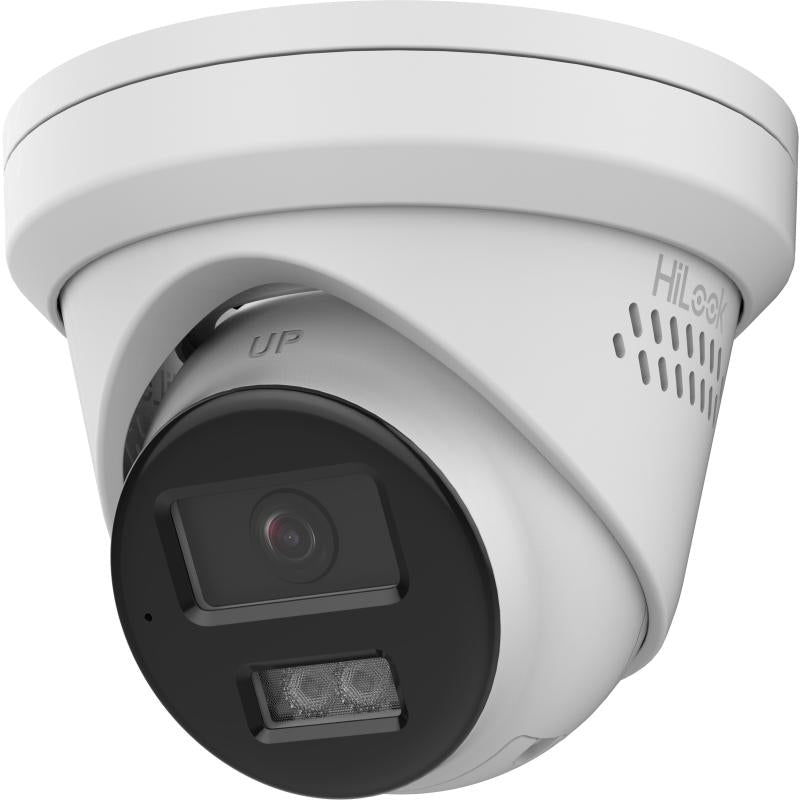

6 MP Smart Hybrid Light MD 2.0 Fixed Turret Network Camera

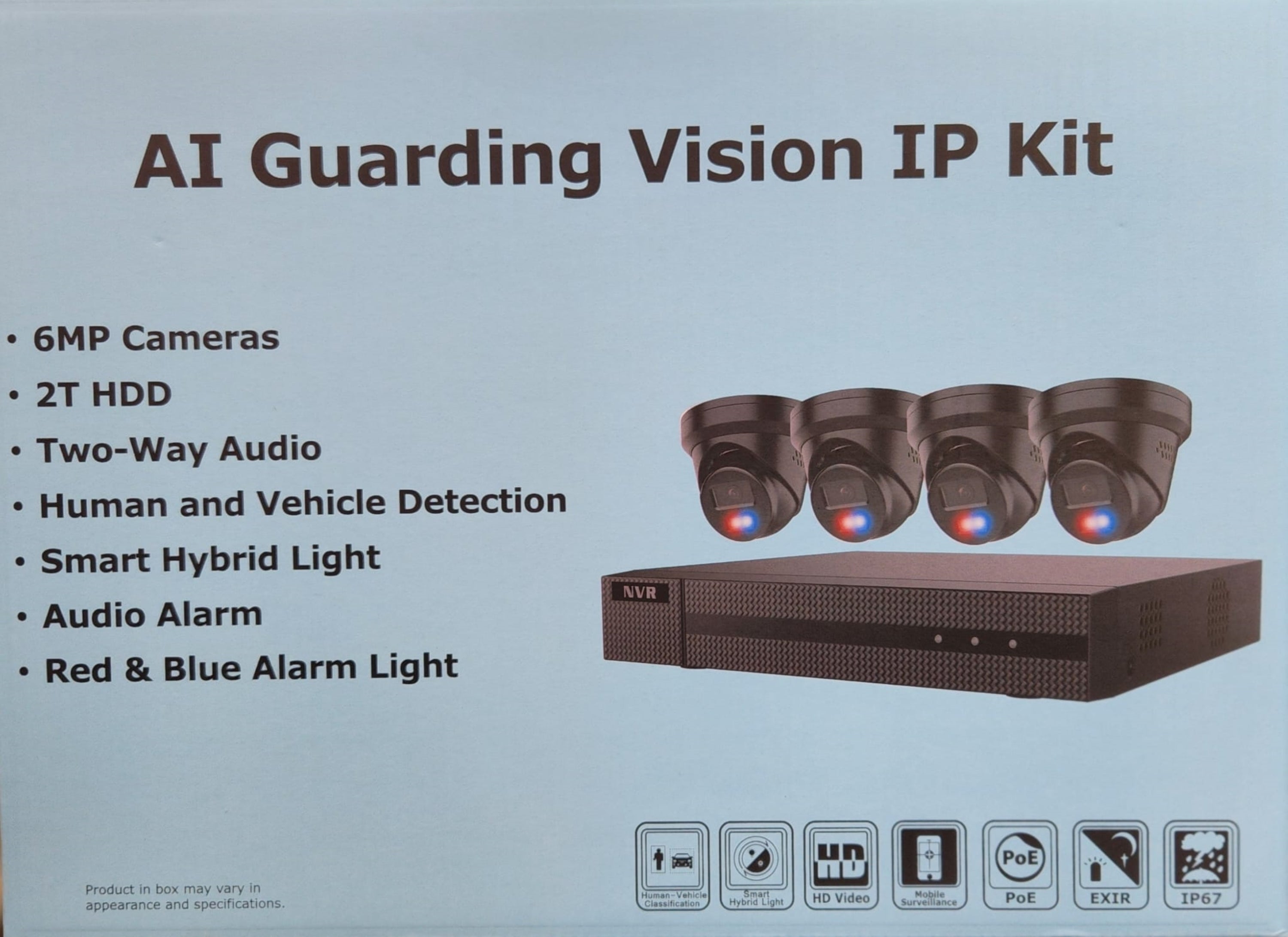

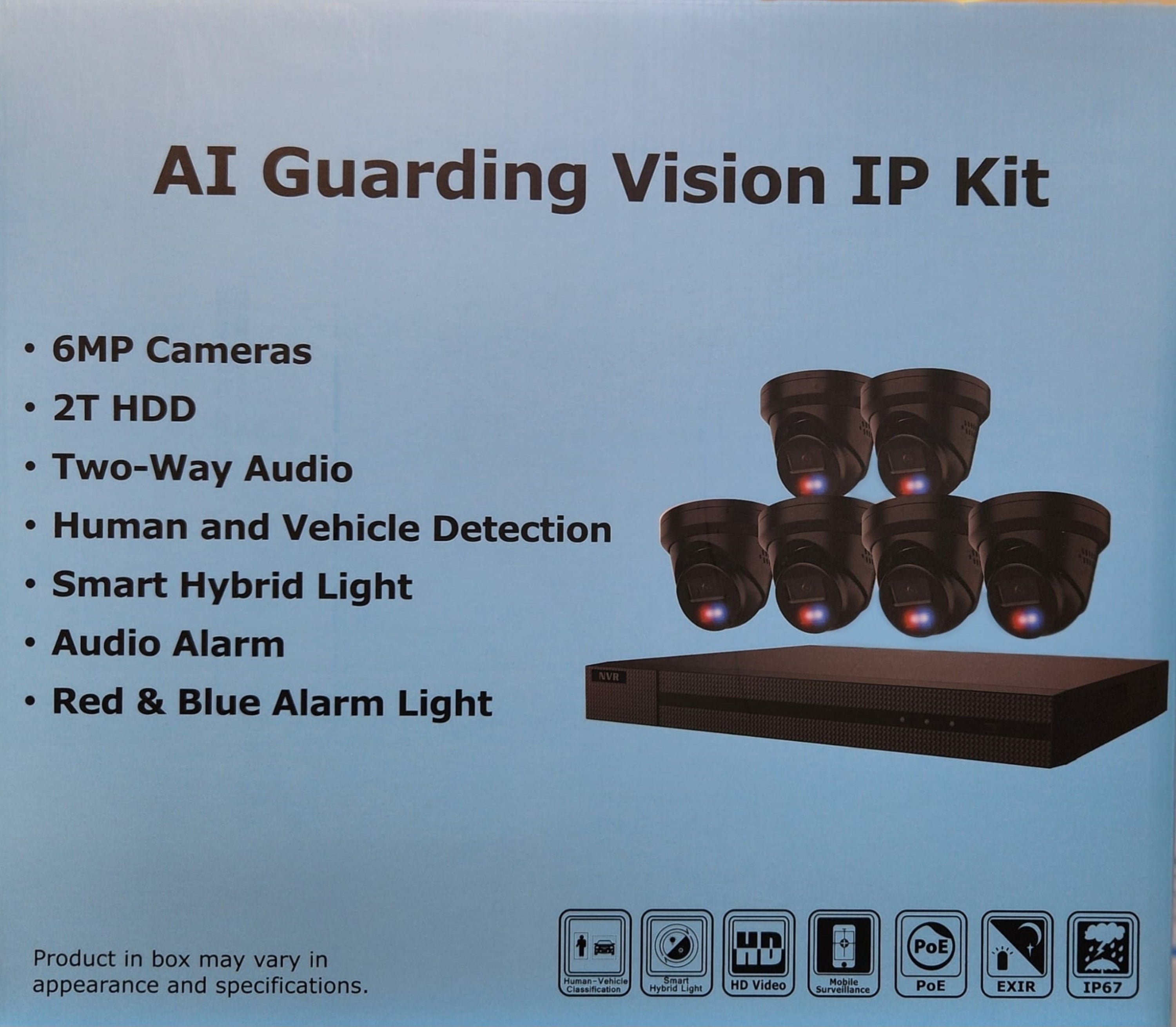

Compatible with Hikvision / Hilook / AI Guarding vision

• Deep learning based human and vehicle targets classification of Motion Detection 2.0

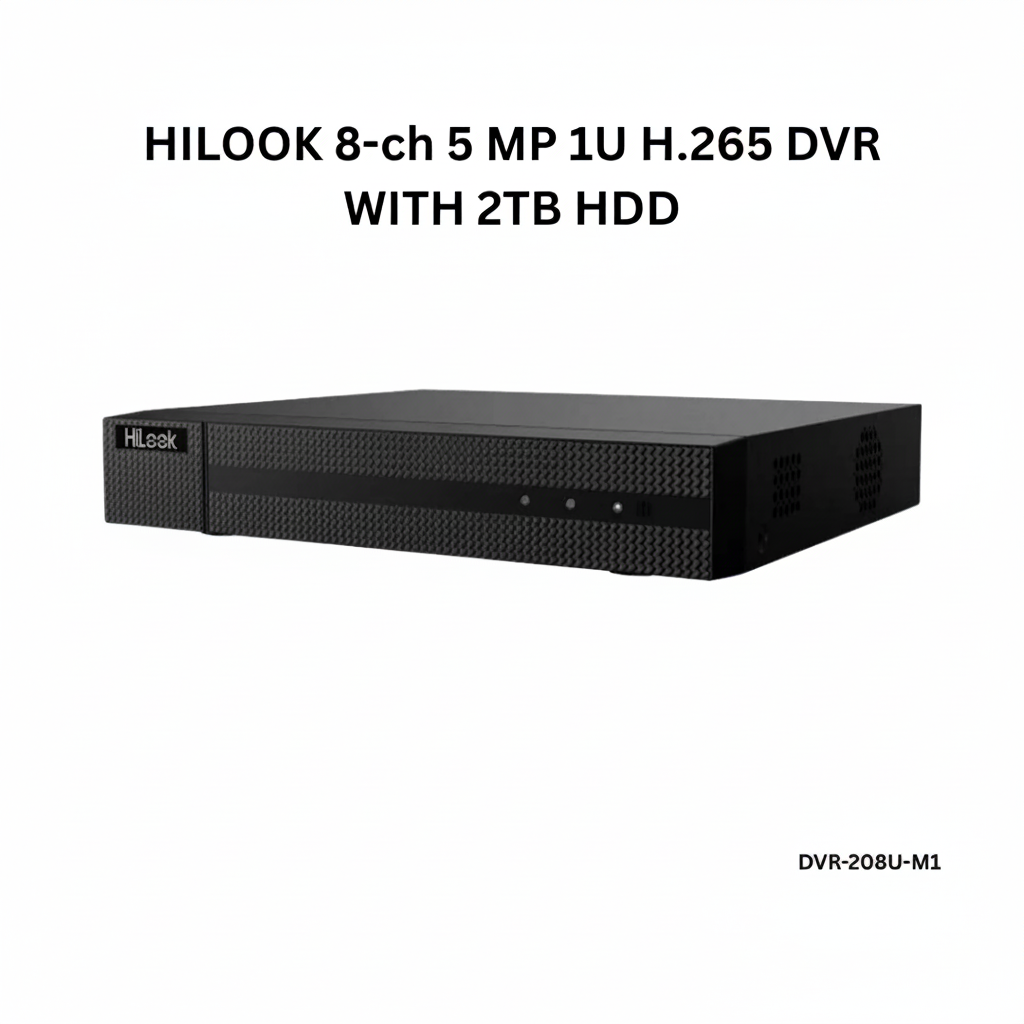

• 8 analog channels and 1 HDD 1U DVR
• Efficient H.265 Pro+ compression technology
• Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 16 network cameras can be connected.

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input

4-ch (up to 12-ch)

Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch;

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS InputPAL/NTSC

HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous playback8-ch

Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 10 Mbps

Dual-streamSupport

Stream TypeVideo, Video & Audio

Audio CompressionG.711u

Audio Bitrate64 Kbps

Network

Total Bandwidth128 Mbps

Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection64

Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 10 TB capacity for each disk

USB InterfaceRear panel: 2 × USB 2.0

General

Power Supply12 VDC, 2 A

Consumption≤ 10 W (without HDD)

Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity10% to 90%

Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight≤ 1.6 kg (without HDD, 3.5 lb.)

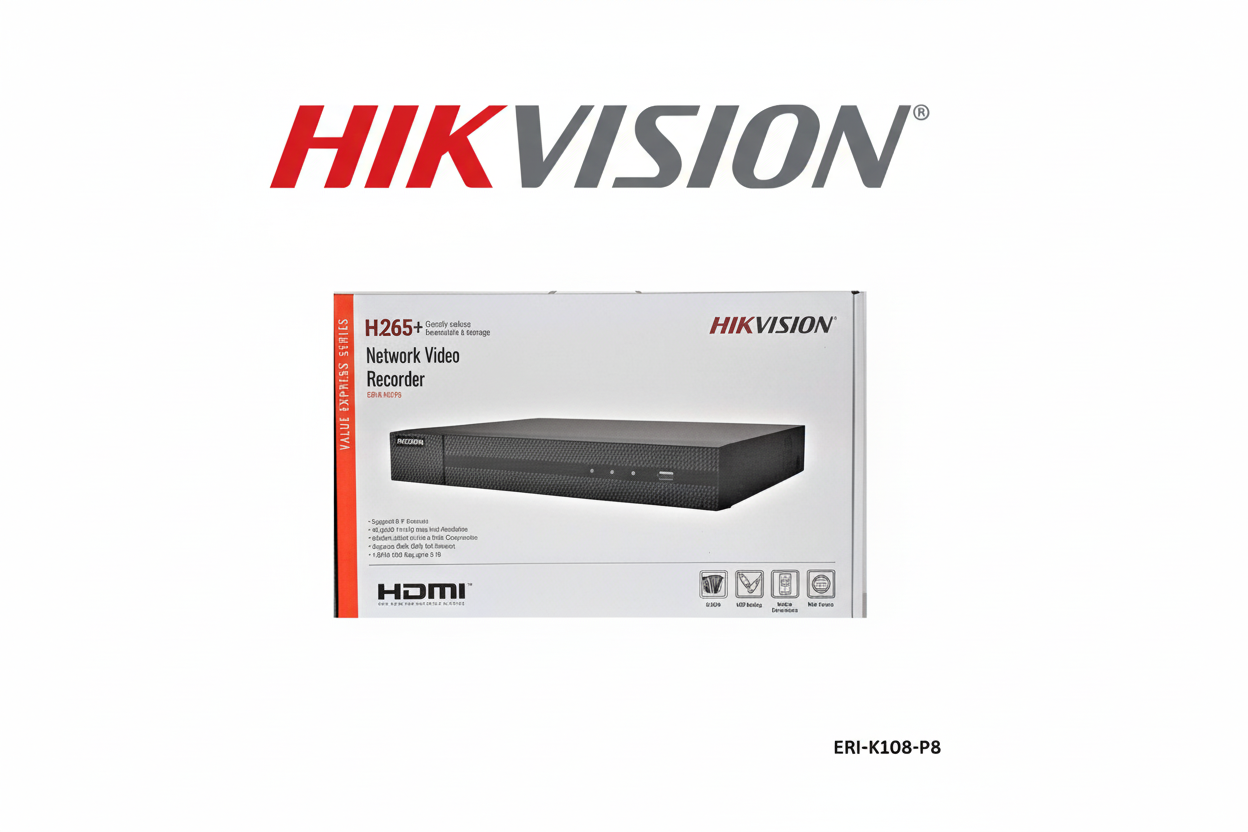

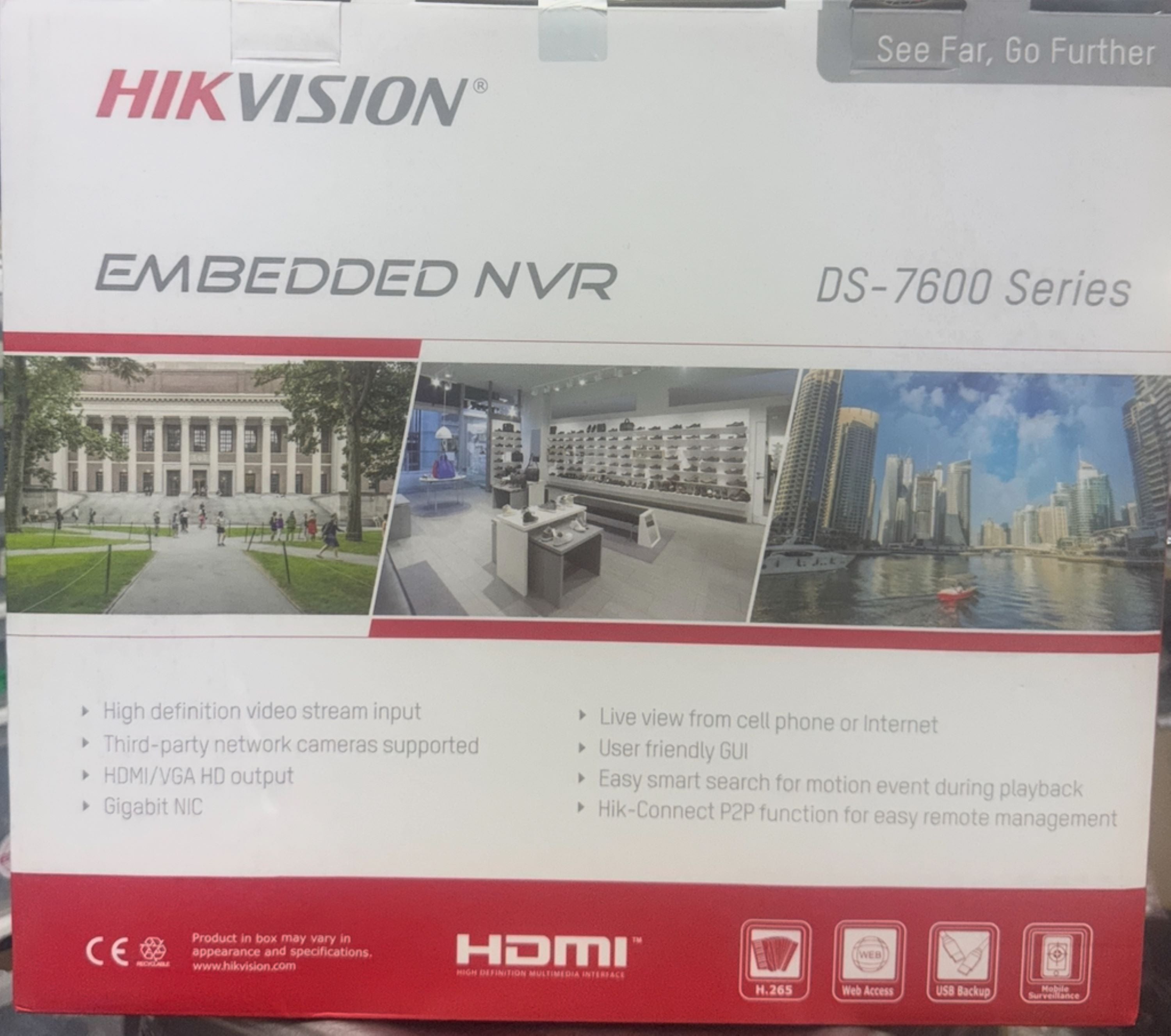

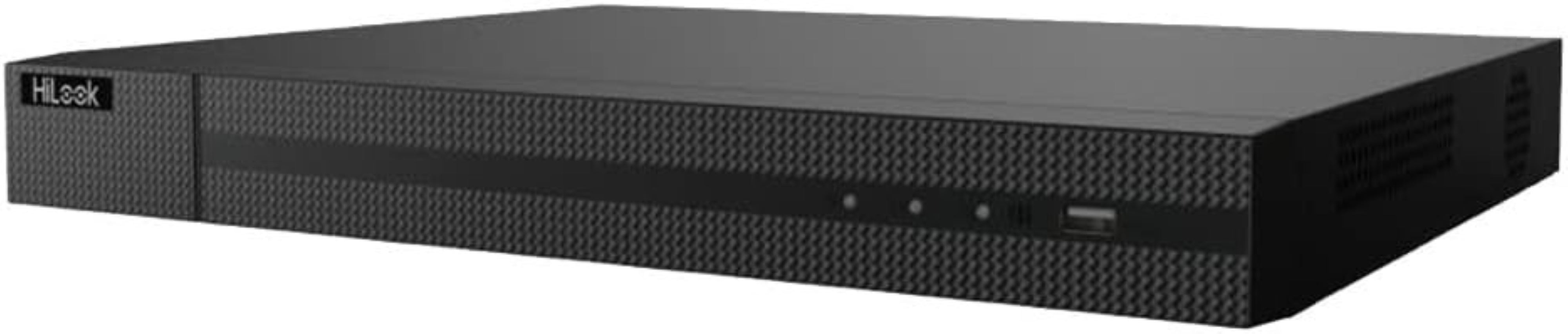

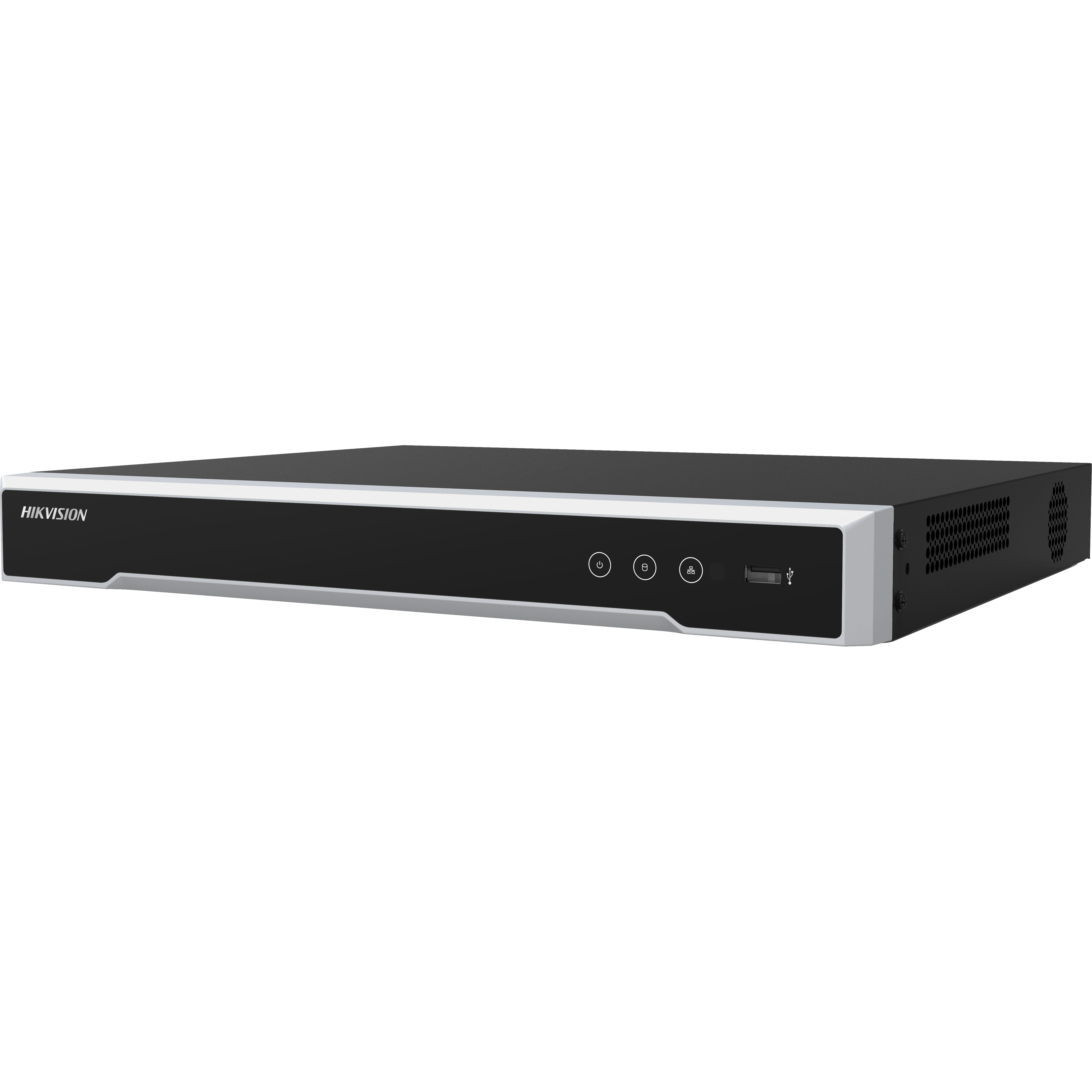

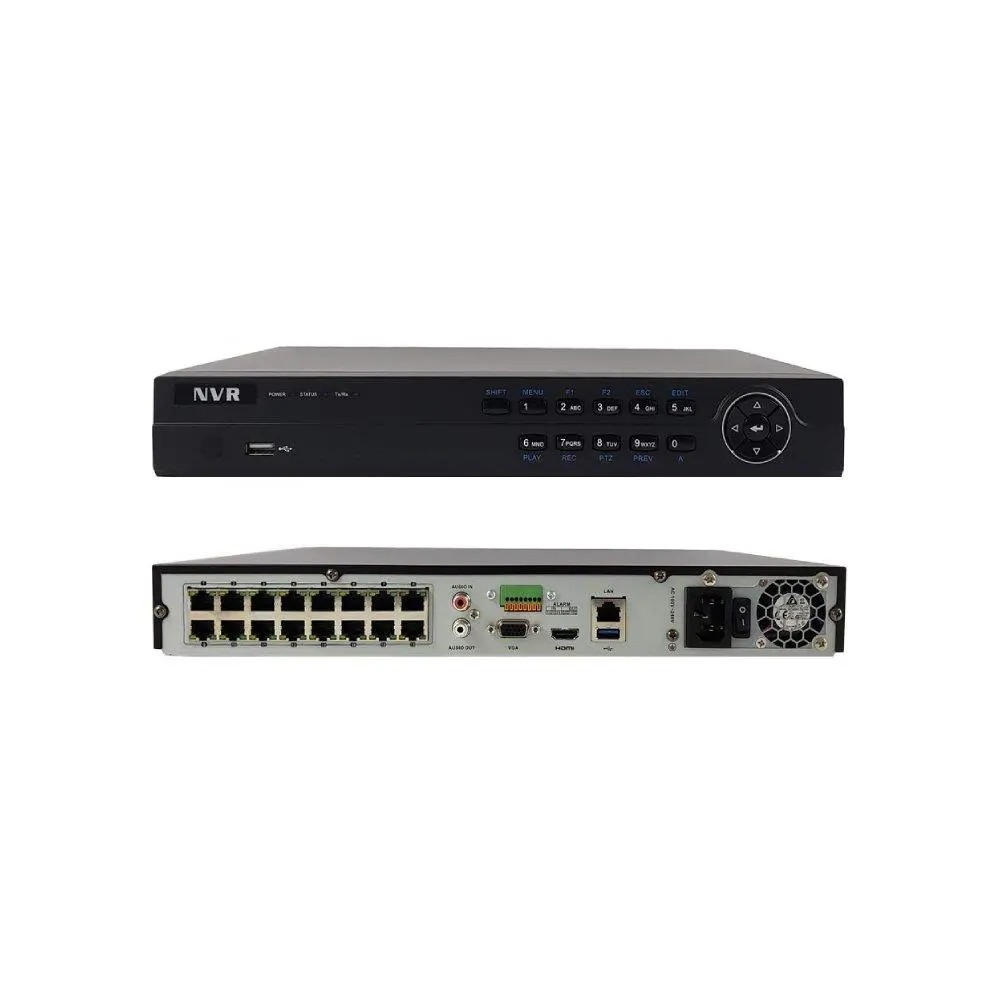

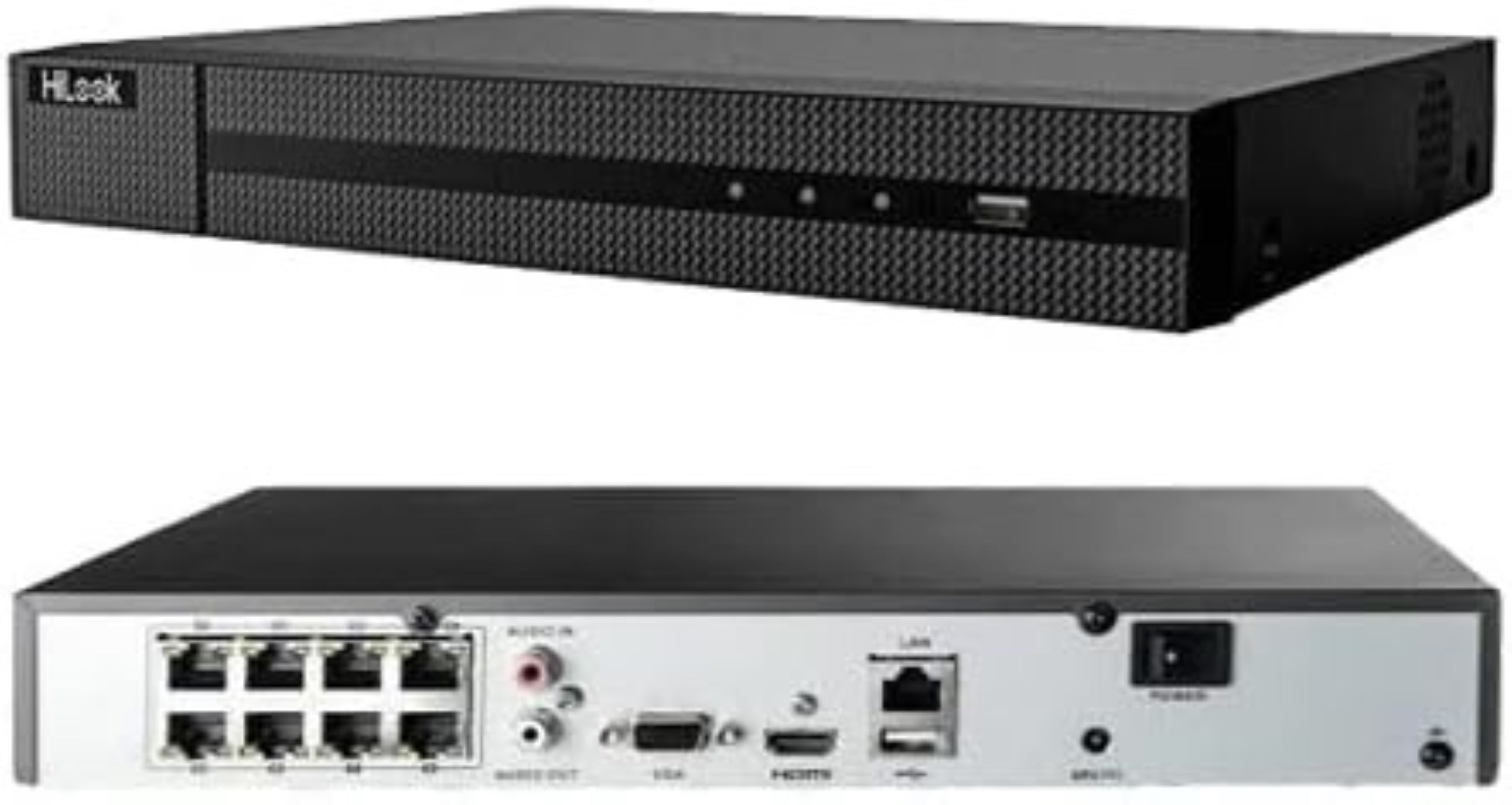

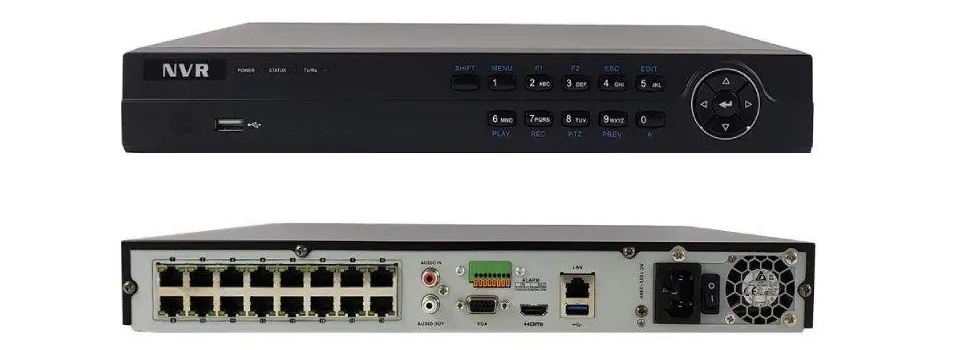

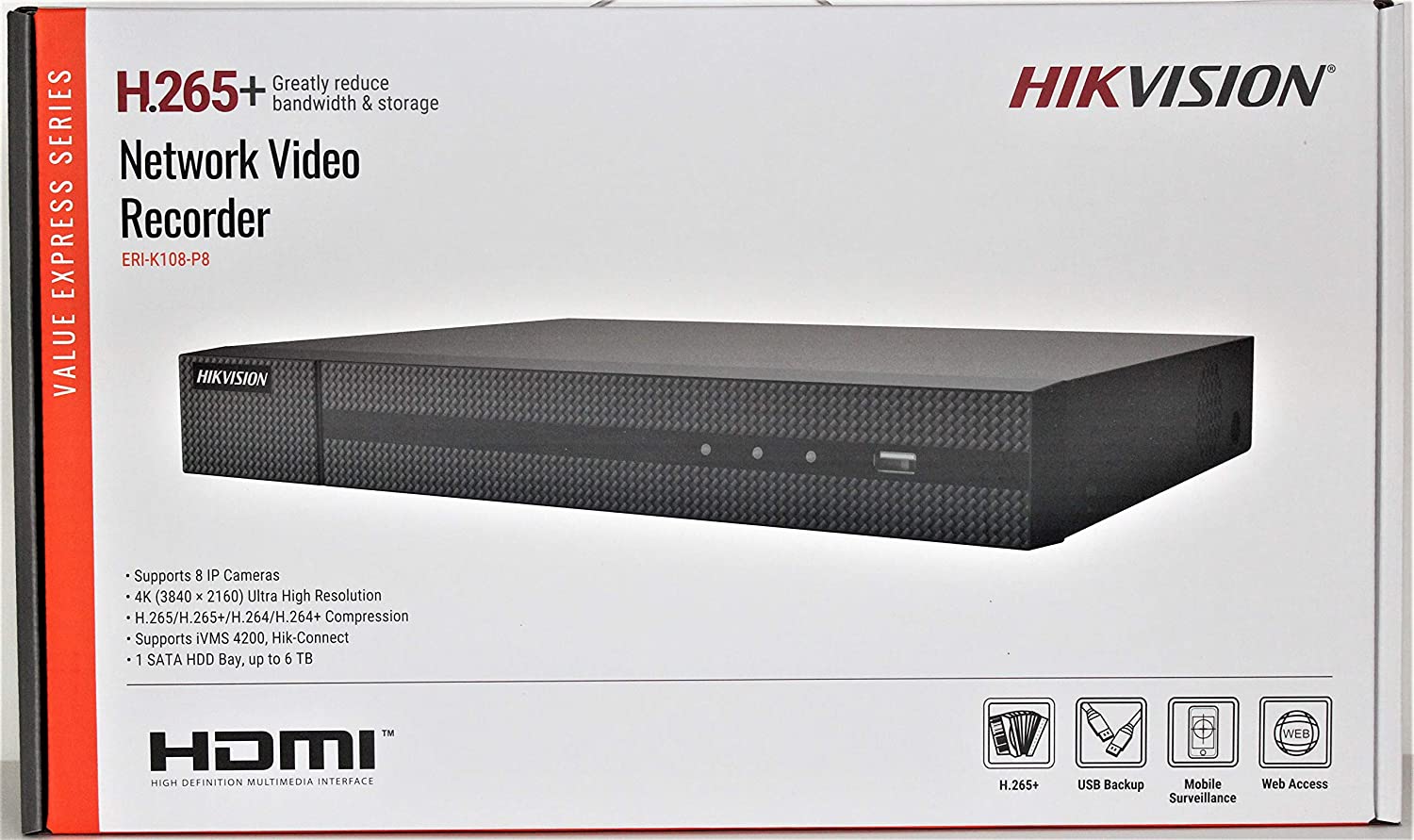

This 16 channel NVR is a network video recorder that can support up to 8MP IP cameras. It has 16 built in plug & play PoE ports to make set up simple and easy. With a space for two hard drives with capacity up to 6TB and can support H.265/H.264/MPEG4 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.

NVR Features:

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160) resolution
• 16-ch network cameras can be connected with 160M incoming bandwidth
• Support dual-os to ensure high reliability of system running
• Plug & Play with up to 16 independent PoE network interfaces
• Support various VCA detection alarm and VCA search
• Support H.265/H.264/MPEG4 video formats

HDD Features:

• Engineered specifically for surveillance security systems
• Prioritized write-operations for maximized surveillance performance
• Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
• Reduced video frame loss
• TLER and ATA streaming support
• Optimized performance for up to 32 high-definition surveillance cameras

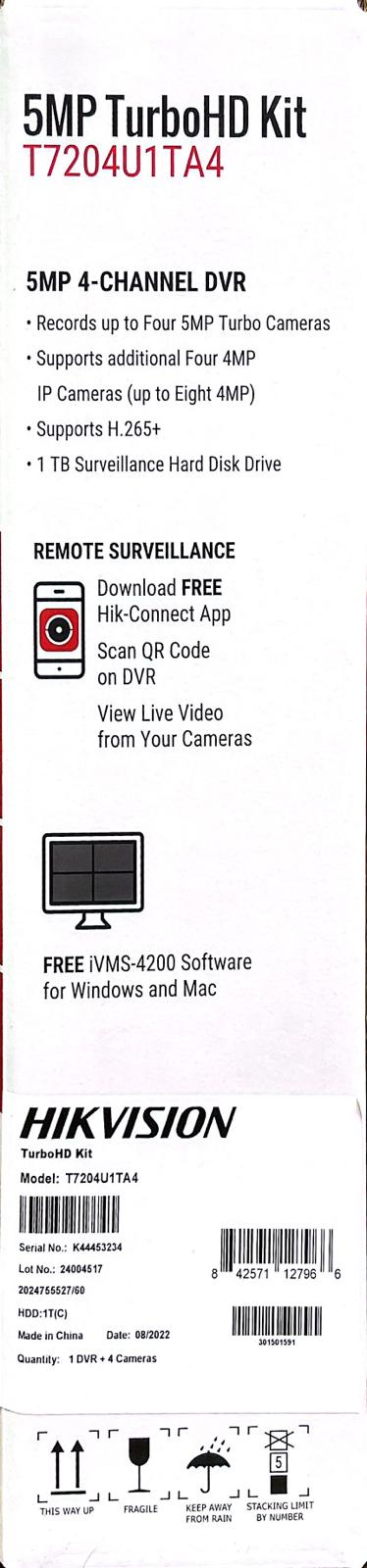

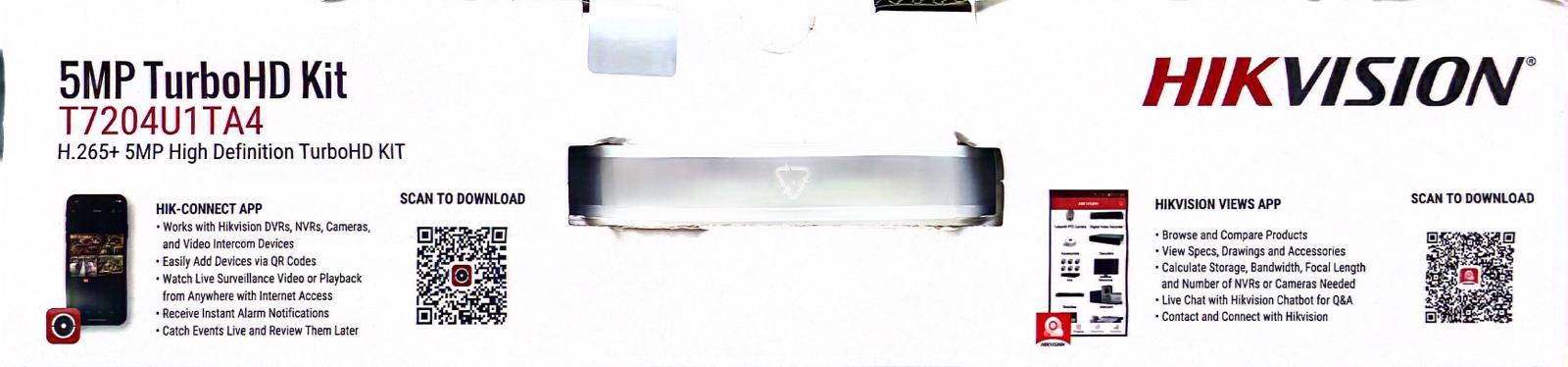

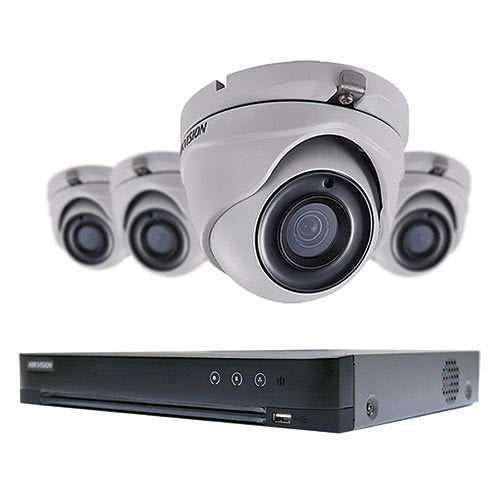

• Includes: (4) 5MP TurboHD Cameras, 1) 4-Channel DVR w/1 TB HDD
• Cameras: 5MP High Performance CMOS
• Up to 2560 x 1944 Resolution

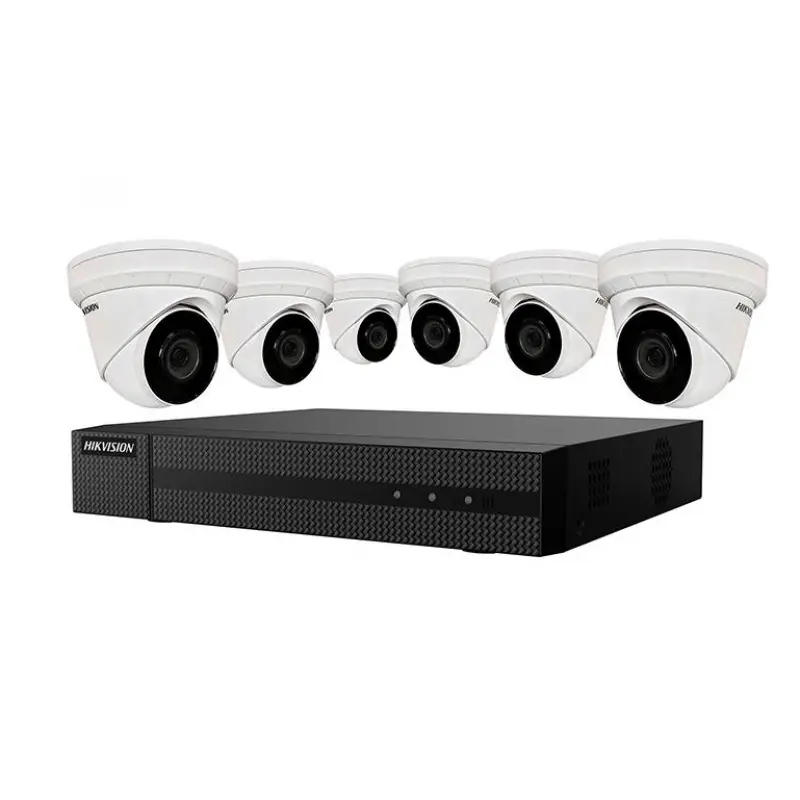

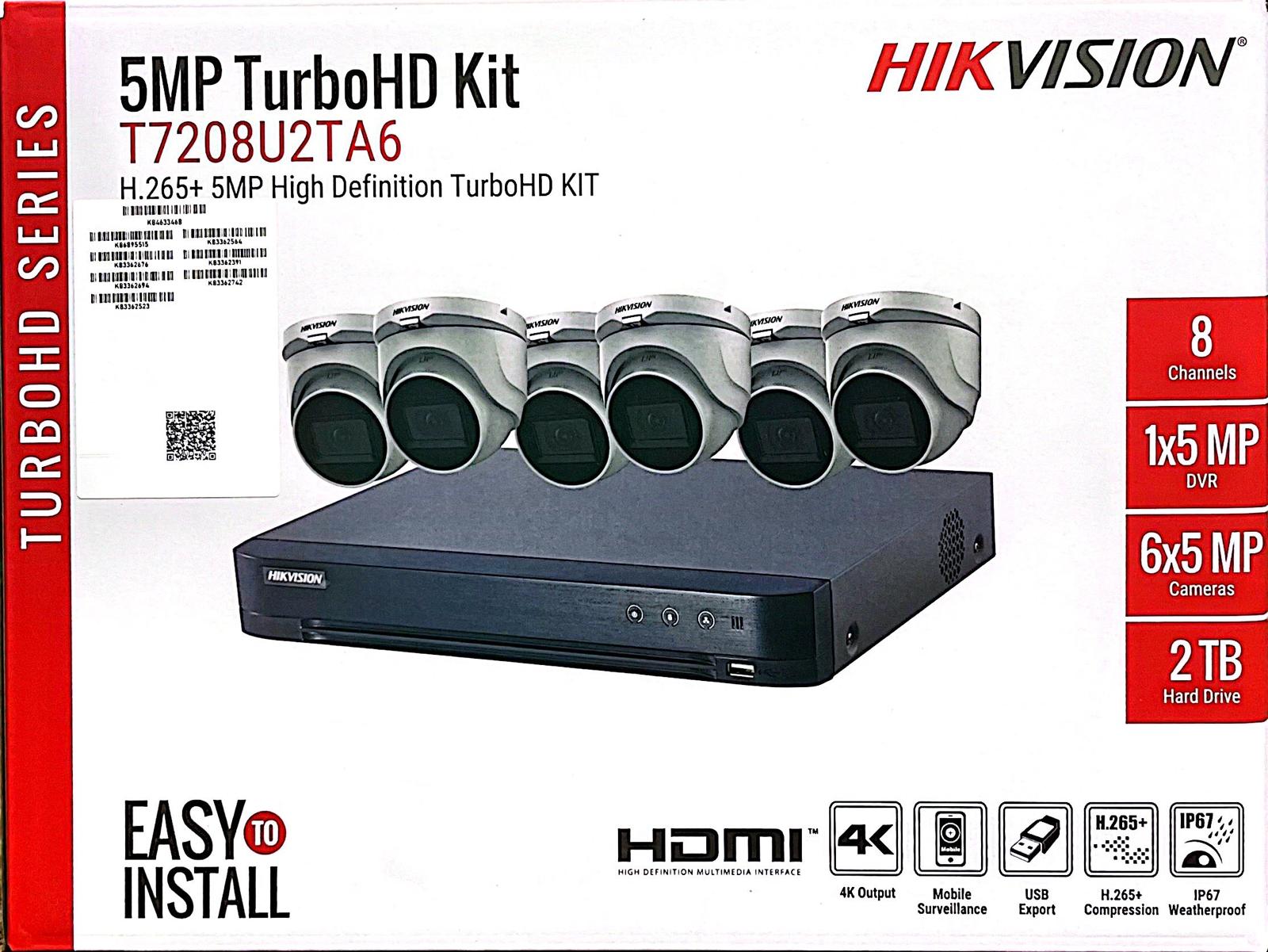

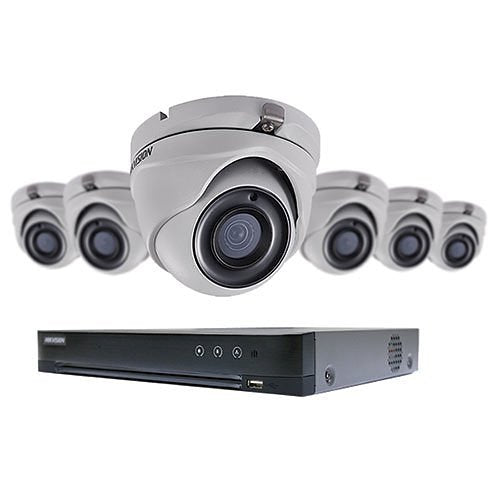

• Includes: (6) 5 MP TurboHD Cameras, (1) 8-Channel DVR w/2 TB HDD
• Cameras: 5 MP High Performance CMOS
• Up to 2560 x 1944 Resolution

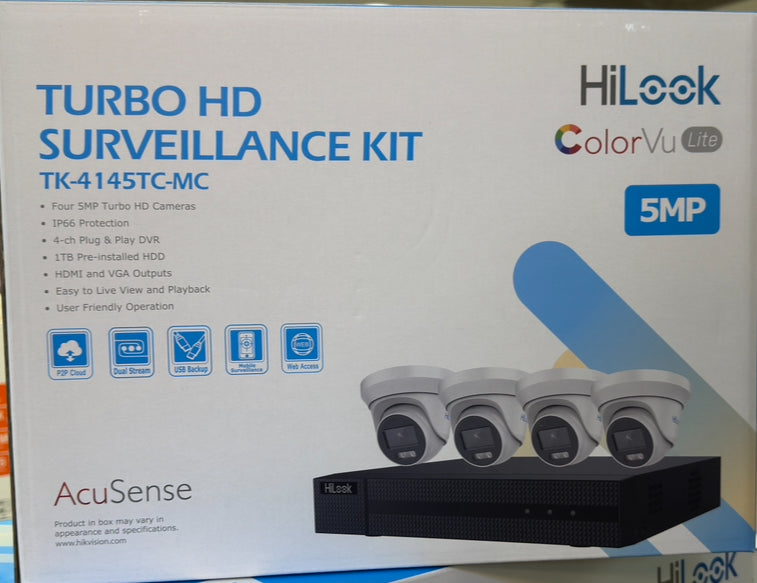

HiLook TK-4145TC-MC 4-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 4-channel Analog DVR  with 2-ch IP Video Input (up to  6-ch if with no Analog channel used)
• DVR with Motion Detection 2.0: Human/Vehicle Analysis
• 1TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• 4 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
• High quality audio with audio over coaxial cable
• IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions

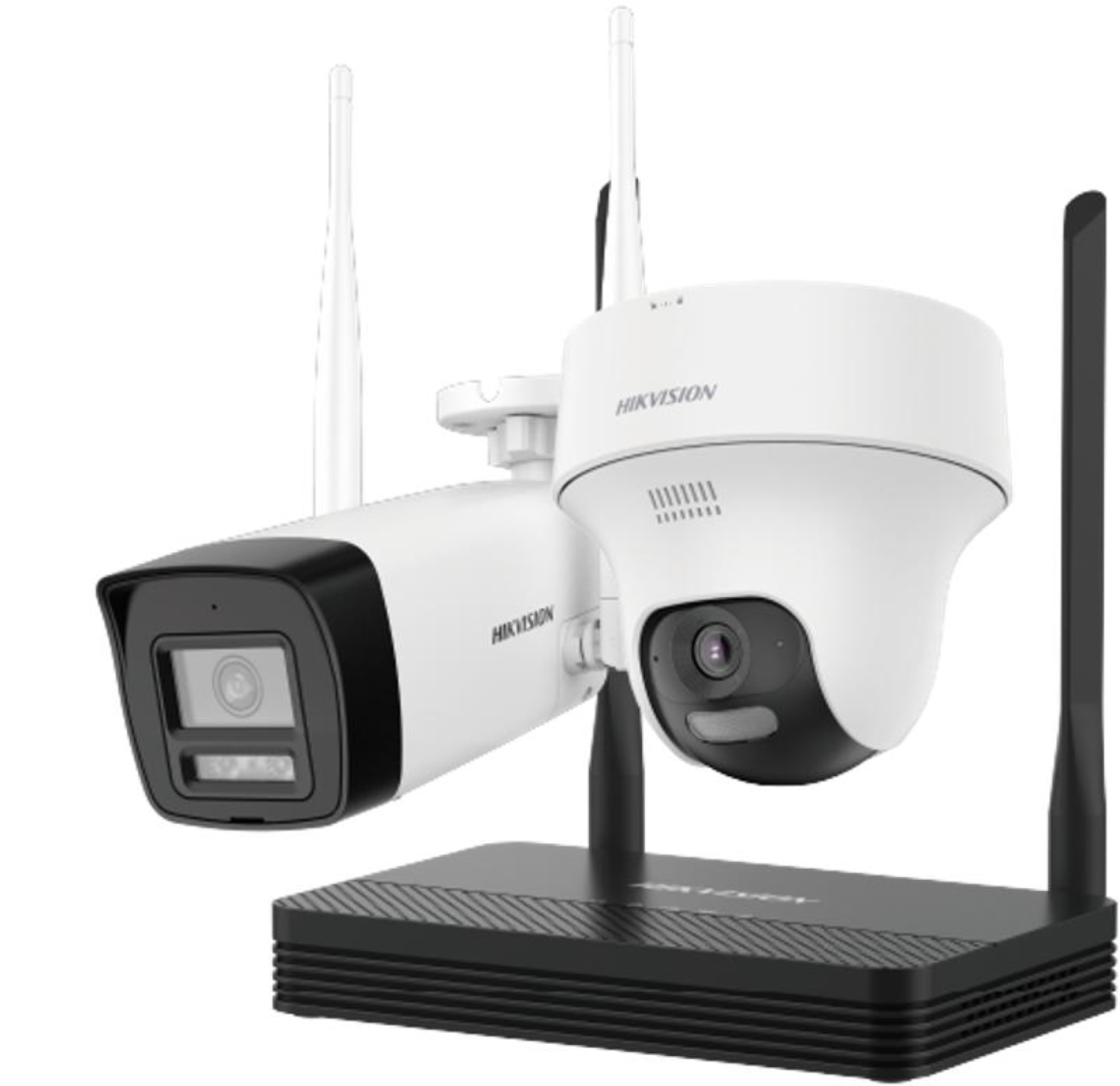

4MP H.265 One bullet + One turret WiFi NVS Kit

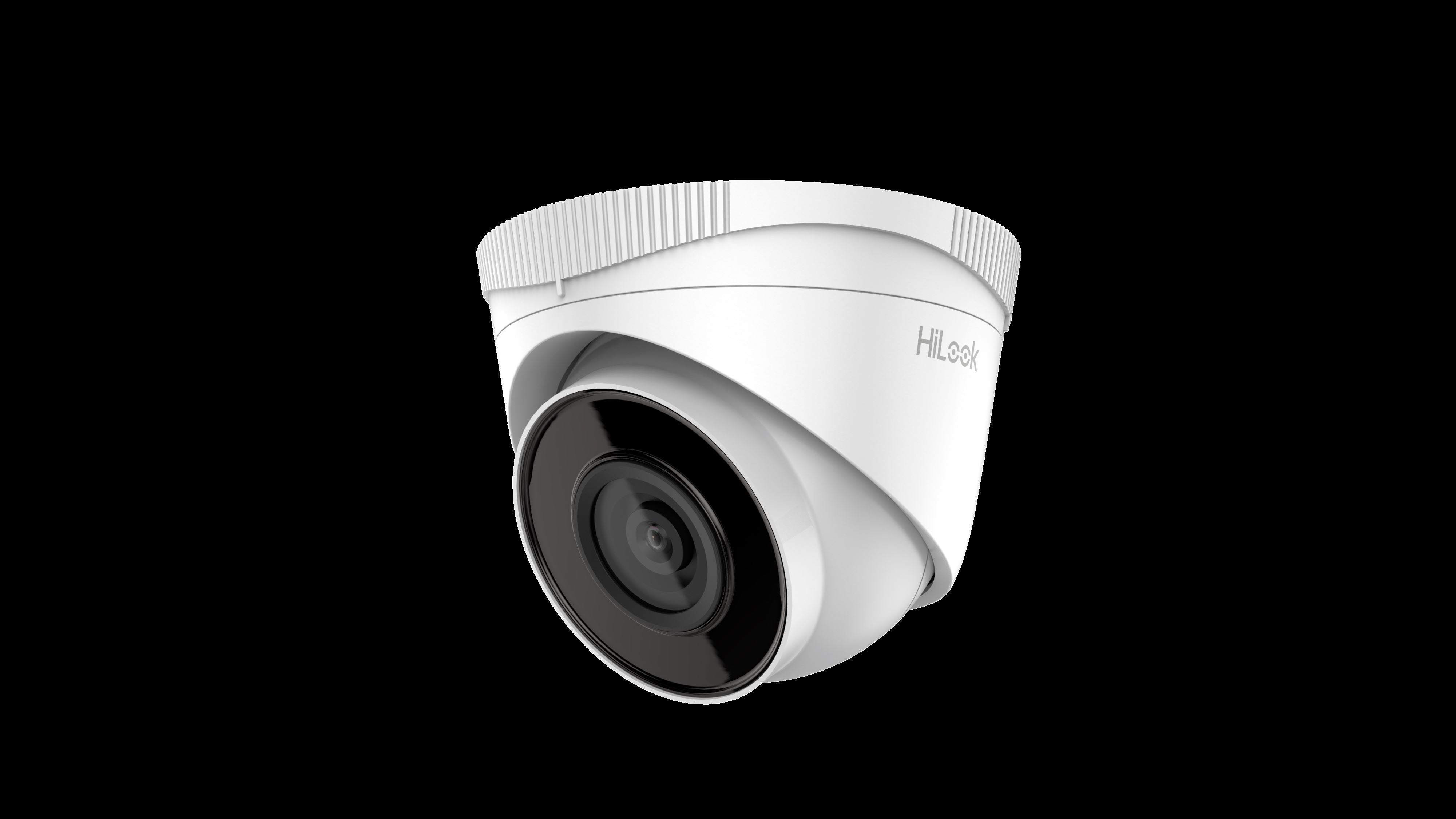

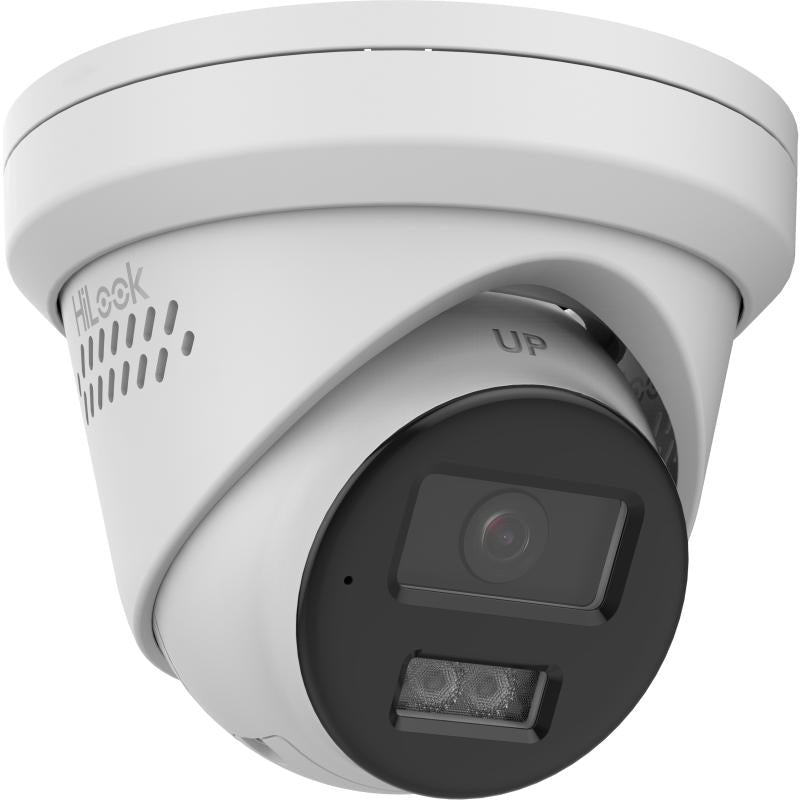

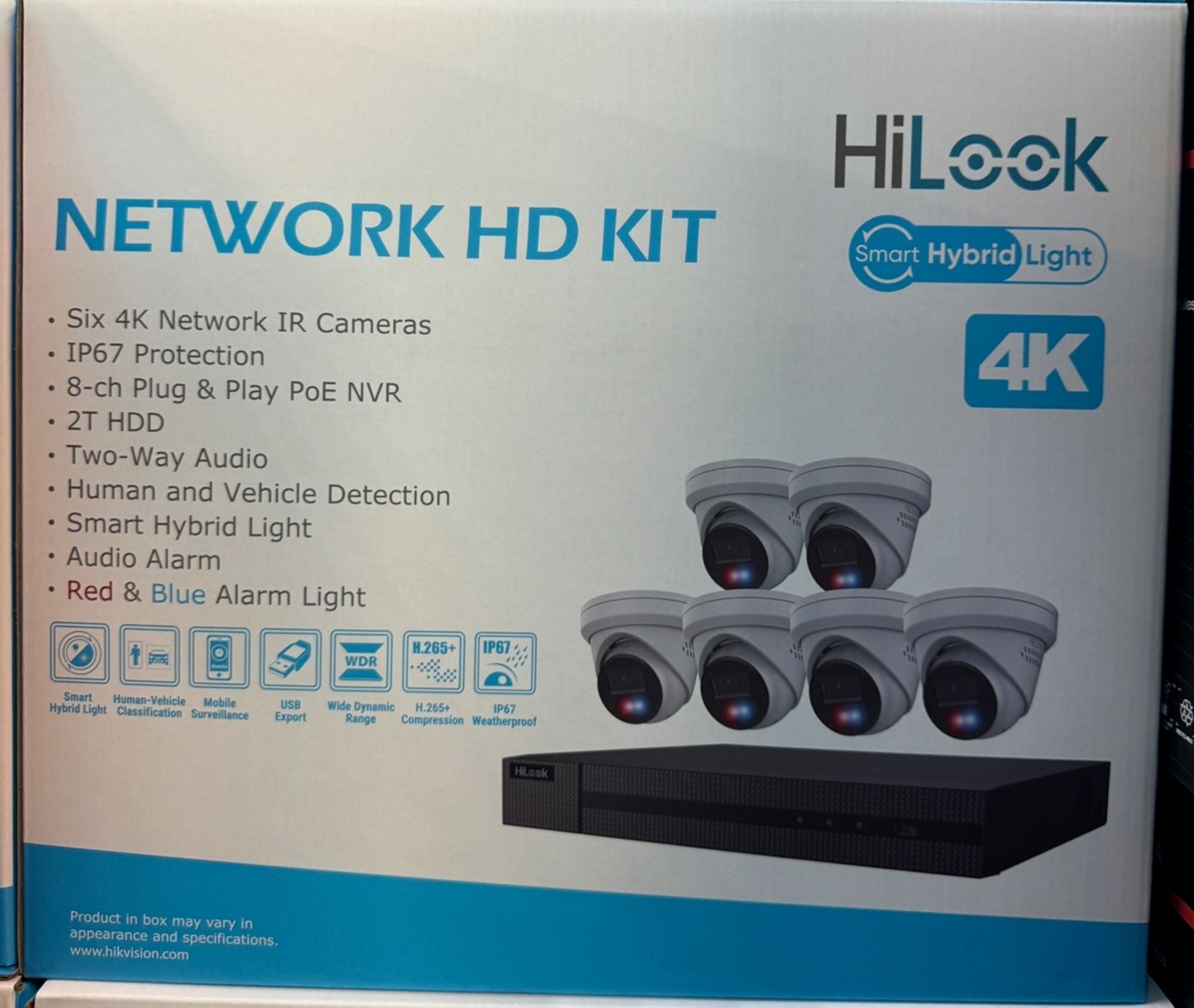

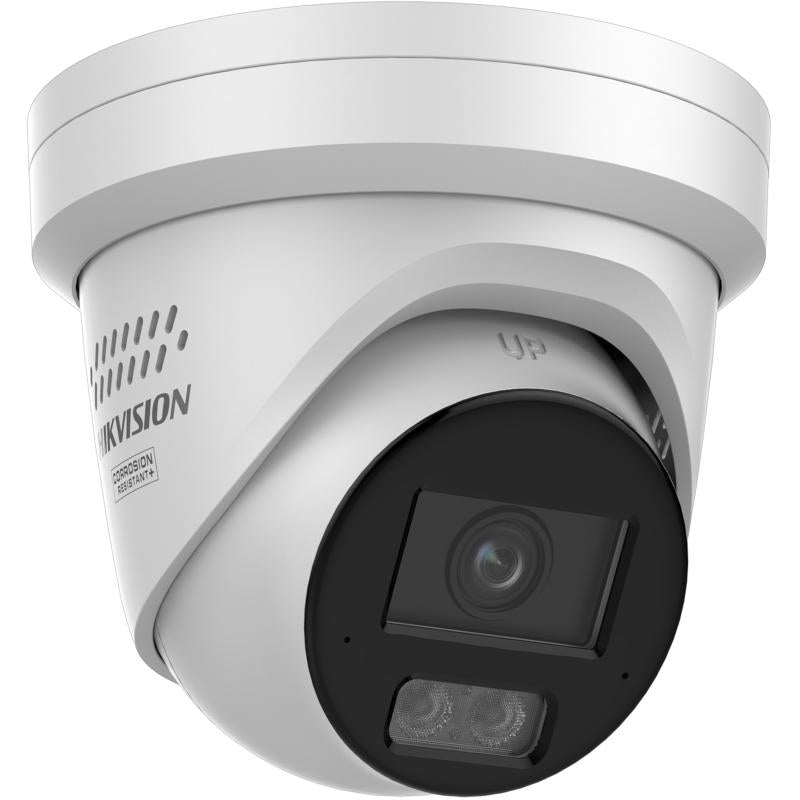

8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

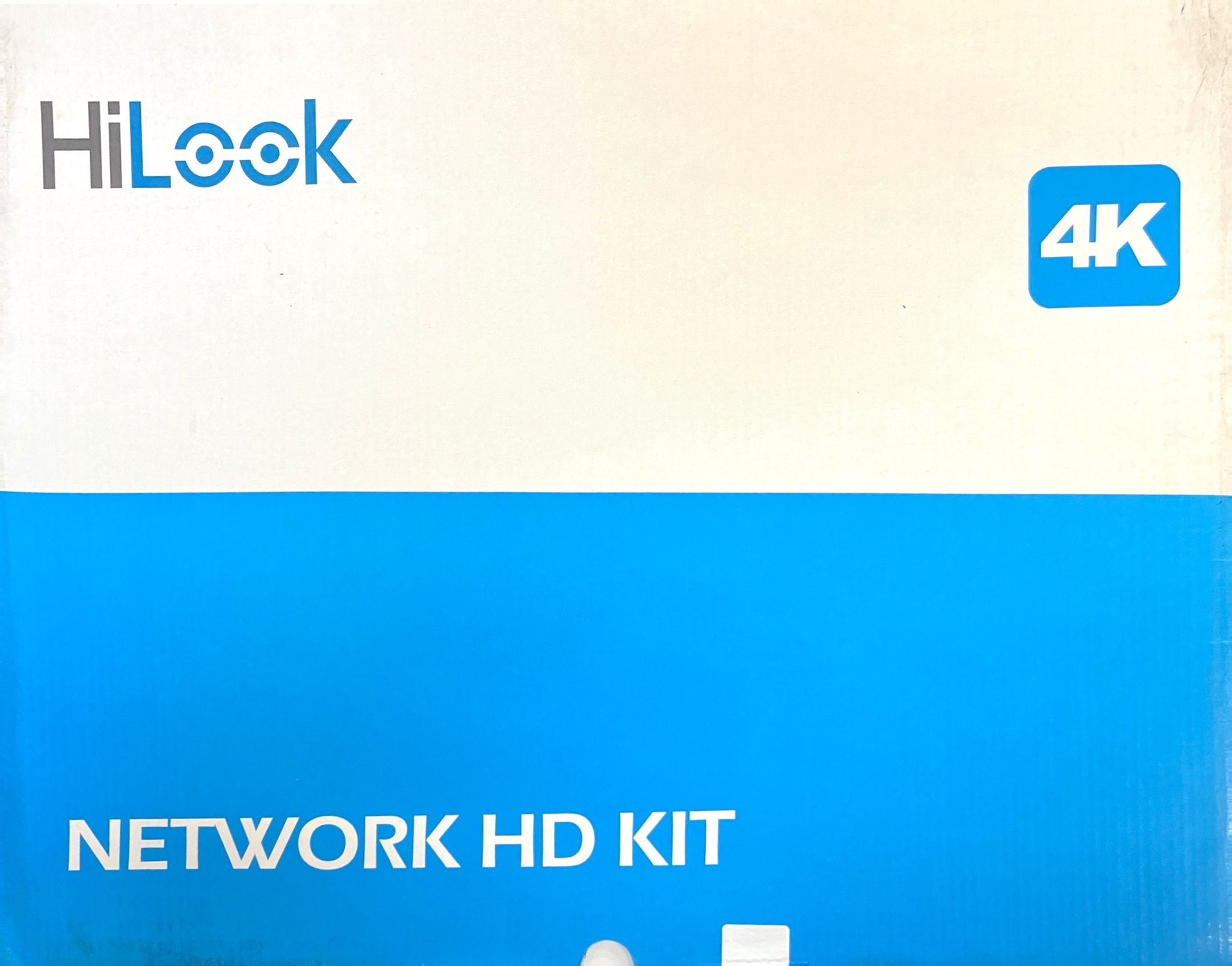

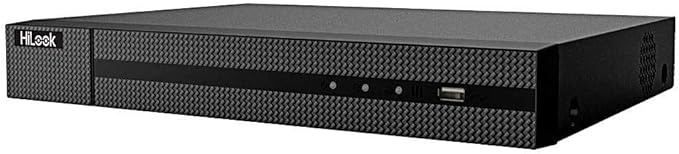

HiLook 4K PoE Turret Kit

Features:

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 32 MP resolution
• Up to 256 Mbps incoming bandwidth
• 4TB HDD included
• To replace DS-7616NI-I2/16P-4TB

8 MP HiLook 4 x 4K Cameras Combo Kit

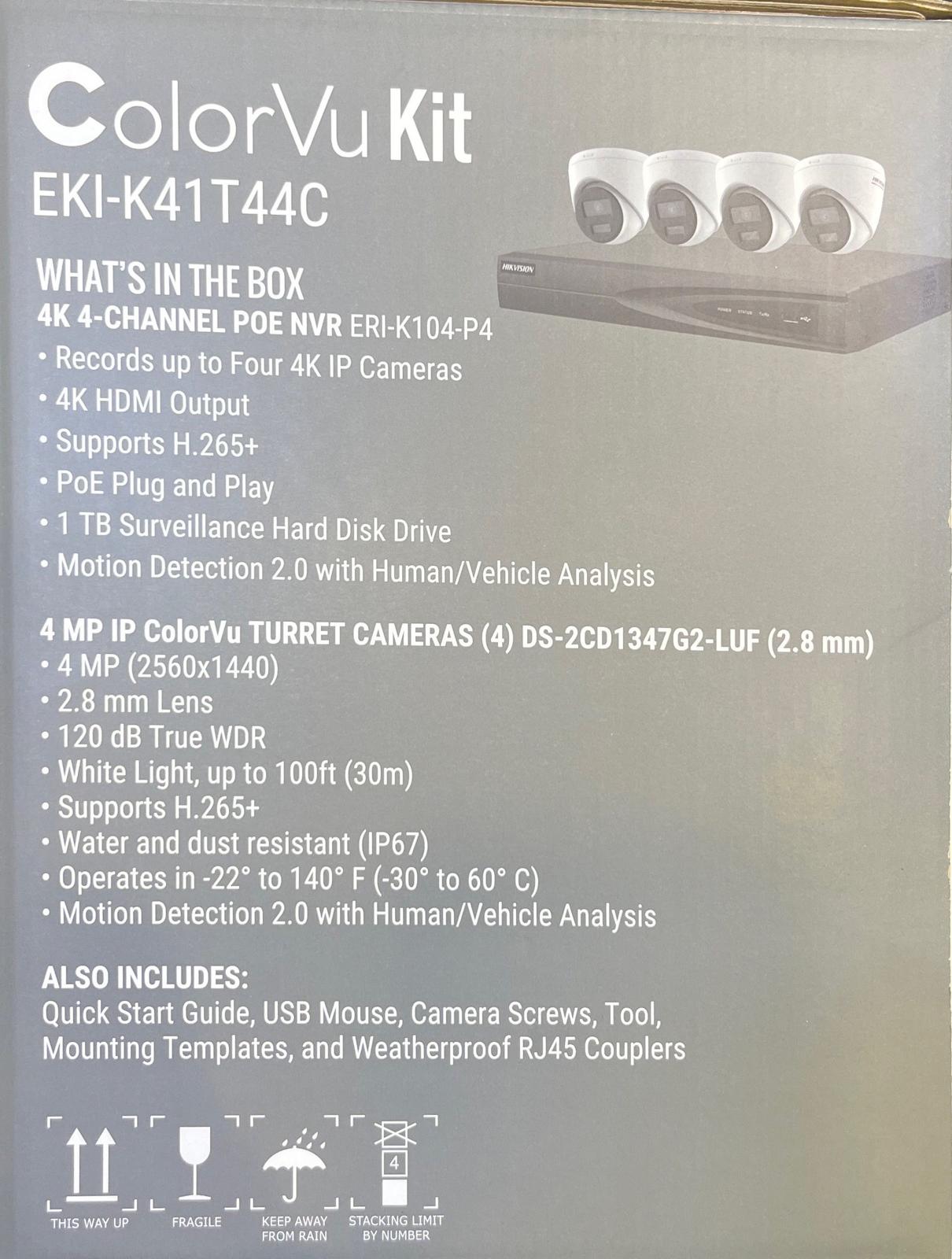

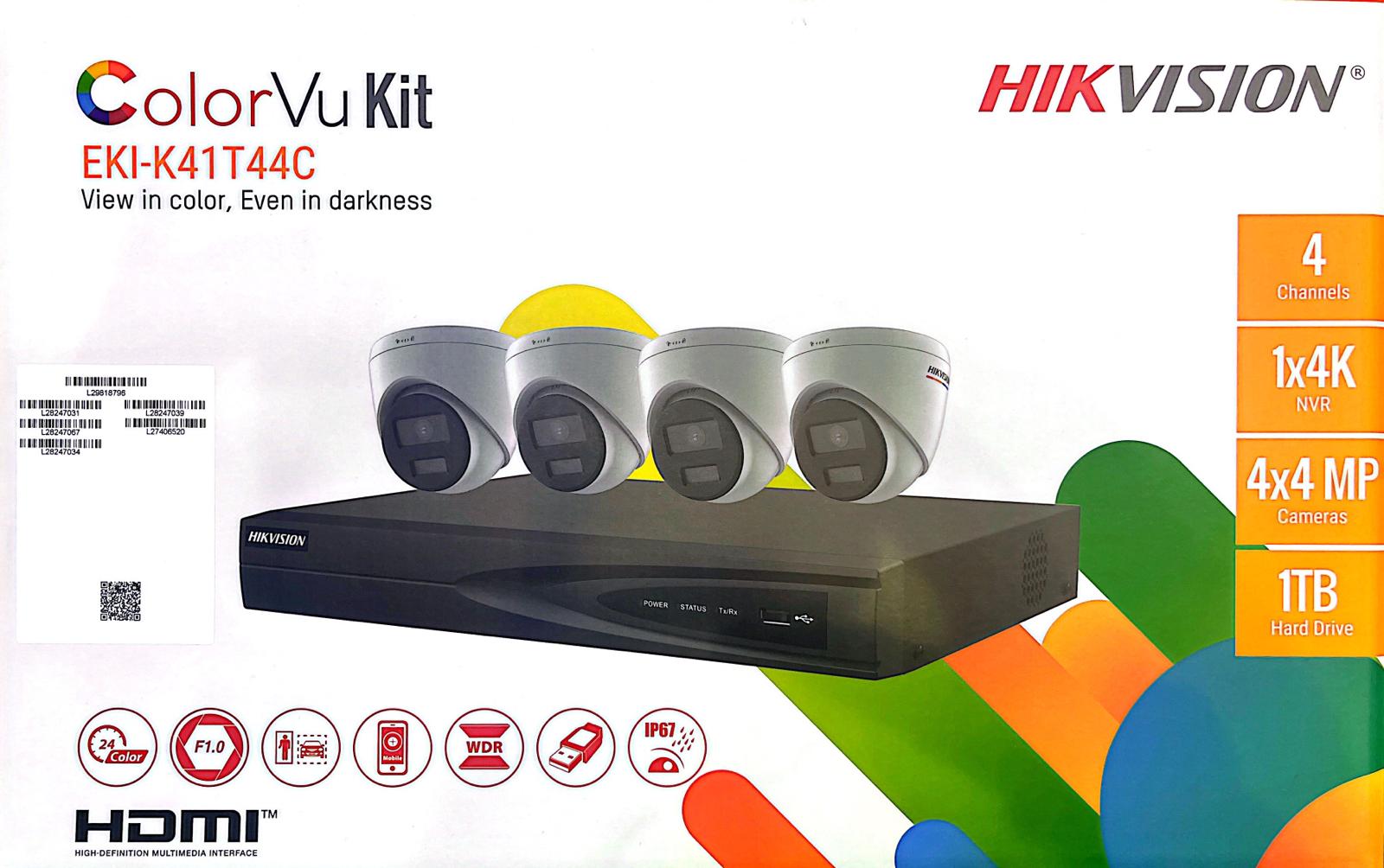

EKI-K41T44C

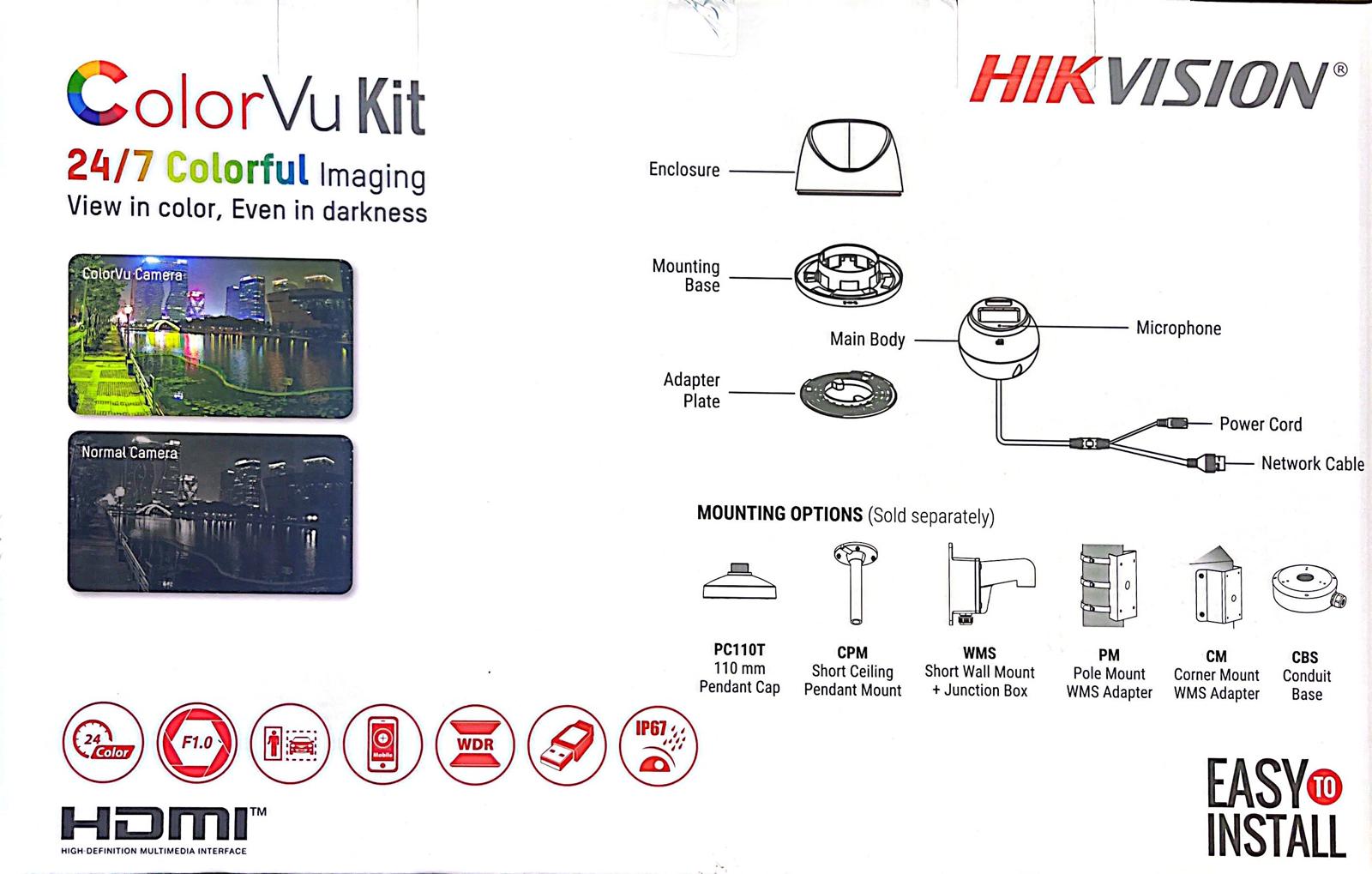

4 x 4 MP ColorVu Turret IPC + 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265+
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265+
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

 Specification - Camera
Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Main Features

• Camera: 2.8 mm Fixed Lens
• Camera: 2560 x 1440 (4 MP) Resolution
• Camera: EXIR 2.0 with 100 ft (30 m) IR Range
• Up to 8 MP Resolution Recording
• Plug-and-Play
• H.265+/H.265/H.264+/H.264
• 1 SATA Interface

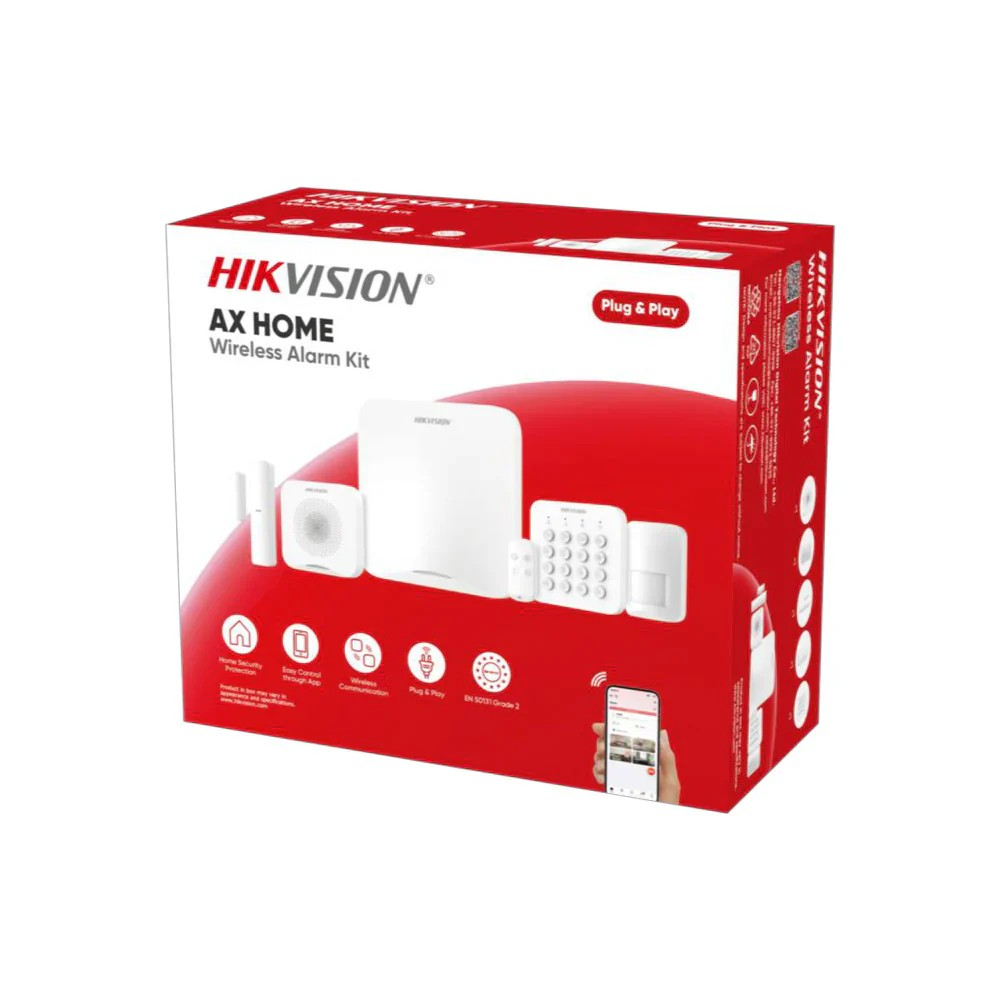

Hikvision AX Home DS-PA201PS-Kit-32WA Wireless Alarm Kit

Features:

• Robust system connectivity ensures reliable operation even in challenging environments, with a steady range of up to 1600m.
• Enjoy a completely cable-free solution for hassle-free setup and operation.
• Streamlined with QR codes and remote management, making deployment faster and easier.
• Effortlessly integrate with Hikvision products for a unified and comprehensive security ecosystem.
• Built-in encryption and automatic OTA (over-the-air) updates safeguard your network while continuously improving system performance.
• Ensures compliance with stringent industry standards for quality and reliability.(in progress)
• Kit includes: control panel x 1, Keypad x 1, PIR x 1, magnetic contact x 1, sounder indoor x 1, wireless Keyfob x 1, LAN port converter x 1, screwed package & sponge tape

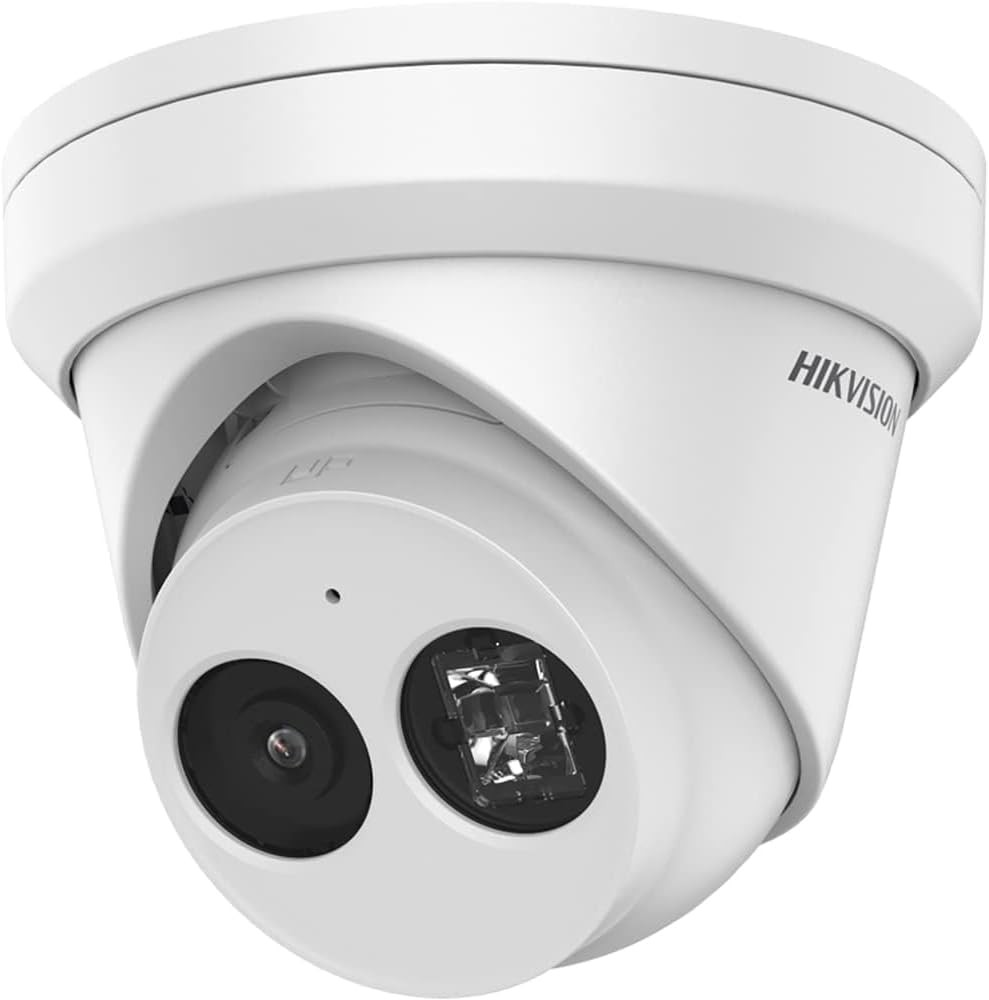

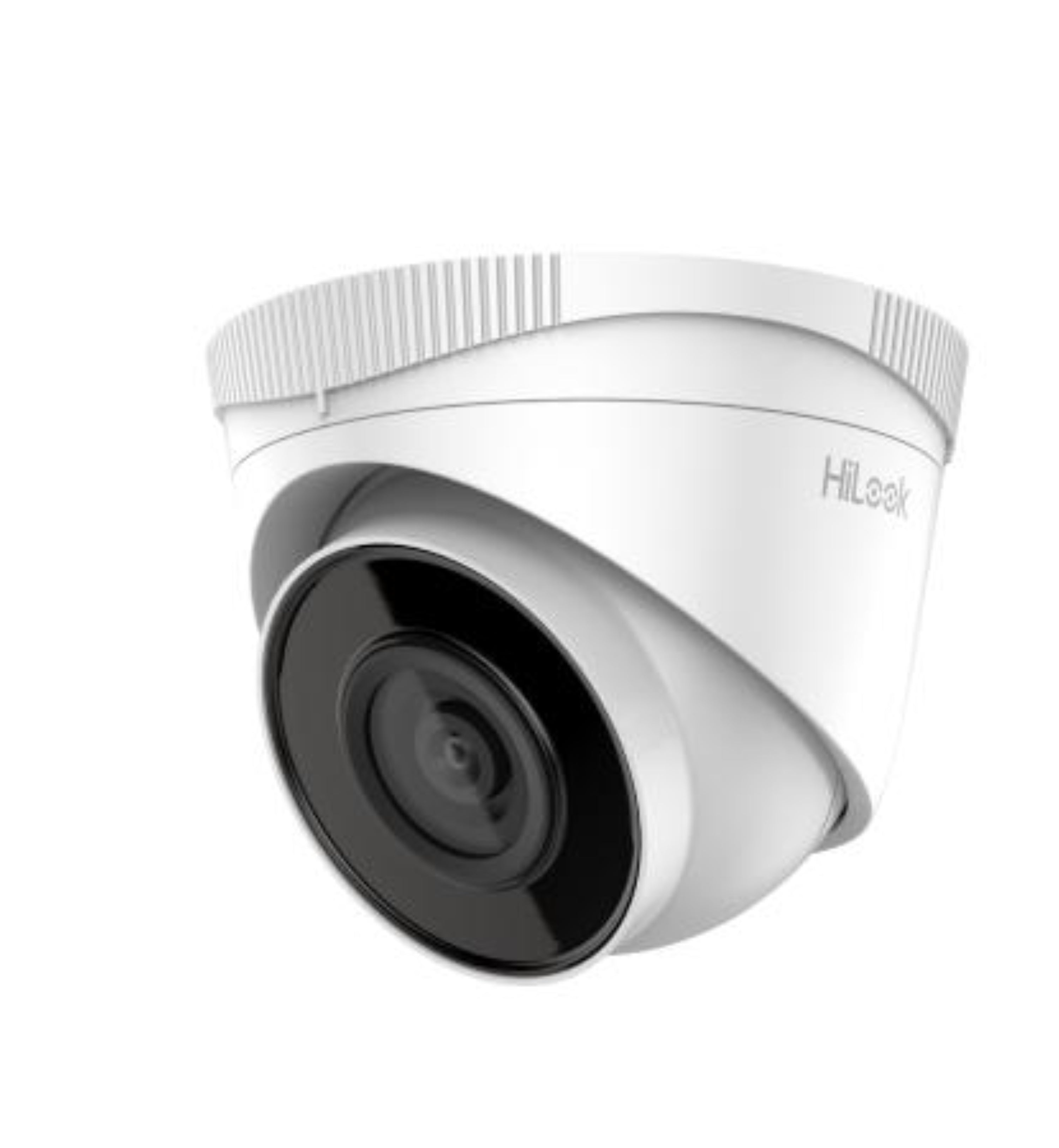

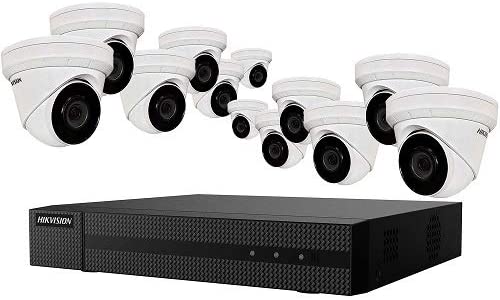

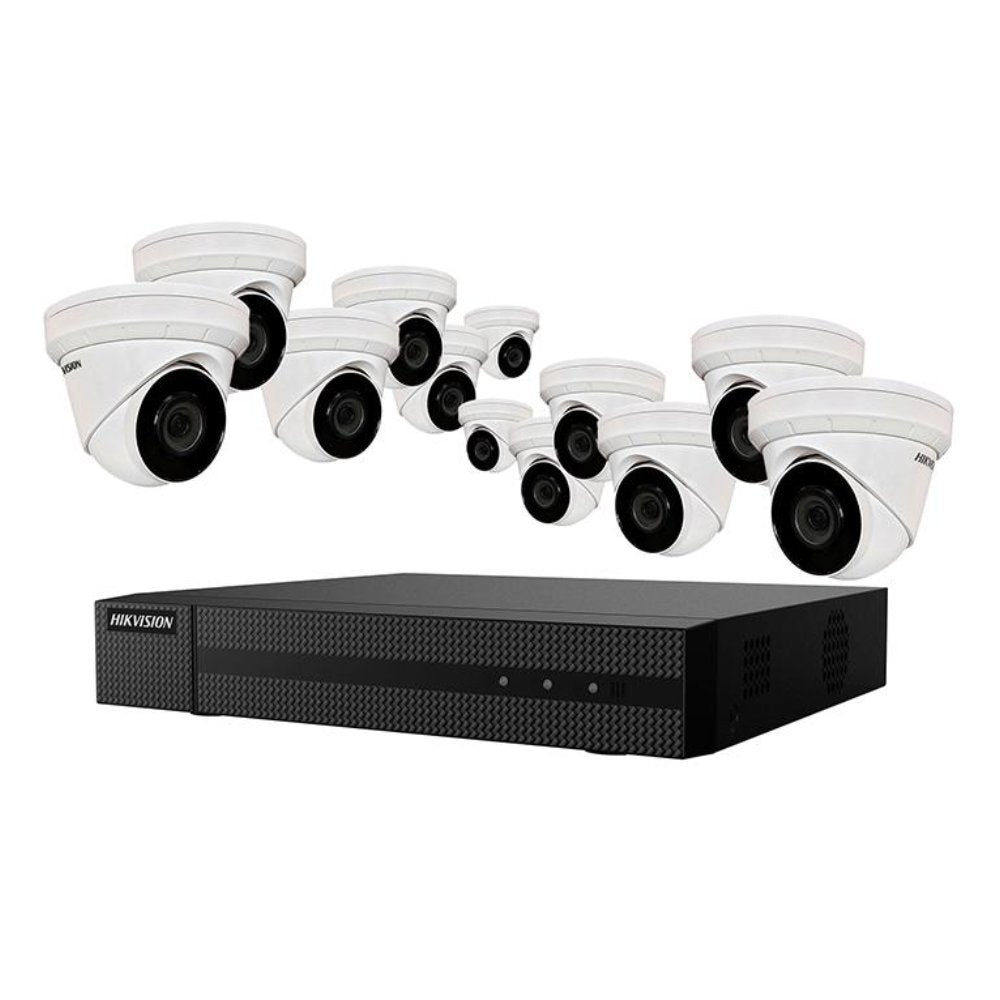

4 MP Outdoor WDR Fixed Turret Network Camera Kit

• 1/3" (4 MP) Progressive Scan CMOS
• 2560 x 1440 (4 MP) Resolution
• 2.8 mm Fixed Lens
• EXIR 2.0 with 100 ft (30 m) IR Range
• H.265+/H.265/H.264+/H.264/MJPEG
• IP67 Protection • Durable Metal Housing
• 120 dB WDR for Clear Images
• Up to 8 MP Resolution Recording
• H.265+/H.265/H.264+/H.264/MPEG
• Plug-and-Play with 4, 8, or 16 PoE Cameras
• Up to 2 SATA Interfaces

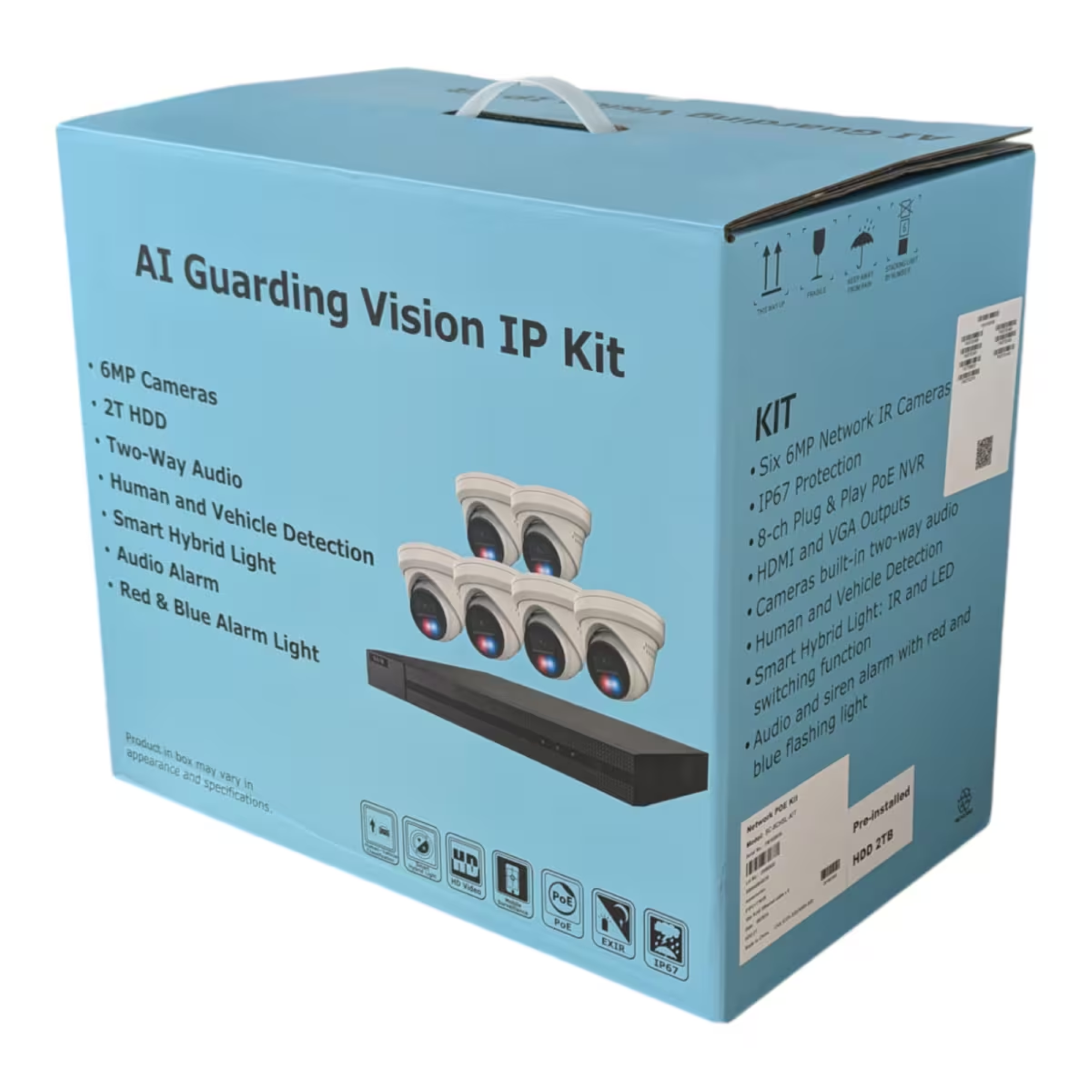

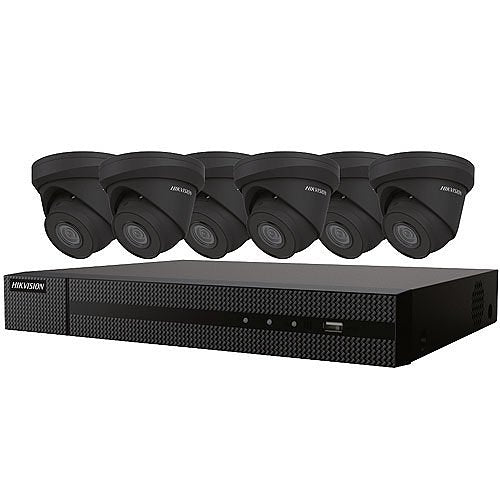

AI Guarding Vision 8ch IP Kit (BLACK)

Package Includes:

• 8ch NVR
• 2TB HDD
• 6 x 6MP Smart Hybrid Turrets
• 2-Way Audio
• Red/Blue Flashing Lights
• Stobe/Siren

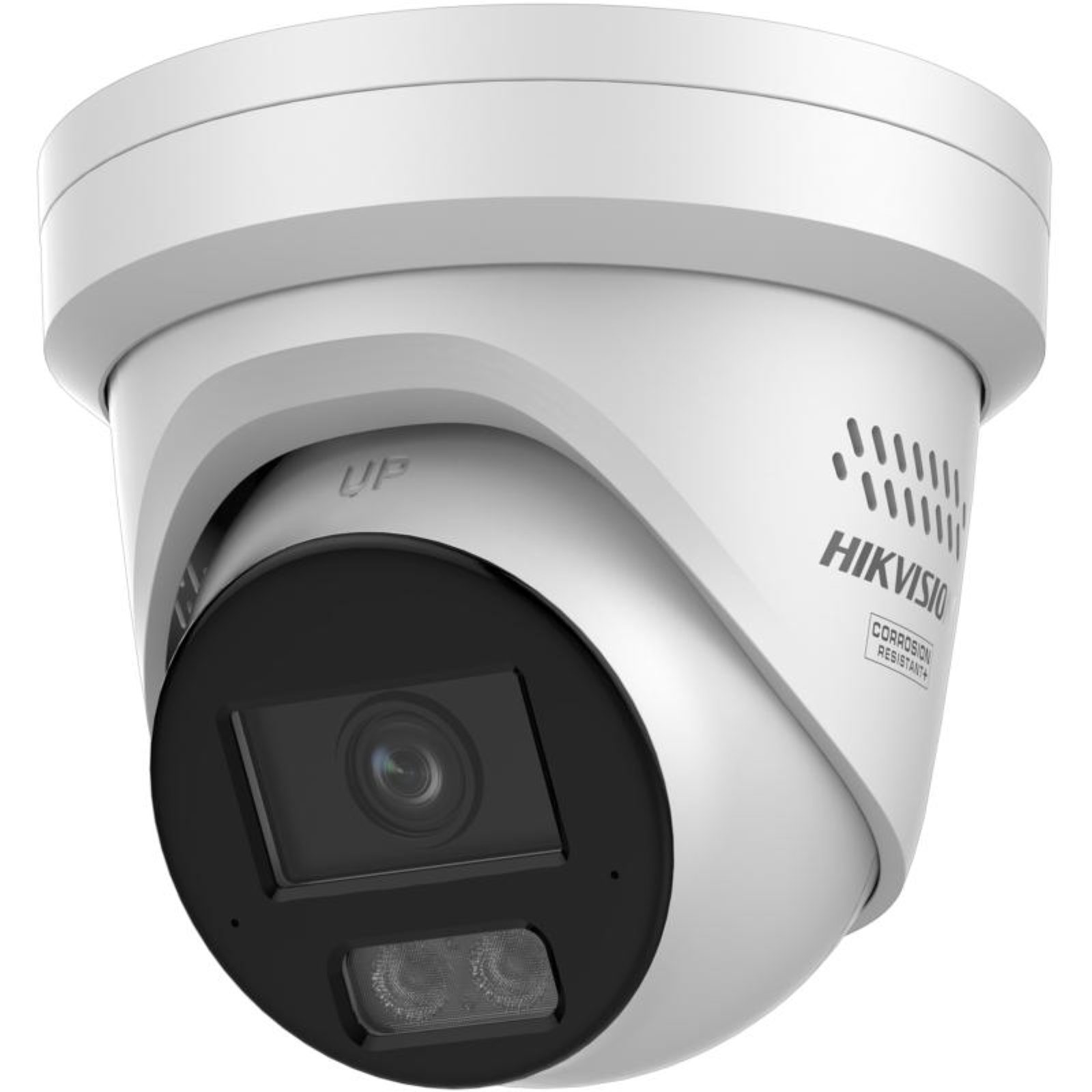

6MP Smart Hybrid Light Fixed Turret IP Camera

• High quality imaging with 6MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot)
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Red/Blue Flashing Lights + Siren

AI Guarding Vision 4ch IP Kit (BLACK)

Package Includes:

• 4ch NVR
• 2TB HDD
• 4 x 6MP Smart Hybrid Turrets
• 2-Way Audio
• Red/Blue Flashing Lights
• Stobe/Siren

6MP Smart Hybrid Light Fixed Turret IP Camera

• High quality imaging with 6MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot)
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Red/Blue Flashing Lights + Siren

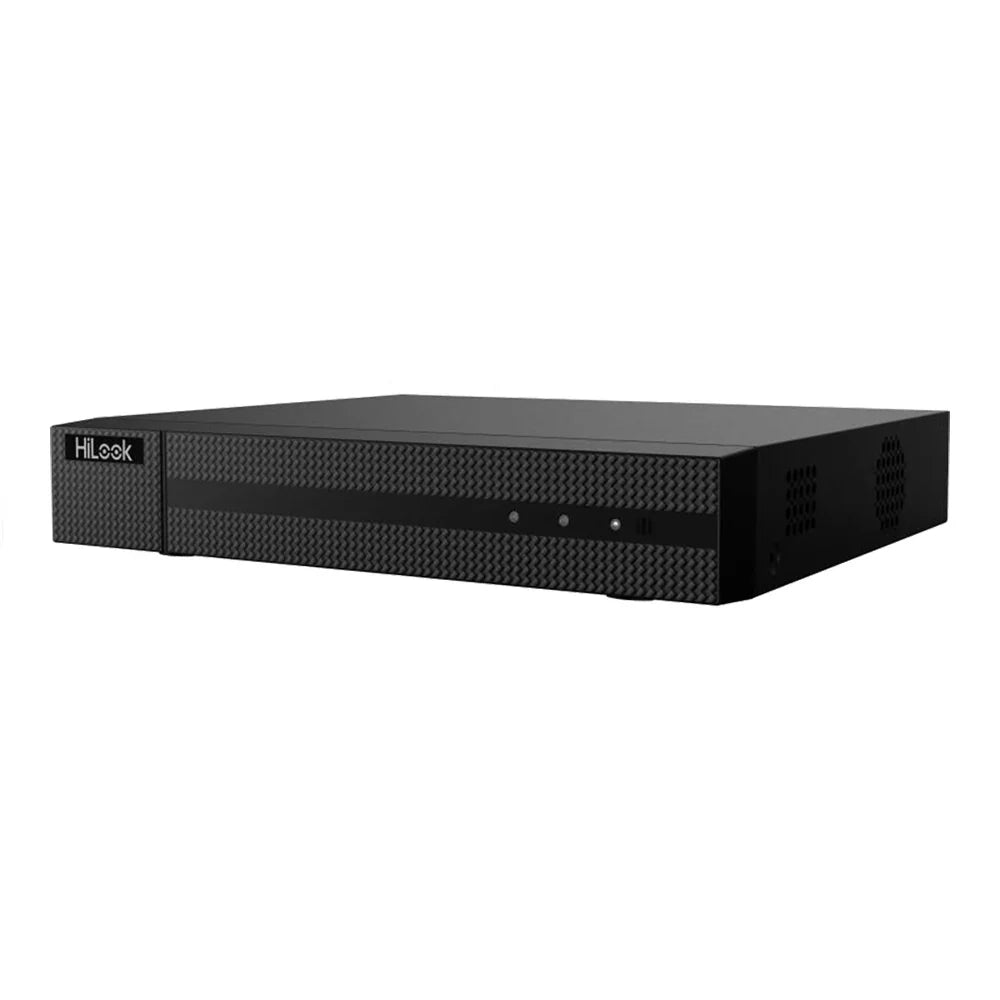

4-ch Mini 1U 4 PoE 4K NVR

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 40 Mbps incoming bandwidth
