Bracket & Housing

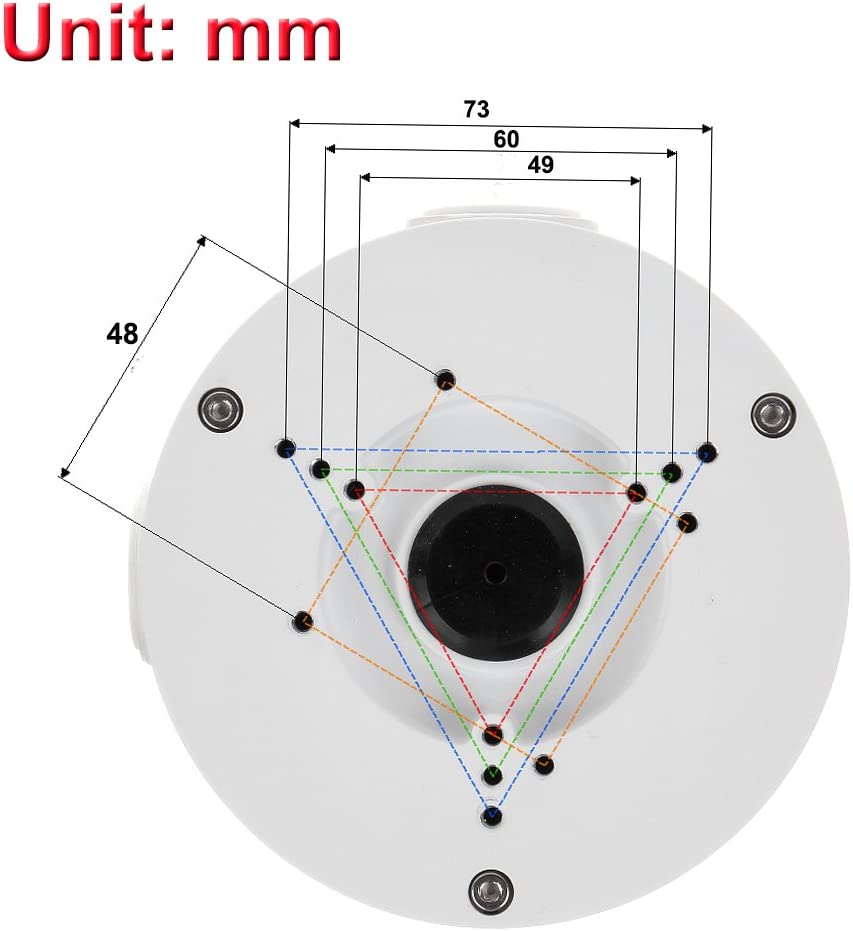

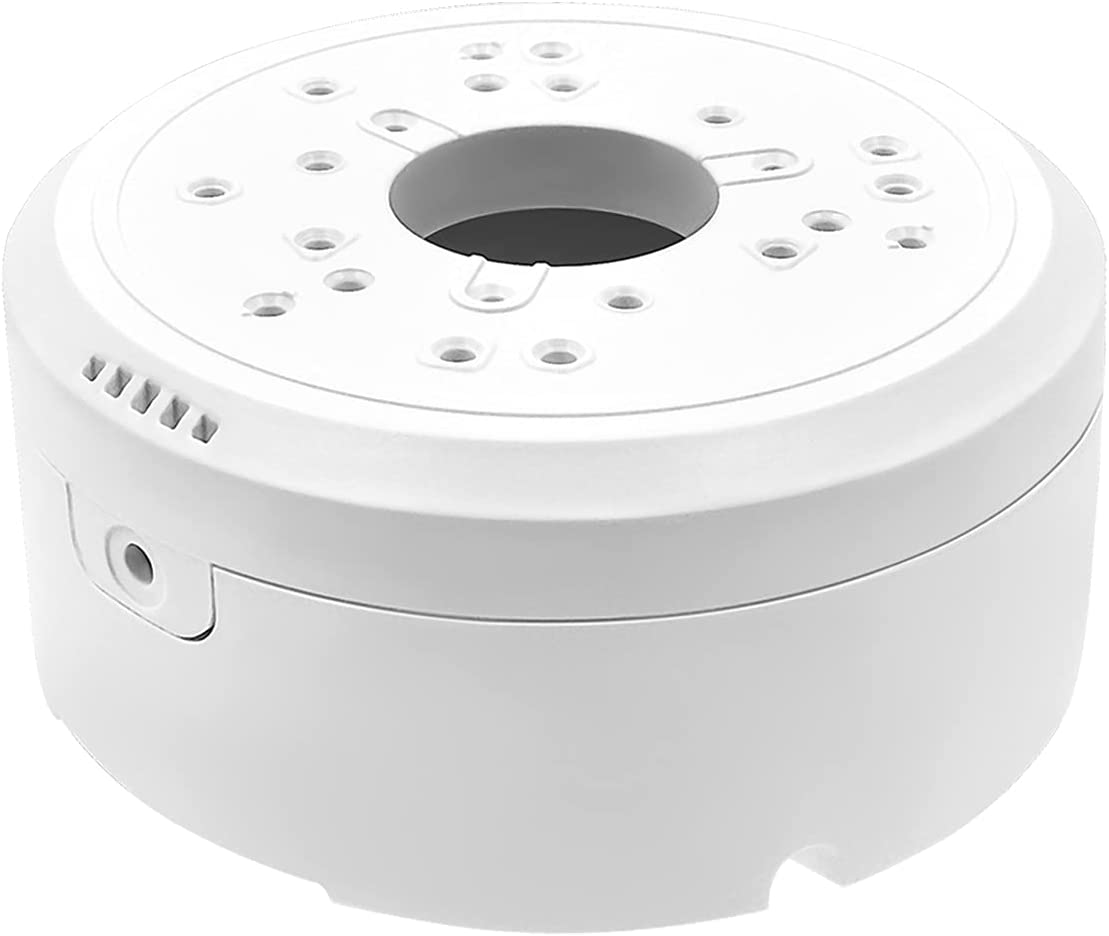

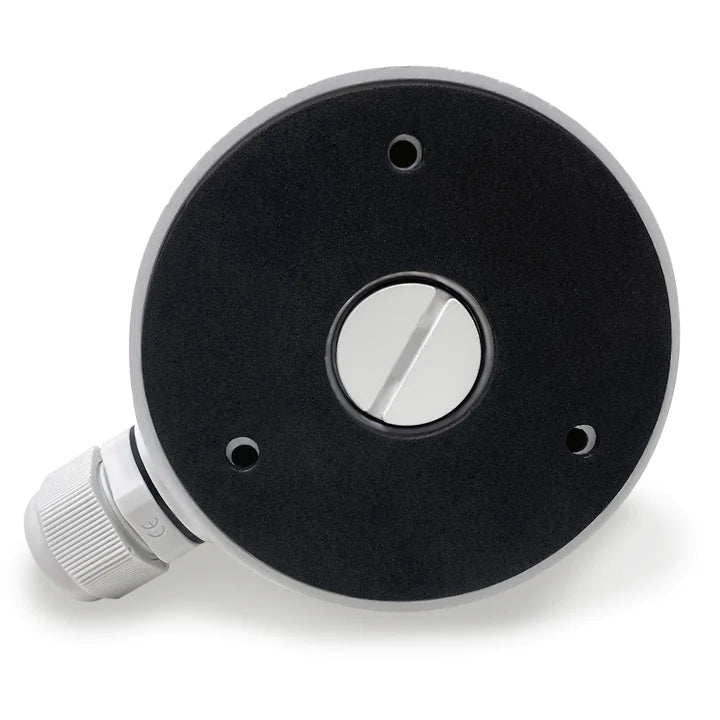

• Security Camera Junction Box - This junction box has three sets of holes, 120 degrees apart

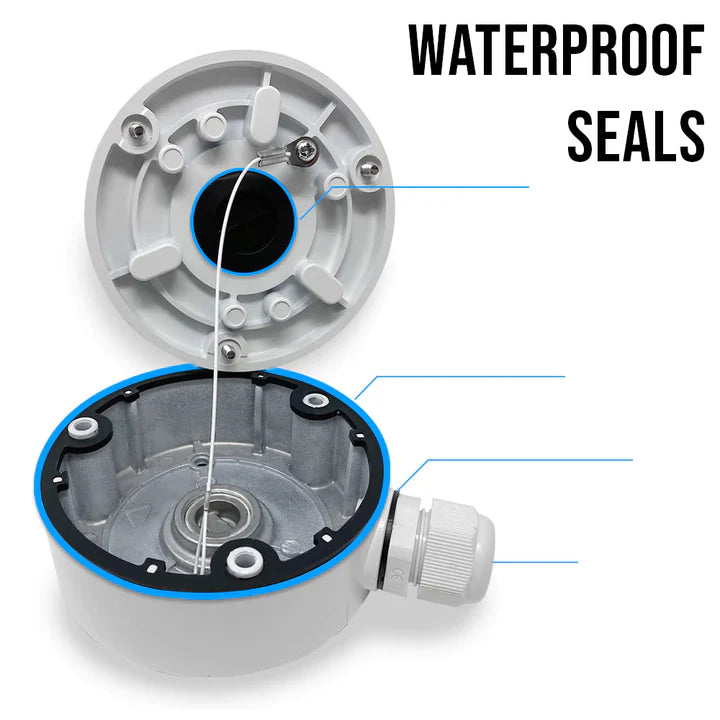

• Waterproof Electrical Box - This junction box is weatherproof with an IP66 rating for weather resistance
• Protect your Cables - These enclosures offer additional space for cables and baluns to keep your surveillance system safe from vandalism
• Professional Looking Installation - This tri-axel security mounting junction box hides cables for a clean look, and offers easy access without unmounting cameras
• Compatible With - This round security camera mount is compatible with most Lorex 3-screw base bullet and dome cameras

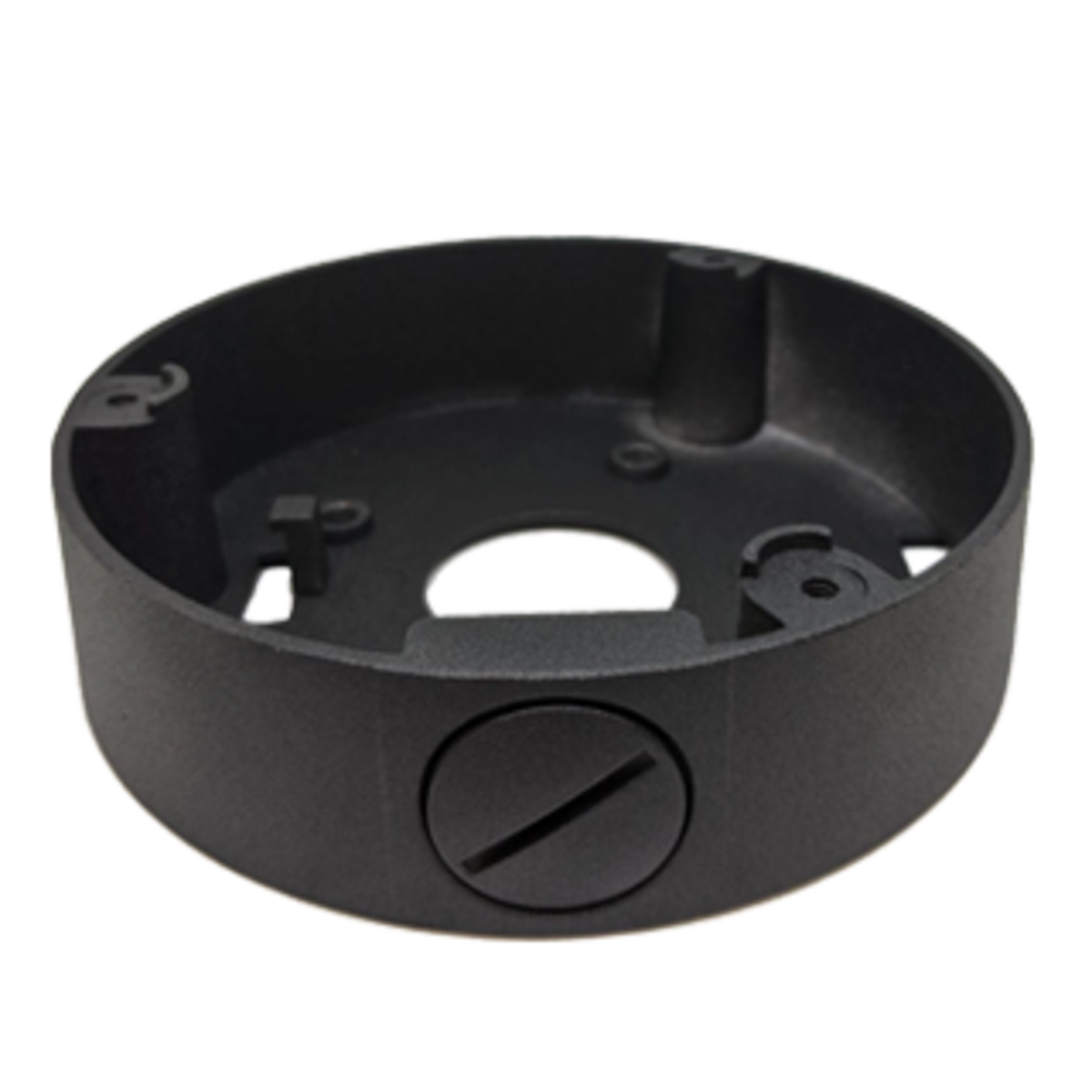

Black Junction Box/Mounting Base For Hikvision Turret Camera DS-2CD23X2

Aluminum alloy material with surface spray treatment

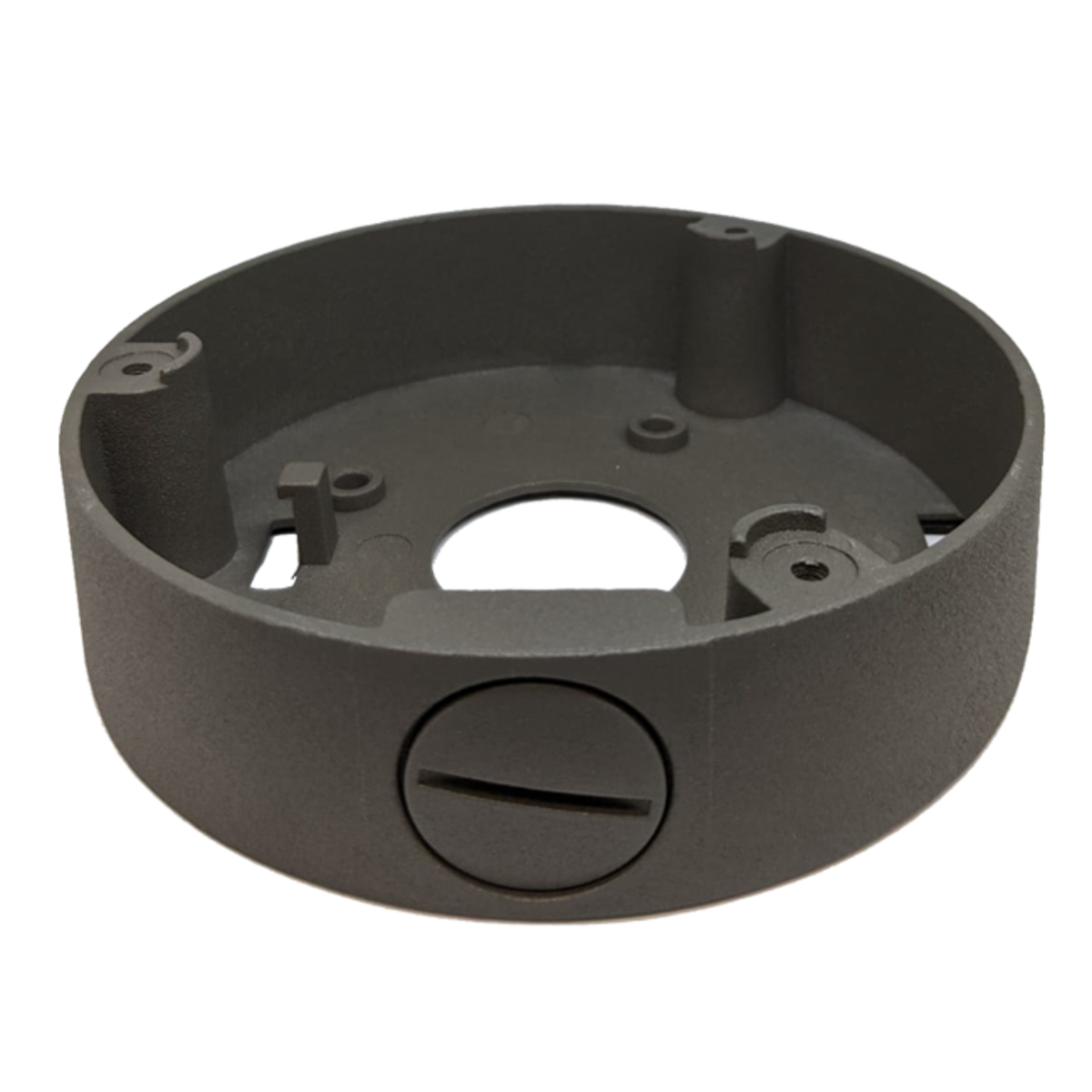

Grey Junction Box/Mounting Base For Hikvision Turret Camera DS-2CD23x2

Aluminum alloy material with surface spray treatment

Grey Junction Box/Mounting Base For Hikvision Turret Camera DS-2CD23x2

Aluminum alloy material with surface spray treatment

Grey Junction Box/Mounting Base For Hikvision Turret Camera DS-2CD23x2

Dahua DH-PFA130-E Water-proof Junction Box For CCTV Turret Camera Bullet Camera

Aluminum alloy material with surface spray treatment

 Junction Box/Mounting Base For Hikvision  Camera Water-proof Junction Box For CCTV Turret Camera Bullet Camera

Aluminium Junction Box/Mount for Hikvision DS-2CD2042WD-I, 2CD20xx Series Bullet Cameras

• DURABLE: Made of Metal and Aluminum Alloy, with a surface spray treatment
• INDOOR/OUTDOOR: Wall/Ceiling Angled Base/Junction Box made to withstand all kinds of weather and environments. Great for residential areas, businesses, and other public places.
• CABLE MANAGEMENT: This Base Mount is great for hiding CCTV and IP Network connection cables. It also gives you a better angle to mount your cameras for the perfect view every time.

Aluminum alloy material with surface spray treatment

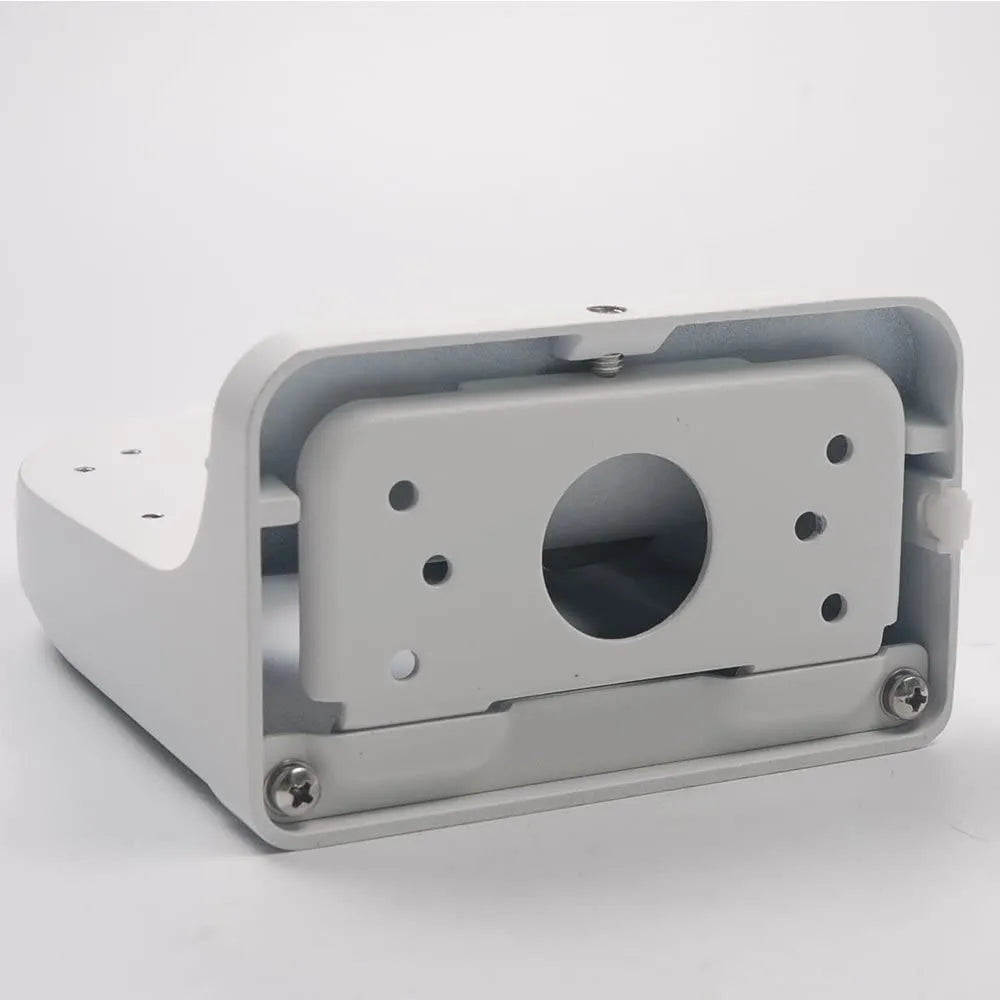

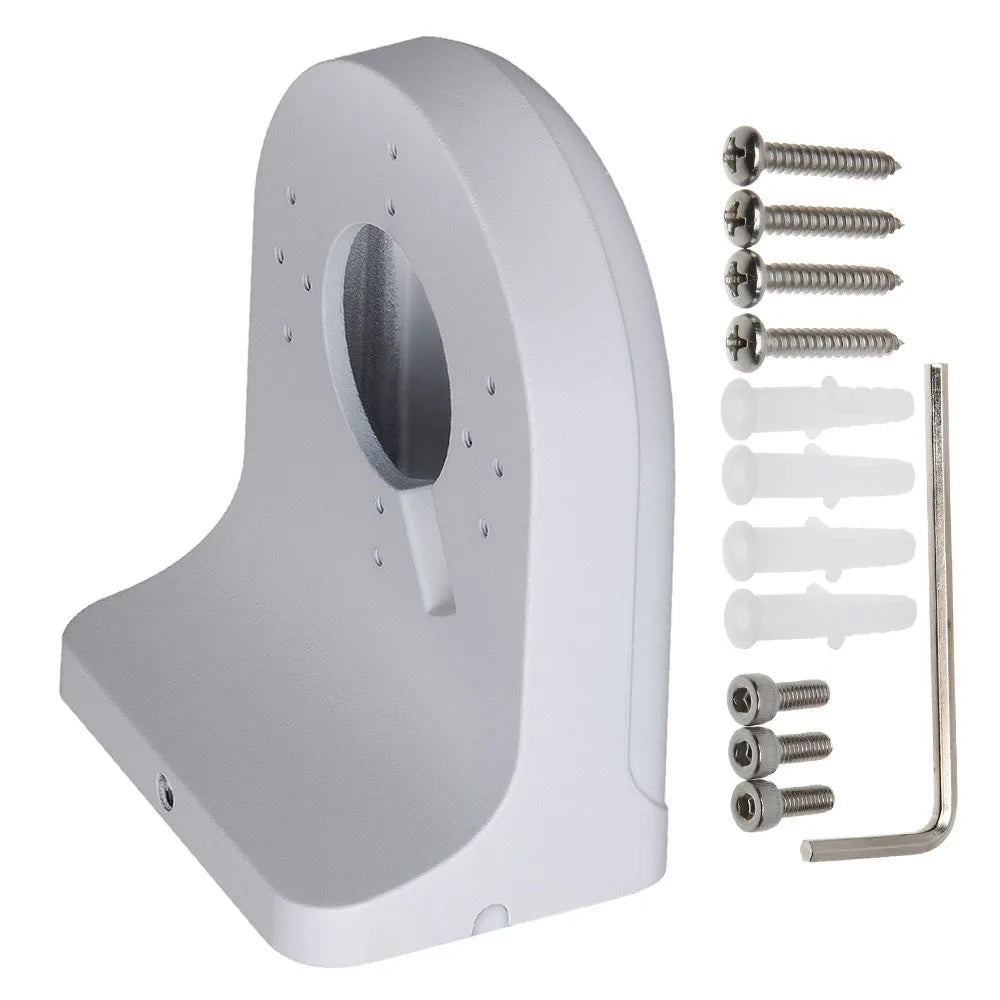

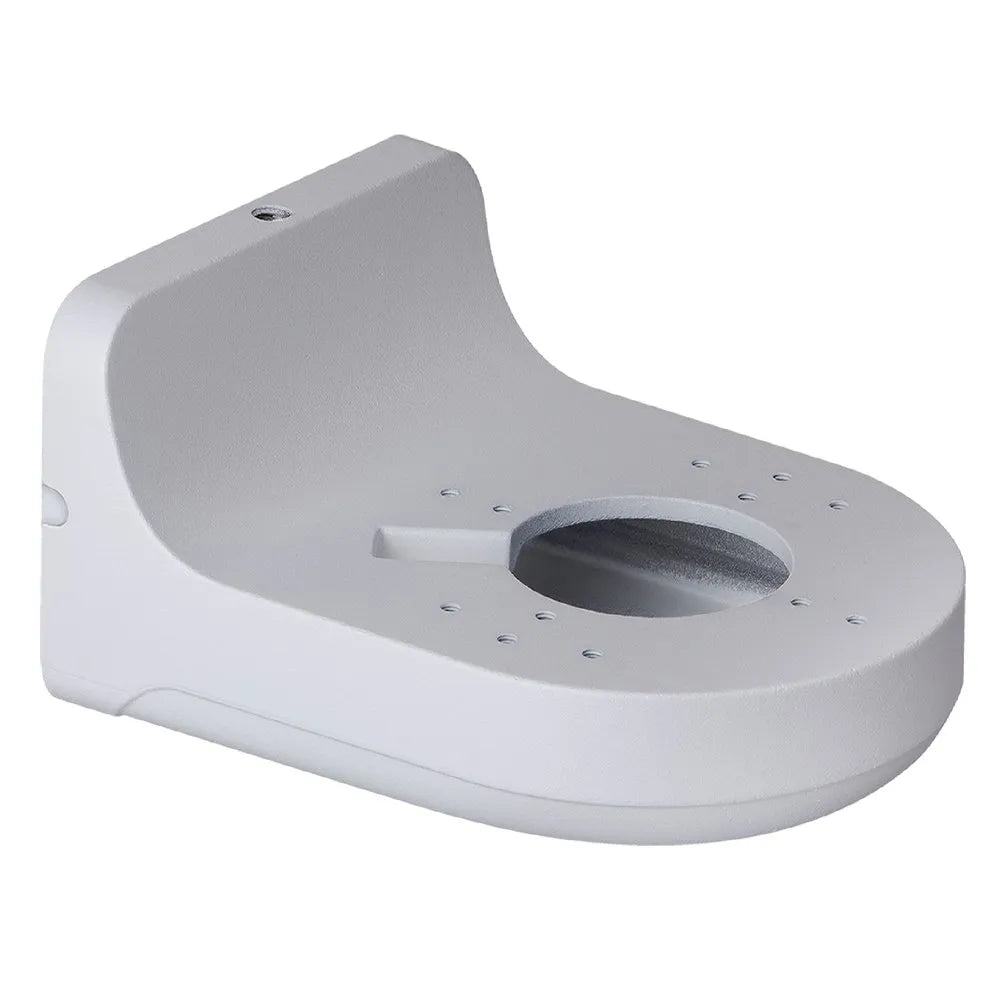

Dahua PFB204W Wall Mount Features

• Material: Aluminum and SECC
• Dimensions (L x W x H): 160.0 mm x 122.0 mm x 76.0 mm (6.30 in. x 4.80 in. x 2.99 in.)
• Operating Temperature: -40° C to 60° C (-40° F to 140° F)
• Humidity: 0 to 90% RH
• Load Bearing: 1.0 kg (2.20 lb)
• Weight: 0.49 kg (1.08 lb)
• Color: White

Dahua PFB204W Wall Mount Specifications

• Type: Wall Mount
• Part Number: PFB204W
• Description: Wall Mount Bracket
• Package Contents:
  • 1 x Wall Mount Bracket
  • 3 x M4 Screws
  • 3 x ST4 Screws
  • 4 x Plastic Anchors
  • 1 x Hex Wrench

HiLook TK-4145TC-MC 4-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 4-channel Analog DVR  with 2-ch IP Video Input (up to  6-ch if with no Analog channel used)
• DVR with Motion Detection 2.0: Human/Vehicle Analysis
• 1TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• 4 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
• High quality audio with audio over coaxial cable
• IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions

HiLook TK-6285TC-MC 8-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

• One 8-channel Analog DVR  with 8-ch IP Video Input (up to 16-ch if no Analog Channel used)
• DVR with Motion Detection 2.0: Human/Vehicle Analysis
• 2TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
• 6 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
• ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
• High quality audio with audio over coaxial cable
• IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions

8 MP HiLook 4 x 4K Cameras Combo Kit

EKI-K41T44C
4 x 4 MP ColorVu Turret IPC + 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265+
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265+
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

 Specification - Camera
Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

HiLook NVR-104MH-C/4P 4-Channel 4K NVR, HDD not included

Features:

• Up to 4-ch IP camera inputs
• Up to 1-ch@8 MP/5-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth
• Professional and Reliability - H.265+ compression effectively reduces the storage space by up to 75% (H.265+/H.265/H.264+/H.264 video formats)
• HD Video Output - Provide simultaneous HDMI and VGA outputs. HDMI video output at up to 4K resolution
• Storage and Playback - 1 SATA interfaces for HDD connection (up to 8 TB capacity per HDD). Smart search/smart playback to improve the playback efficiency
• Smart Function - Support multiple VCA (Video Content Analytics) events. Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• Network & Ethernet Access - 16 independent PoE network interfaces. 1 self-adaptive 10/100/1000 Mbps Ethernet interface. HiLookVision for easy network management

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth
•  Professional and Reliability
• H.265+ compression effectively reduces the storage space by up to 75% HD Video Output  Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution Storage and Playback  2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
•  Smart search/smart playback to improve the playback efficiency Smart Function
• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) Network & Ethernet Access
•  8 independent PoE network interfaces  1 self-adaptive 10/100 Mbps Ethernet interface  HiLookVision for easy network management

HiLook IPC-T249HA 2.8mm 4MP ColorVu Lite Fixed Turret Network PoE Camera

Features:

• Motion 2.0 supports Human and Vehicle Detection
• High quality imaging with 4MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• 24/7 colorful imaging with 2.8 mm Lens, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°, and F1.0 super aperture
• Water and dust resistant (IP67)
• Easy installation with Power over Ethernet (PoE) technology
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions
• Must be used with a HiLook or Hikvision NVR

The HiLook IK-6284TH-MH/P is an 8-channel, 4MP security camera system with easy setup, night vision, and remote viewing options for home or business security. It includes a recorder, hard drive, 6 cameras, and all necessary cables.

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Description

4MP H.265 One bullet + One turret WiFi NVS Kit
